Luce OrizzontaleLuce Orizzontale S1
Designed by Ronan & Erwan Bouroullec, 2022
Suspension lamp emitting direct and indirect light. Composed of interconnected cylindrical poured glass modules with an internal structure in polished extruded aluminium housing two linear LED modules. Power supply unit and DALI dimmer integrated into the ceiling rose. Touch control button positioned at one end of the product with control options: TOUCH, PUSH & TOUCH, DALI & TOUCH. Dimming range 10–100%. LED modules are removable and replaceable for maintenance.
110W - 5345lm - 2700K - CRI> 95
Technical Drawing
Main specifications
EAN
8059607049884
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
110
Lumen Output (lm)
5345
Photometric
Lighting type
,
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
LED current (mA)
500
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Length (mm)
1656
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
900
Canopy width (mm)
61
Canopy height (mm)
78
Net weight (kg)
27.8
Package volume (m3)
0.18
IP internal
Spare Parts

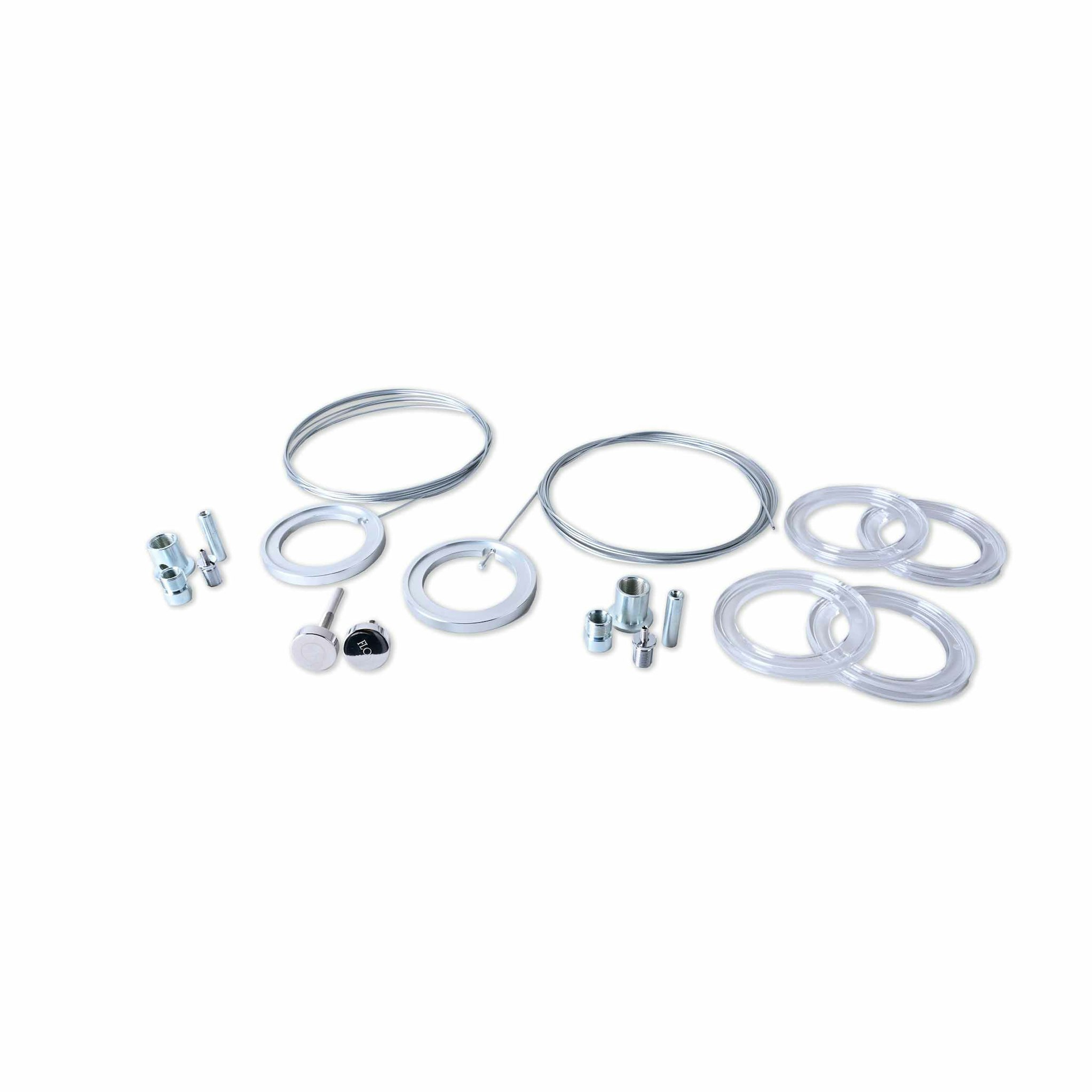

00. Assembly Accesories for Luce Orizzontale Suspension 1
RF3746800
01. Luce Orizzontale Suspension 1 Led board
RF3746700
02. Luce Orizzontale/Sferica/Cilindrica Ring and 4 meters steel wire cable
RF3746200
03. Luce Orizzontale Closed glass difusser
RF3746300
04. Luce Orizzontale Open glass difusser
RF3746400
05. Luce Orizzontale Suspension Linear diffuser
RF3746500

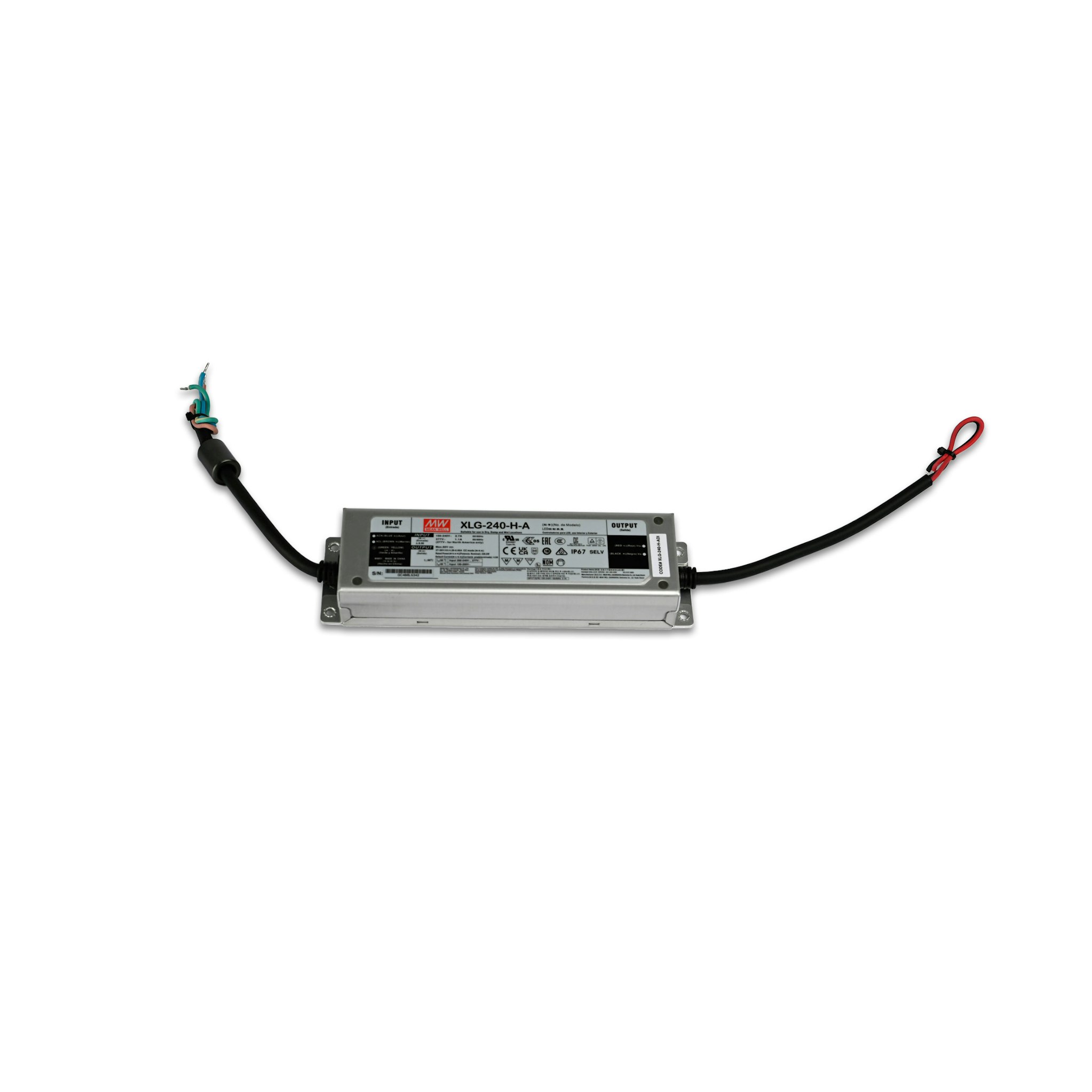

06. Luce Orizzontale Driver assembly
RF3750400
07. Luce Orizzontale/Sferica/Cilindrica Ceiling rose dimmer
RF36893

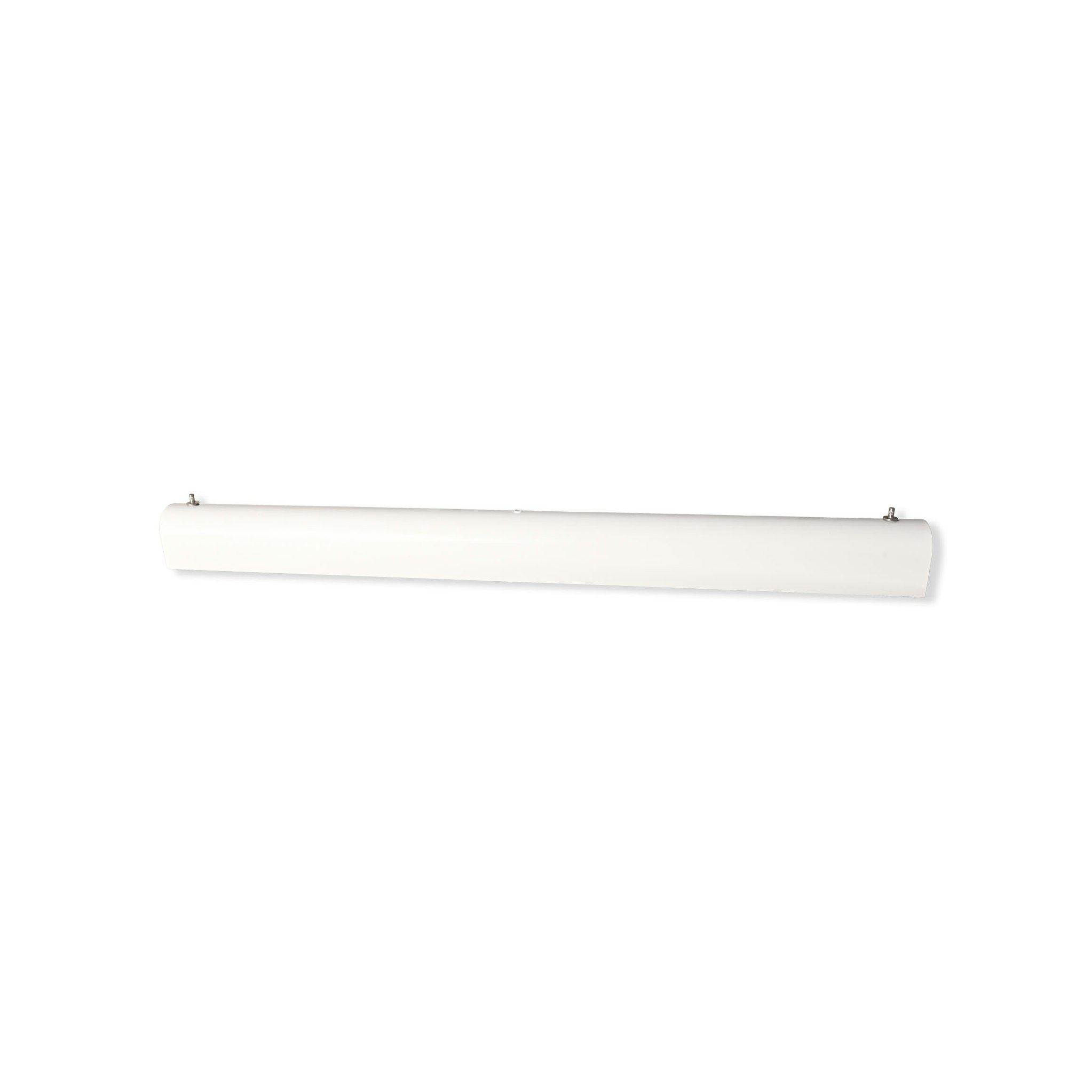

08. Luce Orizzontale Suspension ½ Ceiling rose cover
RF3746600
