Luce SfericaLuce Sferica S1
Designed by Ronan Bouroullec, 2025

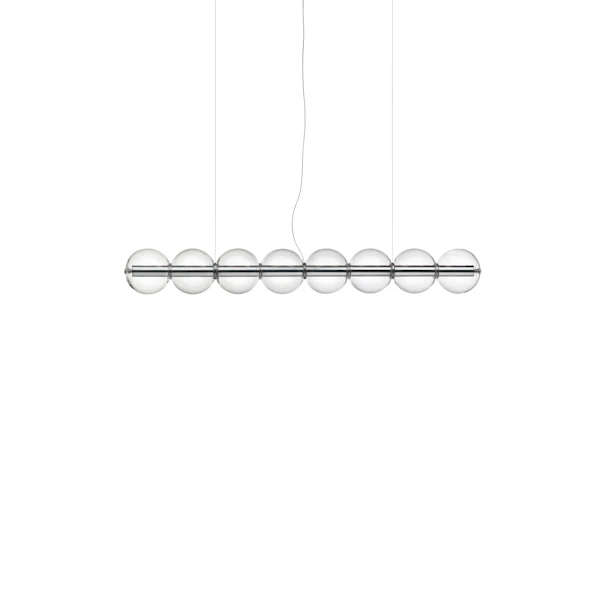

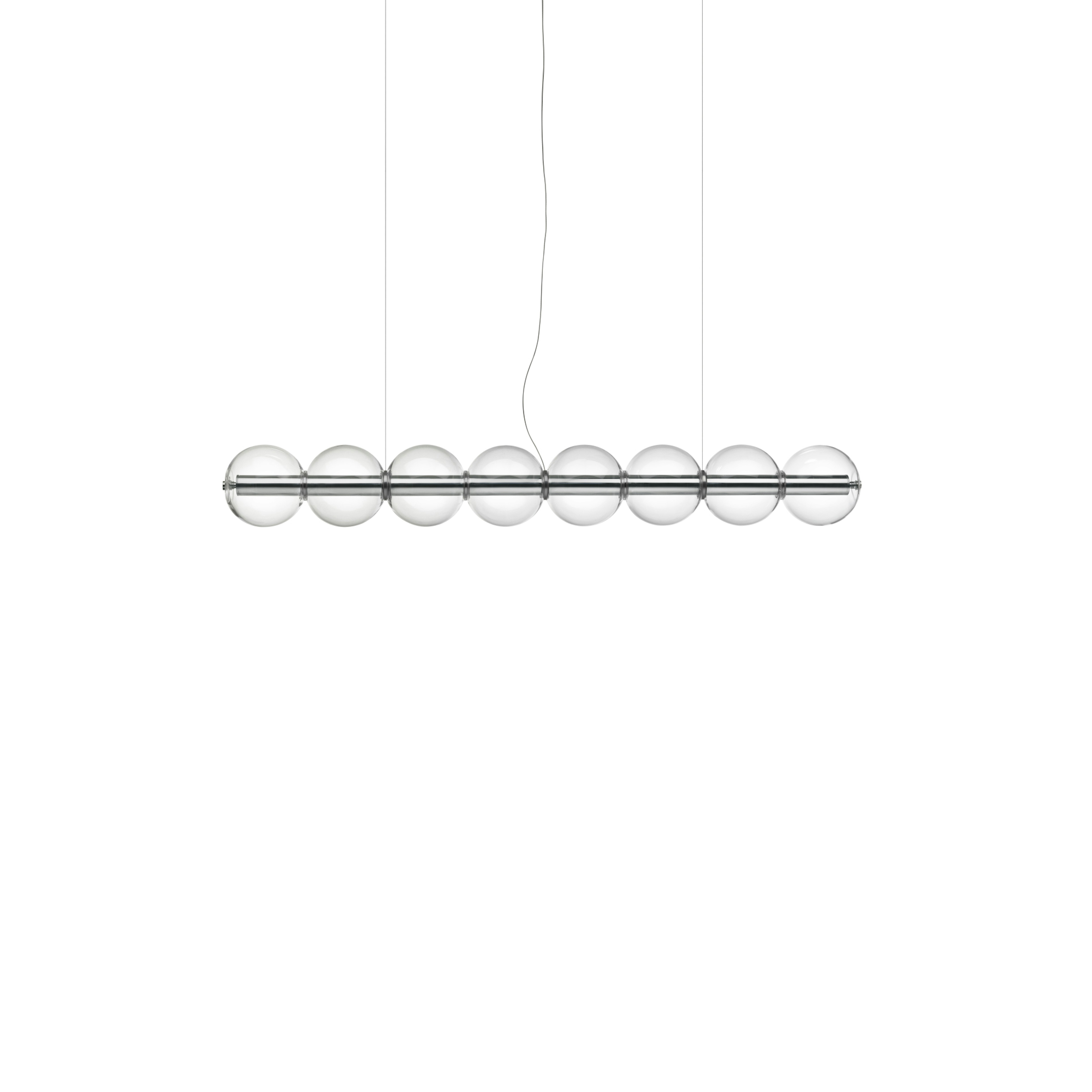

Modular suspension lamp emitting diffused light. Horizontal body in polished extruded aluminium with two linear LED sources for upward and downward emission. Integrated touch dimmer enables independent control of light outputs. Body encased in a sequence of hand-blown transparent glass spheres separated by traditional spacers. Can be installed in multiple parallel rows.
110W - 5778lm - 2700K - CRI> 95
Technical Drawing
Main specifications
EAN
8059607075685
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
110
Lumen Output (lm)
5778
Photometric
Lighting type
,
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
LED current (mA)
500
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Length (mm)
1656
productFields.physical.cordLength
2700
Canopy length/diameter (mm)
509
Canopy width (mm)
103
Canopy height (mm)
43
Net weight (kg)
10.35
Package volume (m3)
0.46
IP internal
Spare Parts

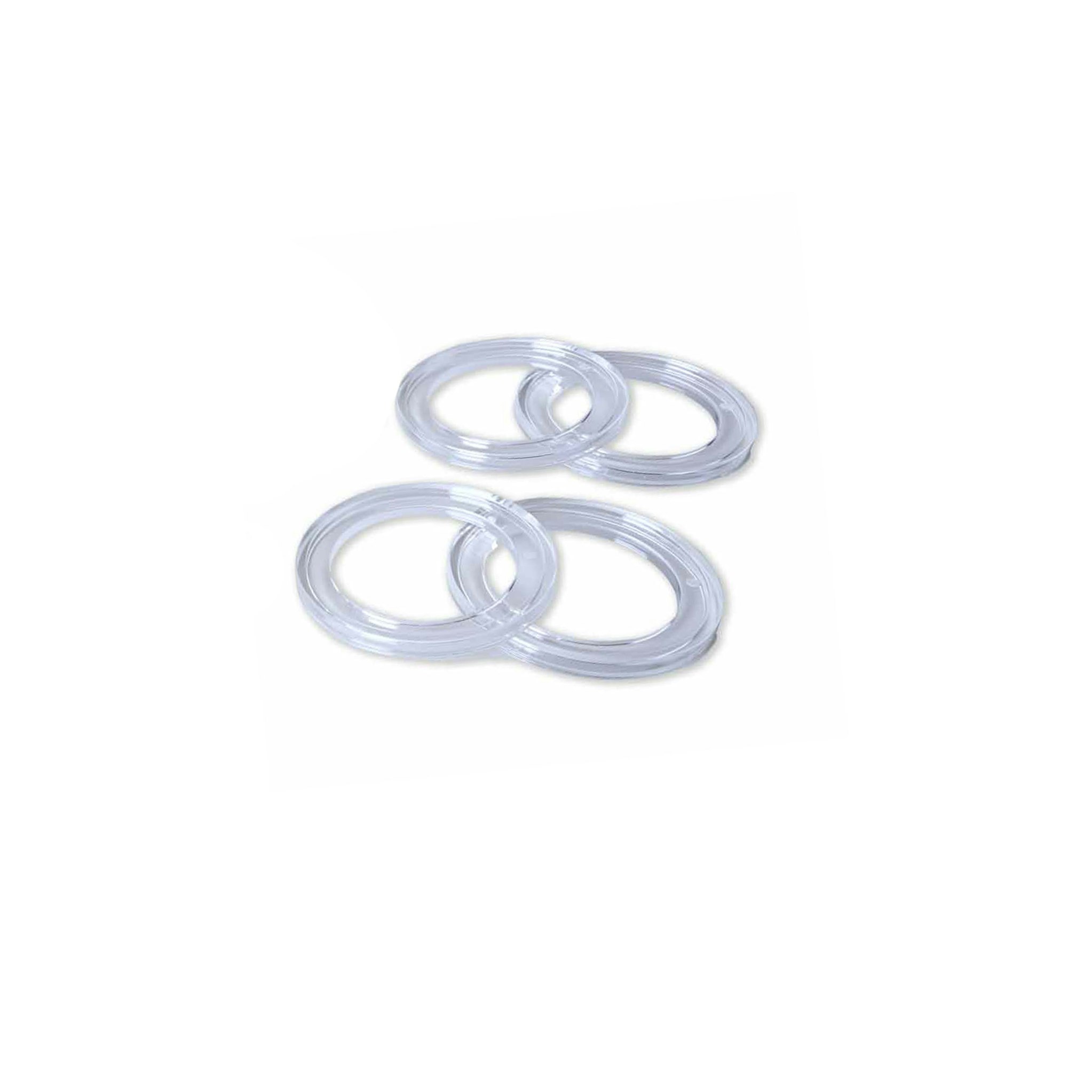

00. Luce Orizzontale/Sferica/Cilindrica 4-piece spacer ring kit
RF39006
01. Luce Orizzontale/Sferica/Cilindrica steel wire cable fixing kit
RF3750100
02. Luce Orizzontale/Sferica/Cilindrica Power supply
RF32976
03. Luce Orizzontale/Sferica/Cilindrica Ceiling rose dimmer
RF36893
04. Luce Orizzontale/Sferica/Cilindrica Ceiling rose cover EUR
RF37946

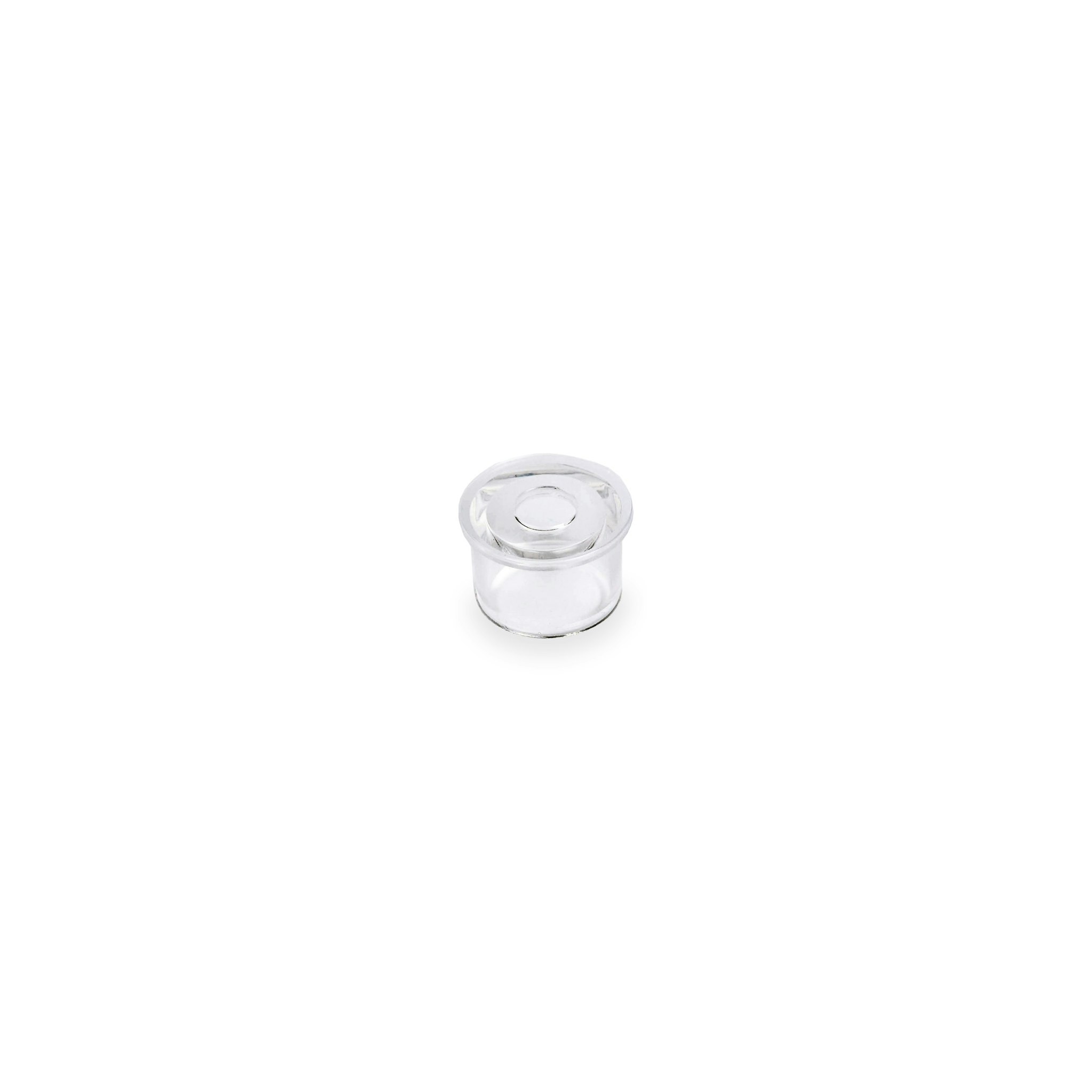

05. Luce Sferica/Cilindrica Glass closing bushing
RF37580
06. Luce Orizzontale Suspension Linear diffuser
RF3746500

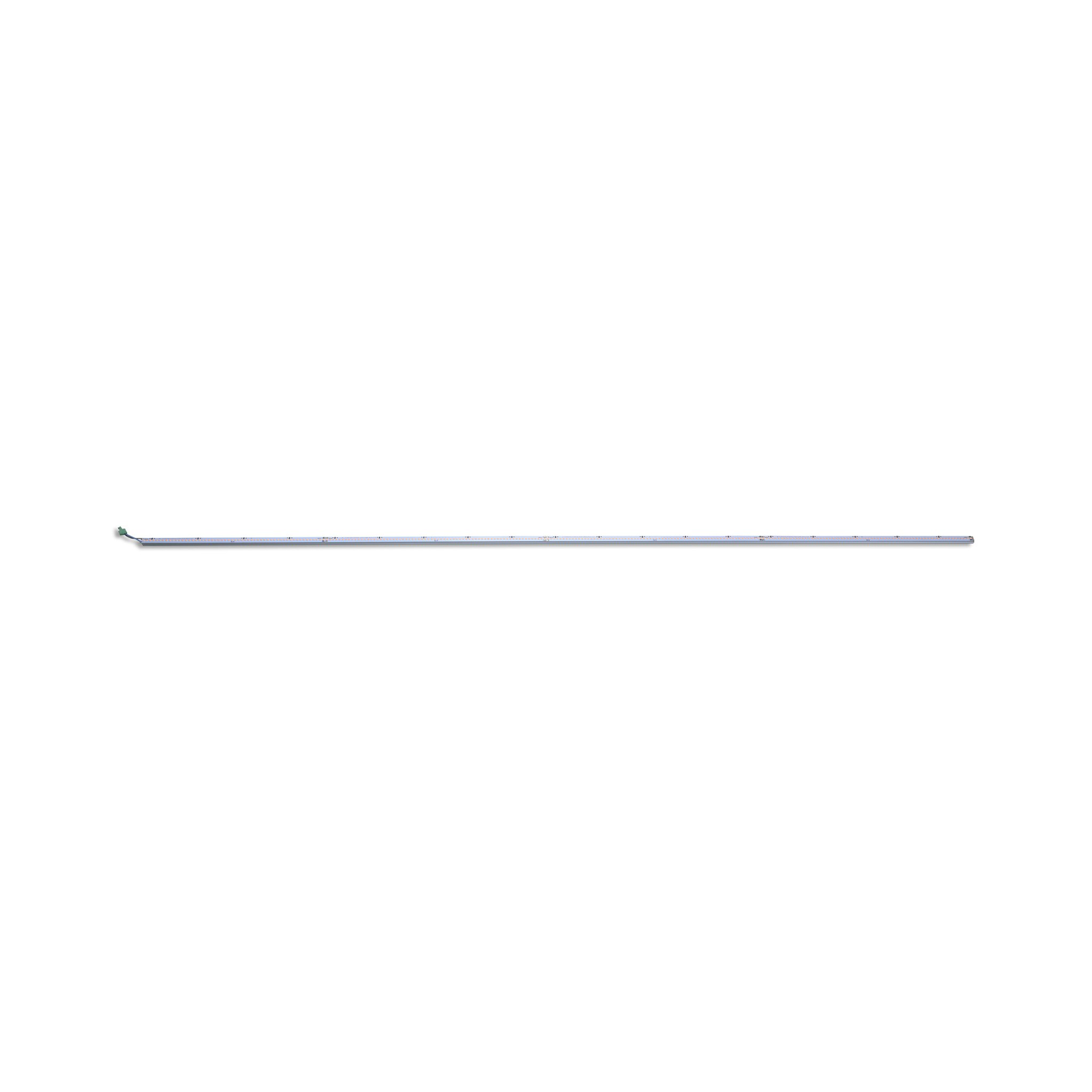

07. Luce Orizzontale Suspension 1 Led board
RF3746700
08. Luce Sferica closed glass diffuser
RF3750600
09. Luce Sferica open glass diffuser
RF3750500
10. Luce Orizzontale/Sferica/Cilindrica Ring and 4 meters steel wire cable
RF3746200
