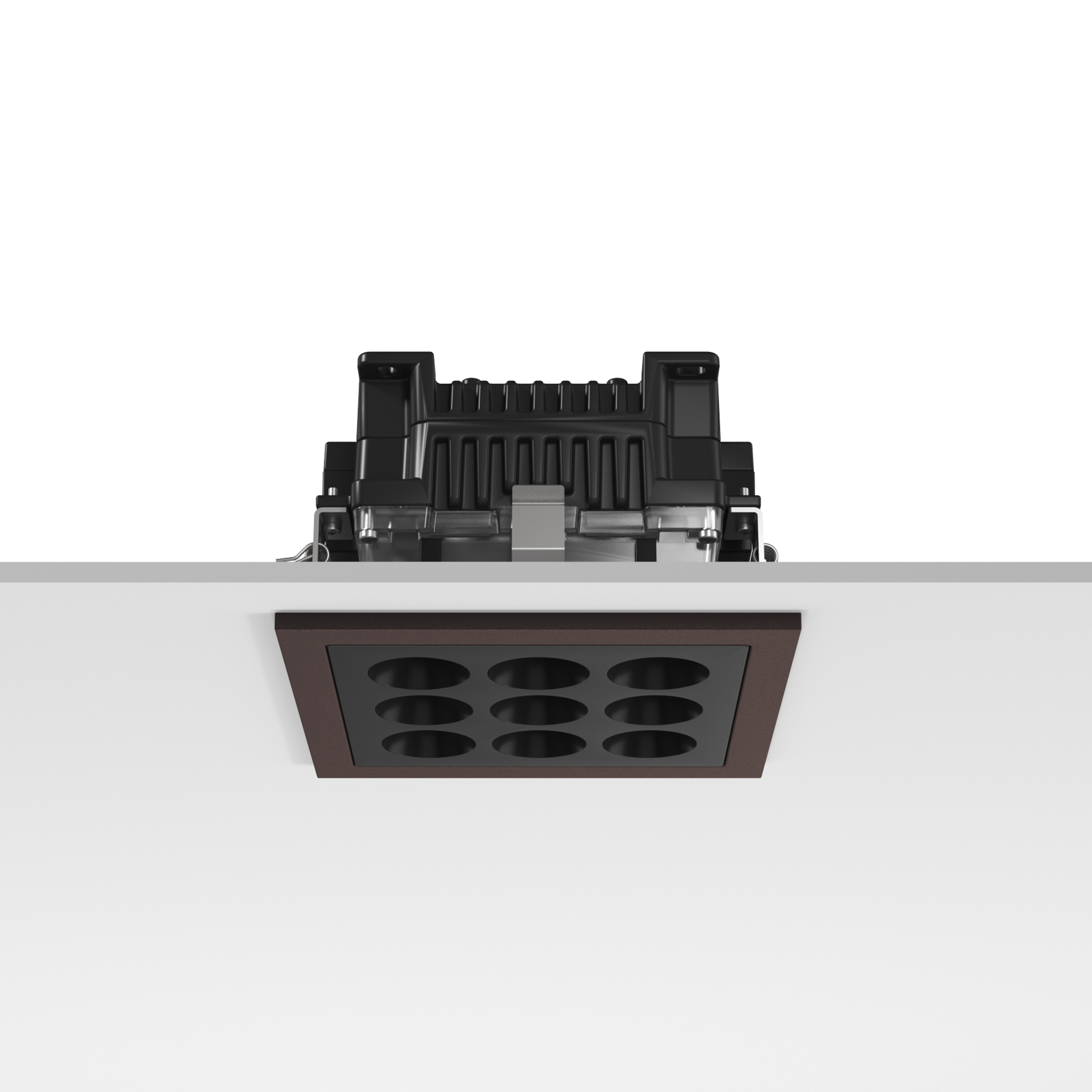

MileMile Recessed 2
Designed by Antonio Citterio, 2020
LED light source included. Integrated 220-240V ON/OFF and 1-10V/DALI dimmable electrical power. Equipped with neoprene cable outlet and double cable grommet for in/out connection. Ceiling mounting springs included. Box for brick roofing installation to be ordered separately.
1392lm - 3000K - CRI> 80 - Beam° 26
Technical Drawing
Main specifications
EAN
8054793556338
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
System power (W)
15
Lumen Output (lm)
1392
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
26
Beam angle C90-270 (º)
26
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Net weight (kg)
1.17
Package height (mm)
130
Package width (mm)
185
Package length (mm)
185
IP internal
