Button
F1490009

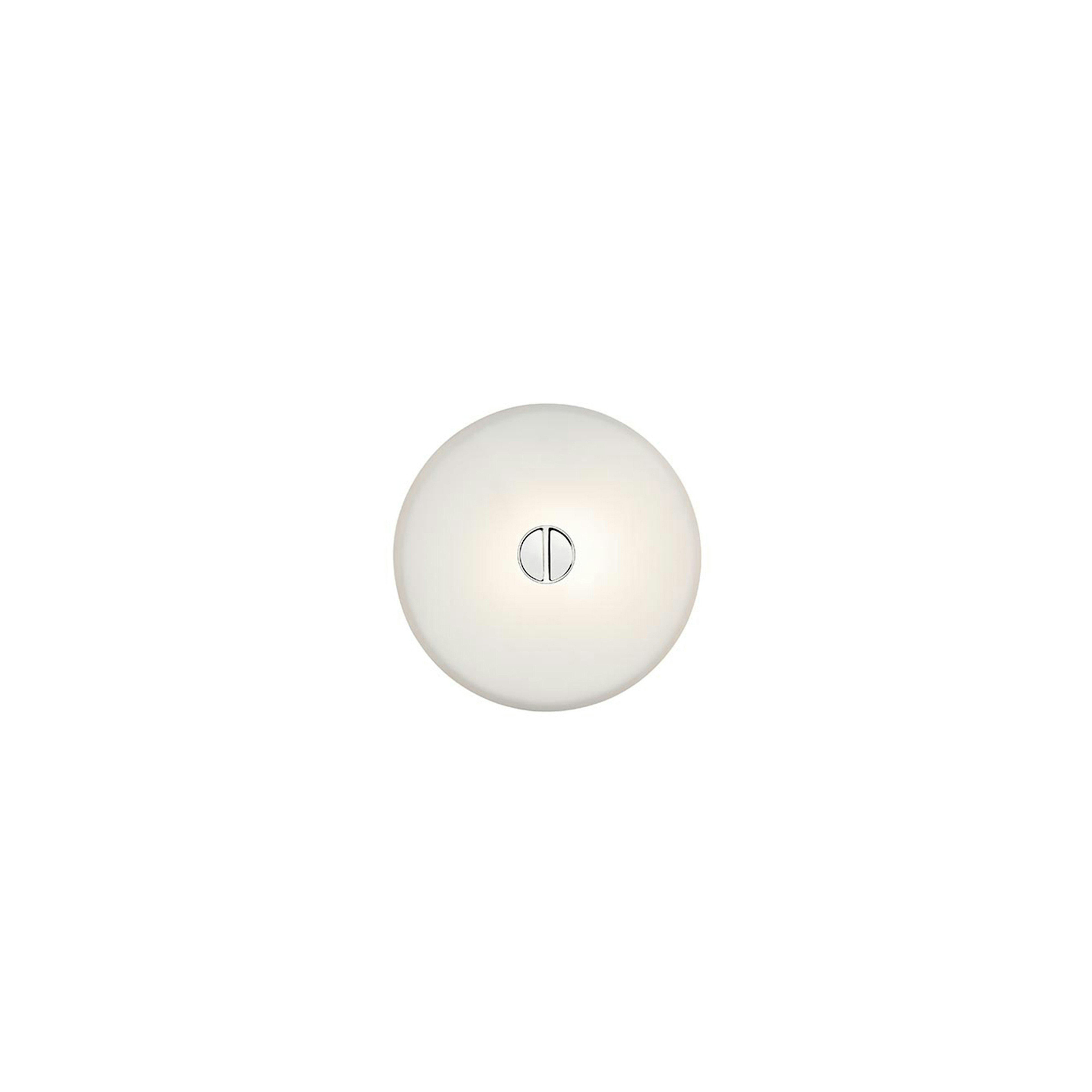

Mini Button

Wall or ceiling fixture providing diffused lighting suitable for indoor and outdoor use. Silicone elastomer dust and waterproof seal. Die-cast aluminum lamp body and wall fitting. Diffuser available in opaline glass or polycarbonate (IP44).

Halogen - 25W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Button-Mini
Main specifications
EAN
8059607015179
Mounting
,
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
25
Schematic light drawing
mini-button-ceiling-wall-lissoni-flos-F1491009-curva-fotometrica-01
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
140
Net weight (kg)
0.65
Package height (mm)
70
Package width (mm)
190
Package length (mm)
205
IP internal

Download

Tech spec pdf

Bulbs

x1
NOT INCLUDEDLED Lamp 2W 240lm G9 220-240 2700K T13 Non DimmableRF26520
x1
NOT INCLUDEDLED BiPin Lamp G9 3,2W 2700K DimmableRF36378

Spare Parts

F1490009-minibutton-flos-boom
01. G9 K540D lampholder
RF31587

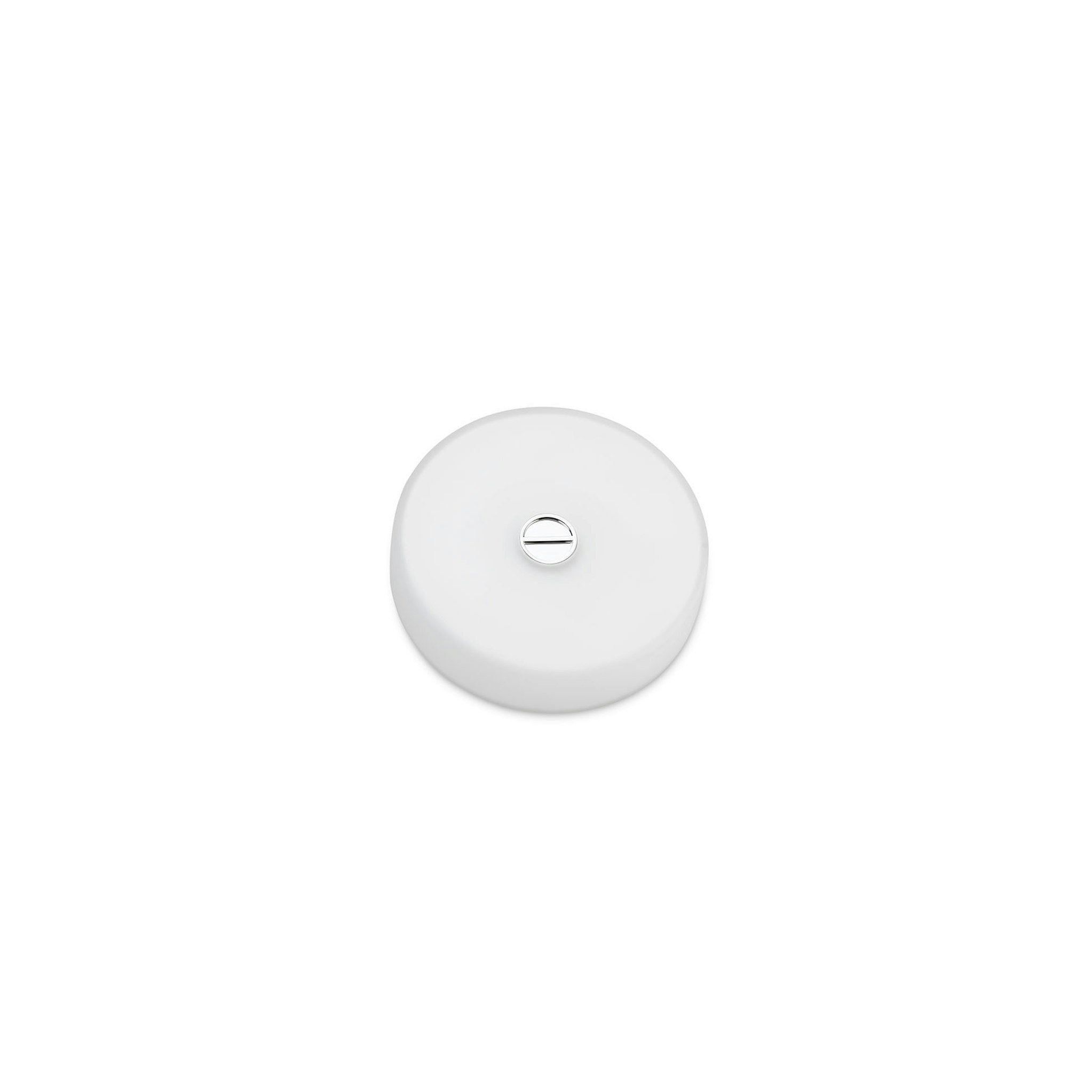

02. Mini Button Glass diffuser assembly
RF1490109
x1
G9 K540D lampholderRF31587
Thumbnail
x1
Mini Button Glass diffuser assemblyRF1490109
