Glo-Ball
F4190009

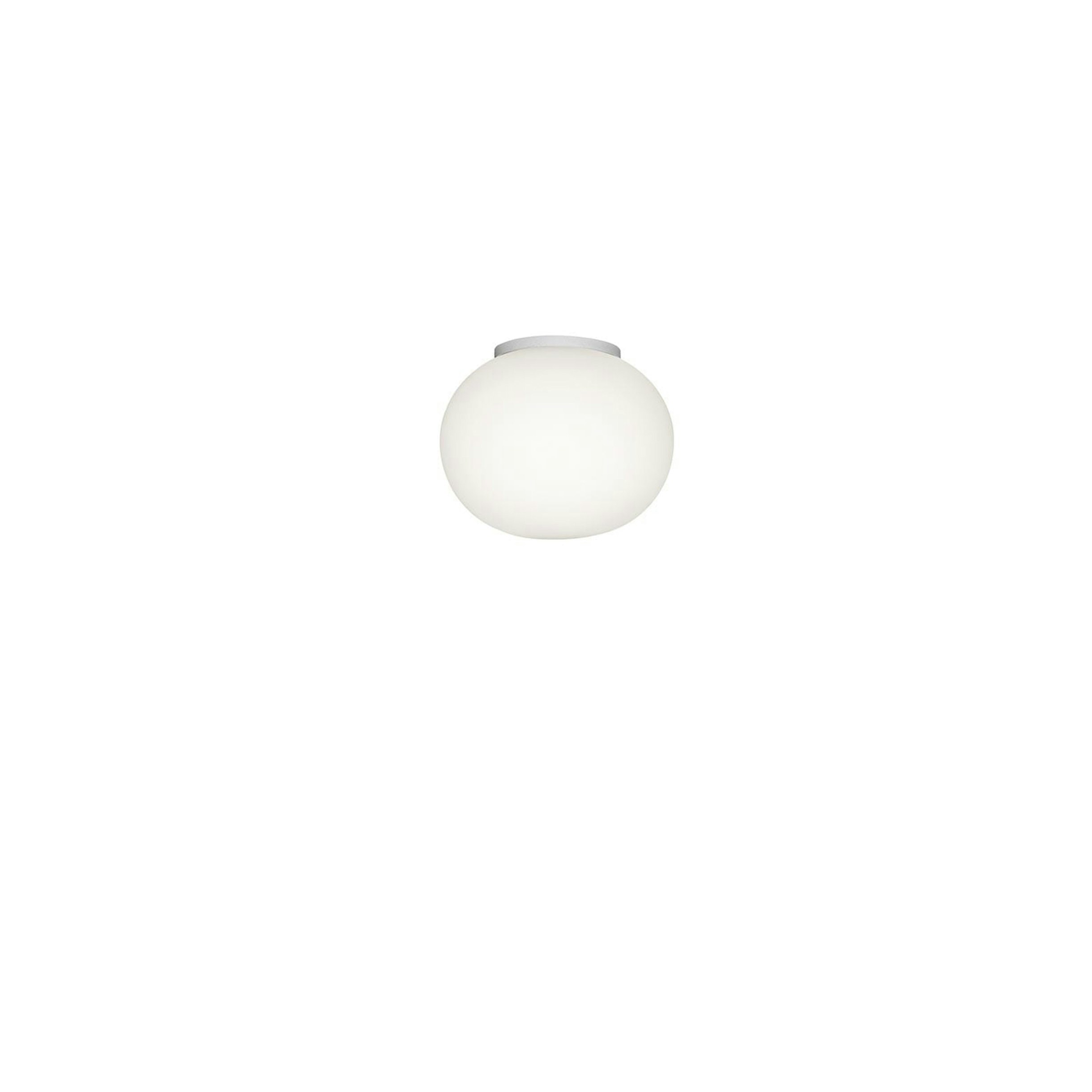

Mini Glo-Ball Ceiling/Wall Mirror

Lamp for ceiling, wall or mirror providing diffused light. Diffuser consisting of an externally acidetched, hand blown, flashed opaline glass and of a white, injection-molded PPS threaded ring nut. Injection-molded PPS white mirror ring nut. MIRROR HOLE: ø 35 mm.

Halogen - 25W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Ceiling_Wall-Glo_Ball-Mini
Main specifications
EAN
8059607019986
Mounting
,
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
25
Schematic light drawing
F4194009WMINI_GLO-BALL_CW_25W-HL
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
190
Net weight (kg)
0.29
Package height (mm)
190
Package width (mm)
190
Package length (mm)
190
Package volume (m3)
0.01
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Bulbs

x1
NOT INCLUDEDLED Lamp 2W 240lm G9 220-240 2700K T13 Non DimmableRF26520
x1
NOT INCLUDEDLED BiPin Lamp G9 3,2W 2700K DimmableRF36378

Spare Parts

F4190009-mini-glo-ball-cw-flos-boom
01. Mini Glo-Ball Ceiling/Wall & Table new diffuser assembly
RF4190400

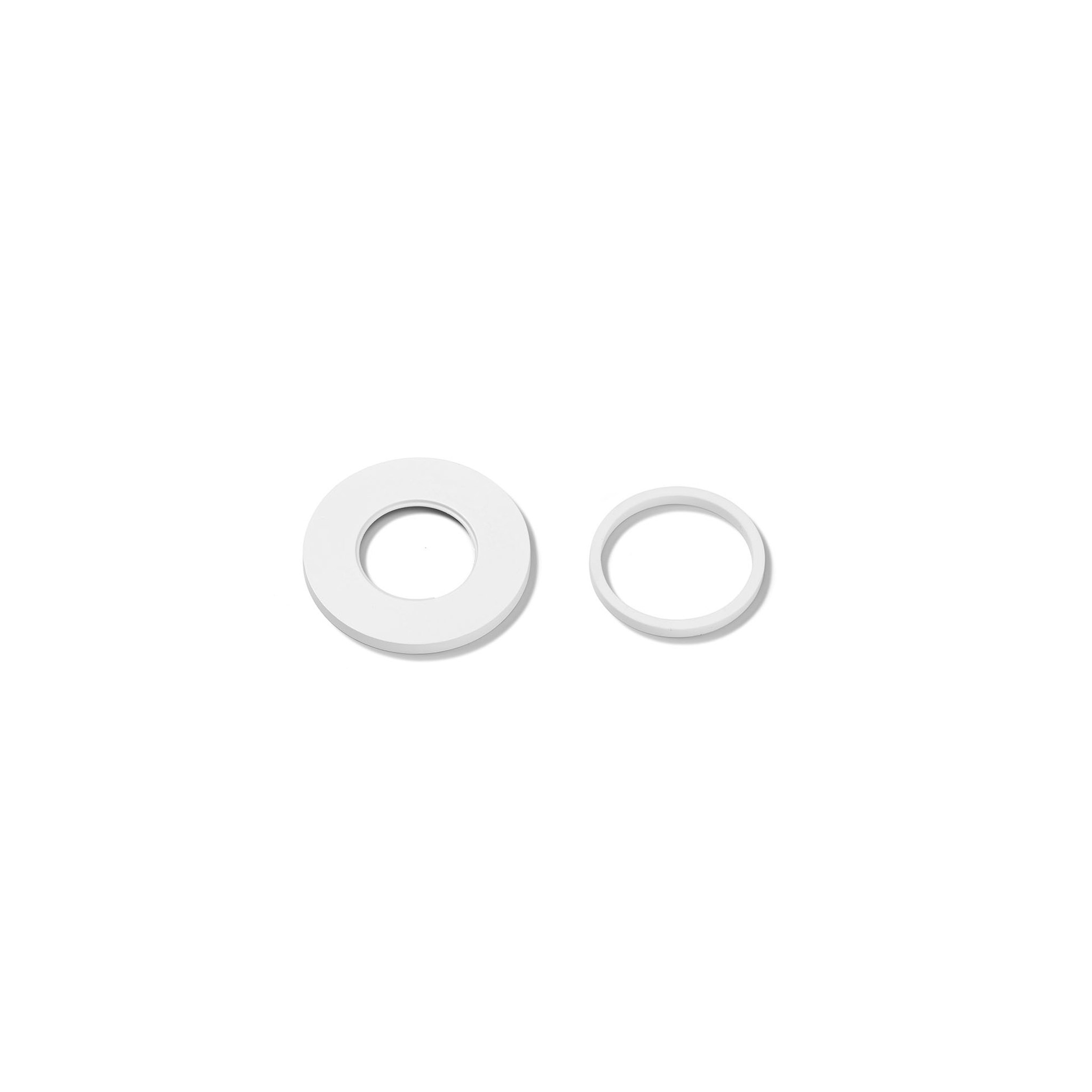

02. Ring nut & gasket kit
RF4190300
03. G9 5600 lamp holder
RF12818
Thumbnail
x1
Mini Glo-Ball Ceiling/Wall & Table new diffuser assemblyRF4190400
Thumbnail
x1
Ring nut & gasket kitRF4190300
Thumbnail
x1
G9 5600 lamp holderRF12818
