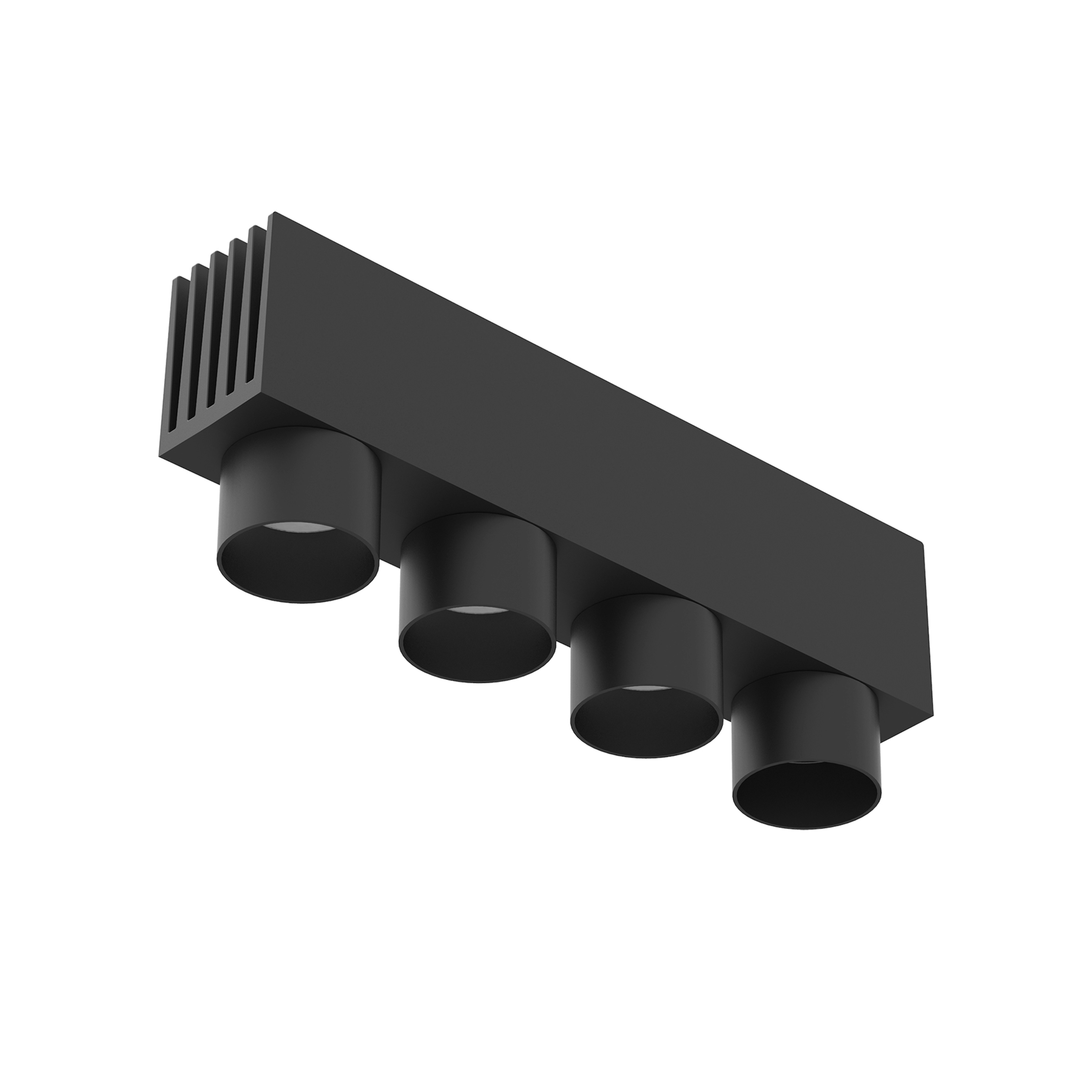

The Running MagnetMulti Spot 4 Dali Version
Designed by FLOS Architectural, 2016
Accent lighting LED module to be installed in The Running Magnet System. Built-in DC/DC electronic voltage converter.
LED - Power LED - 10W - 630lm - 2700K - CRI> 90 - Beam° 11
Also available in:
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
10
System power (W)
11.3
Source flux (lm)
878
Lumen Output (lm)
630
Efficacy (lm/W)
55.75
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50>50.000h (Tc=85ºC)
Beam angle C0-180 (º)
11
Beam angle C90-270 (º)
11
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
24
Power supply
Dimmable
Power supply type
Dimming range (%)
1-100
Dimming interface
Physical
Colour
Orientation
Length (mm)
160
Net weight (kg)
0.35
IP internal
Notes
For wireless lighting control, choose integrated Casambi versions. For the sizing of the installation keep a safety margin of 15% of the maximum power of the LED power source.
