05.2994.C5

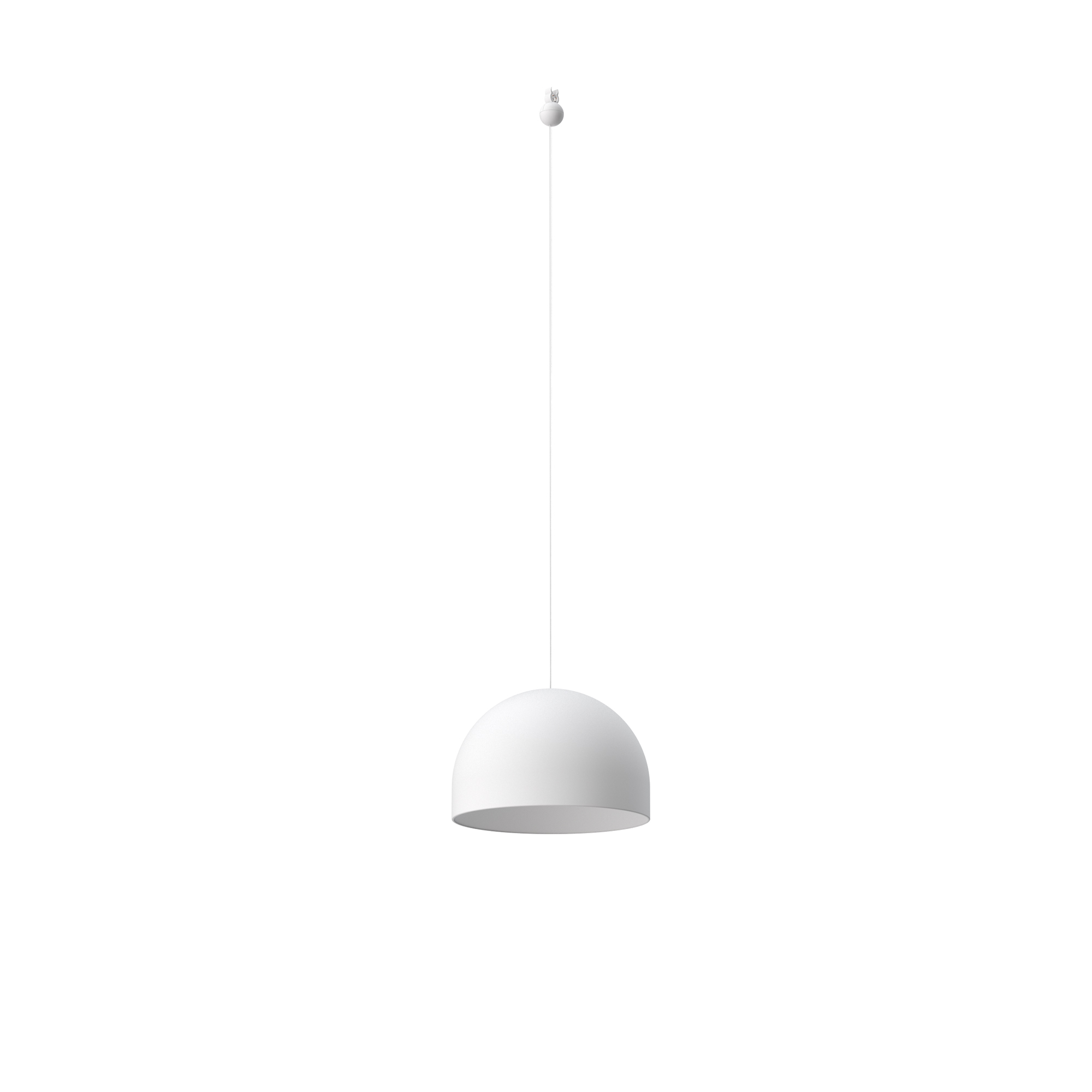

My Circuit Dome

Suspended luminaire for installation in the My Circuit system. Diffused downlight emission. Adjustable suspension height. Casambi version for wireless control.

40W - 2268lm - 2700K - CRI> 90 - Beam° 110

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-System-My_Circuit-Dome
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
40
Source flux (lm)
3400
Lumen Output (lm)
2268
Efficacy (lm/W)
53
Schematic light drawing
EU_05_2994_XX_XXW40
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
91
Rg gamut index
92
LED Life / Failure Ratio
L70B50 > 65.000h (Tc=85ºC)
Beam angle C0-180 (º)
110
Beam angle C90-270 (º)
110
Electrical
Insulation class
Forward voltage (V)
48
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Orientation
Length (mm)
500
Cord colour
Net weight (kg)
0.2
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE3

PWRSUPRPL2

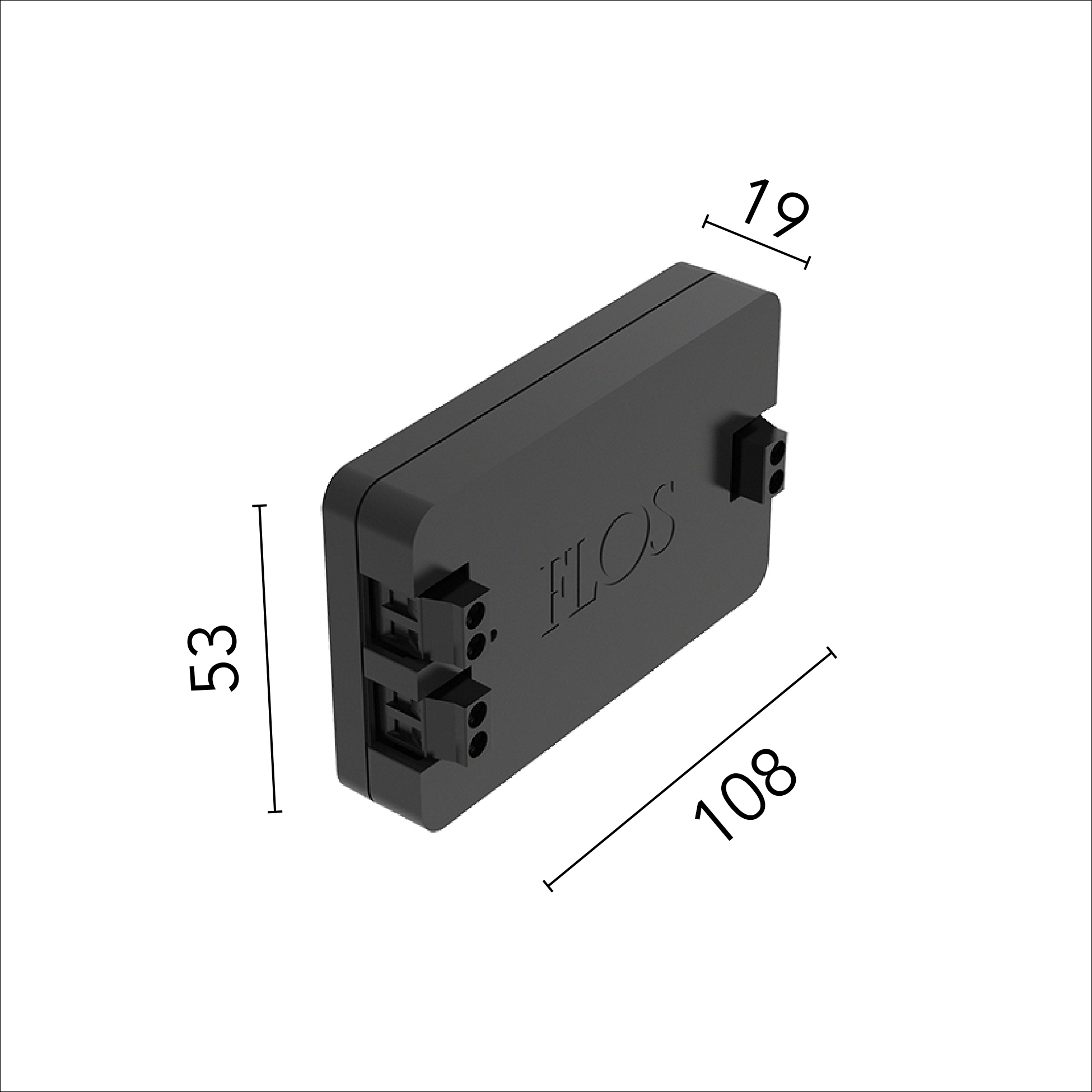

Accessories & Power Supply

Optional(1)
