My CircuitMy Circuit Lines
Designed by Michael Anastassiades, 2023

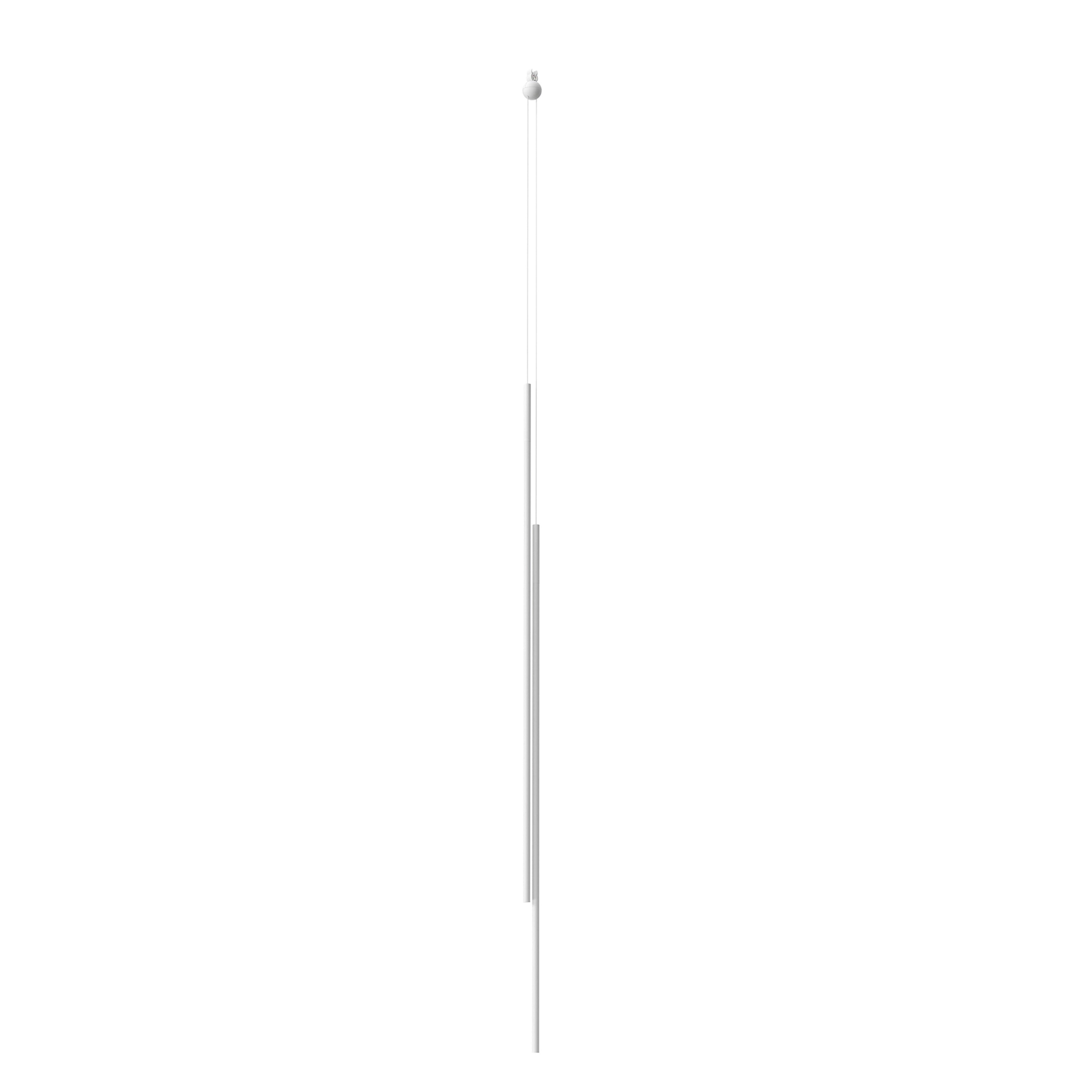

My Circuit Lines is a suspended lamp with diffused light composed of two vertical bars that can be oriented, attached to a spherical adapter with matte white finish compatible with My Circuit track system. Each element is made of extruded anodized aluminium with a White matte finish and a diffuser in platinum optical silicone with an integrated LED strip (CRI 90). Usable power cable length 300cm with adjustable brightness 10–100%.
2 x 23W - 2 x 1393lm - 2700K - CRI> 90 - Beam° 110
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
2
Power (W)
23
Source flux (lm)
2360
Lumen Output (lm)
1393
Schematic light drawing
Photometric
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
91
Rg gamut index
100
LED Life / Failure Ratio
L70B50>65000h (Tc=85ºC)
Beam angle C0-180 (º)
110
Beam angle C90-270 (º)
110
Extreme cut off
No
Electrical
Insulation class
Forward voltage (V)
48
Power supply
Dimmable
Power supply type
Dimming range (%)
1-100
Physical
Colour
Net weight (kg)
2.13
IP internal
