05.2997.C5

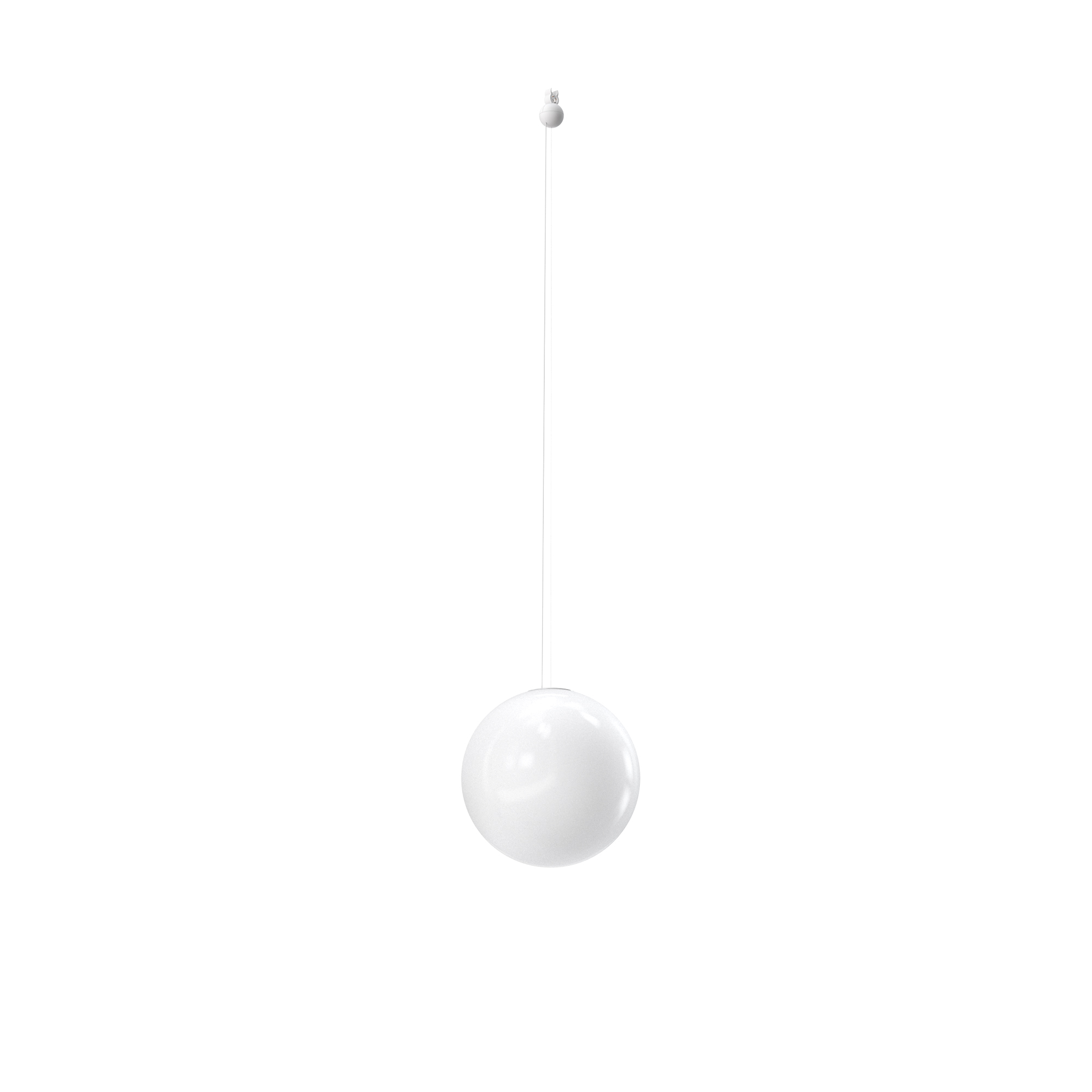

My Circuit Sphere

Suspended luminaire for installation in the My Circuit system. Diffused omnidirectional emission. Adjustable suspension height. Casambi version for wireless control.

40W - 2268lm - 3000K - CRI> 90 - Beam° 310

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-System-My_Circuit-Sphere
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
40
Source flux (lm)
3900
Lumen Output (lm)
2268
Efficacy (lm/W)
61
Schematic light drawing
EU_05_2997_XX_XXW40
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
91
Rg gamut index
92
LED Life / Failure Ratio
L70B50 > 63.000h (Tc=85ºC)
Beam angle C0-180 (º)
310
Beam angle C90-270 (º)
310
Extreme cut off
No
UGRL
<19
Electrical
Insulation class
Forward voltage (V)
48
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Orientation
Length (mm)
459
Cord colour
Net weight (kg)
0.2
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE3

PWRSUPRPL2

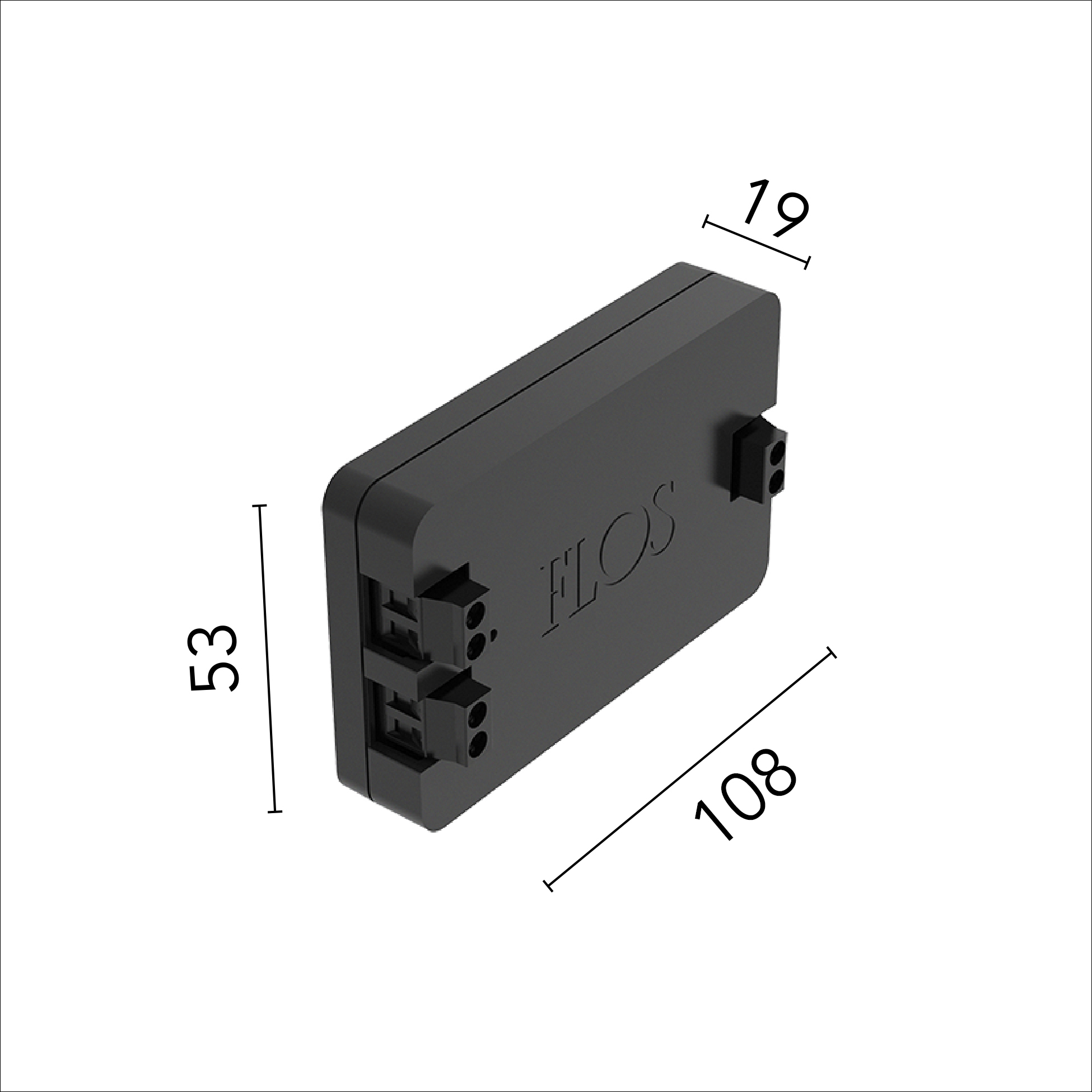

Accessories & Power Supply

Optional(1)
