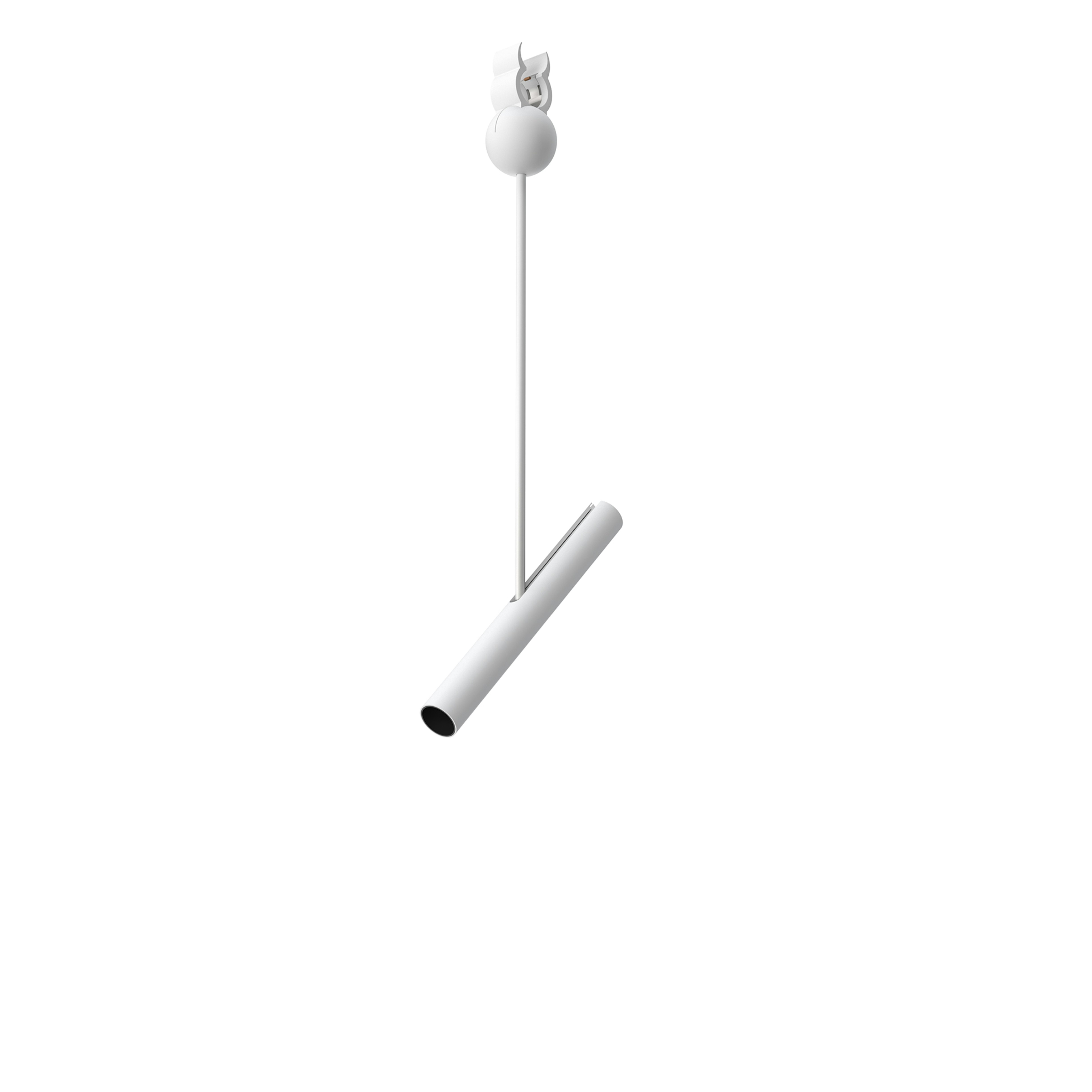

My CircuitMy Circuit Spot Ø25
Designed by Michael Anastassiades, 2023
LED lighting module for installation in the My Circuit system. Optical with double focal lens technology, low glare and high visual comfort. Adjustable by tilting and turning. In the downlight position, the track connector arm is perfectly flush with the product. Casambi version for wireless control.
148lm - 3000K - CRI> 90 - Beam° 21
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
System power (W)
4
Source flux (lm)
262
Lumen Output (lm)
148
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Rf fidelity index
95
Rg gamut index
104
LED Life / Failure Ratio
L80B50>60.000h_Tc85ºC
Beam angle C0-180 (º)
21
Beam angle C90-270 (º)
21
Extreme cut off
Yes
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
48
LED current (mA)
820
Power supply
Dimmable
Power supply type
Physical
Colour
Orientation
Rotation (º)
360
Transversal tilting (°)
90
Length (mm)
200
Net weight (kg)
0.25
IP internal
Notes
Ask us about bespoke track connector arm lengths.
