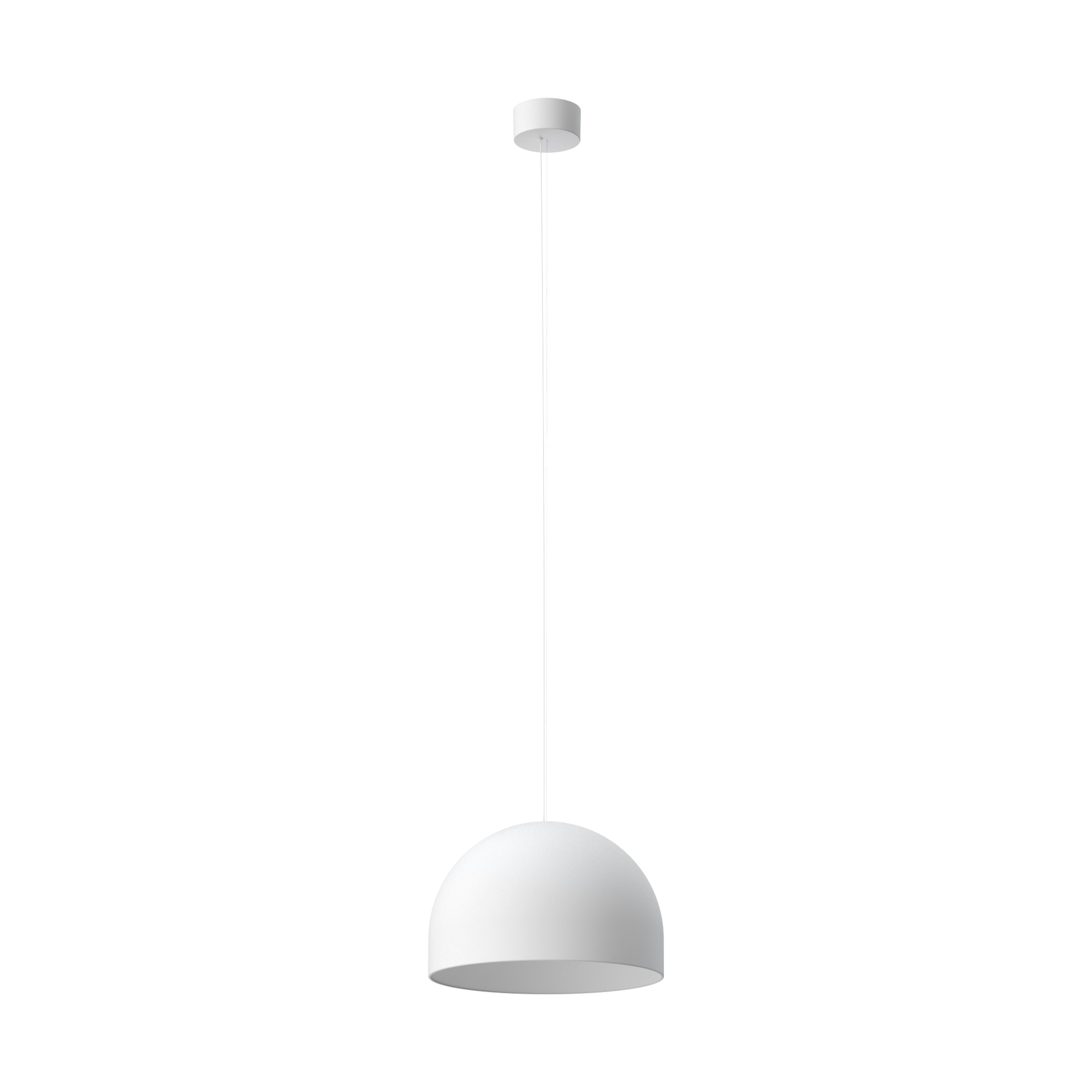

My DomeMy Dome
Designed by Michael Anastassiades, 2023
Suspension lamp emitting direct light. Composed of a half-sphere that evenly projects light downwards. Integrated white sandblasted diffuser shields the light source to ensure visual comfort and optimal light distribution. Brightness adjustable from 10–100%. Canopy with integrated electronics to support PUSH, 1–10 V and DALI dimming systems sold separately.
LED retrofit - 2 x 40W
Technical Drawing
Main specifications
EAN
8059607063606
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Number of lamps
2
Power (W)
40
Schematic light drawing
Photometric
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Power supply type
,
Dimming interface
Physical
Colour
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
130
Canopy height (mm)
40
Net weight (kg)
4
Package height (mm)
530
Package width (mm)
630
Package length (mm)
630
Package volume (m3)
0.21
IP internal
Spare Parts
01. My Sphere/My Dome ceiling rose assembly
RF1915109
02. My Sphere/My Dome PVC white cable
RF36155
03. Steel cable 3meters.
RF36246

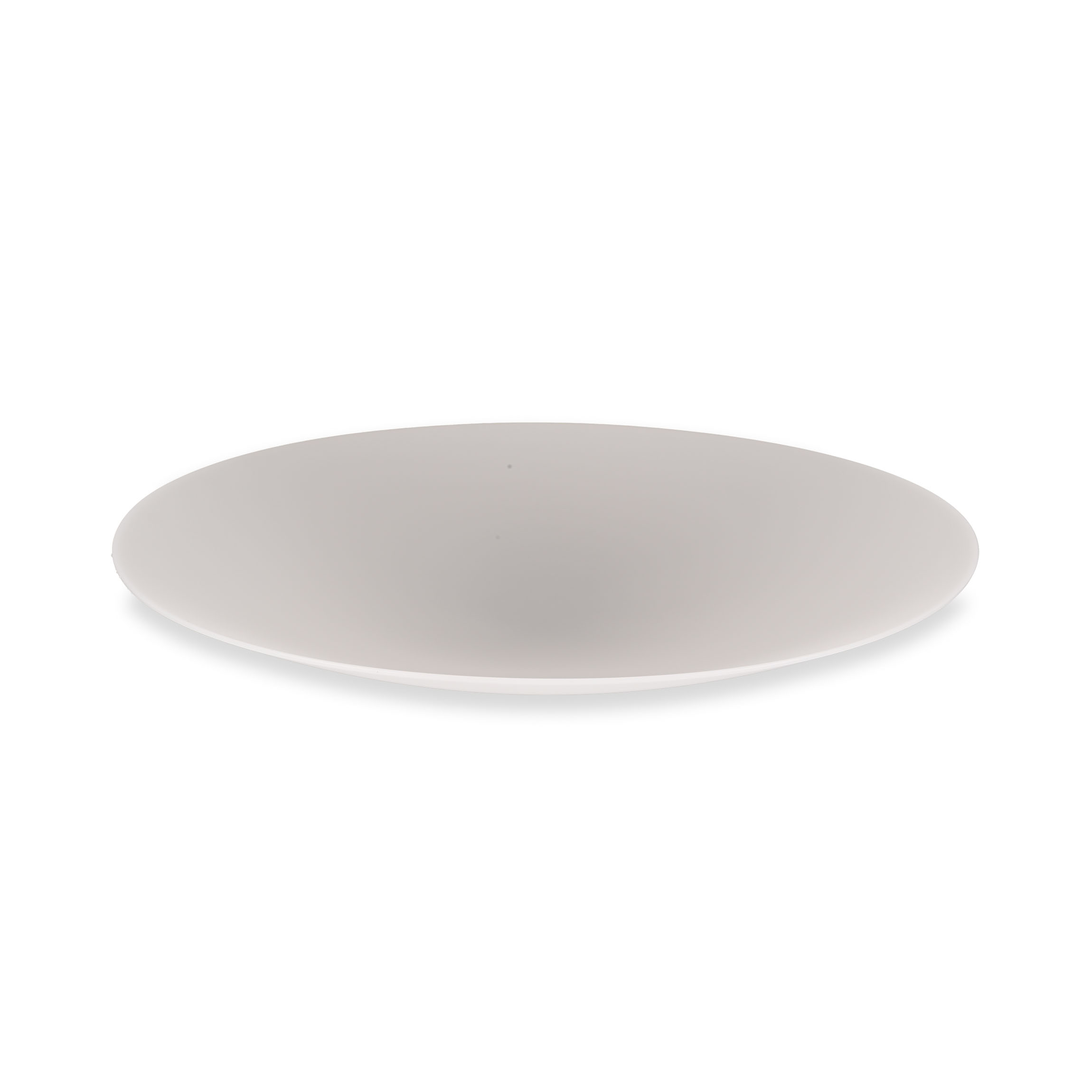

04. My Circuit Dome Diffuser
RF36034
