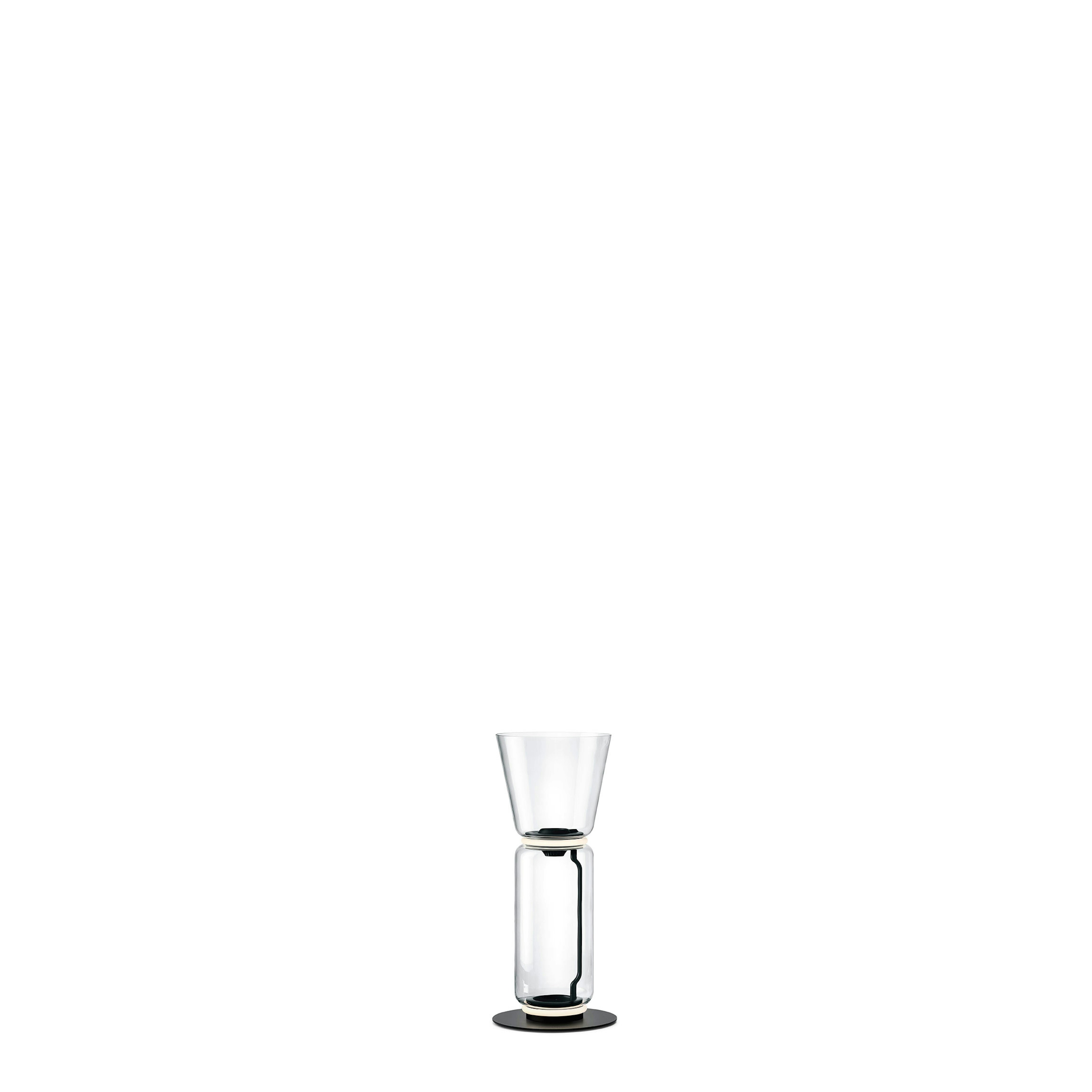

NoctambuleNoctambule Floor 1 High Cylinder Cone Small Base
Designed by Konstantin Grcic, 2019
Standing lamps consisting of interconnecting glass modules reaching a height of 2,17 metres (85.43"). Cylindrical and semi-spherical transparent blown glass structure, die cast aluminium base and rings, hydroformed steel internal lateral arms and injection moulded optical opal silicone outer ring diffusers. The power supply cable is 2 metres (78.74") long, with a pedal operated panel used as a dimmer to adjust the light intensity by 10% to 100% in either direction. Wall mounted power supply unit with interchangeable plugs.
36W - 876lm - 2700K - CRI> 90
Technical Drawing
Main specifications
EAN
8059607000564
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
36
Lumen Output (lm)
876
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
, ,
Batteries inside
No
Physical
Colour
Length (mm)
365
Cord colour
productFields.physical.cordLength
1800
Net weight (kg)
15.8
Package volume (m3)
0.23
IP internal
Spare Parts

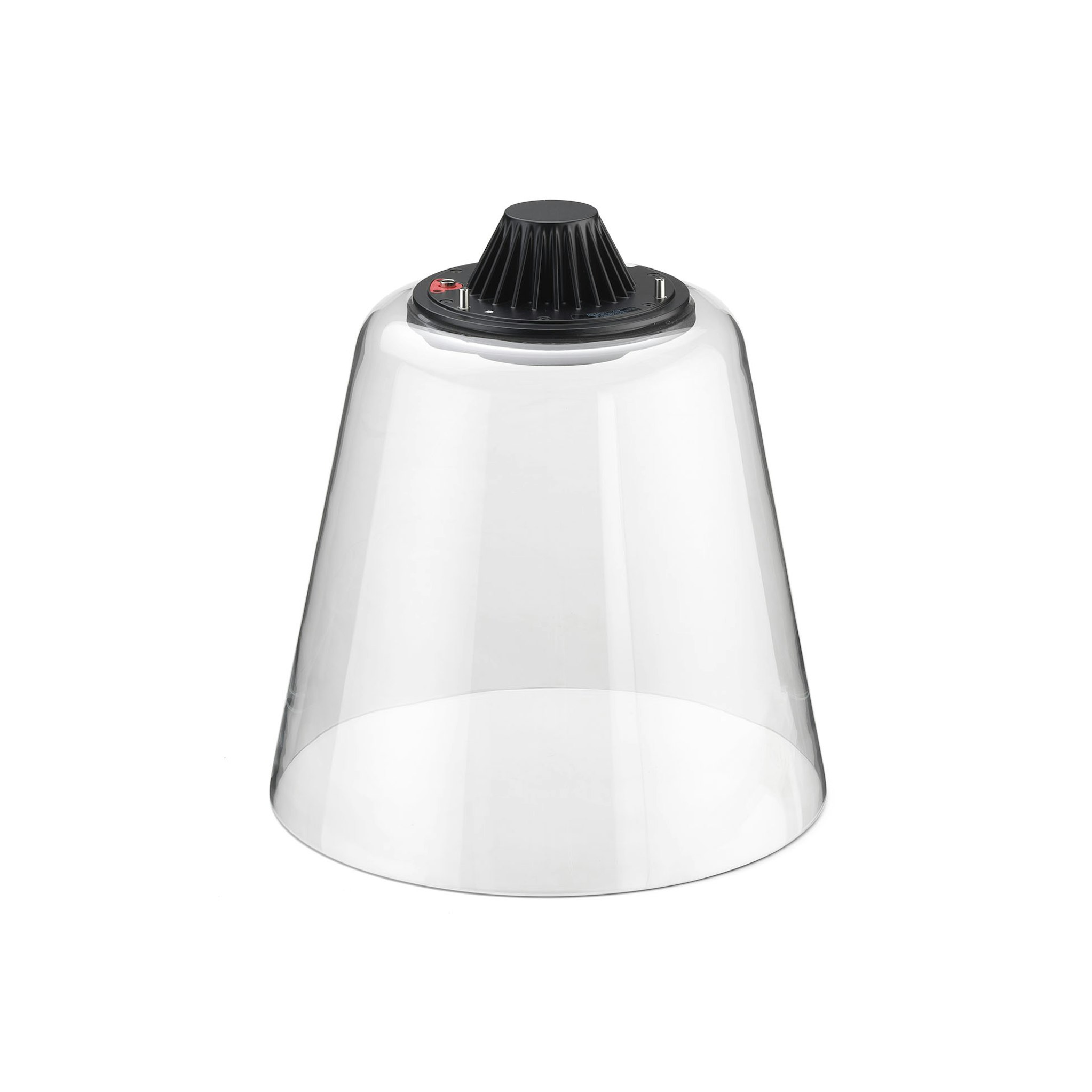

01. Noctambule Cone
F0260000

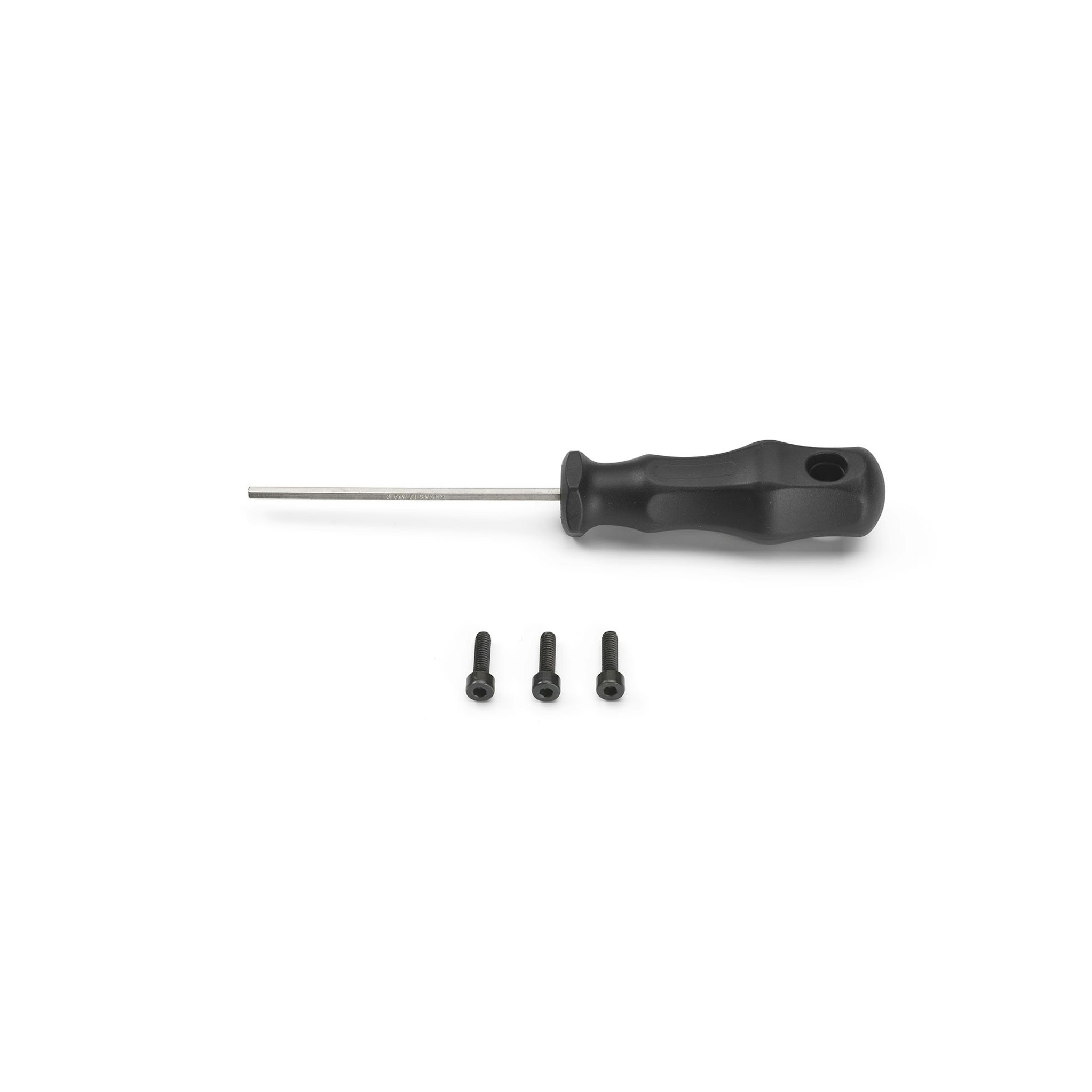

04. Fixing screws kit
RF0254100

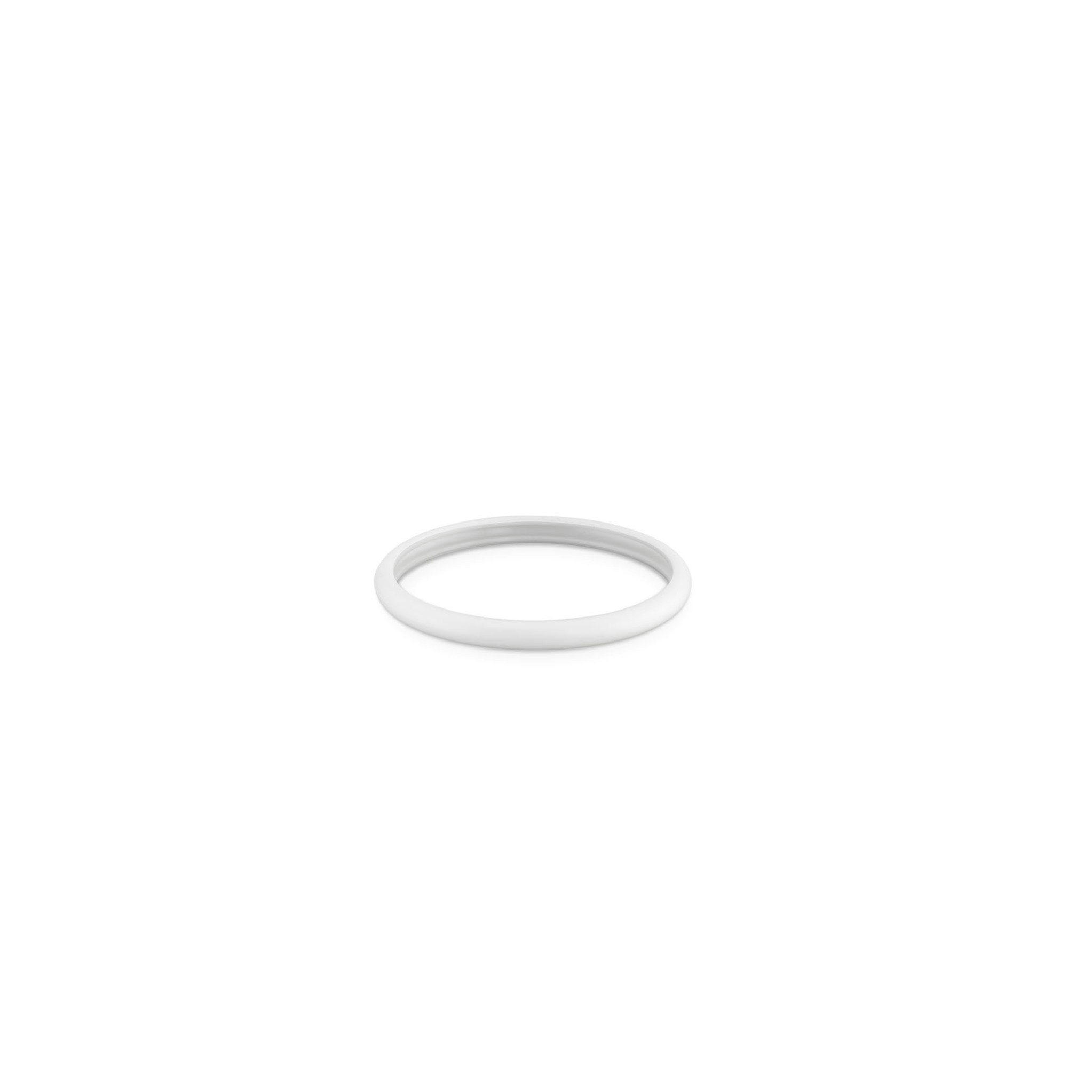

05. Ring led diffuser
RF27498

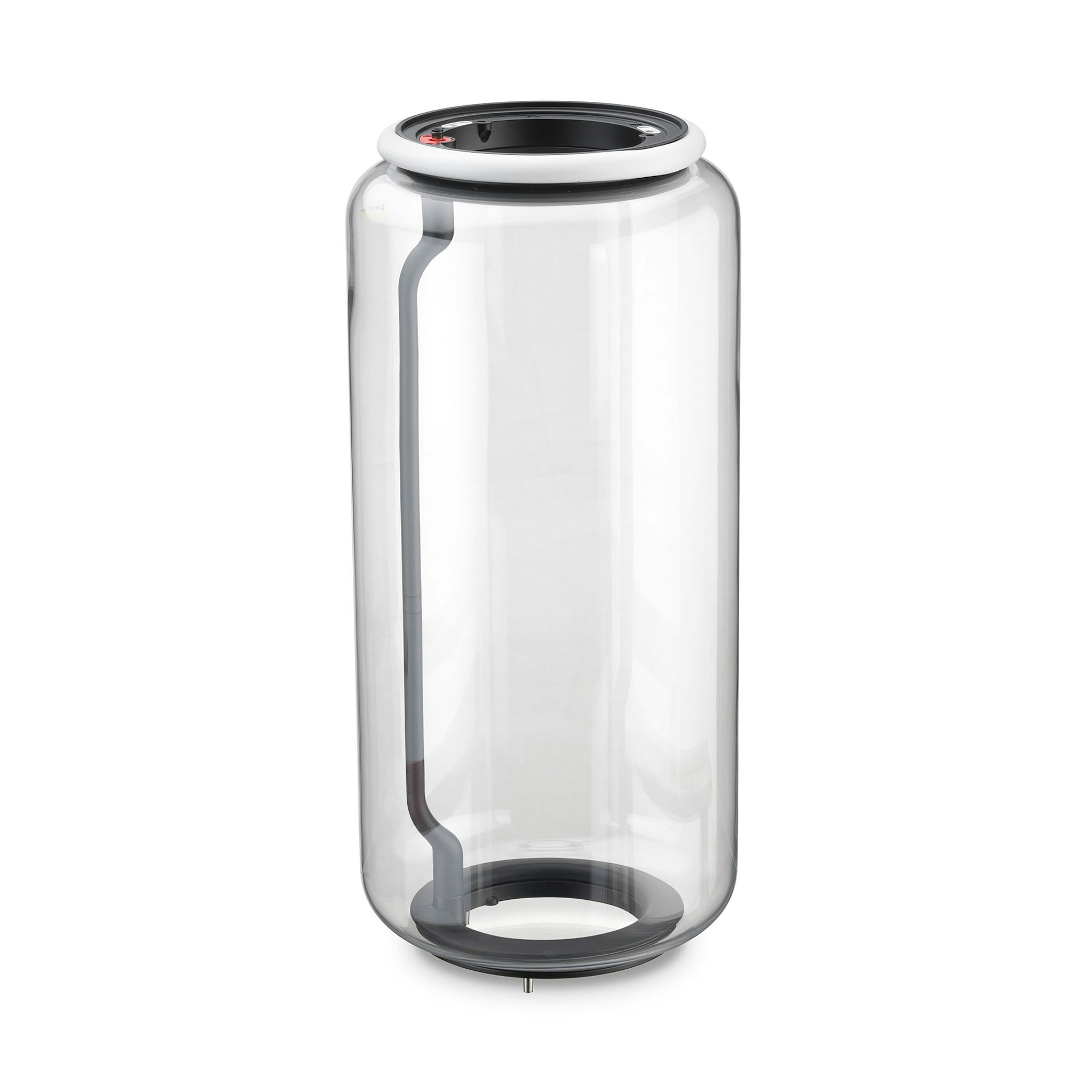

06. Noctambule High Cylinder
F0257000

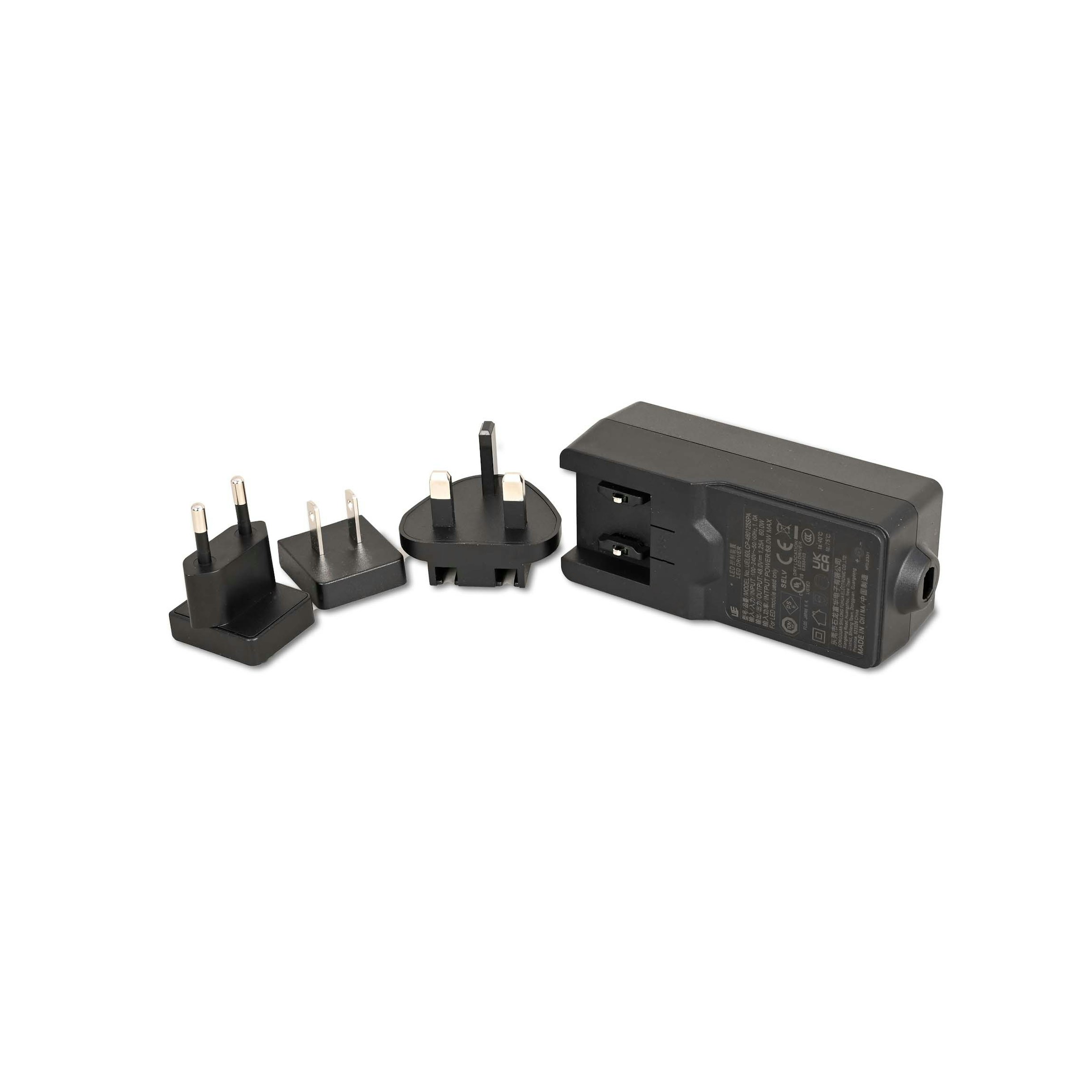

07. Black plug assembly kit & 48V driver
RF6600130

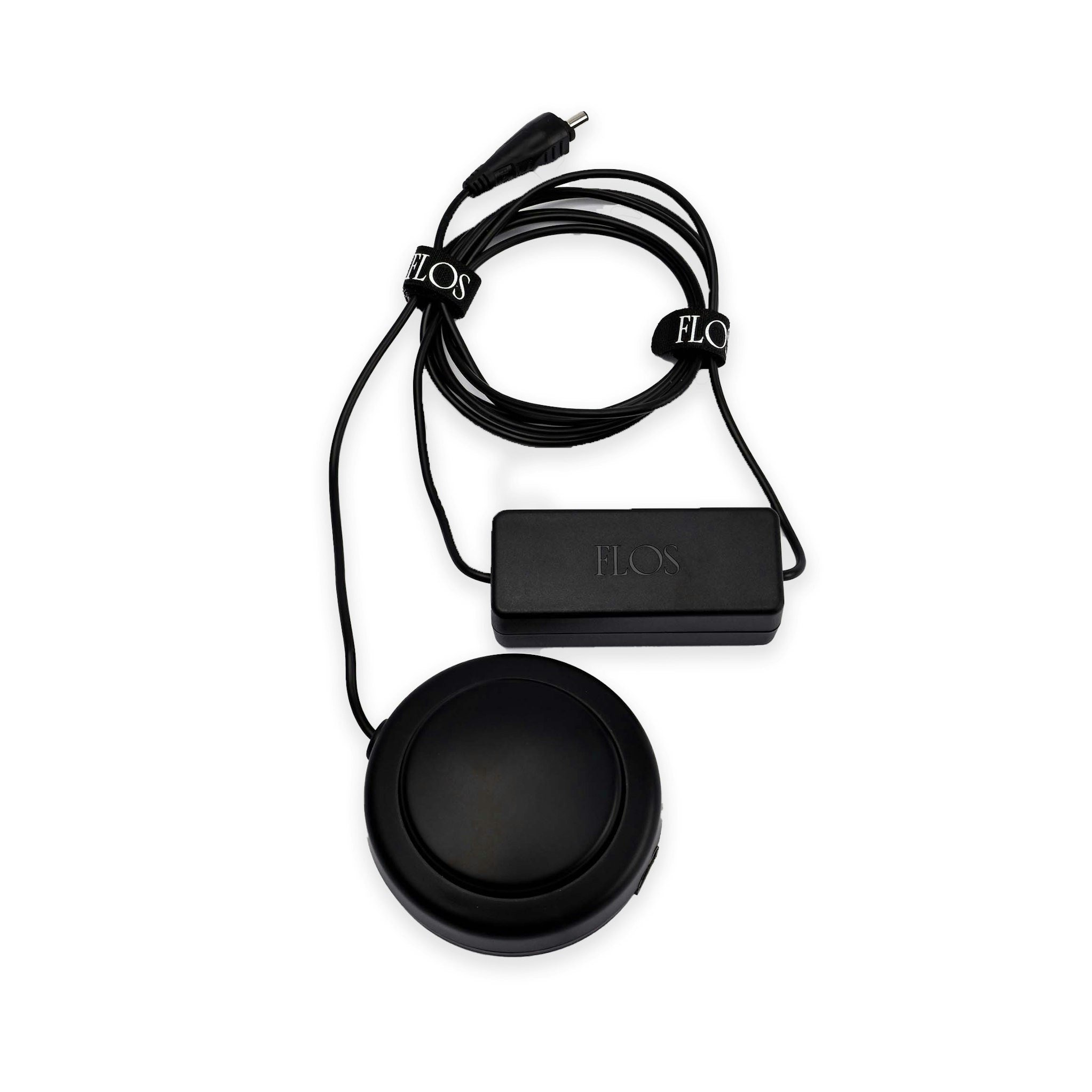

08. Noctambule switch dimmer assembly (with EMC filter)
RF37082

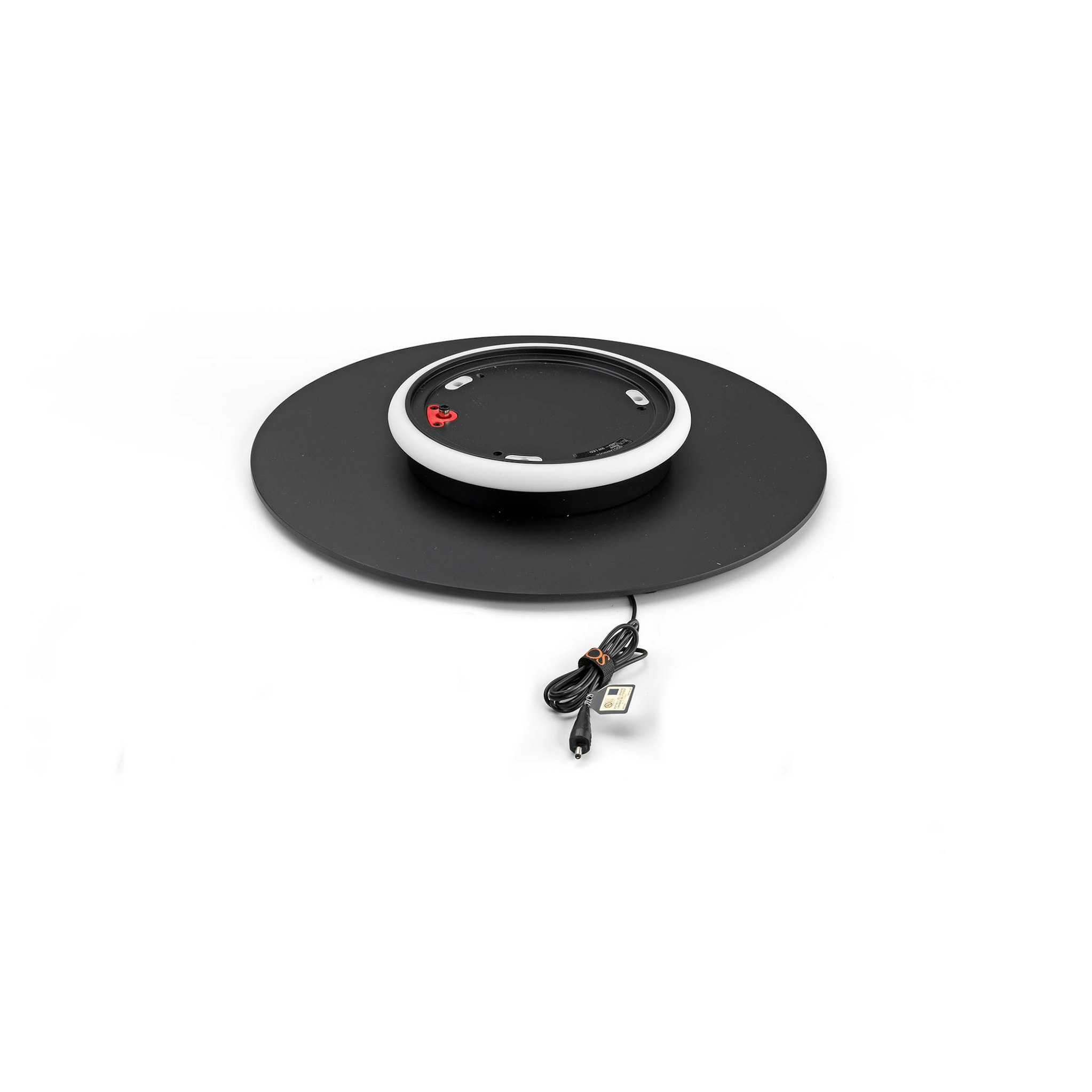

09. Noctambule Floor Small base
F0261030
10. Noctambule F n°5 adjustable feet kit
RF0254200
