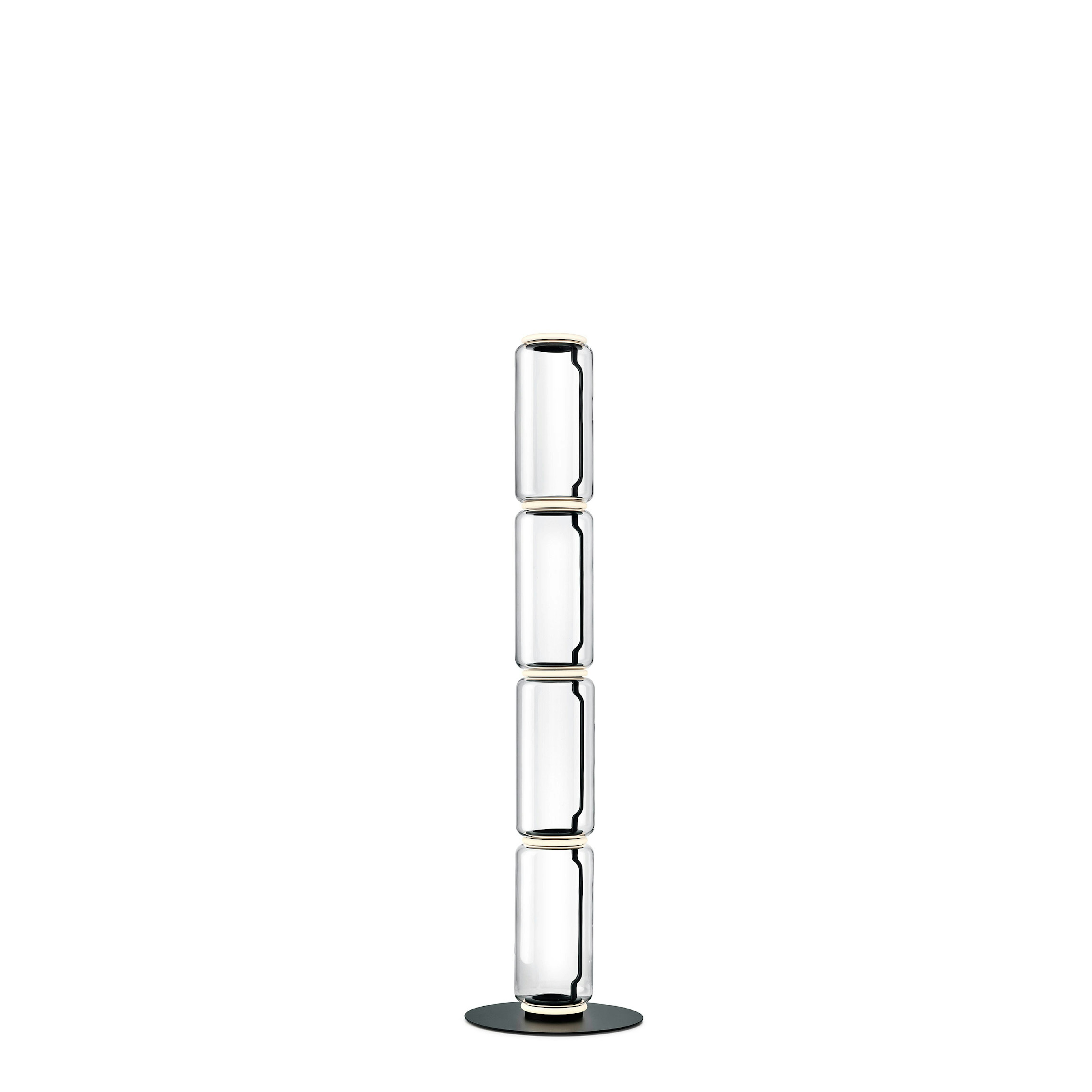

NoctambuleNoctambule Floor 4 High Cylinder Big Base
Designed by Konstantin Grcic, 2019
Floor lamp emitting diffused light. Composed of interconnecting transparent blown-glass cylinders, supported by a large die-cast aluminium base for enhanced stability. Cylinders can be topped with a conical or semi-spherical shaped diffuser. Features hydroformed steel internal arms and injection-moulded optical opal silicone outer-ring diffusers. Supplied with pedal dimmer for 10–100% light adjustment. Wall-mounted power supply unit with interchangeable plugs included.
45W - 1378lm - 2700K
Technical Drawing
Main specifications
EAN
8059607000922
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
45
Lumen Output (lm)
1378
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
, ,
Batteries inside
No
Physical
Colour
Length (mm)
550
Cord colour
productFields.physical.cordLength
1800
Net weight (kg)
30.35
Package volume (m3)
0.35
IP internal
Spare Parts
03. Noctambule Floor Terminal cap
F0293030
04. Fixing screws kit
RF0254100
05. Ring led diffuser
RF27498
06. Noctambule High Cylinder
F0257000
07. Black plug assembly kit & 48V driver
RF6600130
08. Noctambule switch dimmer assembly (with EMC filter)
RF37082

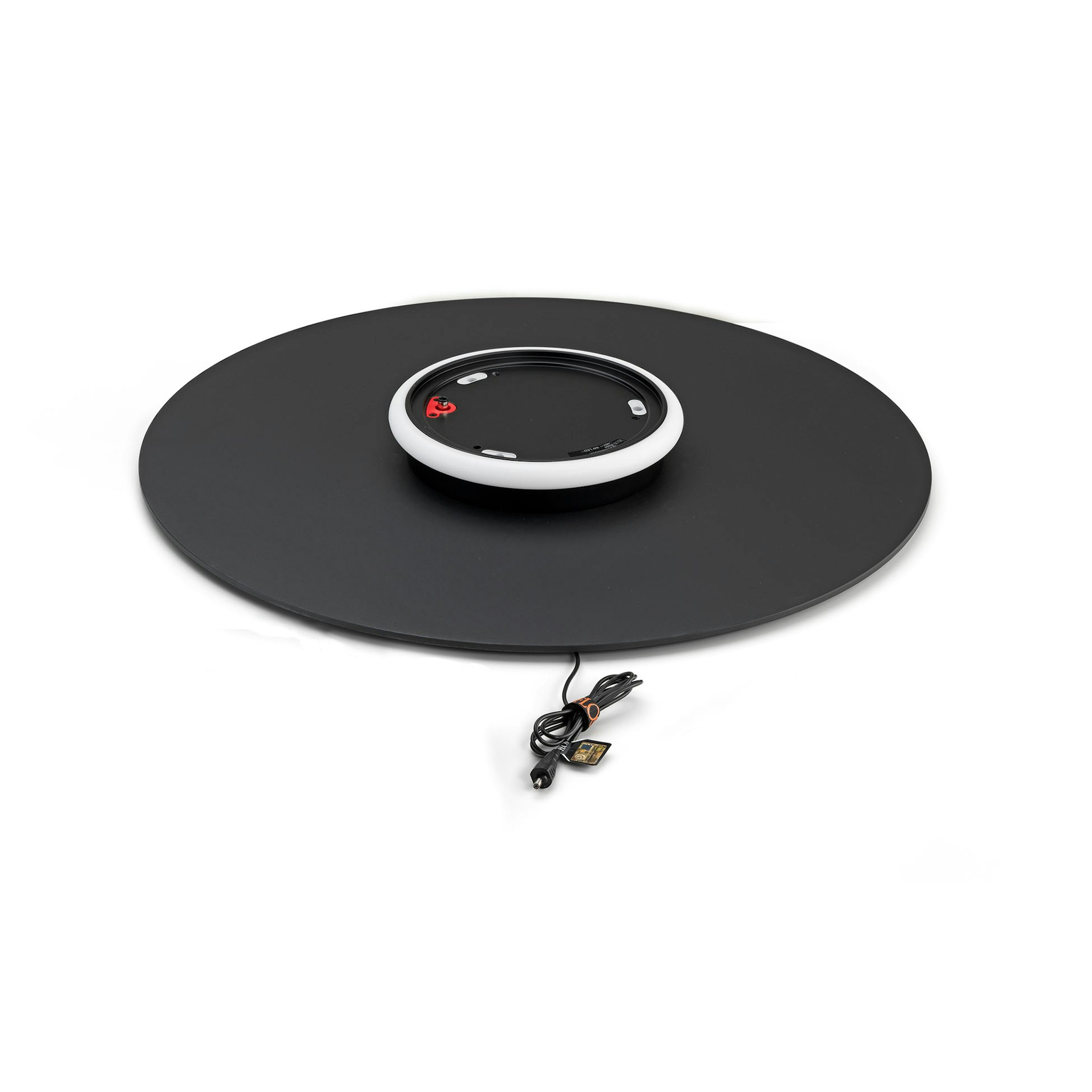

09. Noctambule Floor big base
F0262030
10. Noctambule F n°5 adjustable feet kit
RF0254200
