ObliqueOblique Floor USB-C
Designed by Vincent Van Duysen

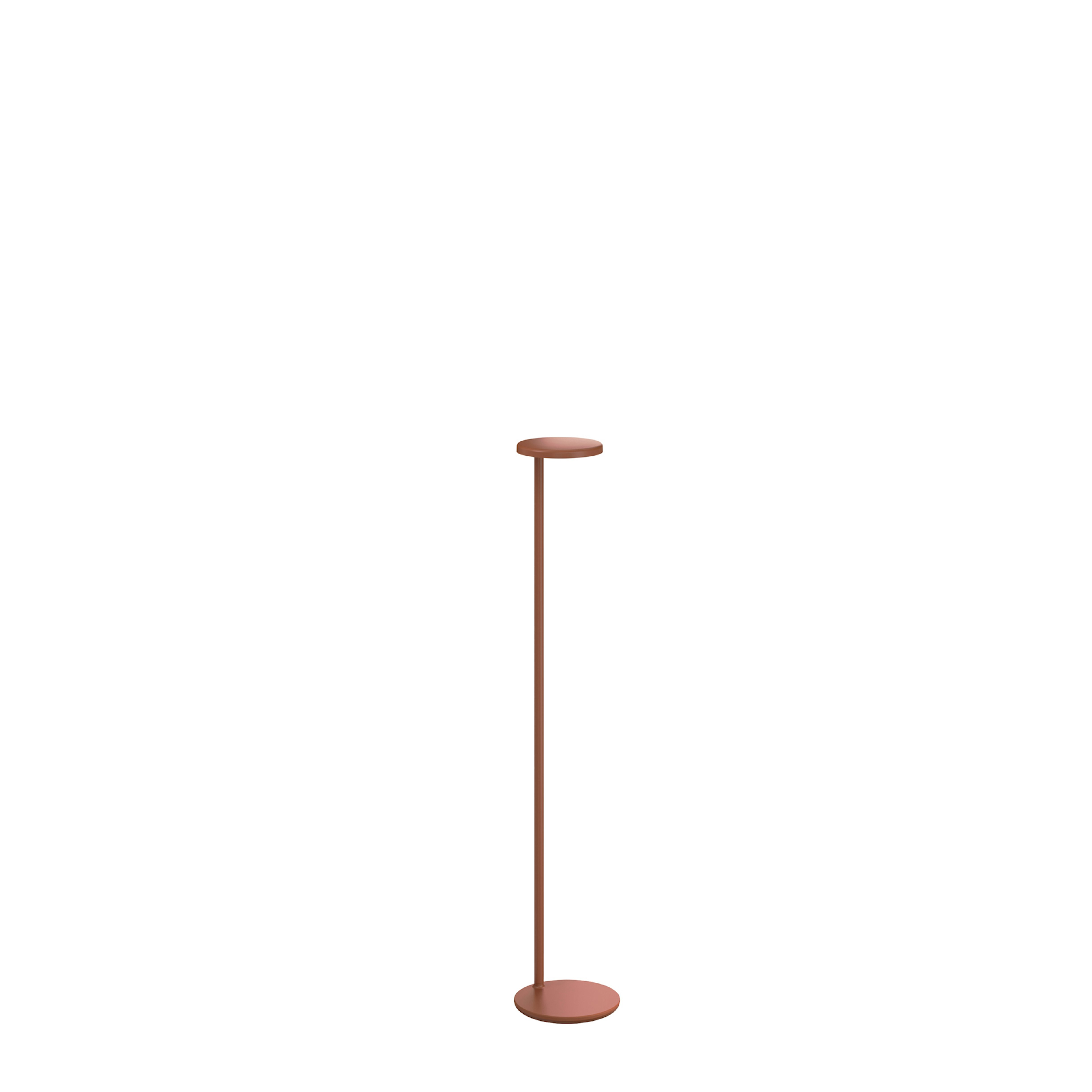

Floor lamp that, thanks to its innovative patented lens, offers asymmetrical light distribution and excellent visual comfort. Its shape, height and dimensions are consistent with the functionality of the product, which provides excellent reading or companion lighting while keeping the light source invisible to the user. Model with USB-C mobile charging in its base. Driver input: 24 V
LED - Top LED - 8W - 479lm - 2700K - CRI> 90 - Beam° 34
Also available in:
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
8
System power (W)
18
Lumen Output (lm)
479
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L90B10 > 50.000h (Tc=85°C)
Beam angle C0-180 (º)
34
Beam angle C90-270 (º)
46
Electrical
Frequency (Hz)
50/60
Main voltage (Vac)
110-240
Forward voltage (V)
24
Power supply
Dimmable
Power supply type
Dimming range (%)
1-100
Precabled
Yes
Plug type
Charging socket/connector
Physical
Colour
Length (mm)
200
productFields.physical.cordLength
2500
Net weight (kg)
3.32
Package height (mm)
120
Package width (mm)
30
Package length (mm)
30
IP internal
