Designed by Konstantin Grcic, 2014

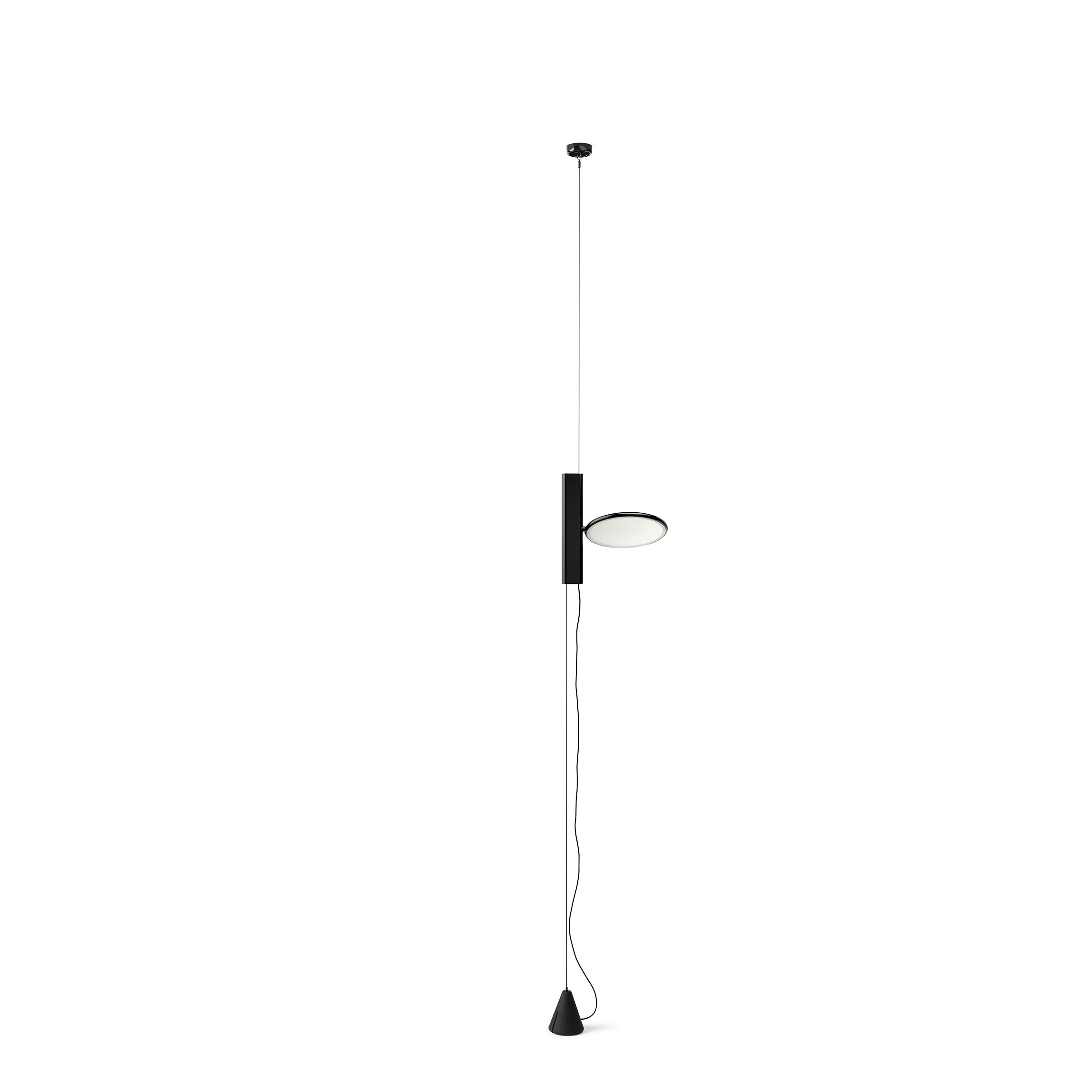

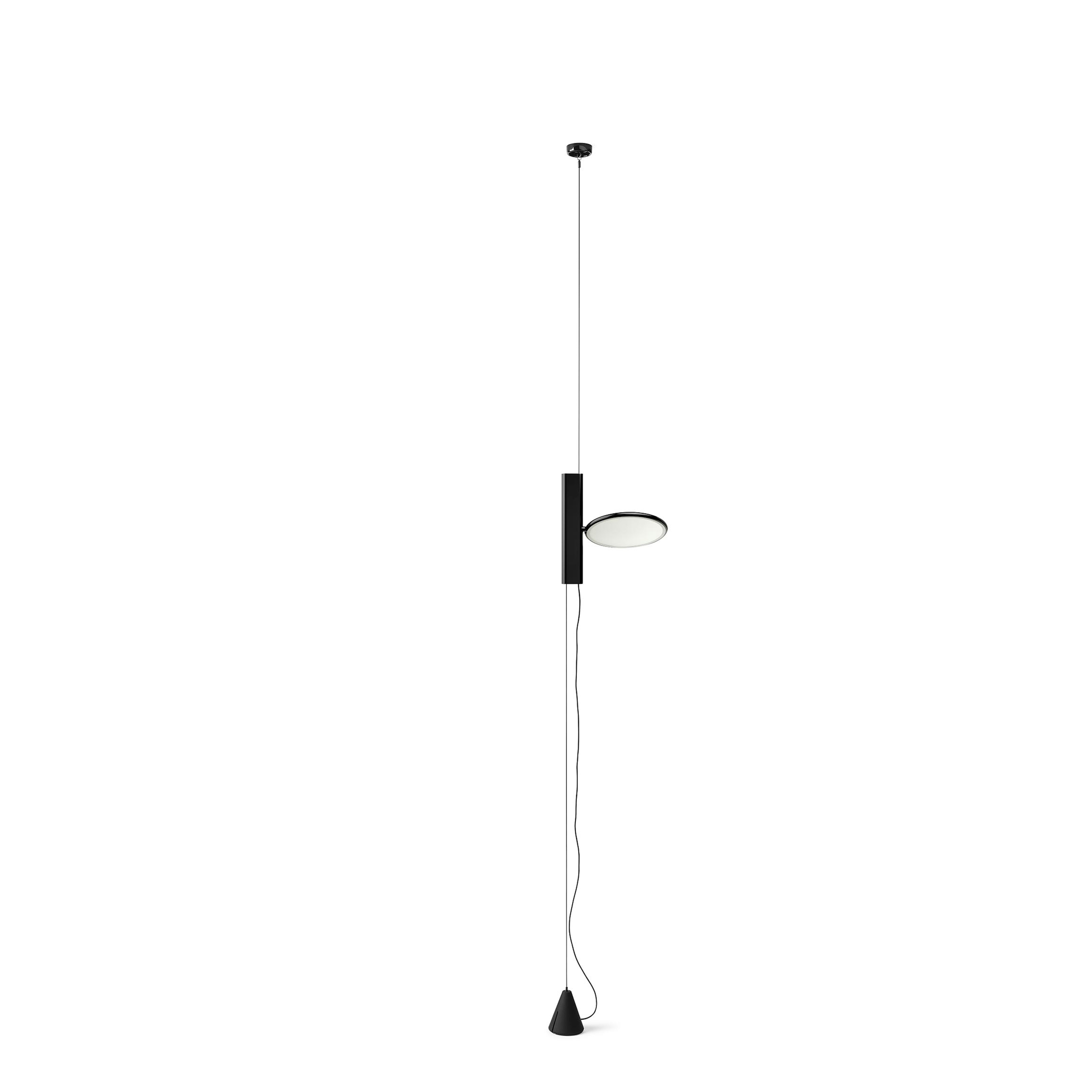

Adjustable luminaire featuring a glossy varnished, adjustable aluminium head and a body in injection-moulded PA66+30%FV with a varnished cover. The head rotates 360° and slides vertically along a steel cable (useful length 4000 mm) tensioned between ceiling and floor. Soft-touch switch integrated for on/off and dimming. Plug adapter and interchangeable plugs included.
18W - 1551lm - 2700K
Technical Drawing
Main specifications
EAN
8059607005064
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
18
Lumen Output (lm)
1551
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
, ,
Batteries inside
No
Physical
Colour
Length (mm)
200
Cord colour
productFields.physical.cordLength
4000
Canopy colour
Canopy length/diameter (mm)
64
Canopy height (mm)
20
Net weight (kg)
3
Package height (mm)
140
Package width (mm)
340
Package length (mm)
390
Package volume (m3)
0.02
IP internal
Spare Parts

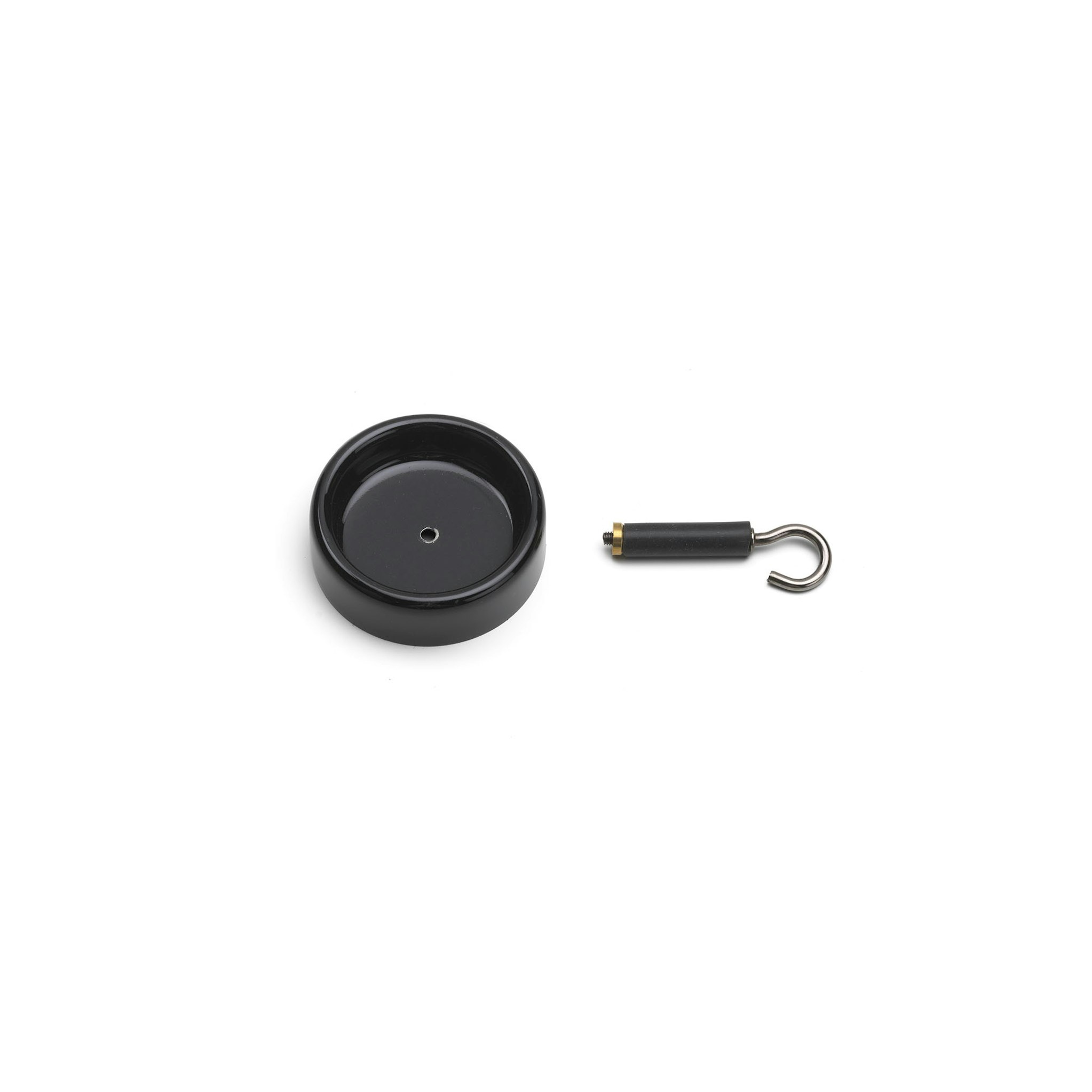

01. Ok Black ceiling rose
RF23030

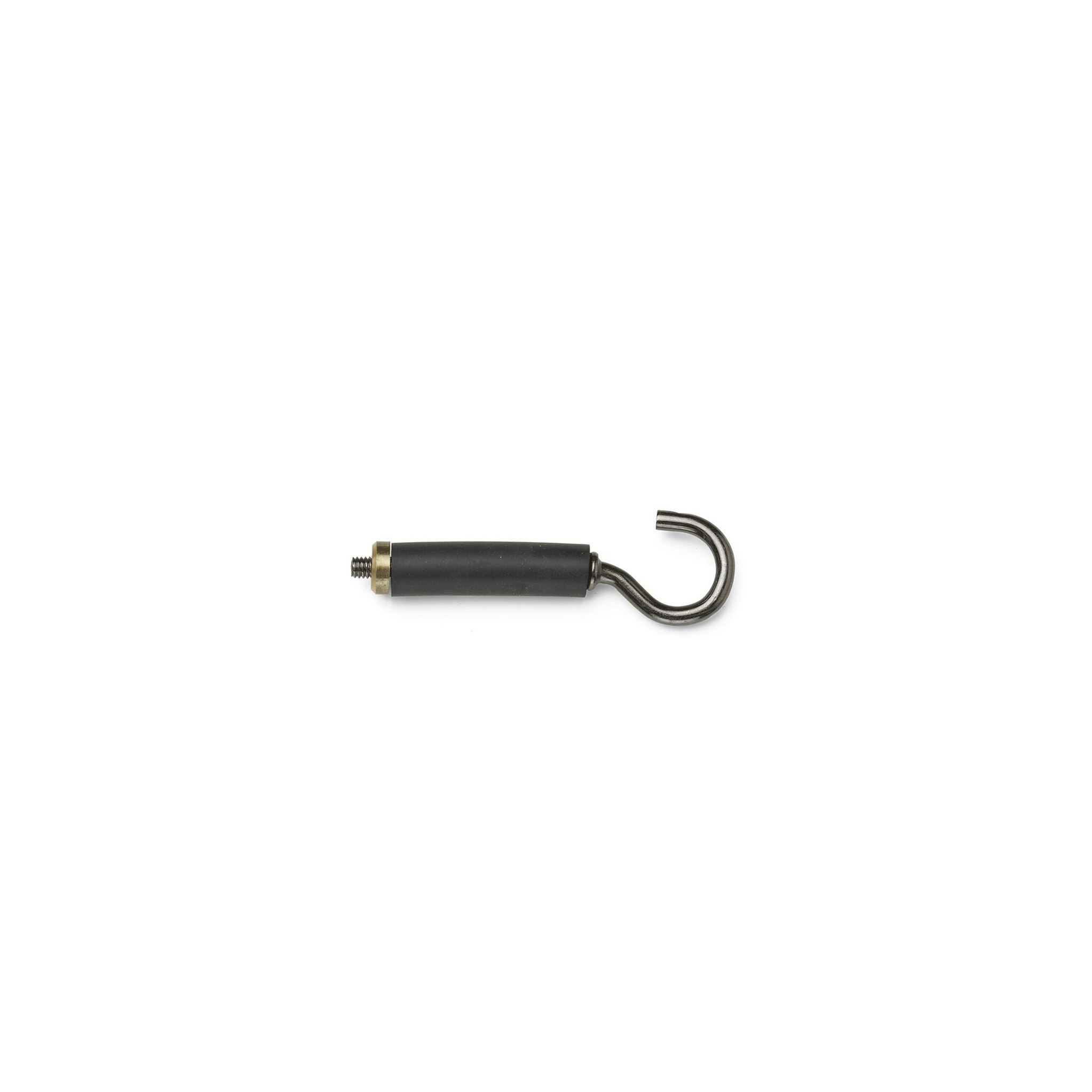

02. Ok Anchor with hook
RF4640100

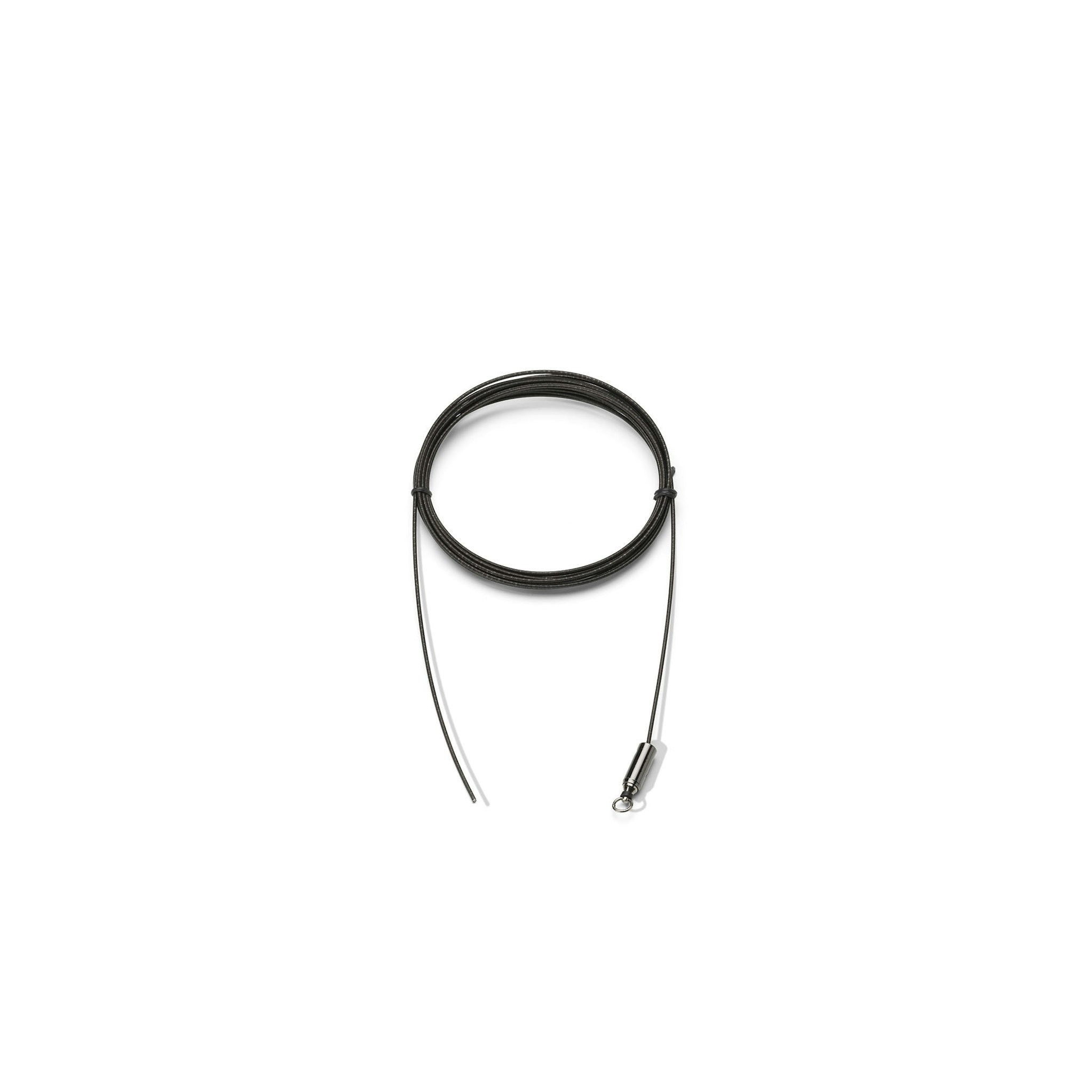

03. Ok Steel cable 4mt.
RF4640200

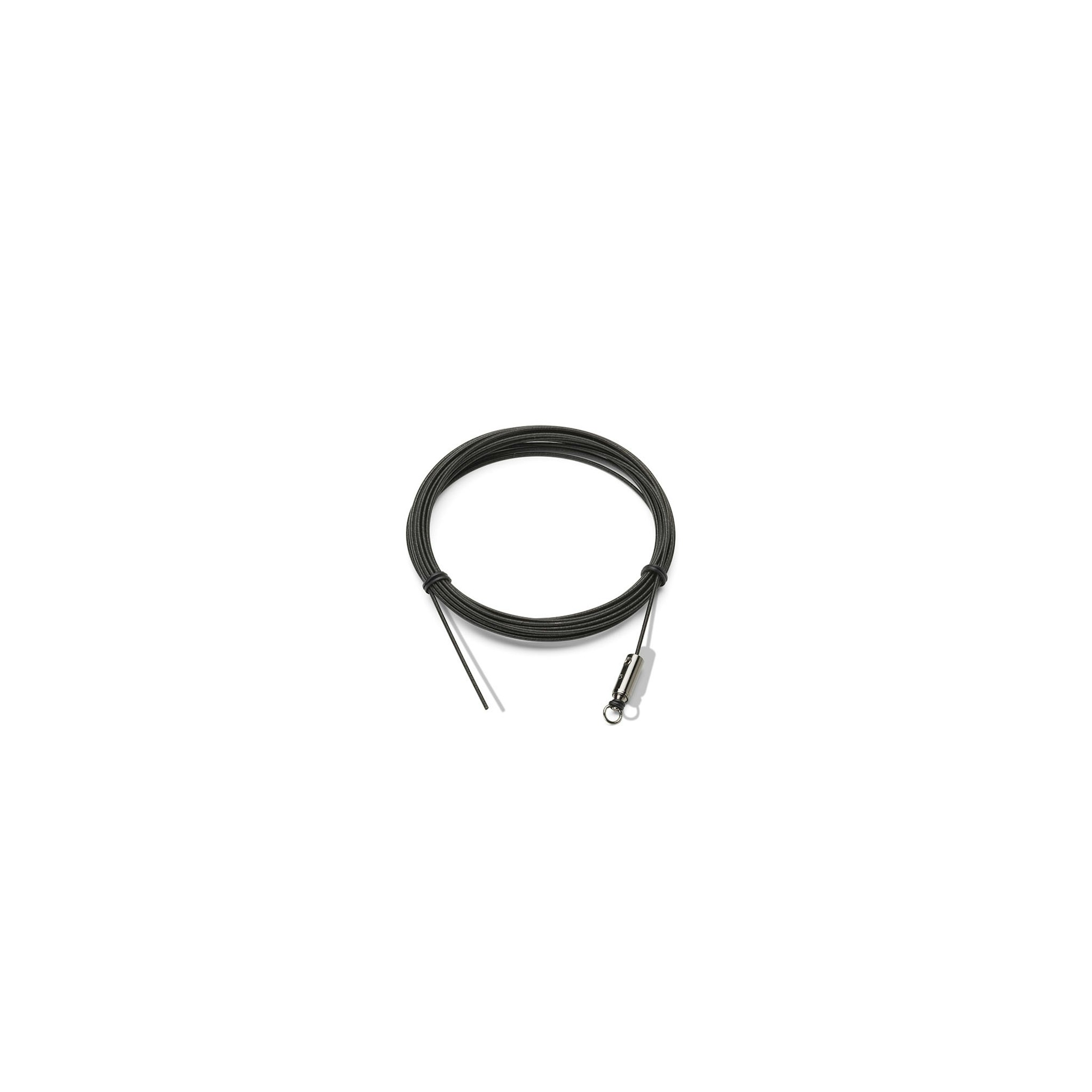

03. Ok Steel cable 6mt.
RF4640300

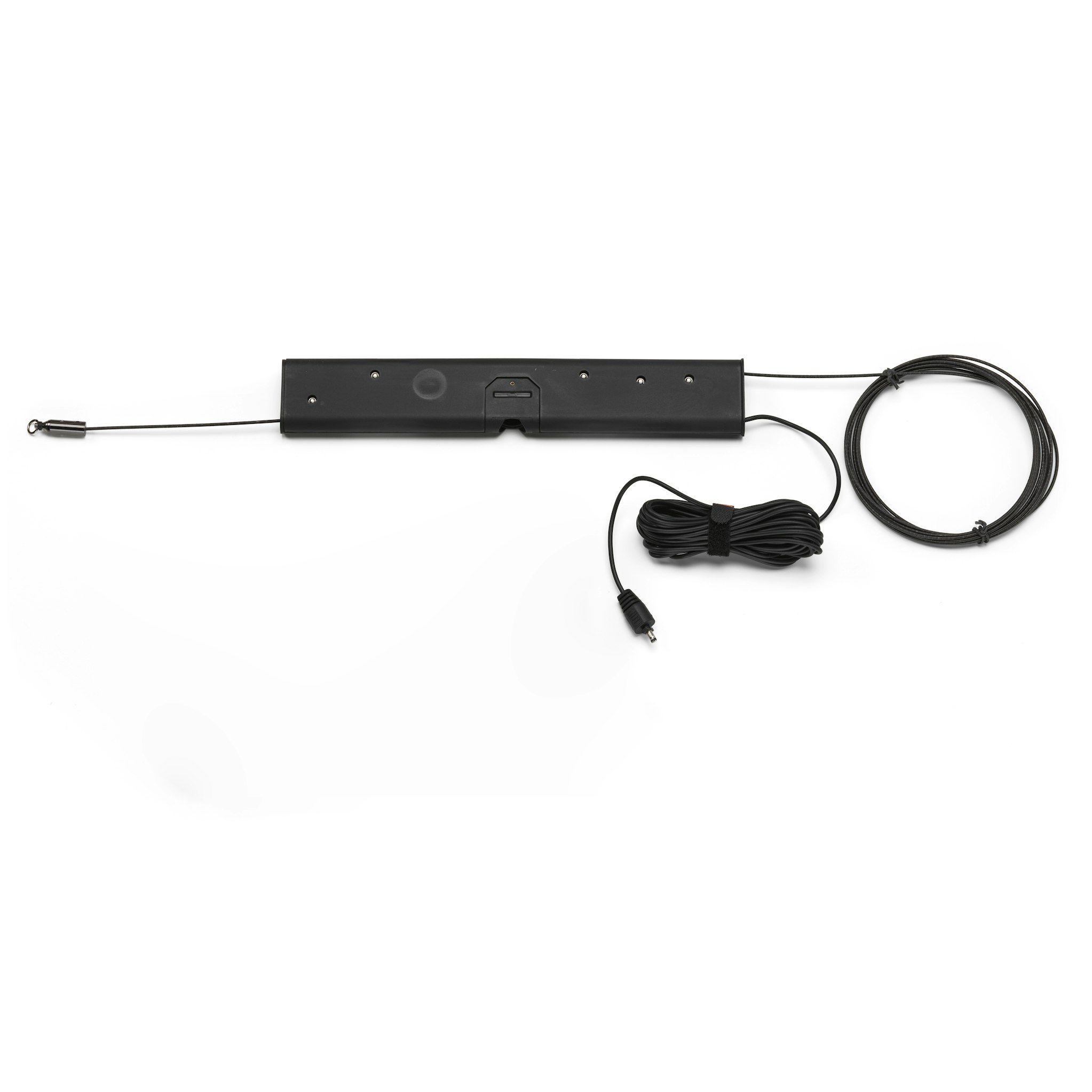

04. Ok Internal lamp body assembly
RF4640400

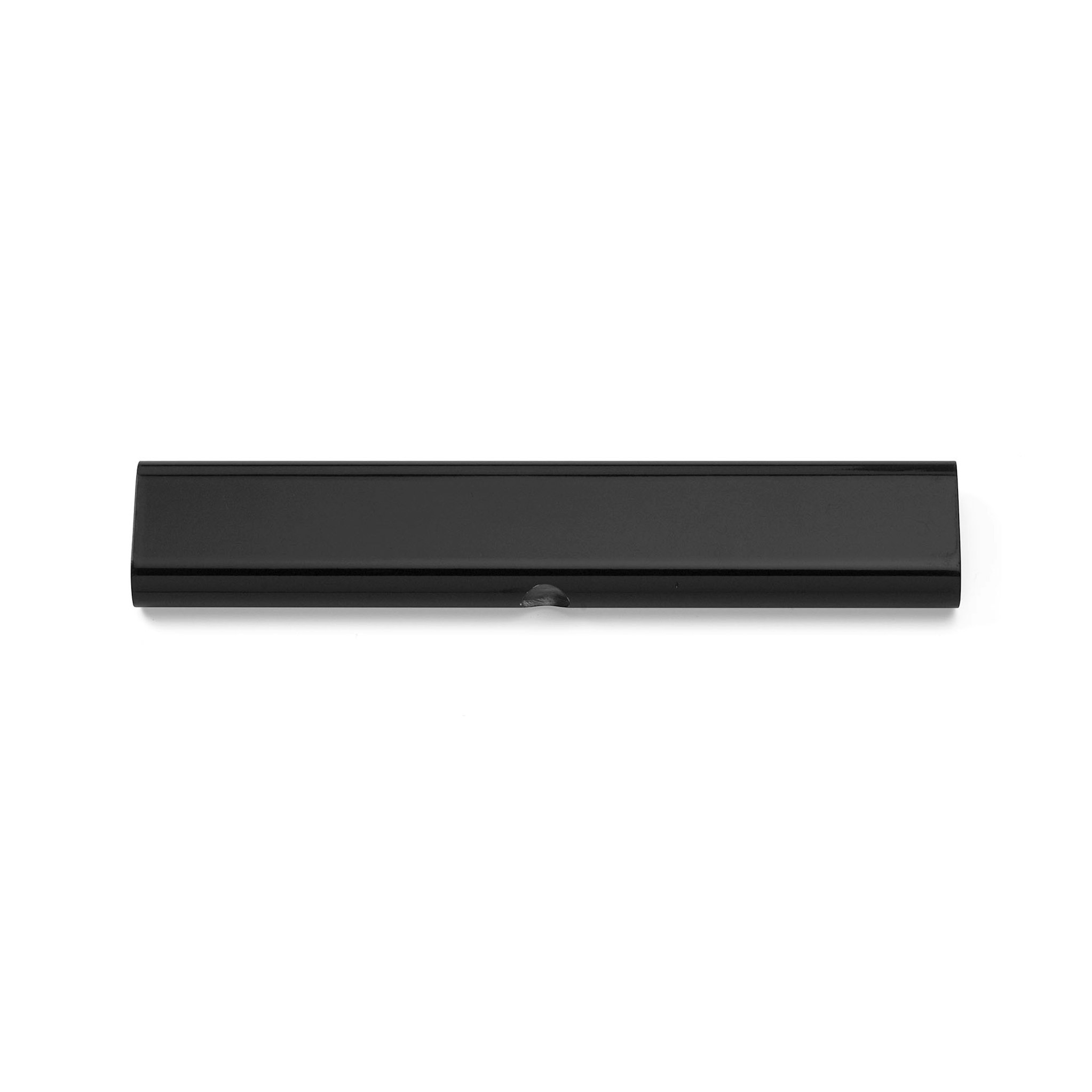

05. Ok Black extrusion
RF22996

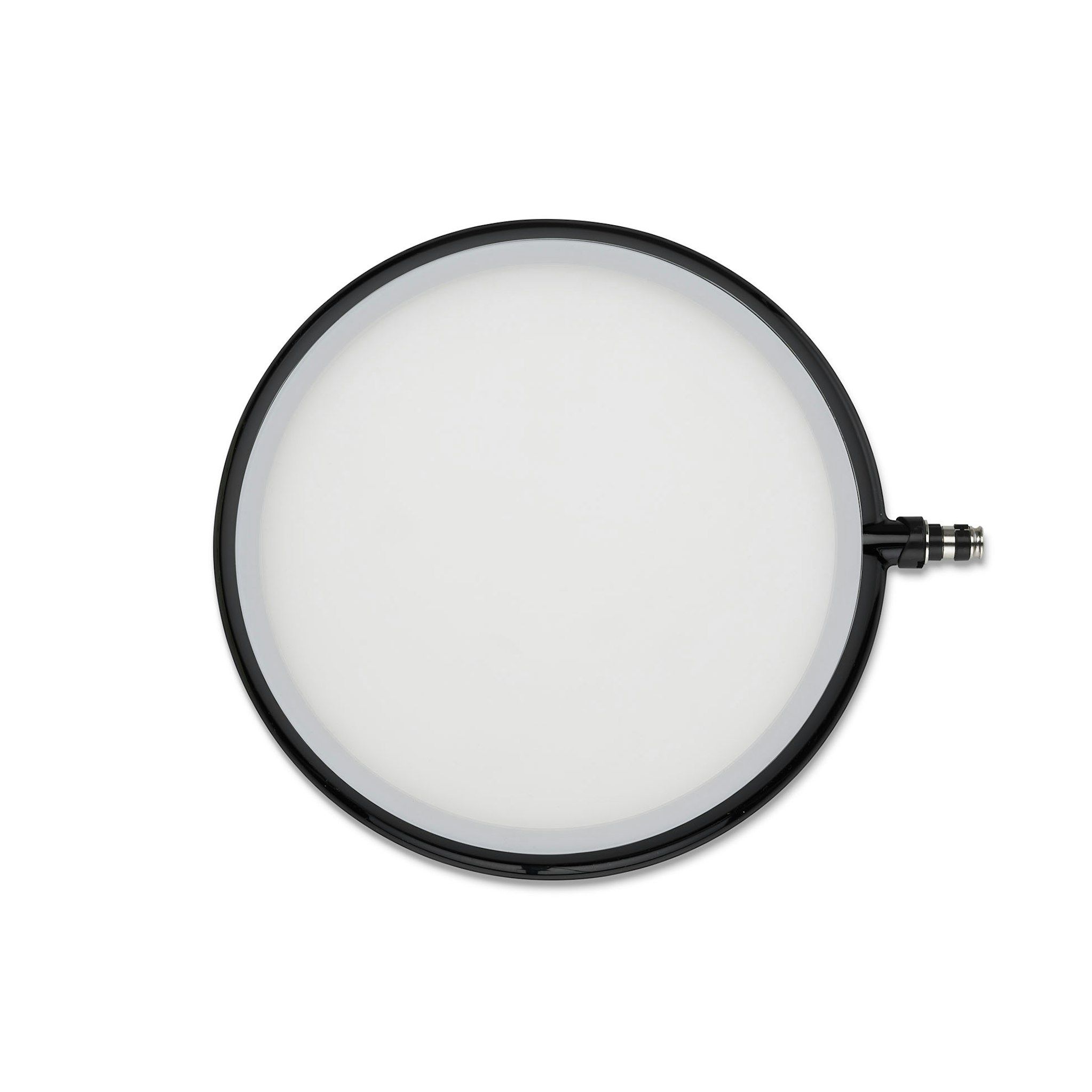

06. Ok Black led head assembly
RF28254

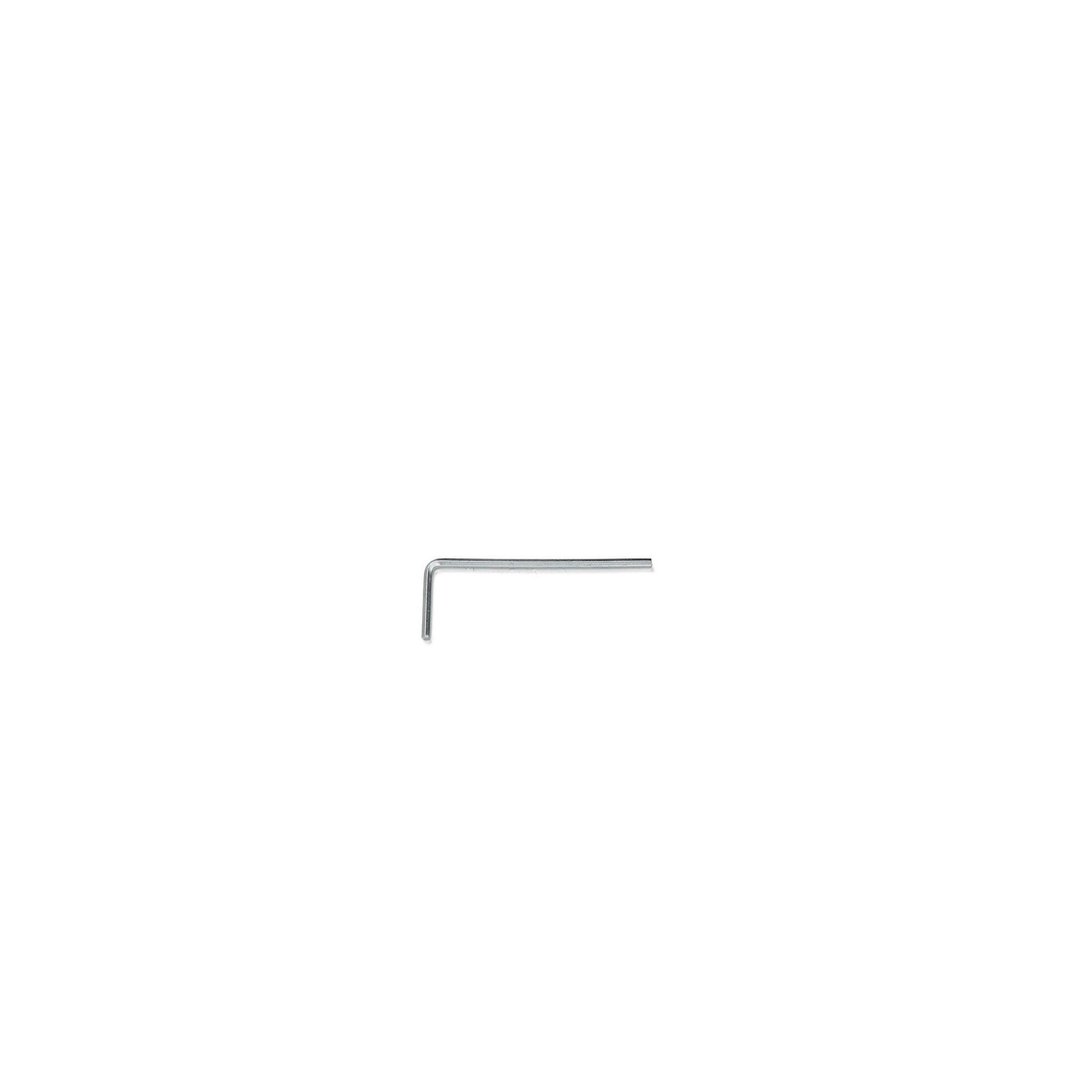

07. Ok Hex Key 2mm for OK lamp
RF06850

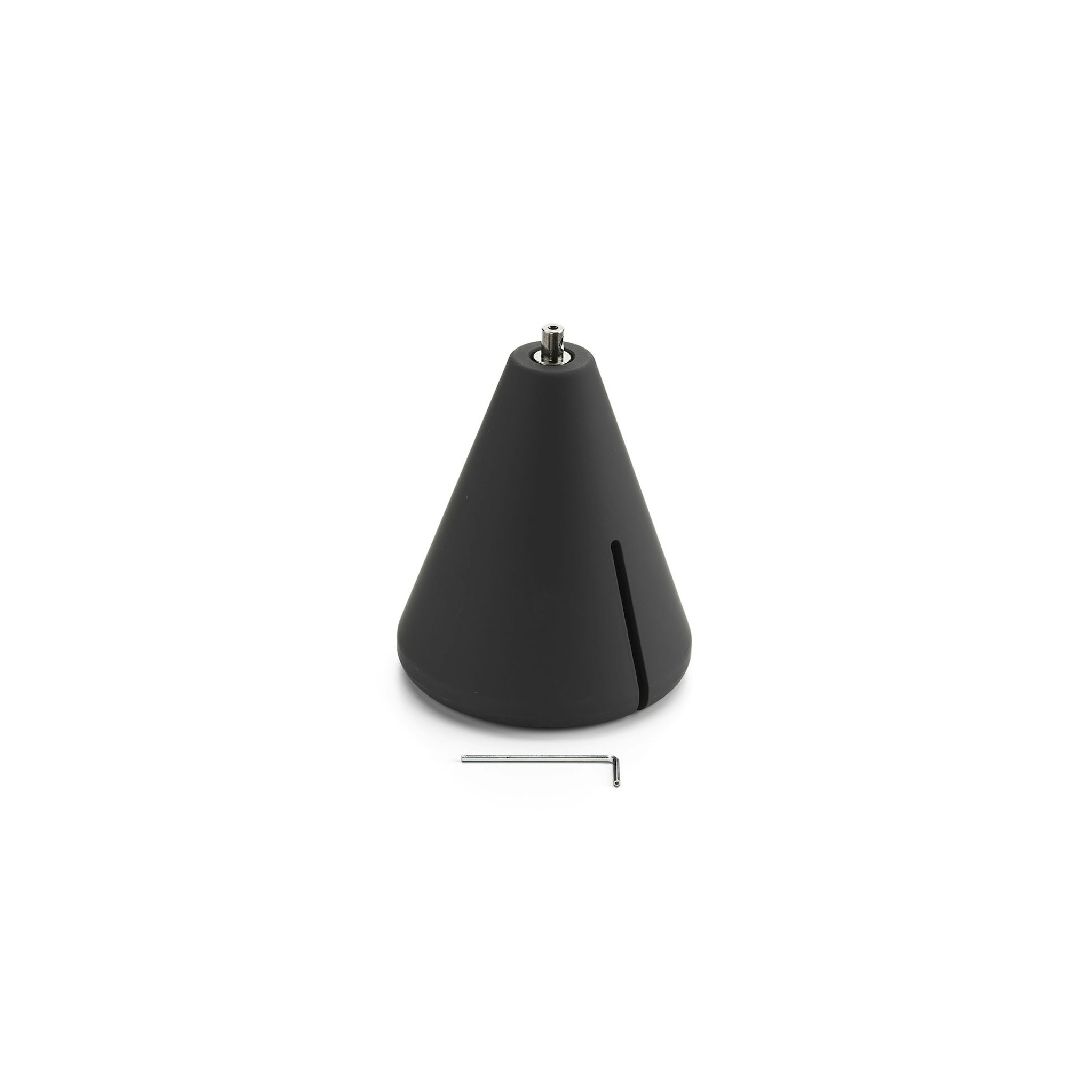

08. Ok Counterweight
RF23023
09. Black plug assembly kit & 24V driver
RF6600230
