Overlap
F4633009

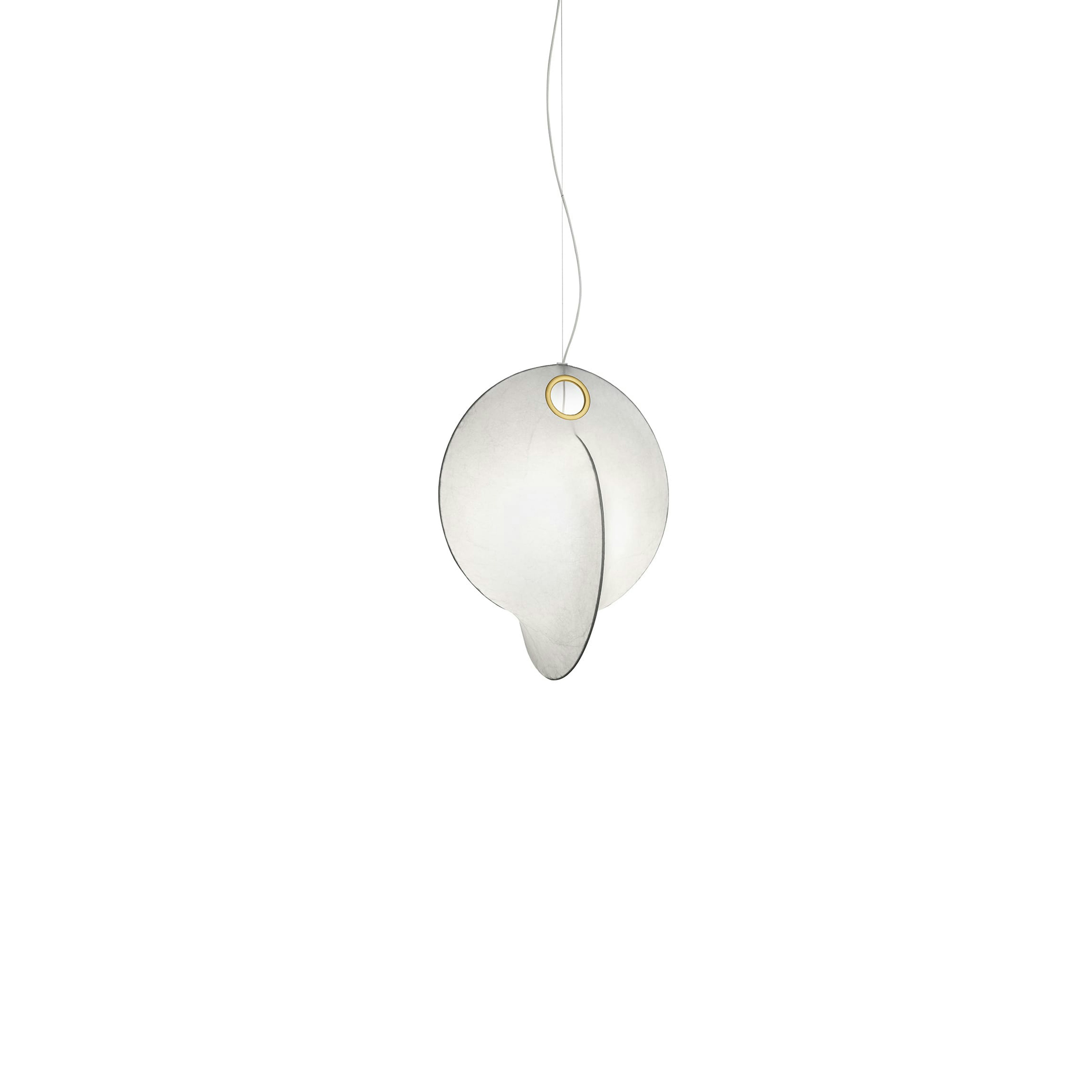

Overlap Suspension 1

Suspension lamp emitting diffused light. Internal structure in white powder-coated steel. Diffuser in Cocoon resin with transparent protective spray finish. Interlocking ring in polished, gold-plated galvanic steel. Die-cast zamak ceiling rose in polished, gold-plated galvanic finish.

Halogen - 105W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Overlap-S1
Main specifications
EAN
8059607020098
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
105
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
655
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
113
Canopy height (mm)
32
Net weight (kg)
2.1
Package height (mm)
1000
Package width (mm)
650
Package length (mm)
650
Package volume (m3)
0.42
IP internal

Download

Tech spec pdf

Technical Drawings

Bulbs

Thumbnail
x1
NOT INCLUDEDLED Lamp E27 15W 2700K T38RF32288
Thumbnail
x1
NOT INCLUDEDLED Lamp E27 15W 3000K T38RF32289

Spare Parts

F4633009-overlap-s1-flos-boom
01. Complete rose
RF4630159
02. Kit with screws and allen key
RF3160100
03. 4mt steel wire Ø1,2 with 19 winded wires
RF01089
03. 3 mt steel cable ø1,2 with 19 winded wires
RF29665
x1
Complete roseRF4630159
Thumbnail
x1
Kit with screws and allen keyRF3160100
Thumbnail
x1
4mt steel wire Ø1,2 with 19 winded wiresRF01089
x1
3 mt steel cable ø1,2 with 19 winded wiresRF29665
