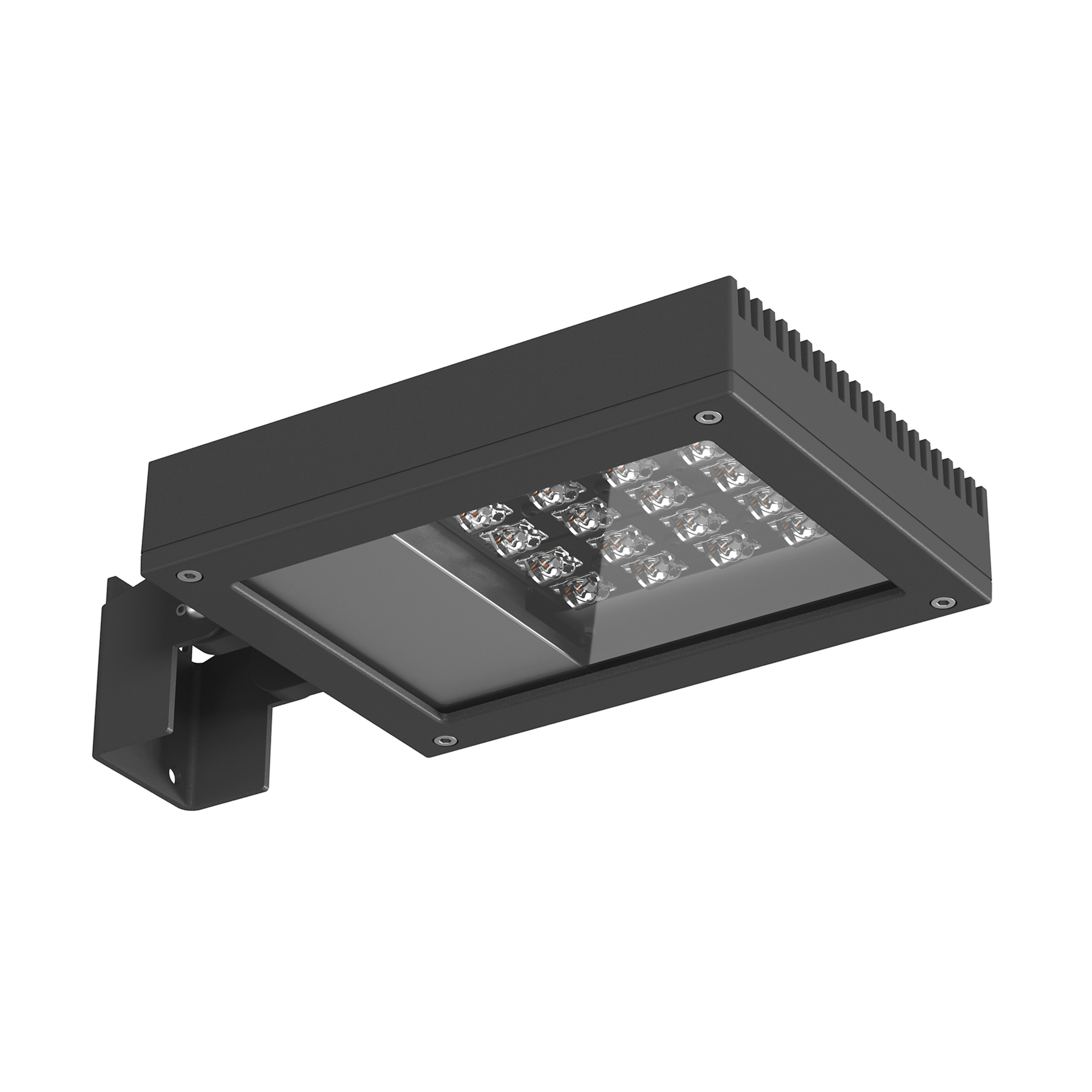

PerseoPerseo 3 Asymmetric Optic Dimmable 1-10V
Designed by FLOS Outdoor, 2012
LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI. Fixing bracket included. Equipped with a M16x1.5 cable guide (for 4.5mm<ø<10mm cables) and IP68 connector. To ensure the tightness of the cable guide it's recommended to use flexible electric cables suitable for exterior use. Optional accessories: protruding arm for walls; feet and arms to install the luminaire on a mast; wall-washer visor and anti-vandalism protection lid. Extraclear transparent glass.
1327lm - 4000K - CRI> 80
Technical Drawing
Main specifications
EAN
8054793642369
Mounting
,
Light source type
Light sources included
Yes
LED type
Number of lamps
1
System power (W)
20
Source flux (lm)
2536
Lumen Output (lm)
1327
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Longitudinal tilting (°)
146
Net weight (kg)
2.28
Package height (mm)
135
Package width (mm)
190
Package length (mm)
315
Package volume (m3)
0.01
IP internal
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
