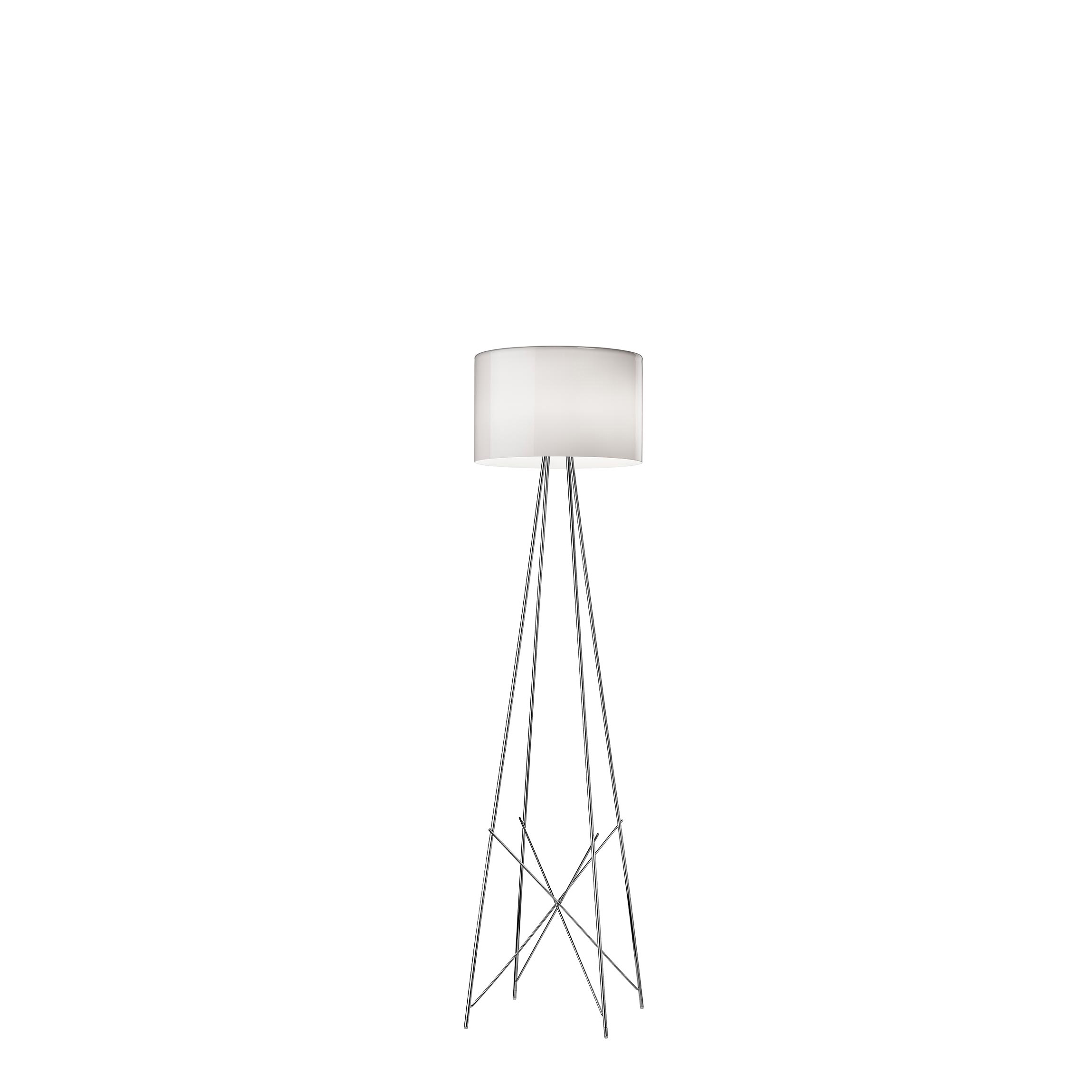

F5920020 GlassRay Floor 2
Designed by Rodolfo Dordoni, 2006
Floor lamp providing diffused lighting. Steel tube structure, welded, brushed and chrome-plated. Diffuser support in die-cast, polished and chrome-plated Zamak alloy. Injection-molded PA6 (nylon) lamp-cover. Color: white. Injection-molded PC (polycarbonate) inner diffuser. Color: 3% opal. Injection-molded elastic PVC (polyvinylchloride) feet. Lathe-shaped aluminum diffusers, painted white on the inside, and shiny white or black on the outside or gray-colored, blown and overlaid glass with glossy external finish. On the cable there is the electronic dimmer which allows the regulation of light brightness.
Halogen - 250W
Technical Drawing
Main specifications
Mounting
Floor
Enviroment
Indoor dry location
Light source type
Bulb
Lamp category
Halogen
Lamp holder
E27
Ilcos
HSGS
Number of heads
1
Power (W)
250
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Dimmer Integrated
Plug type
Type C
Batteries inside
No
Physical
Colour
Glass
Length (mm)
430
Cord colour
Black
Net weight (kg)
9.1
Package volume (m3)
0.44
IP
20
Photometric Files
