Skygarden
F0001044

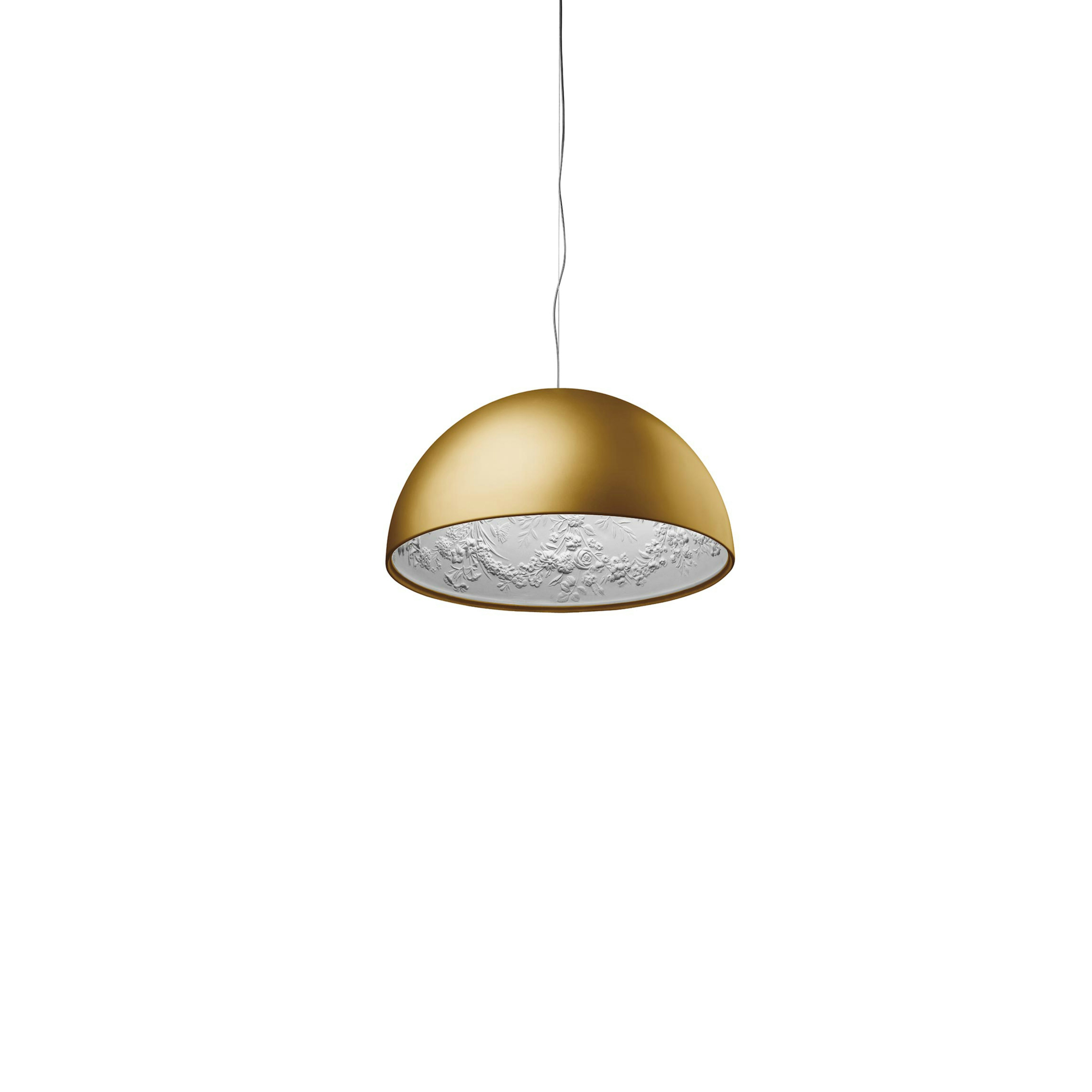

Skygarden 1

Suspension luminaire providing diffused lighting. Hemispherical, mechanically-processed cast plaster diffuser, painted white inside. Outer finish: rust, glossy black, glossy white or matte gold. Plaster diffuser support in die-cast aluminum alloy, liquid-painted white. Molded upper bushing in die-cast, polished aluminum alloy, protected with transparent paint on the entire visible part. Upper cable gland and blocking ring nut in black injection-molded PC (polycarbonate). Shaped, galvanized adjustment screws. Transparent, injection-molded, upper and lower silicone shock absorbers. Lamp holder and fixing support in black injection-molded PPS (polyphenylene sulfide). Flashed and blown opal glass diffuser. Molded fixing ring nut in die-cast aluminum alloy with alodine plating. Skygarden 1 frieze in photo-etched and mechanically drawn AISI 304 steel. Molded and galvanized steel ceiling attachment Gray, injection-molded PA6 (Nylon) rose.

Halogen - 150W

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Skygarden-1
Main specifications
EAN
8059607012772
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
150
Schematic light drawing
F64100XXWSKYGARDEN-1_150W-HL
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
600
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
12.35
Package height (mm)
435
Package width (mm)
730
Package length (mm)
730
Package volume (m3)
0.23
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Spare Parts

F0001044-skygarden-1-flos-boom
01. Gold ceiling rose assembly
RF6410144
02. Skygarden 1 glass diffuser
RF6410100
03. Kit of 5 or rings
RF05382
