Skygarden
F0002044

Skygarden 2

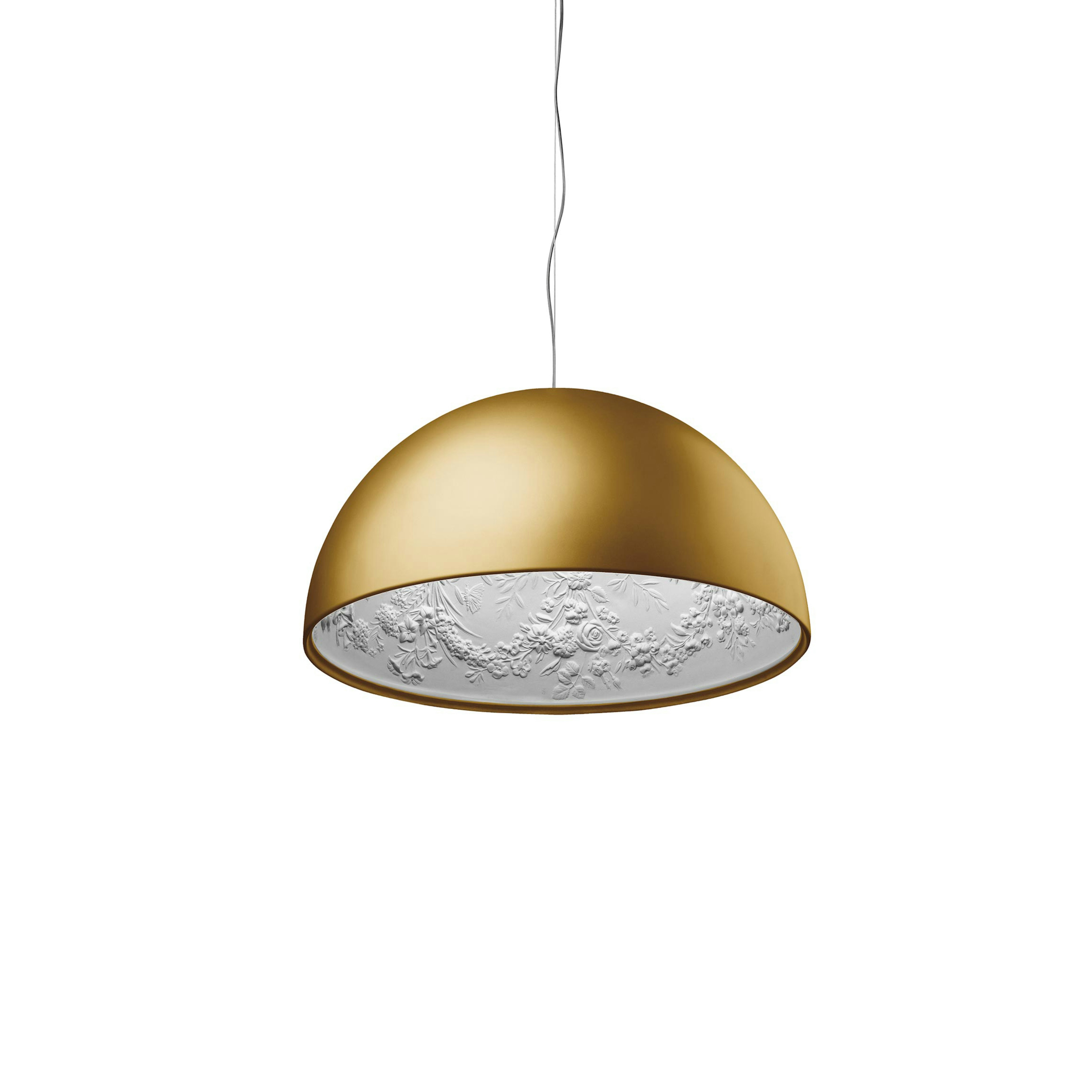

Suspension luminaire providing diffused lighting. Hemispherical, mechanically-processed cast plaster diffuser, painted white inside. Outer finish: rust, glossy black, glossy white or matte gold. Plaster diffuser support in die-cast aluminum alloy. Upper cable gland and blocking ring nut in black injection-molded PC. Shaped, adjustment screws. Transparent, injection-molded, upper and lower silicone shock absorbers. Lampholder and fixing support in PPS. Flashed and blown opal glass diffuser. Molded fixing ring nut in die-cast aluminum alloy with alodine plating. Frieze in photo-etched and mechanically drawn AISI 304 steel. Molded and galvanized steel ceiling attachment. Gray, injection-molded PC rose, painted the same color as the body.

Halogen - 230W

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Skygarden-2
Main specifications
EAN
8059607012925
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
230
Schematic light drawing
F64200XXWSKYGARDEN-2_230W-HL
Photometric
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
900
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
172
Canopy height (mm)
86
Net weight (kg)
29
Package height (mm)
680
Package width (mm)
1120
Package length (mm)
1120
Package volume (m3)
0.85
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Spare Parts

F0002044-skygarden-2-flos-boom

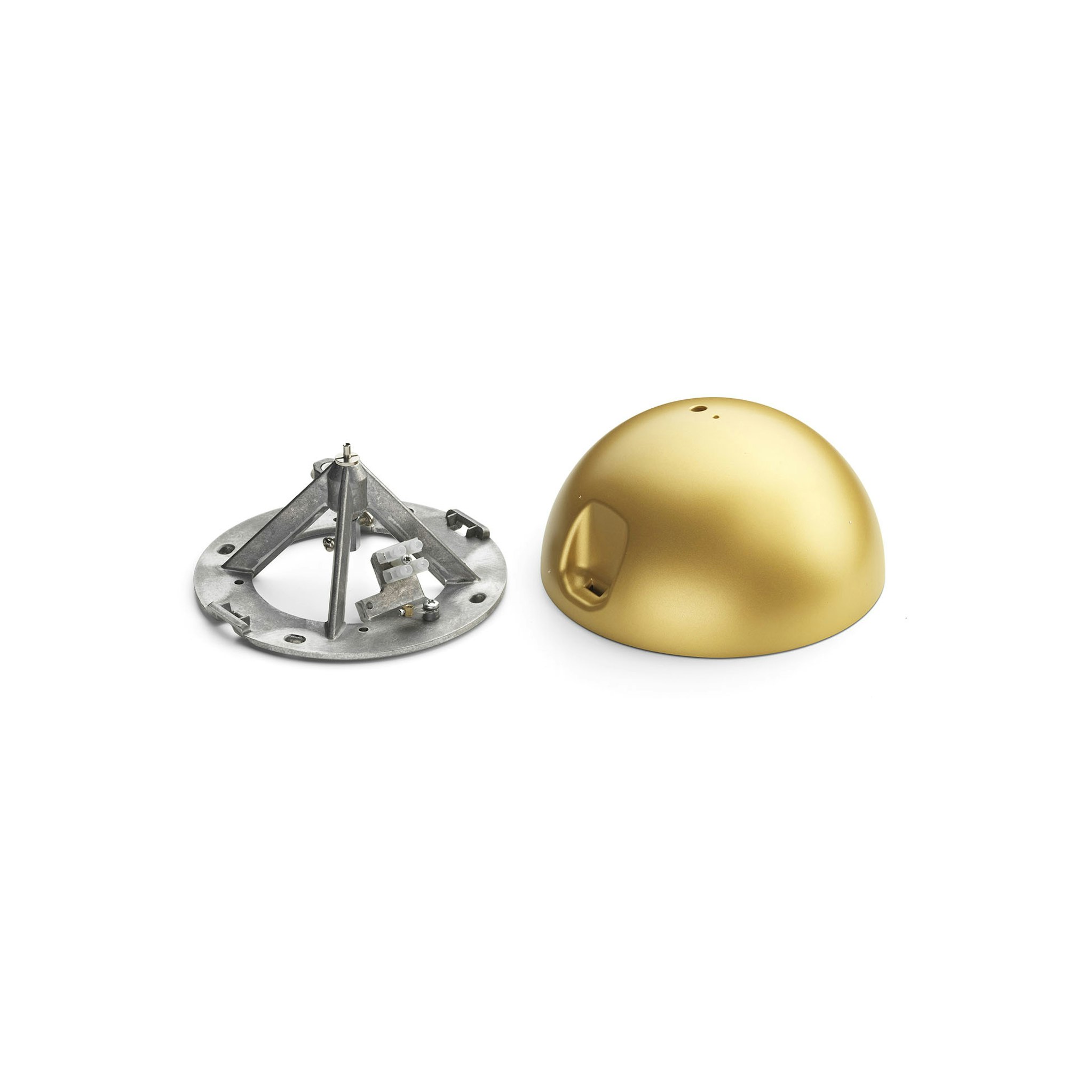

01. Skygarden 2 Gold ceiling rose assembly
RF6420244
02. Skygarden 2 Glass diffuser assembly
RF6420100
03. Kit of 5 or rings
RF05382
