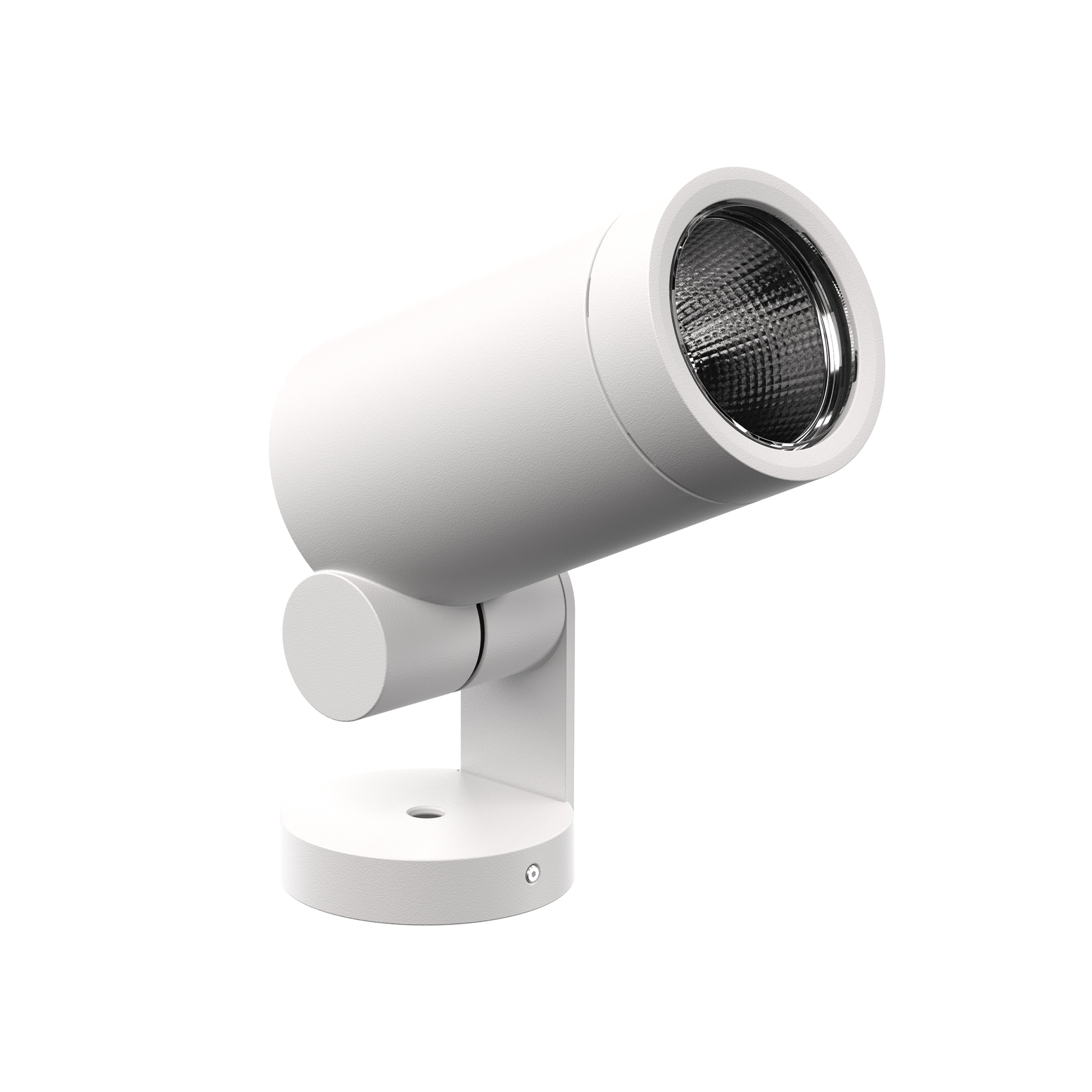

SpineSpine L 1 Absolute
Designed by Vincent Van Duysen, 2021
LED COB light source integrated. Integrated electric power supply 220-240 V ON/OFF. Minimum L-shaped mounting support integrated. Equipped with a 5 m neoprene cable (10 m upon request) for remote connection. To guarantee its water tightness, it is recommended to use flexible cables designed for outdoor use. Upon request: 1-10 V or DALI dimmable version with 24 Vdc remote power supply.
993lm - 4000K - CRI> 80 - Beam° 33
Technical Drawing
Main specifications
EAN
8054793437347
Mounting
, ,
Light source type
Light sources included
Yes
LED type
Number of lamps
1
System power (W)
11
Source flux (lm)
1364
Lumen Output (lm)
993
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
33
Beam angle C90-270 (º)
33
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Longitudinal tilting (°)
155
Net weight (kg)
0.9
Package height (mm)
190
Package width (mm)
245
Package length (mm)
280
Package volume (m3)
0.01
IP internal
Notes
5 m neoprene cable (10 m upon request) for remote connection.
