Splugen BrauSplügen Bräu
Designed by Achille and Pier Giacomo Castiglioni, 1961
Suspension fixture providing direct lighting. Polished and protected with transparent paint, spun aluminum reflector. Steel ceiling fitting, vacuum-formed ABS rose with gloss white finish.
Halogen - 70W
Technical Drawing
Main specifications
EAN
8059607022450
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGSA/S
Number of lamps
1
Power (W)
70
Schematic light drawing
Photometric
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
360
Cord colour
productFields.physical.cordLength
2200
Canopy colour
Canopy length/diameter (mm)
89
Canopy width (mm)
89
Canopy height (mm)
41
Net weight (kg)
1.4
Package height (mm)
280
Package width (mm)
425
Package length (mm)
420
Package volume (m3)
0.05
IP internal
Spare Parts

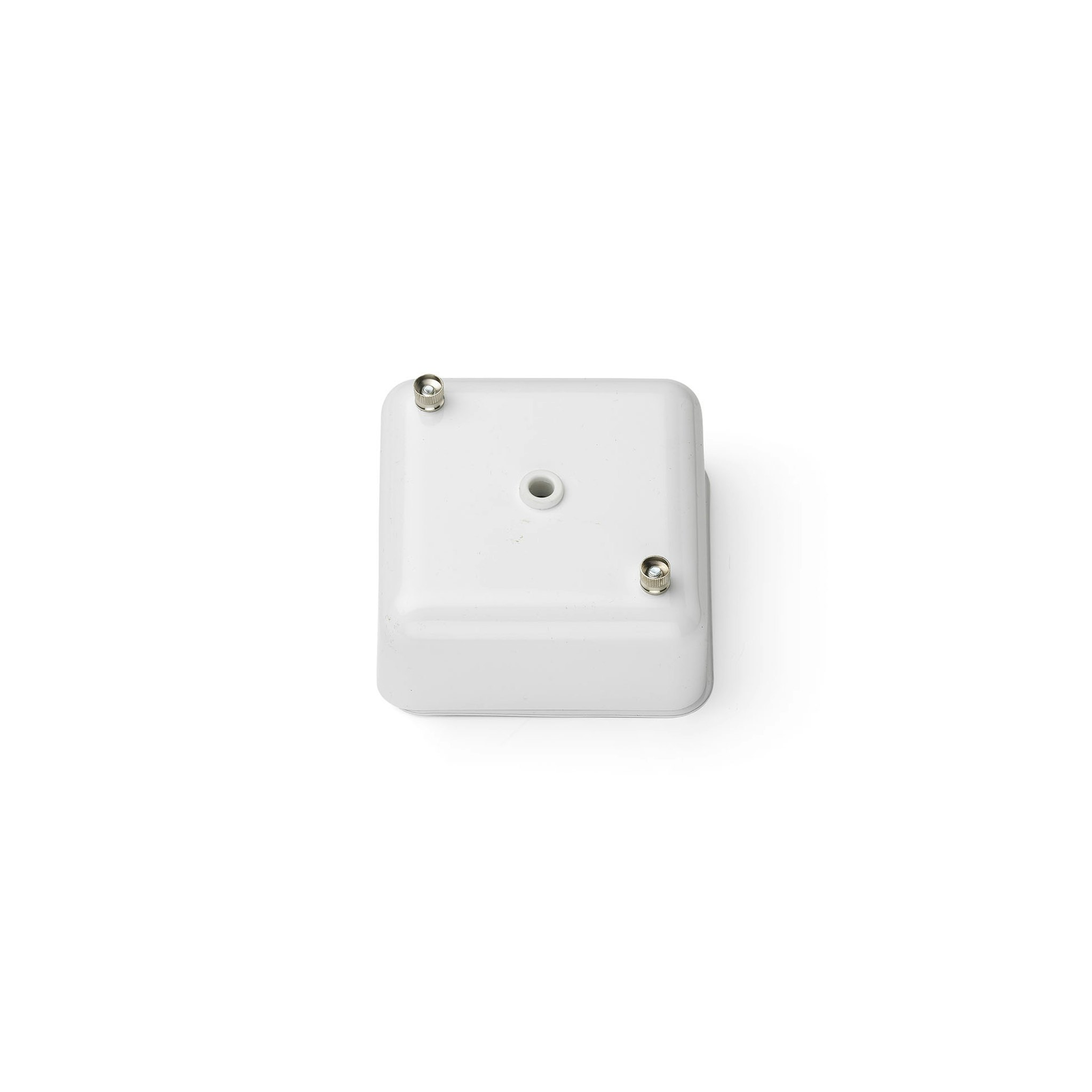

01. Splugen Brau Complete ceiling rose
RF6500109

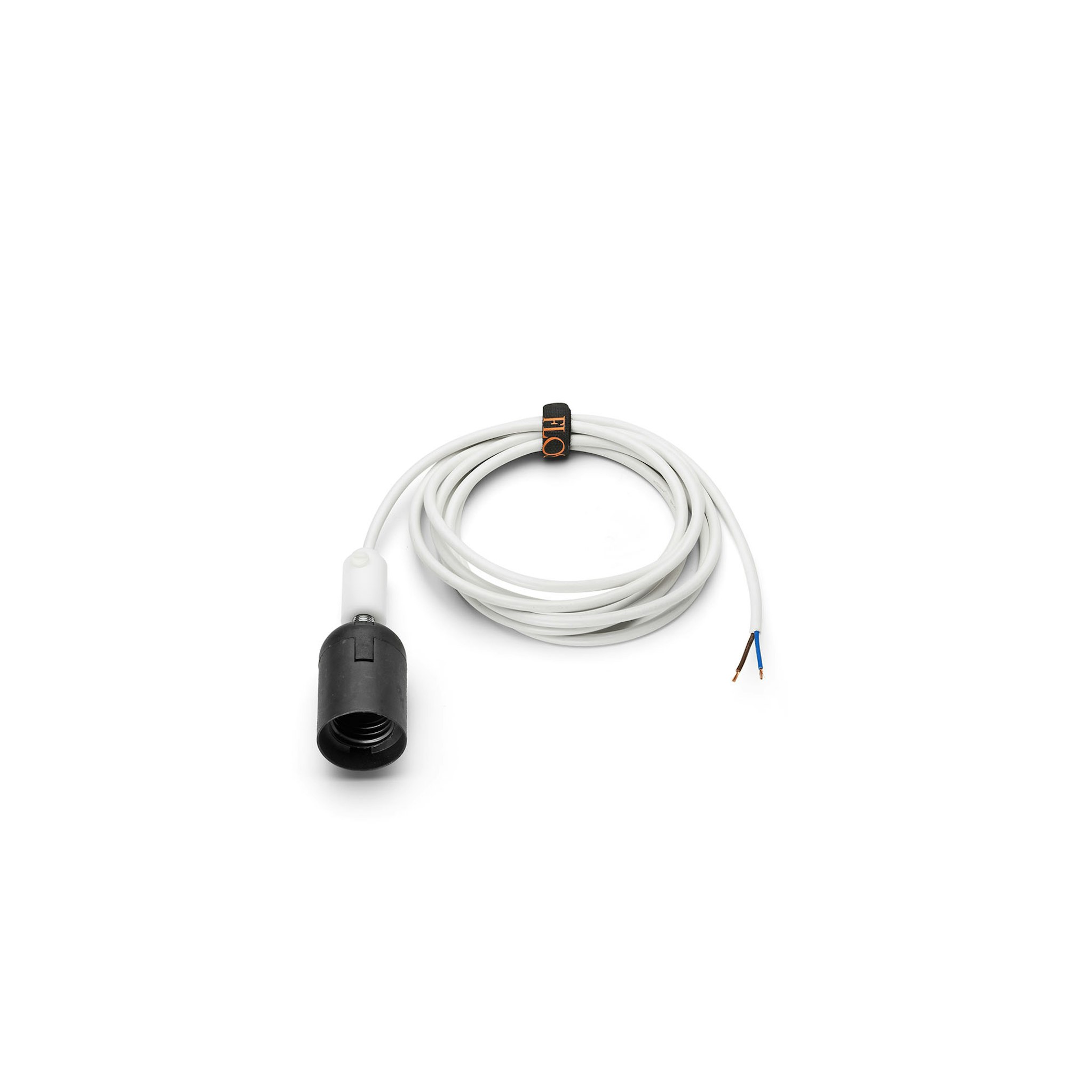

02. Splugen Brau Electric wiring 2,5mt
RF04637

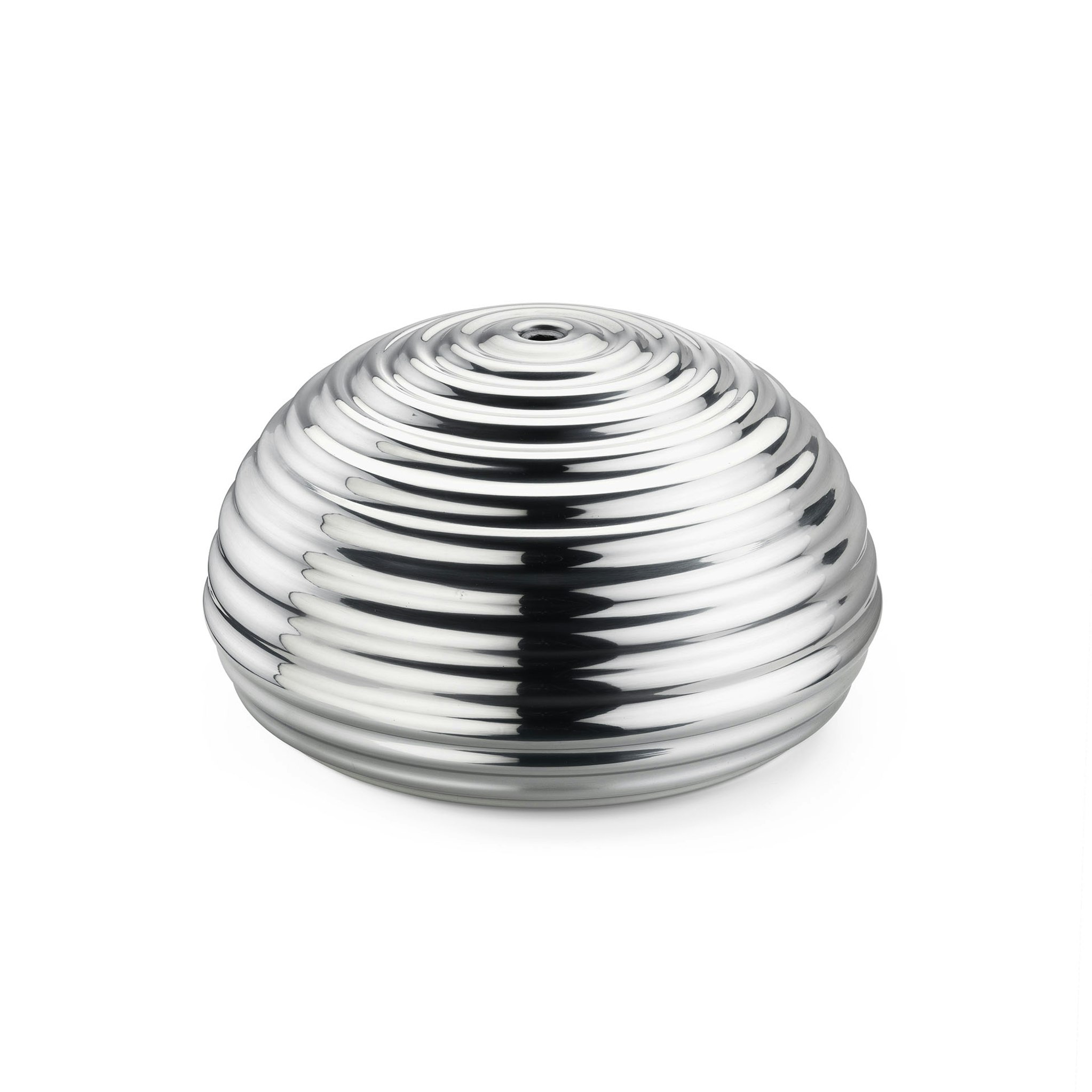

03. Splugen Brau Zapon-varnisched reflector
RF00750

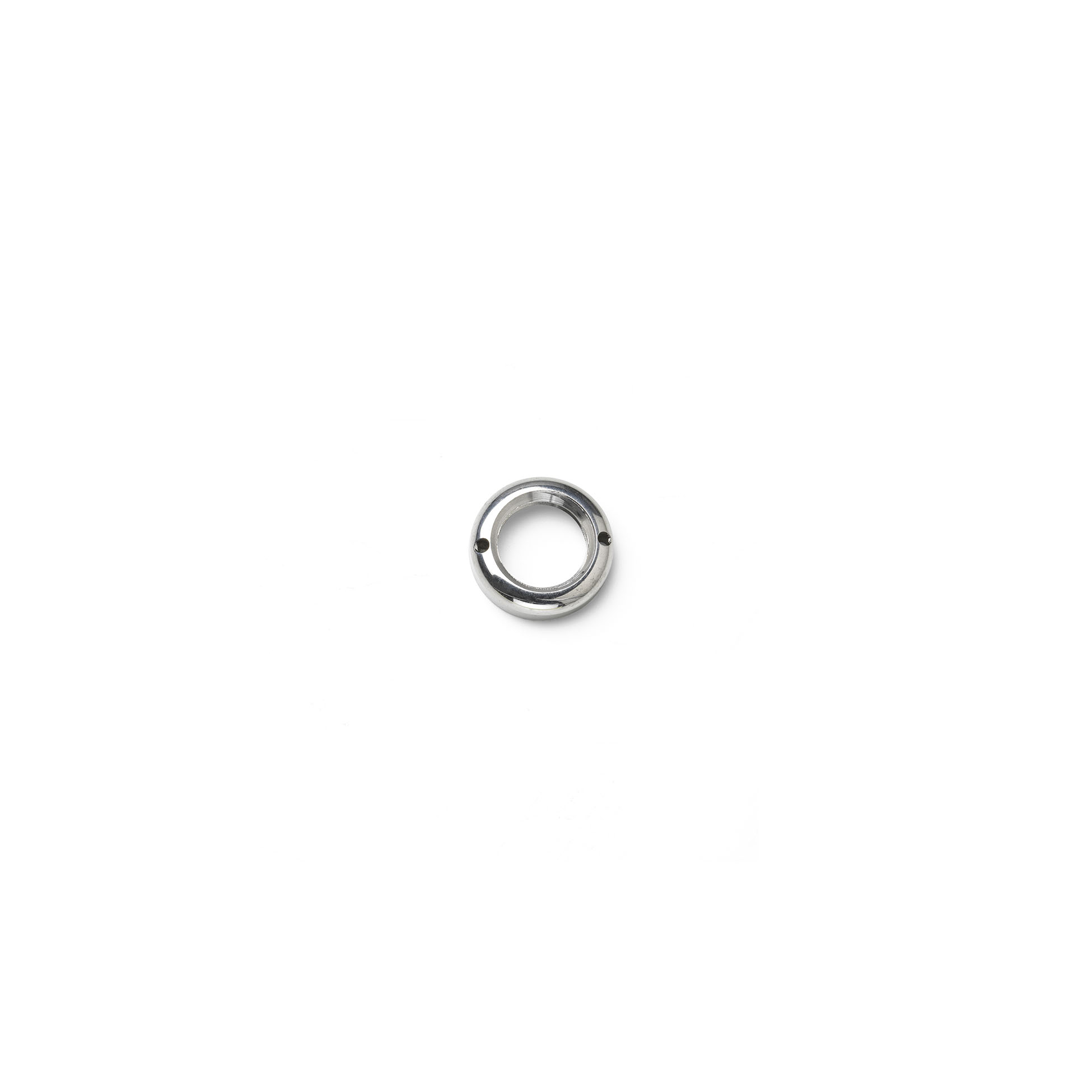

05. Splugen Brau Ring nut
RF06821
