StylosStylos
Designed by Achille Castiglioni, 1984

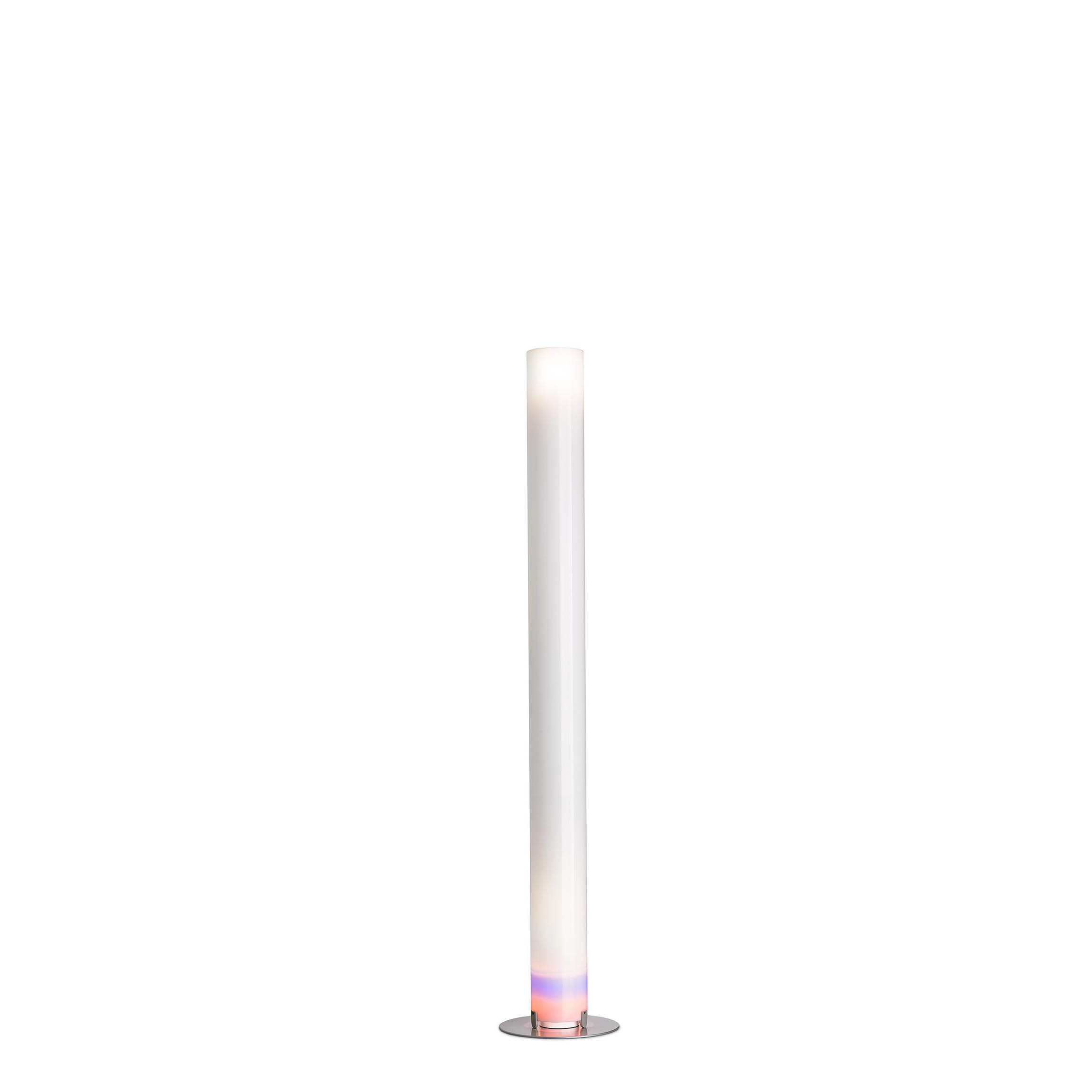

Floor lamp emitting indirect and diffused light. Silver powder-coated steel base with opaline extruded polymethylmethacrylate (PMMA) diffuser column. on/off control of the two light sources located at either end of the column and managed via a double foot switch on the power cable.
Halogen - 2 x 105W
Technical Drawing
Main specifications
EAN
8059607006238
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGSA/W + IPAR
Number of lamps
2
Power (W)
105
Schematic light drawing
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Plug type
Batteries inside
No
Physical
Colour
Length (mm)
170
Cord colour
productFields.physical.cordLength
2850
Net weight (kg)
9.05
Package volume (m3)
0.15
IP internal

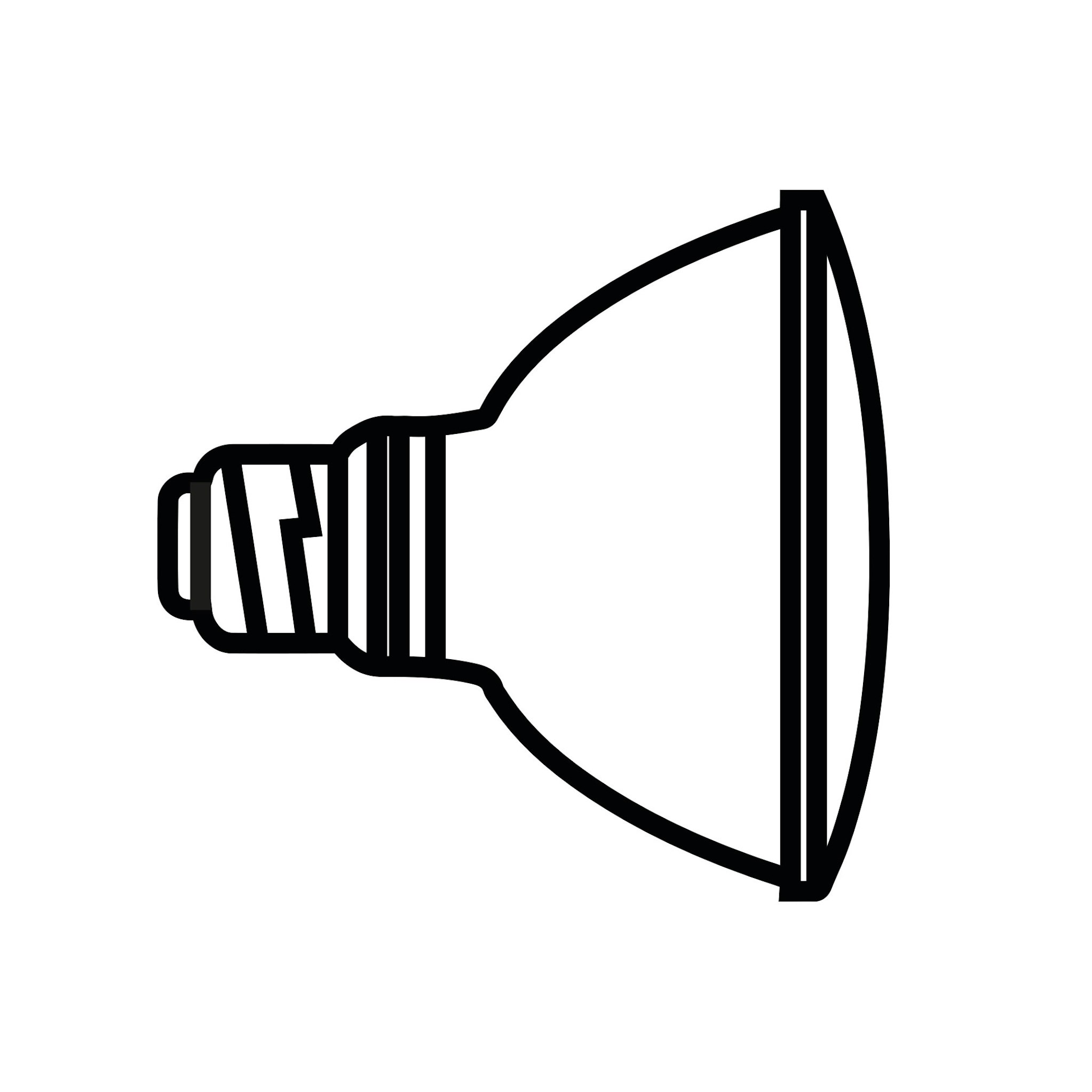

Bulbs
Spare Parts

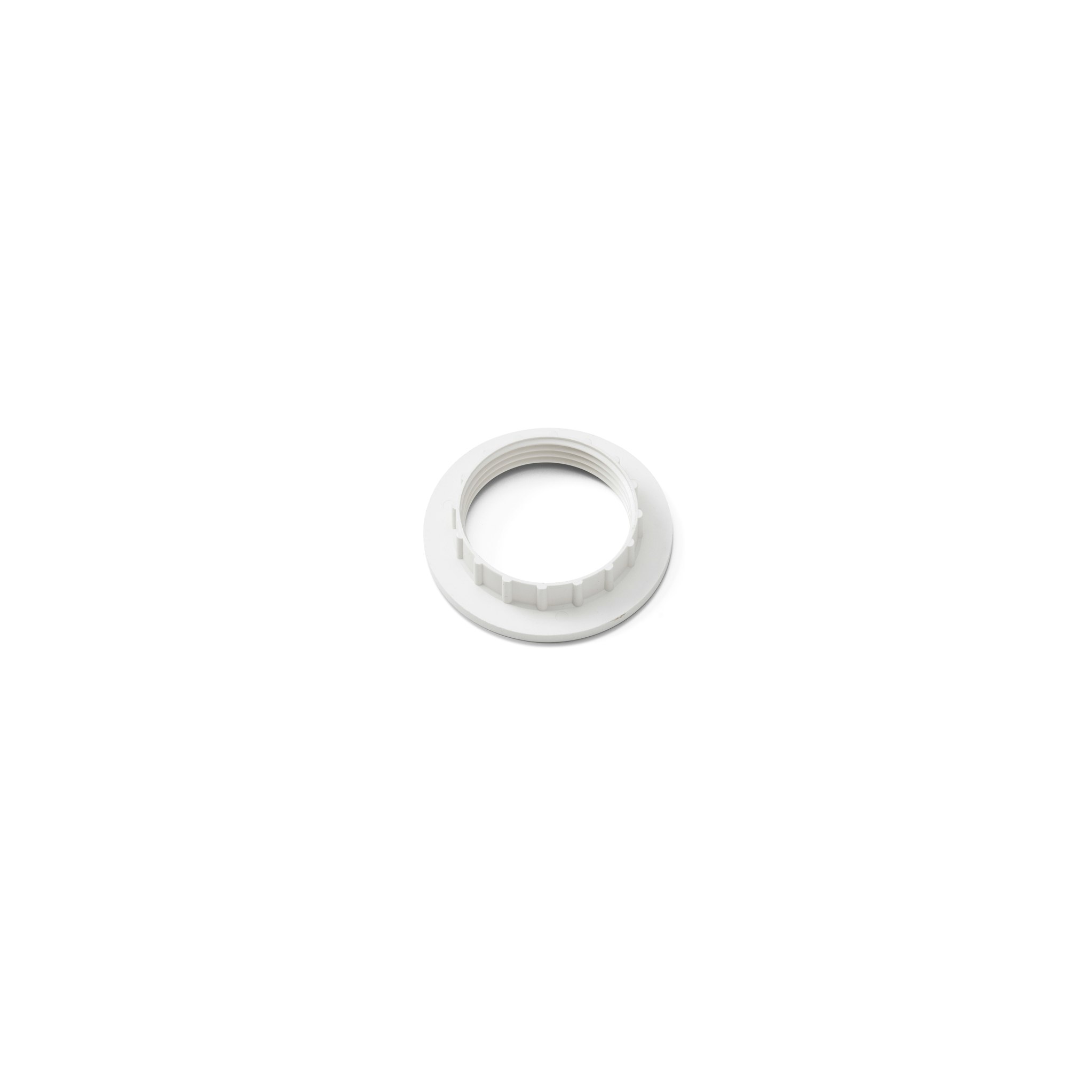

01. Ring Nut Lamp Holder
RF30384

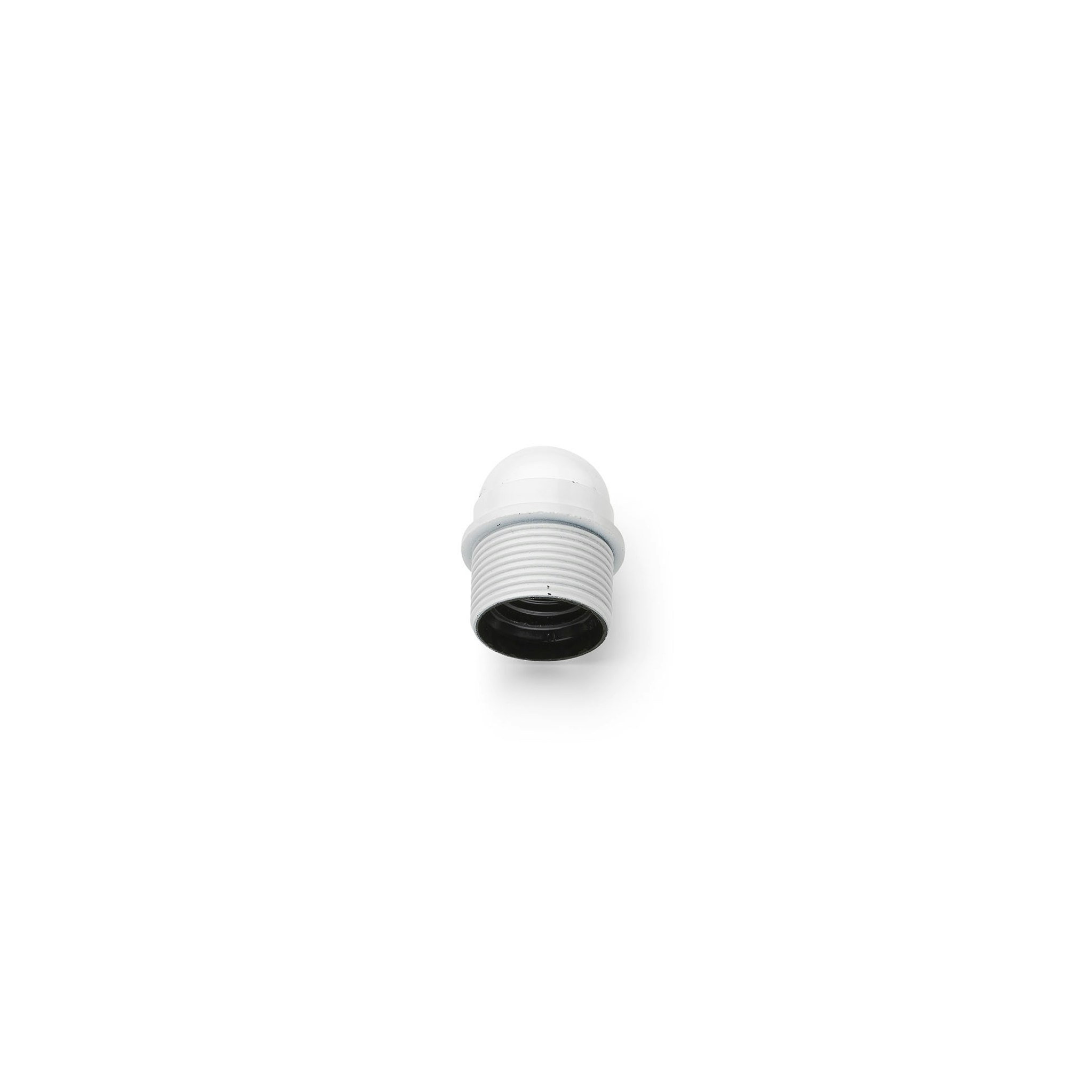

02. Stylos Top lamp holder assembly
RF6320100

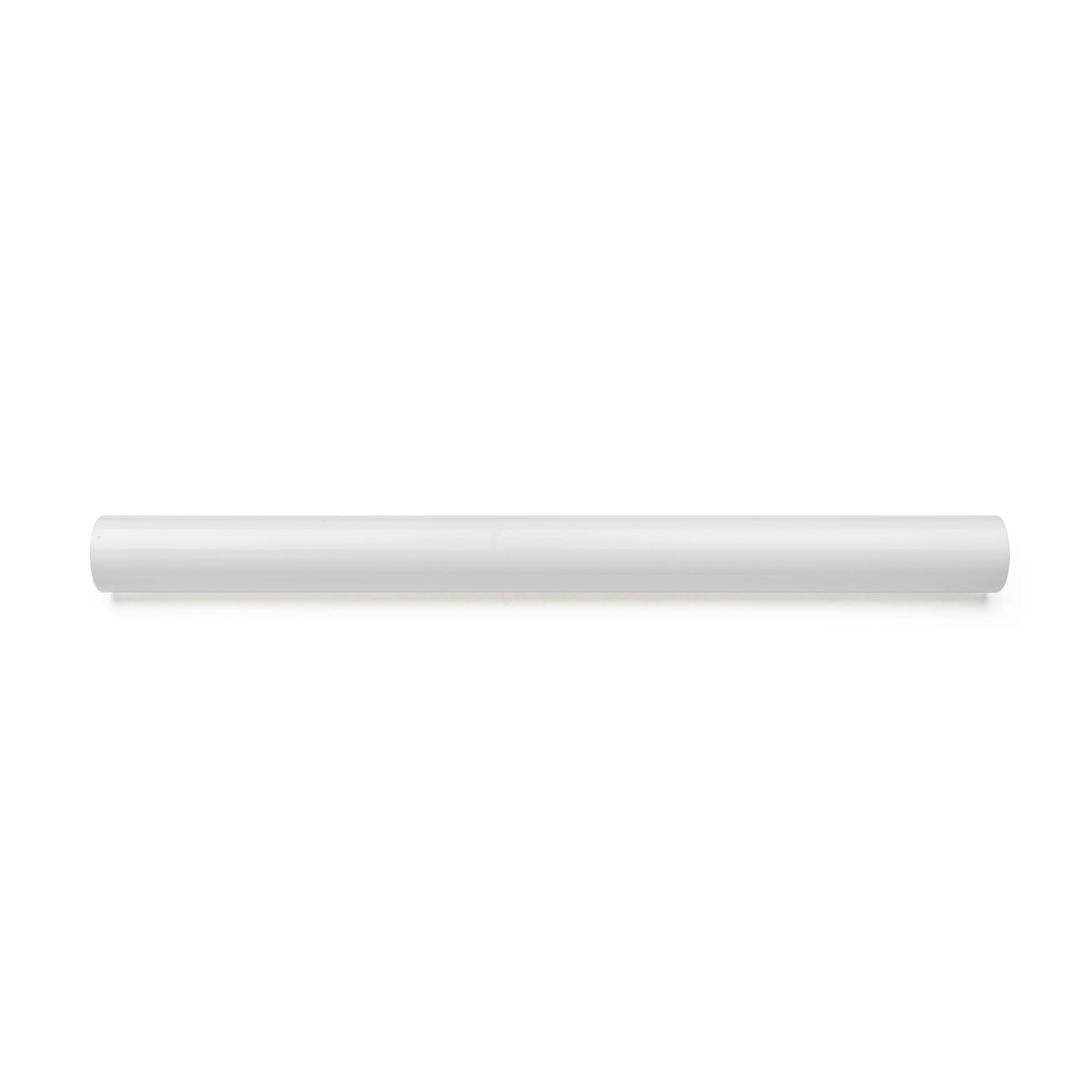

03. Stylos external diffuser
RF6330000

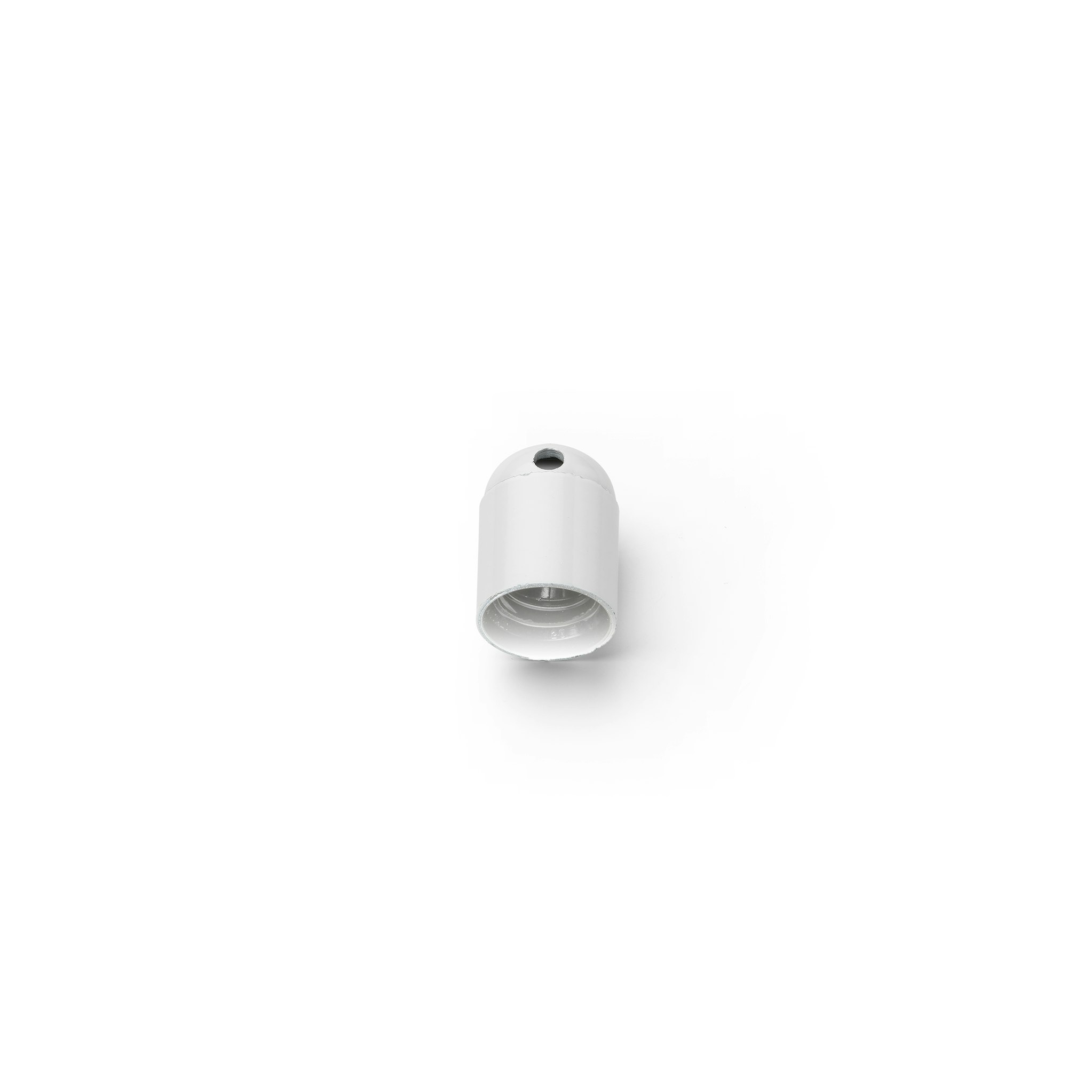

04. Stylos Assembly Lamp holder
RF6320200

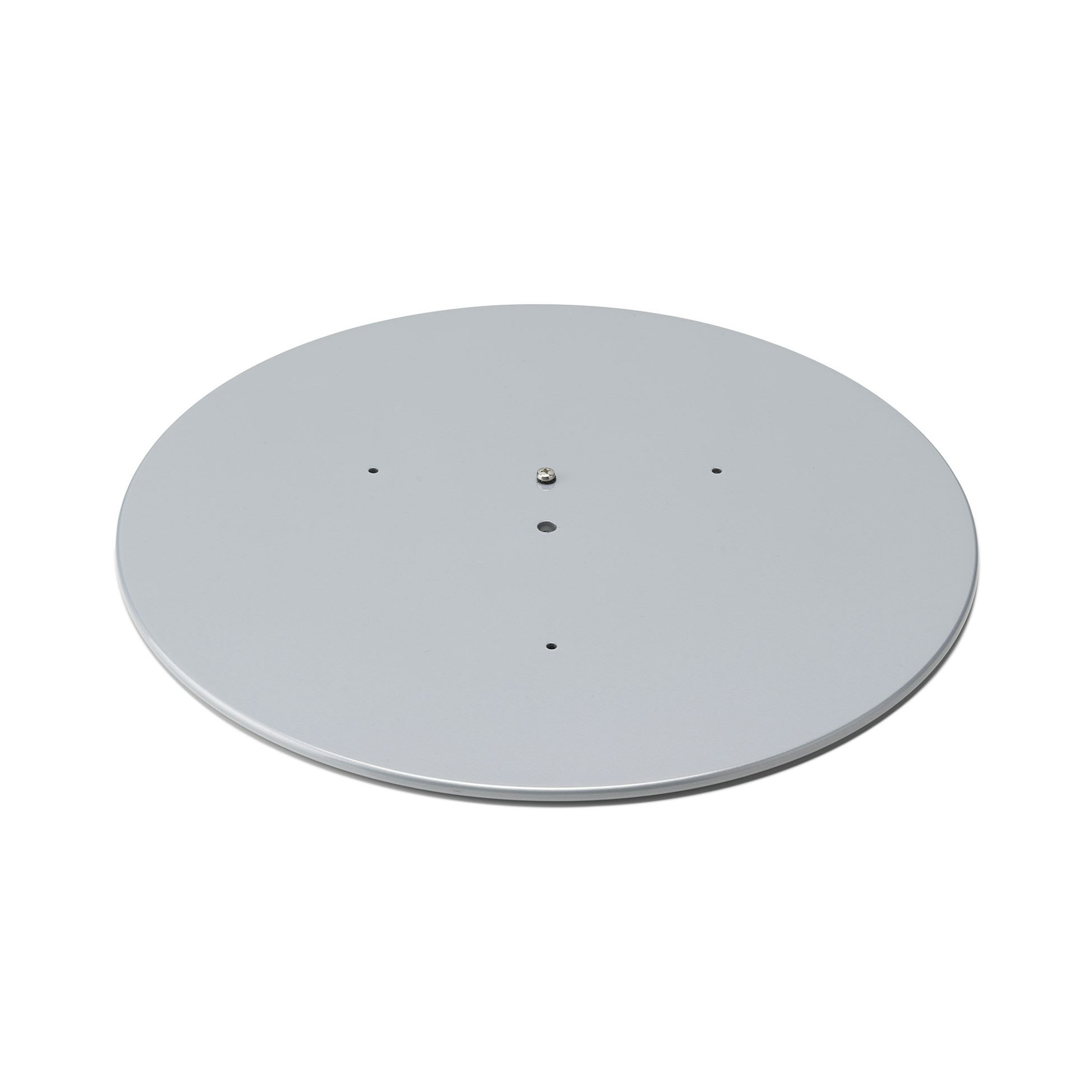

05. Stylos Base
F6320004

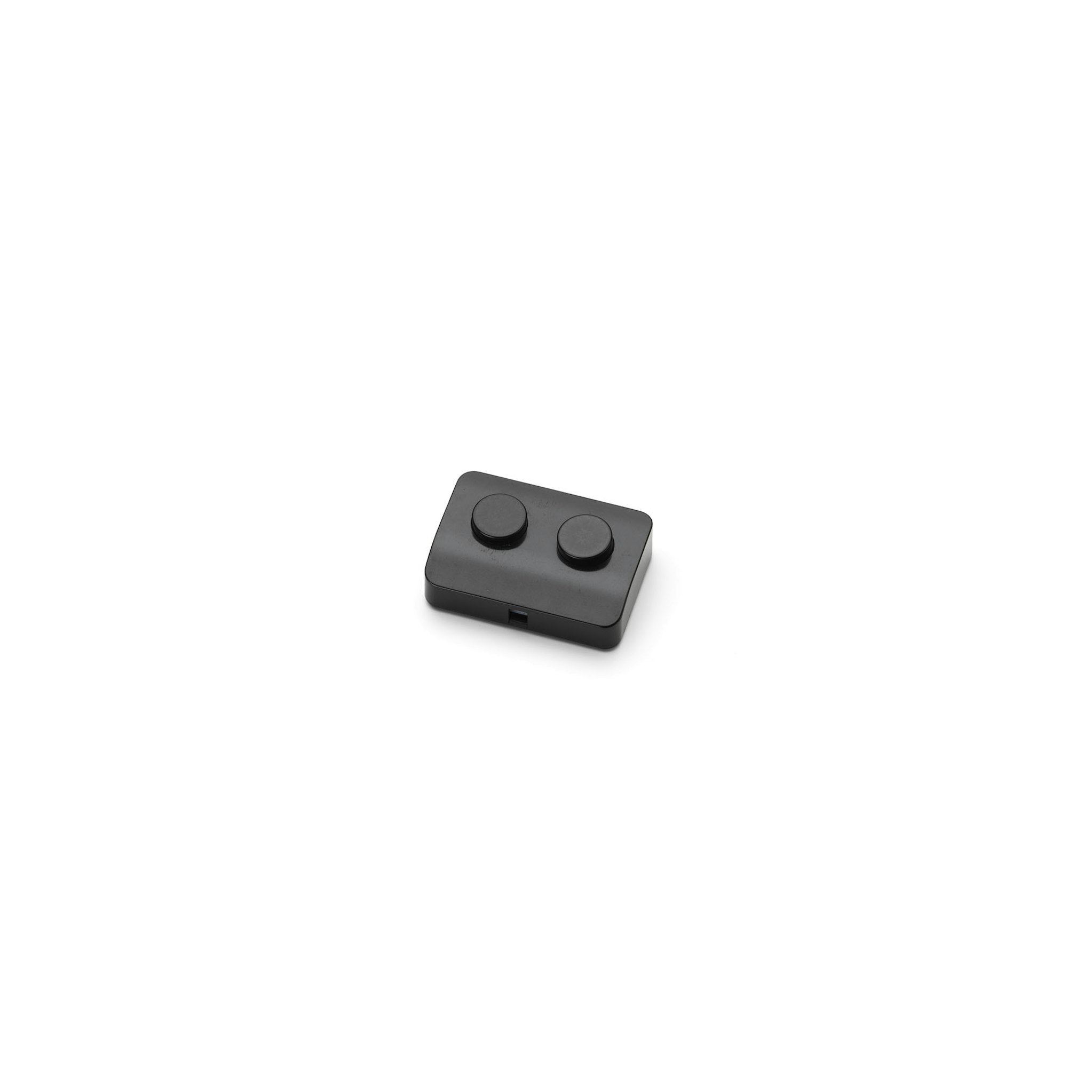

06. Stylos Double Black switch
RF03631

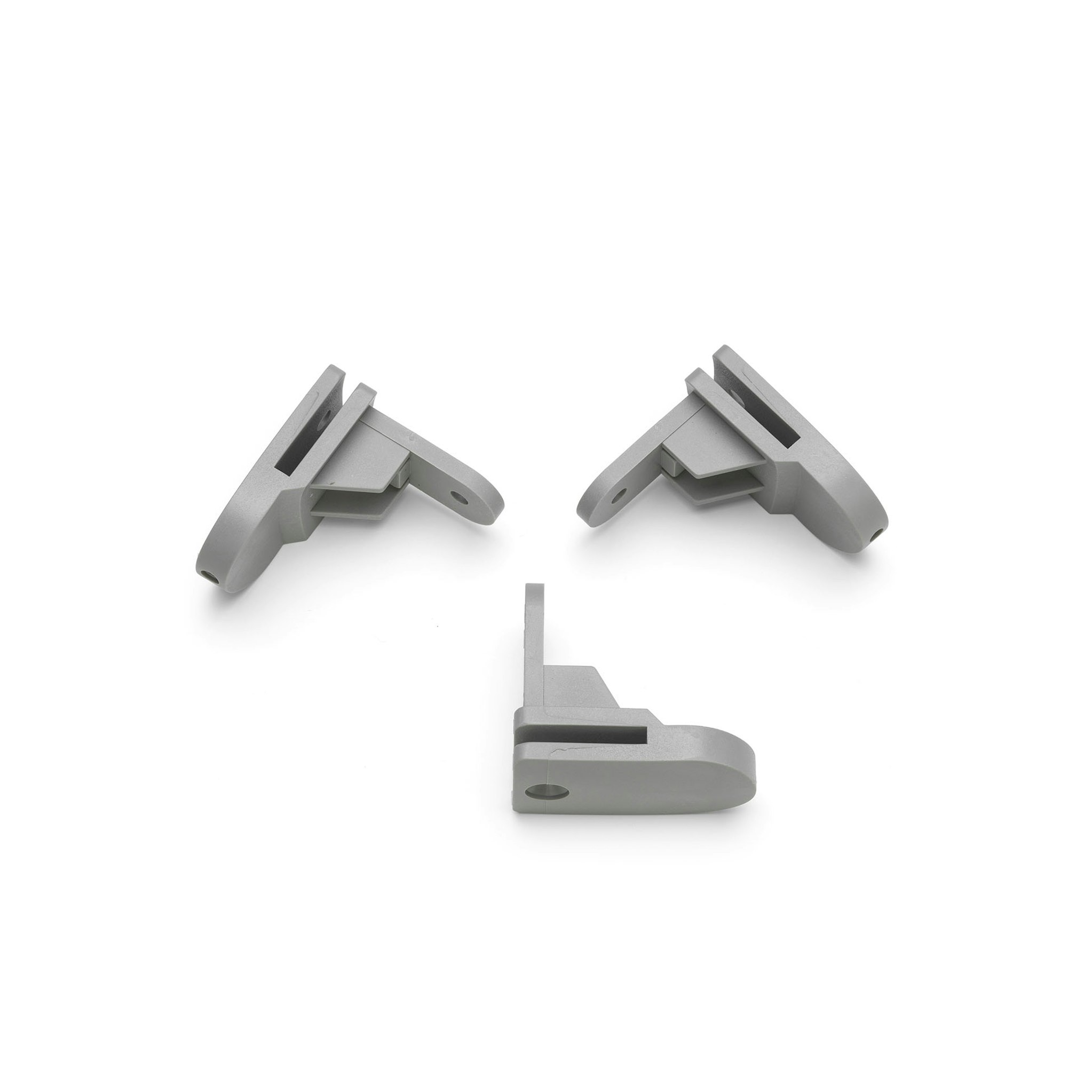

07. Stylos Kit of n.3 diffuser bracket supports
RF6330100

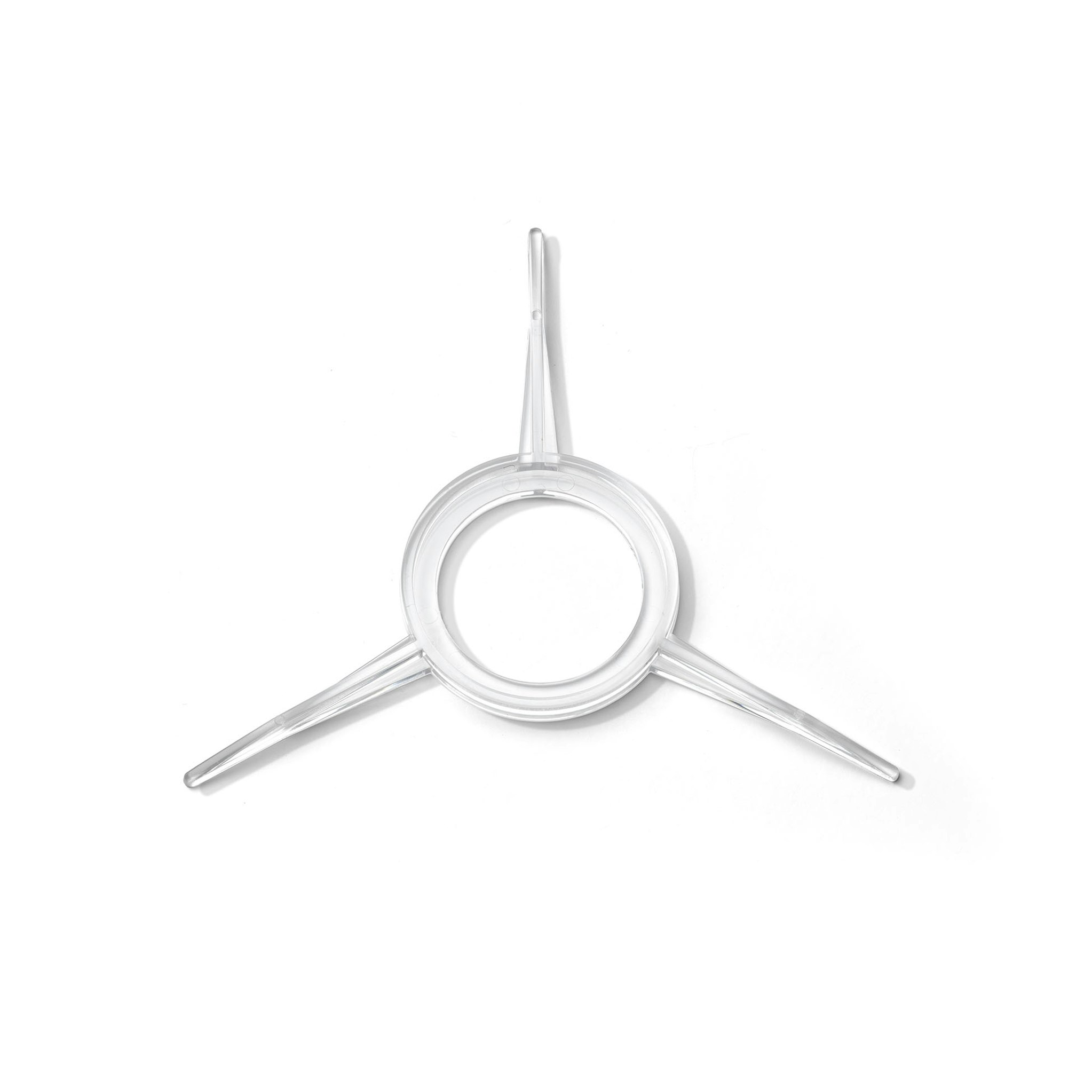

08. Stylos Polycarbonate spacer
RF05861

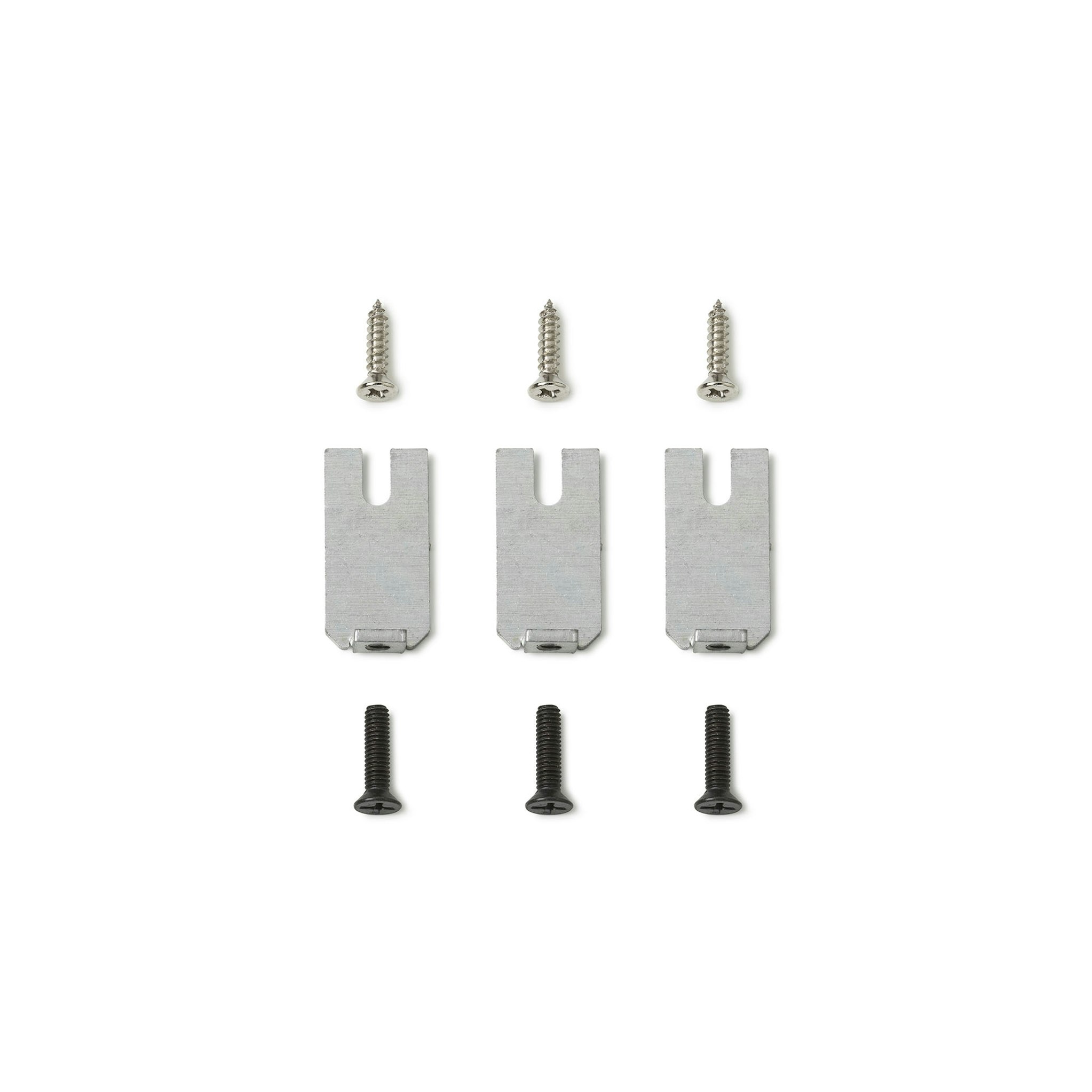

09. Stylos Kit of screws and metal bracket for diffuser assembly
RF6330200
