03.9510.ET Brushed Brass

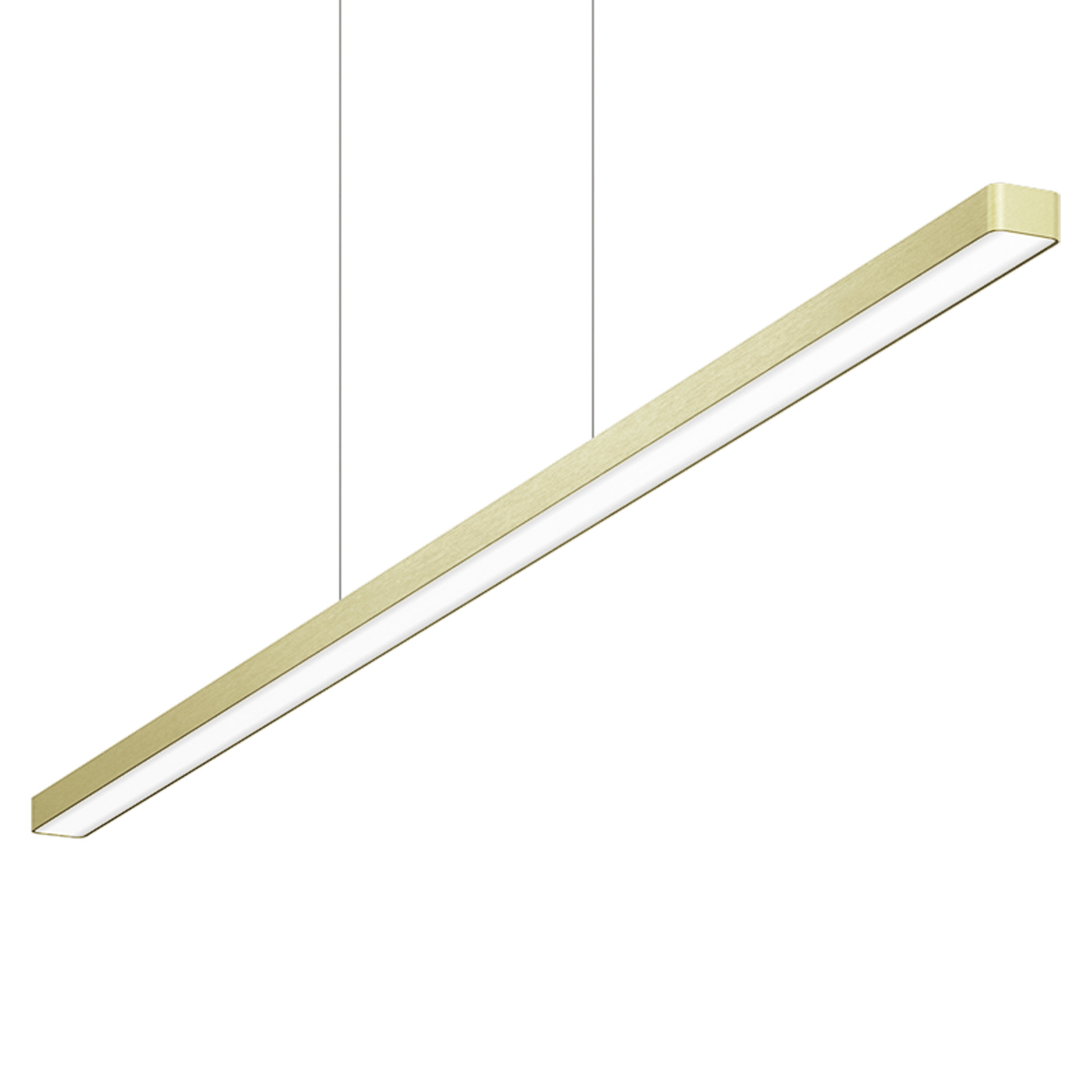

Super Line Down
New
Designed by FLOS Architectural
LED luminaire for general lighting with a signature minimalist and compact design, to be installed on ceilings by means of suspension. Power source included in installation kits must be ordered separately.
LED - Top LED - 38.6W - 3571lm - 3000K - CRI> 90 - Beam° 76
Technical Drawing
Main specifications
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
Top LED
Lamp category
LED
Number of heads
1
Power (W)
38.6
System power (W)
39
Source flux (lm)
4609
System flux (lm)
3571
Efficacy (lm/W)
91.56
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50 - 50.0000h (Tc 85ºC)
Beam angle C0-180 (º)
76
Beam angle C90-270 (º)
82
Extreme cut off
No
Electrical
Insulation class
III
Forward voltage (V)
35.9
LED current (mA)
1050
Driver
Remote
Dimmable
Yes
Dimming type
Dimmable 0-10V
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Brushed Brass
Orientation
Fixed
Length (mm)
1500
Net weight (kg)
1.45
IP
20
IP external
20
Notes
Cable 5 m
Photometric Files
Ecodesign and Energy Labelling
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
