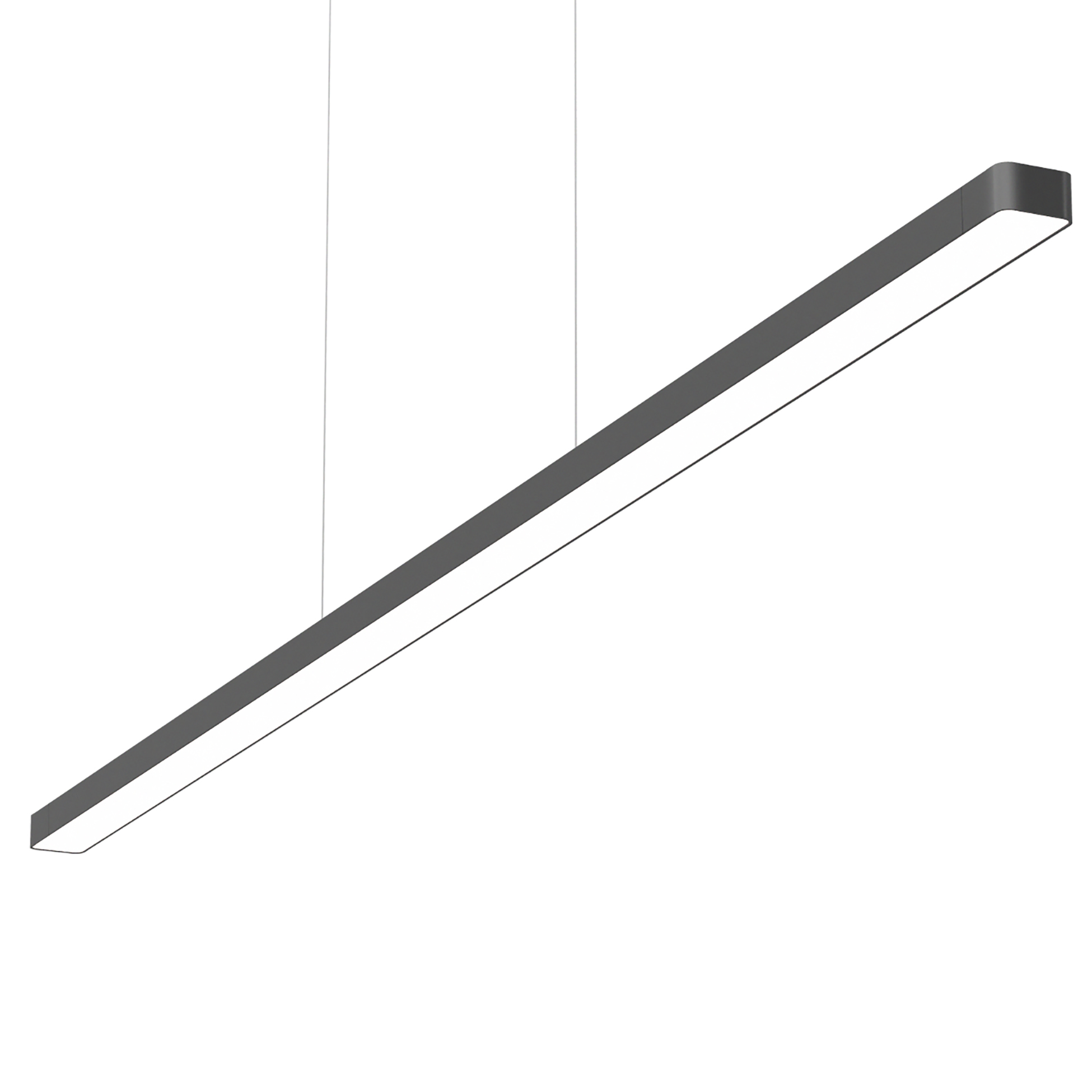

03.9501.14 BlackSuper Line Up&Down Direct
Designed by FLOS Architectural, 2017
LED luminaire for direct and indirect lighting with a signature minimalist and compact design, to be installed on ceilings by means of suspension. Power source included in installation kits must be ordered separately.
LED - Top LED - 58W - 5472lm - 4000K - CRI> 90 - Beam° 76
Technical Drawing
Main specifications
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
Top LED
Lamp category
LED
Number of heads
1
Power (W)
58
System power (W)
60
Source flux (lm)
7351
System flux (lm)
5472
Efficacy (lm/W)
91.2
Schematic light drawing
Photometric
Lighting type
Indirect, Direct
Light distribution
Asymmetric
CCT (K)
4000
CRI>
90
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
76
Beam angle C90-270 (º)
82
Electrical
Insulation class
III
Forward voltage (V)
55.8
LED current (mA)
1050
Driver
Remote
Dimmable
Yes
Dimming type
Dimmable 0-10V
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency type
No
Physical
Colour
Black
Trim
No
Orientation
Fixed
Length (mm)
1500
Net weight (kg)
1.45
IP
20
IP external
20
Notes
Cable 4.25 m
Photometric Files
Ecodesign and Energy Labelling
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
