SuperWireSuperWire F
Designed by Formafantasma, 2024

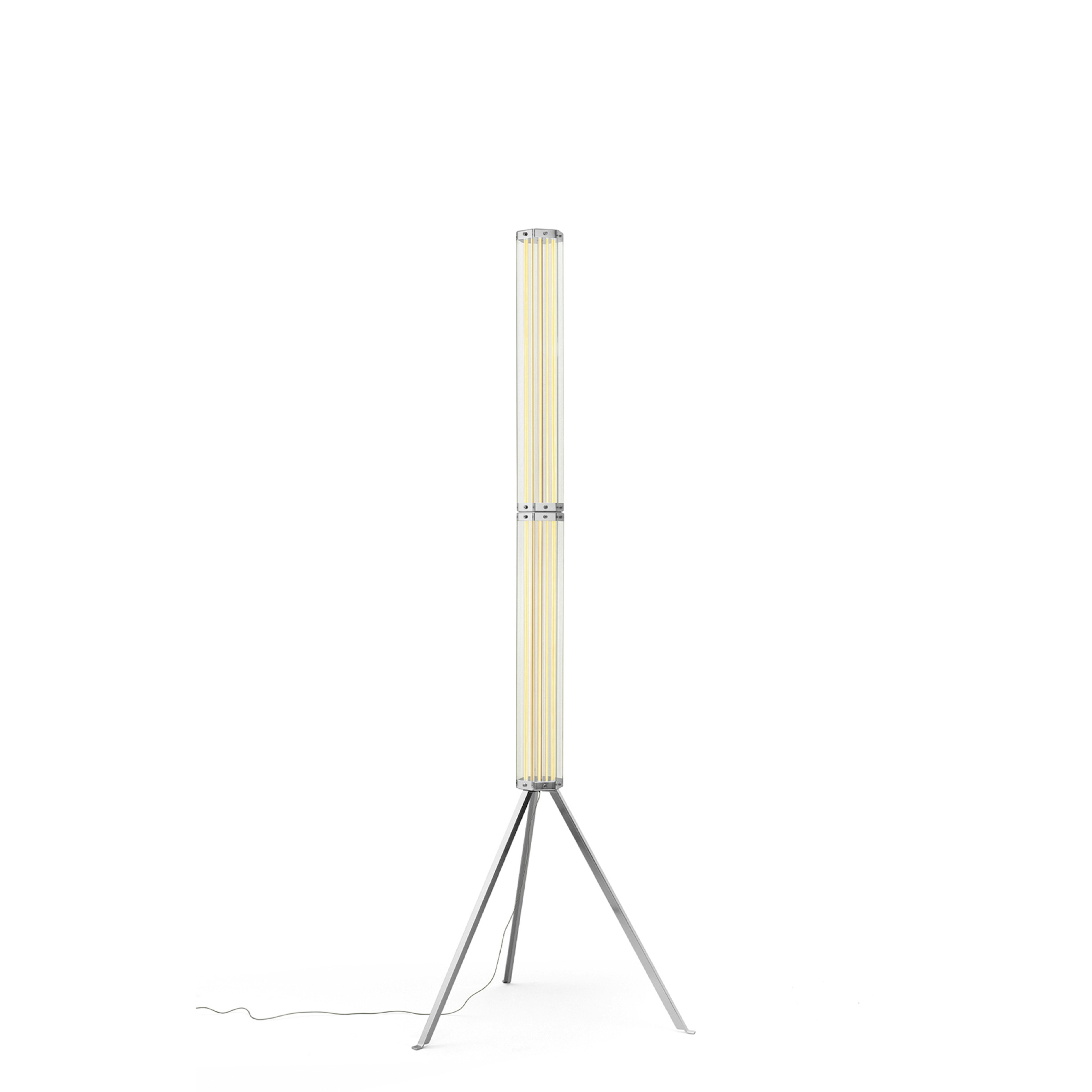

Floor lamp emitting diffused light. Structure of planar glass panels joined by polished aluminium elements, forming hexagonal modules stacked on a steel tripod base. Equipped with a custom-made light source that emits warm, uniform light along its entire length and can be easily removed for replacement or repair.
56W - 4134lm - 2700K - CRI> 90
Technical Drawing
Main specifications
EAN
8059607068304
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
56
System power (W)
56
Lumen Output (lm)
4134
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
, ,
Batteries inside
No
Physical
Colour
Length (mm)
792
Cord colour
productFields.physical.cordLength
3000
Net weight (kg)
12.3
Package volume (m3)
0.14
IP internal
Spare Parts

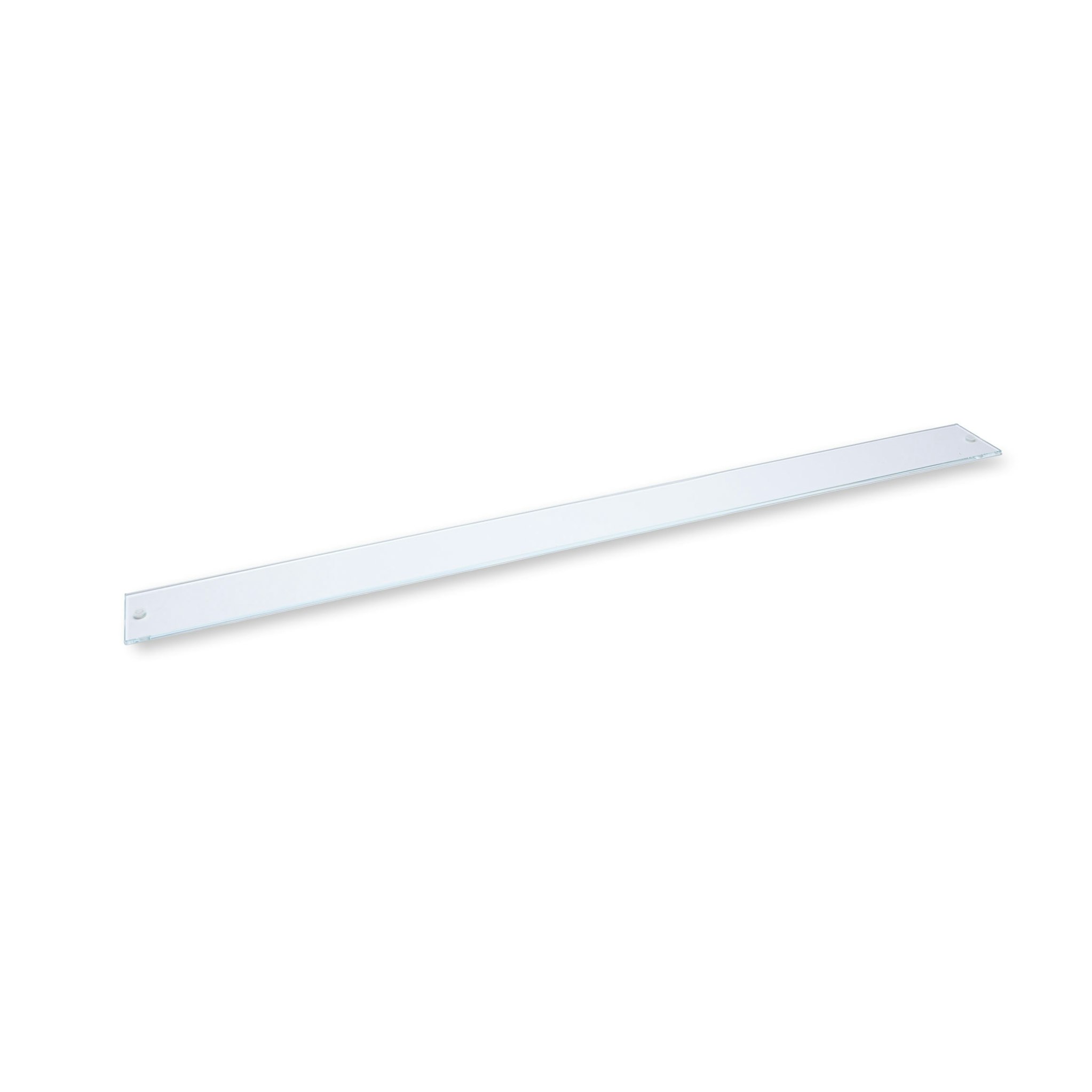

01. Superwire Floor/Suspension Long glass plate and bushings
RF301F200

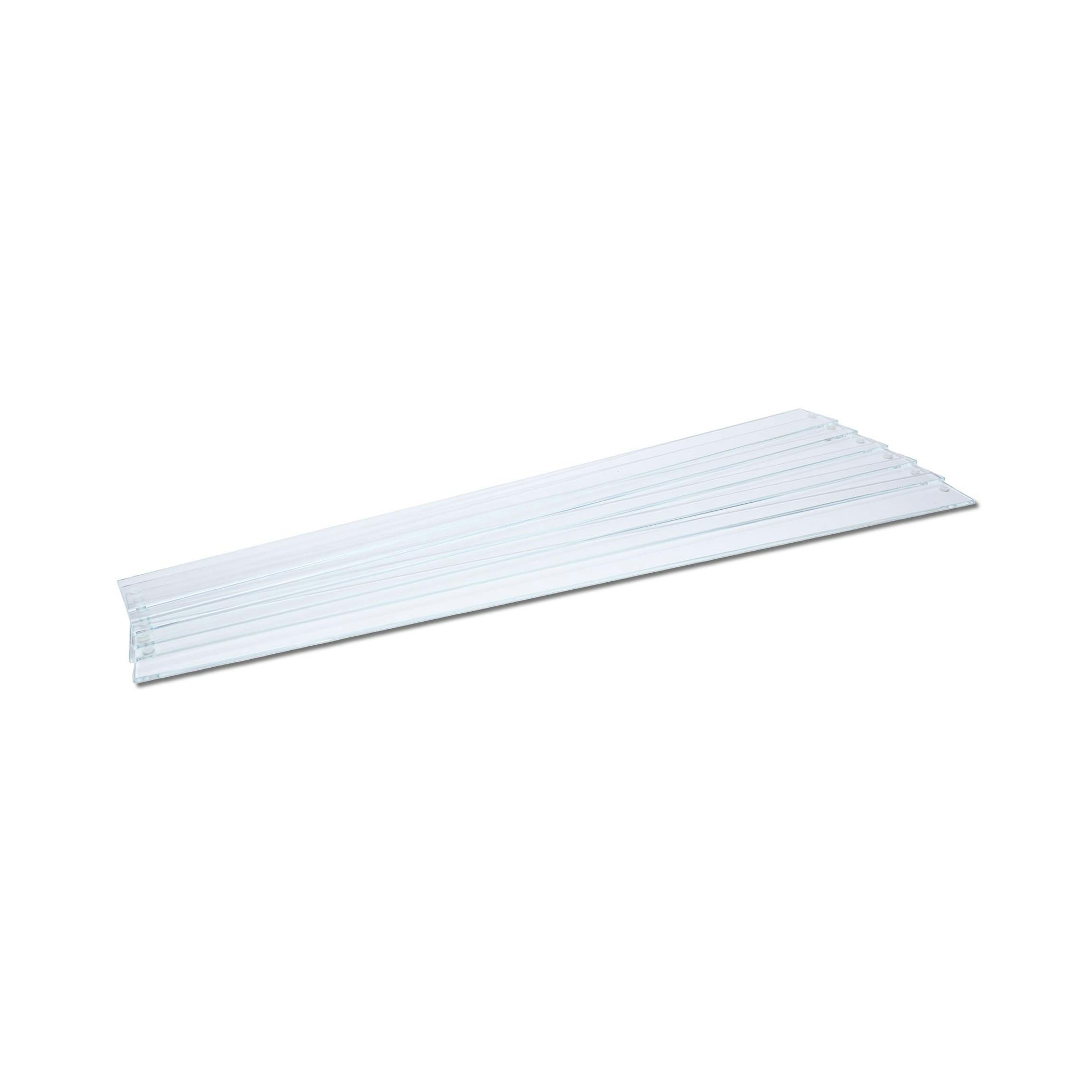

02. Superwire Floor/Suspension Long glass plate and bushings kit 6 pcs
RF301F300

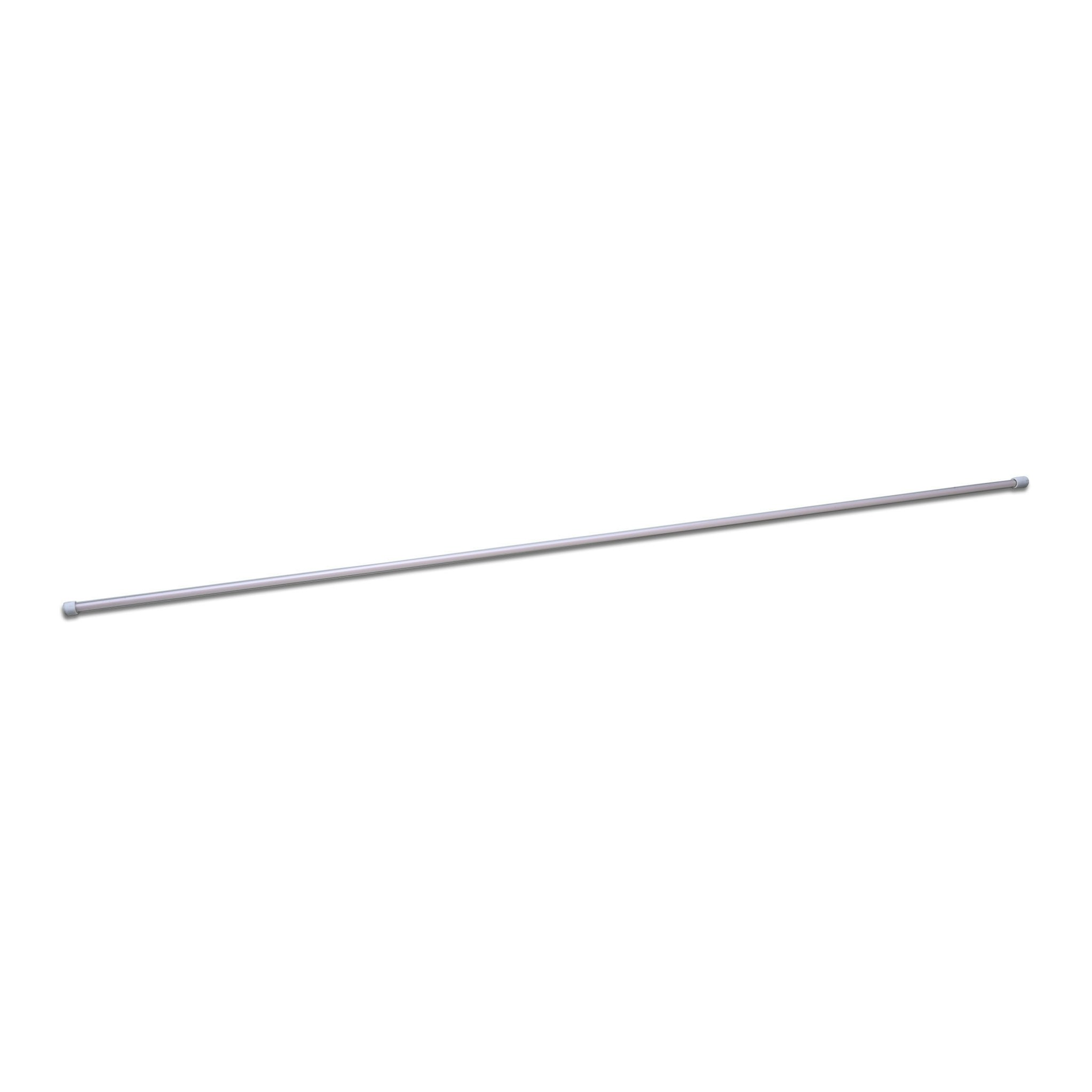

03. Superwire Floor/Suspension Led L750 40MA/42VDC/27K filament
RF301F400

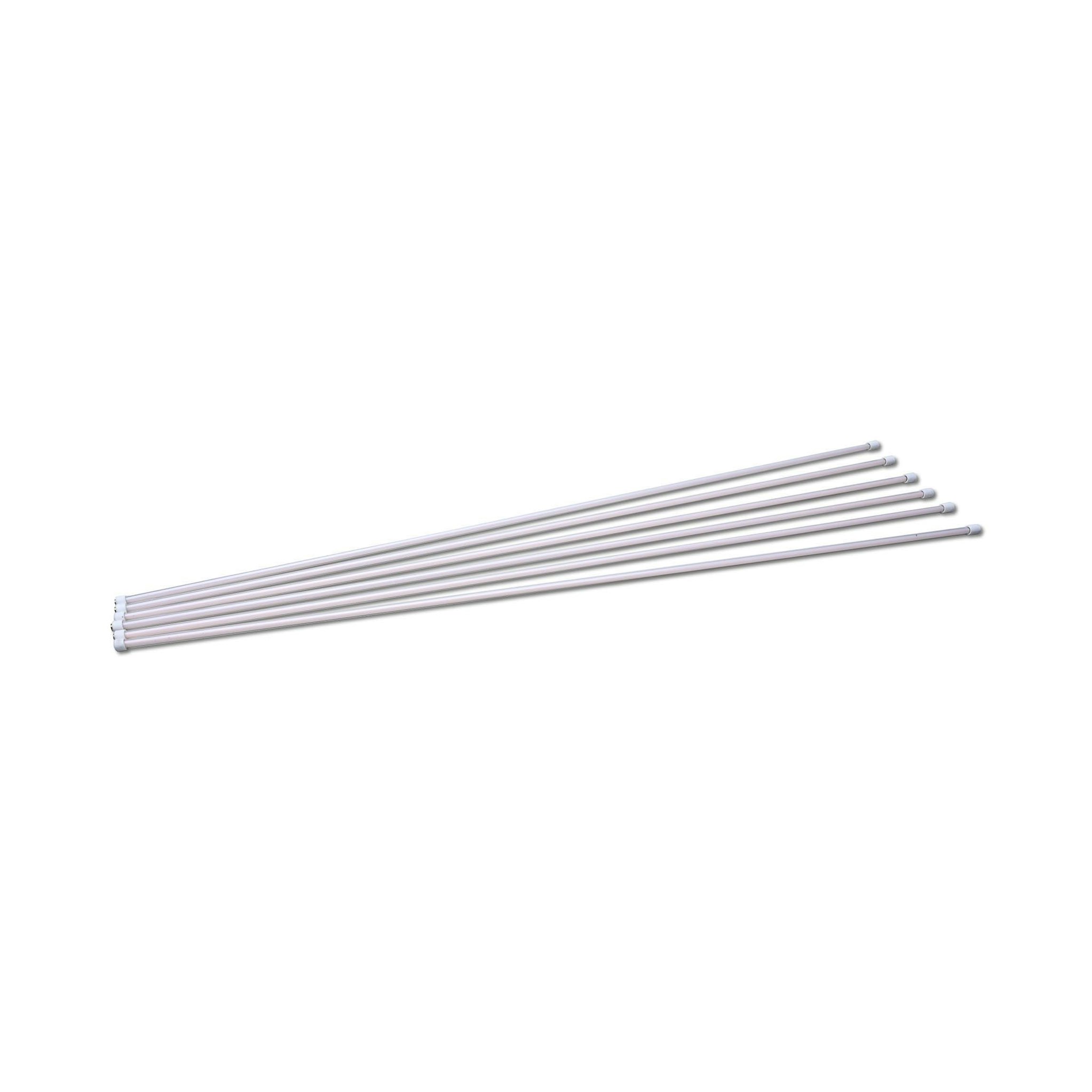

04. Superwire Floor/Suspension Led L750 40MA/42VDC/27K filament kit 6 pcs
RF301F500

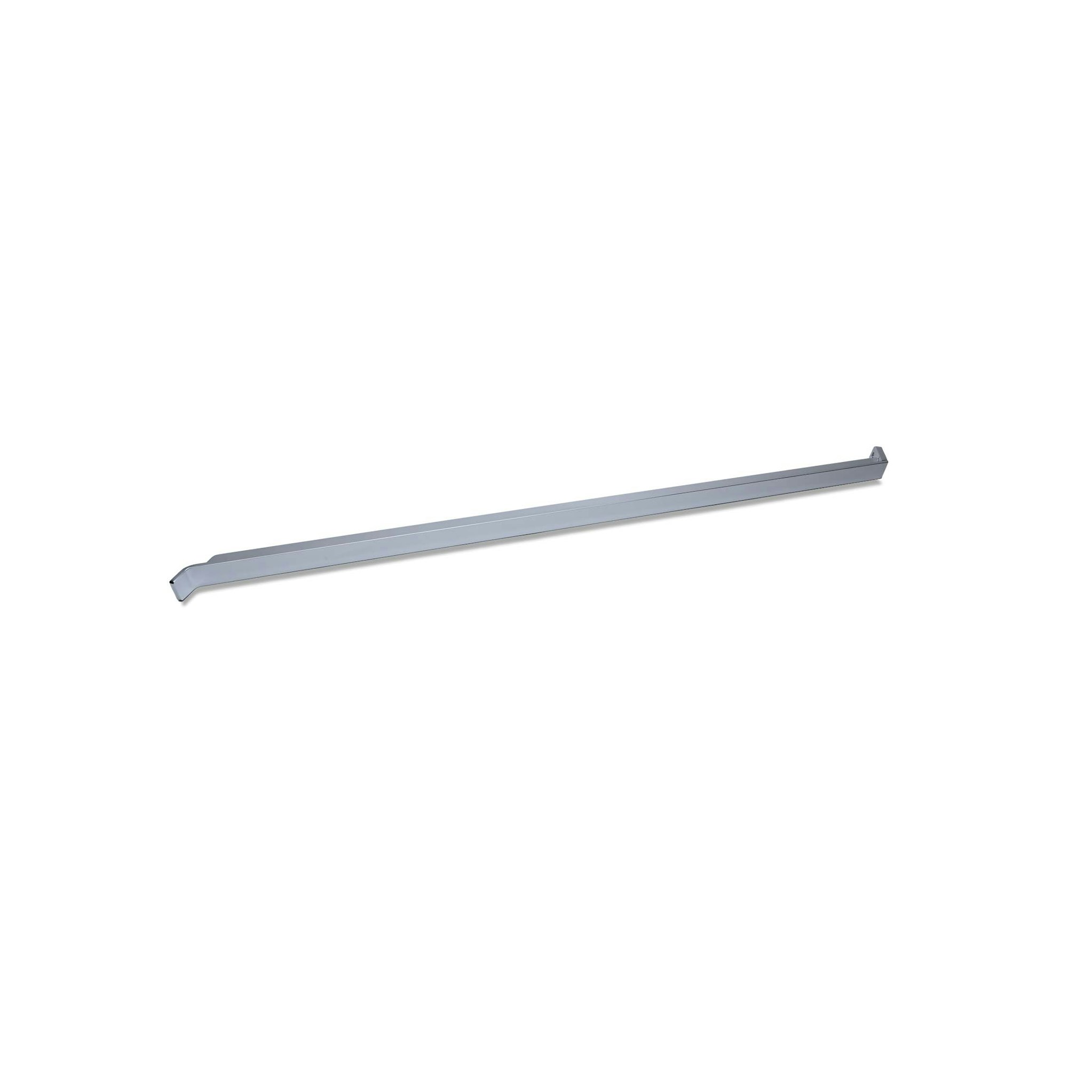

05. Superwire Floor Brill leg assembly
RF301F164
06. Black plug assembly kit & 48V driver
RF6600130

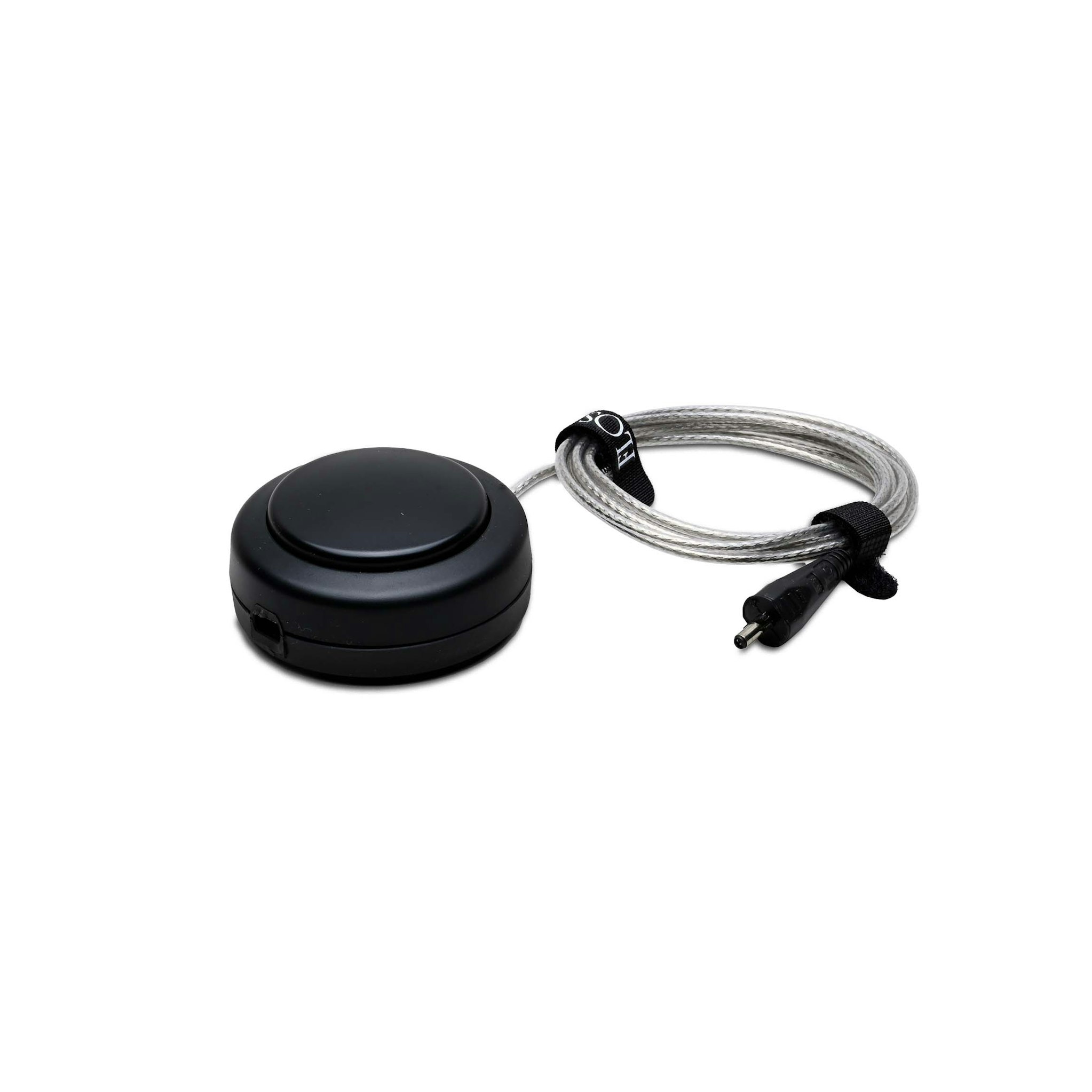

07. Superwire Floor Switch dimmer assembly 48V
RF37195

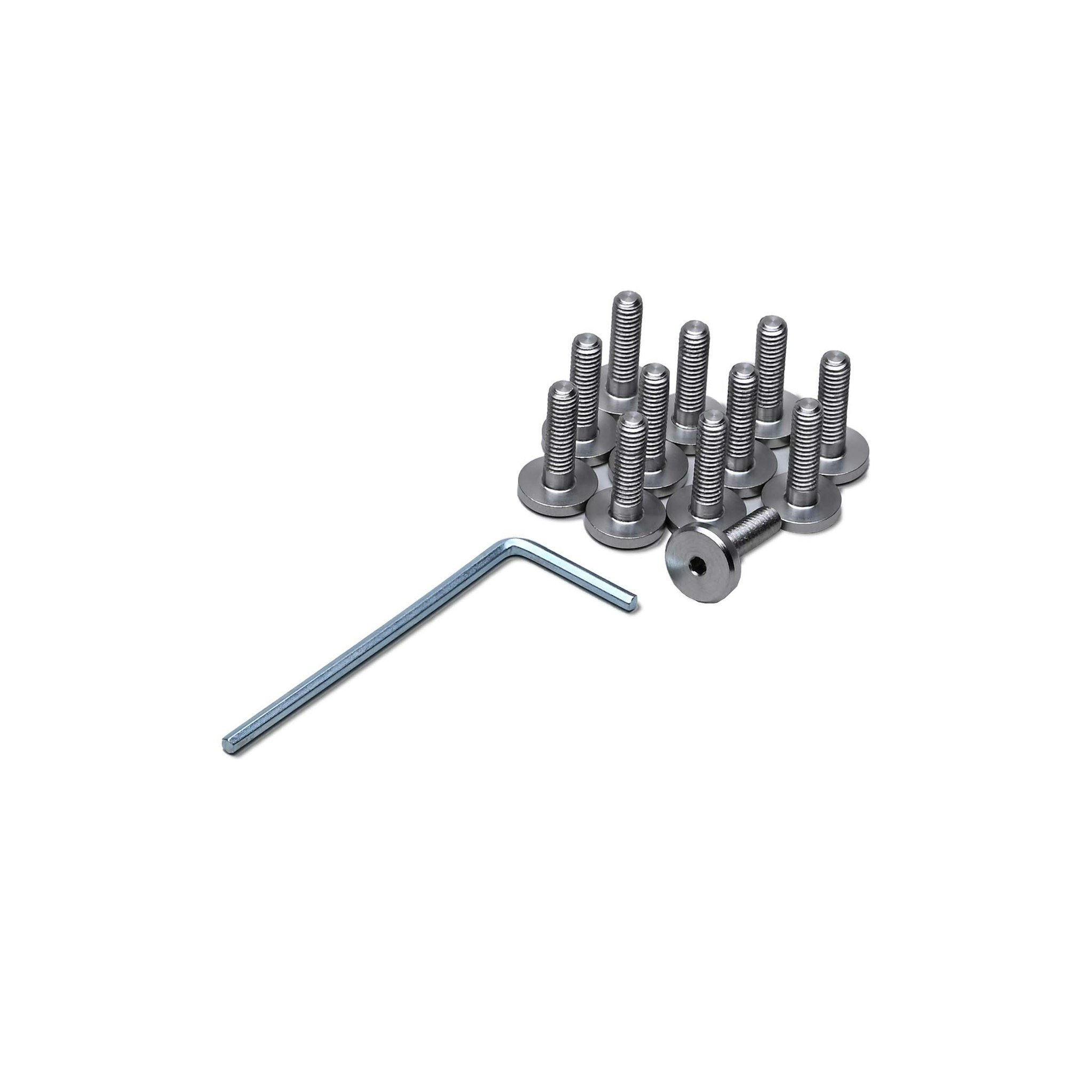

08. Superwire Kit with special screws
RF301T100

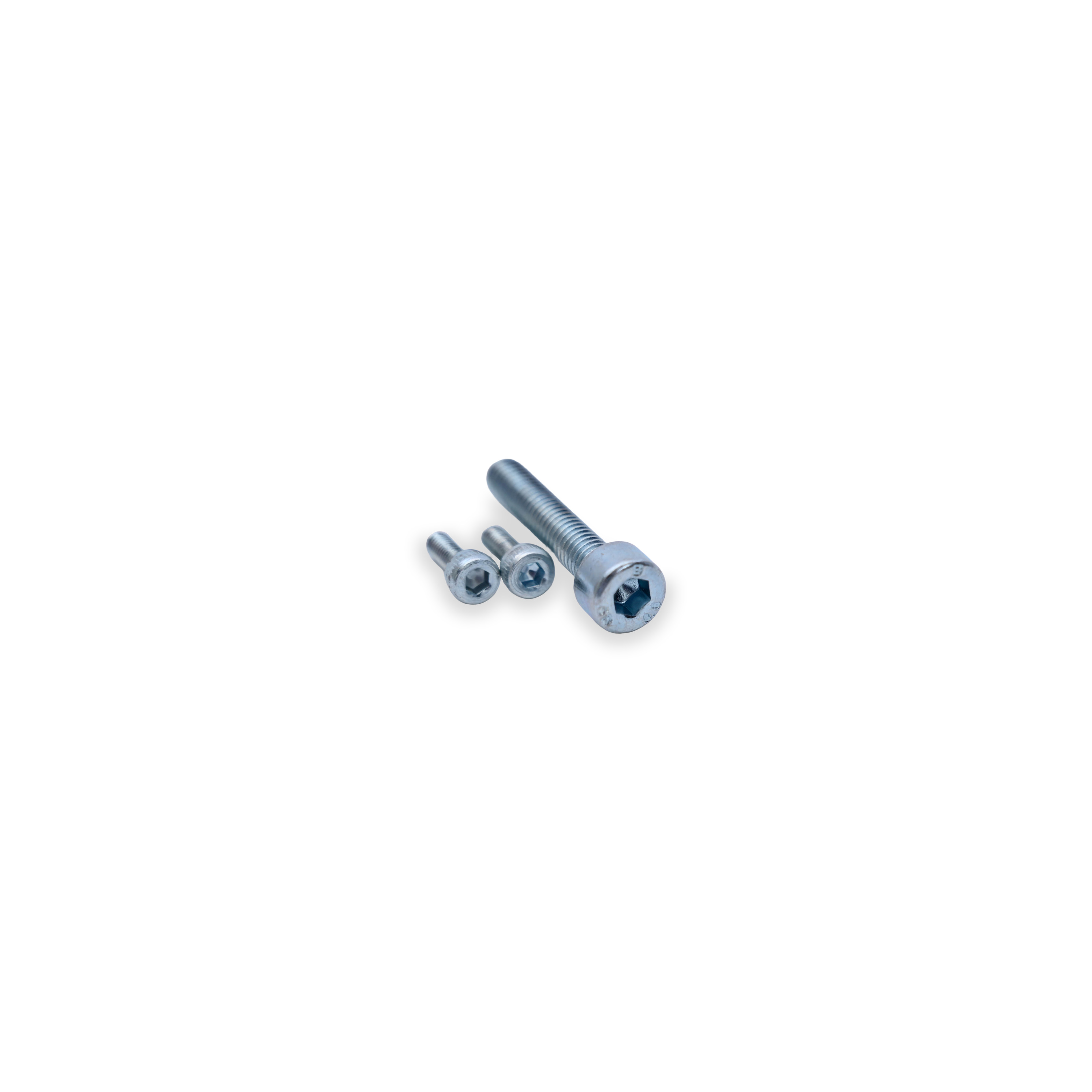

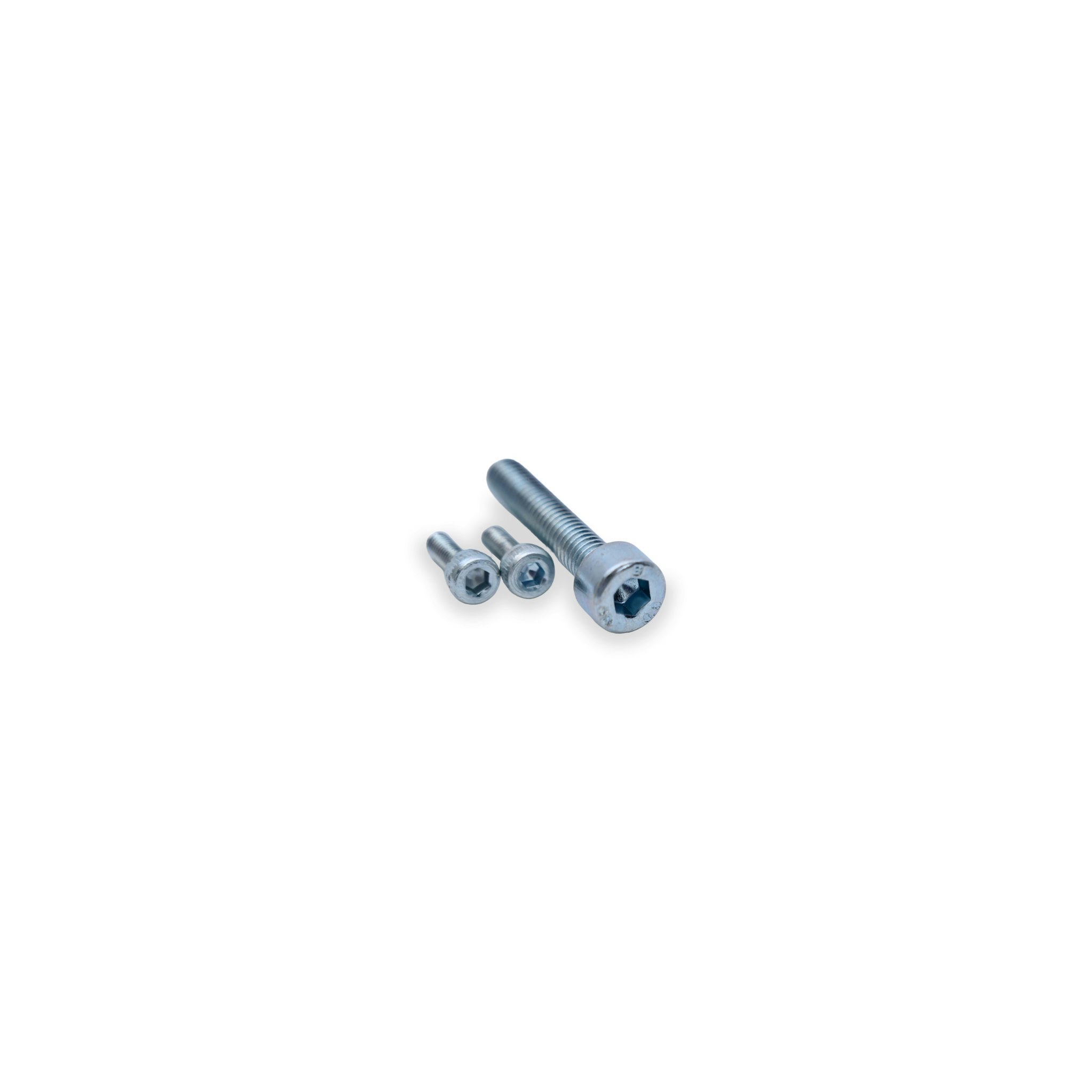

09. Superwire F - Leg fixing screw kit
RF301F600
