SuperWireSuperWire T
Designed by Formafantasma, 2024

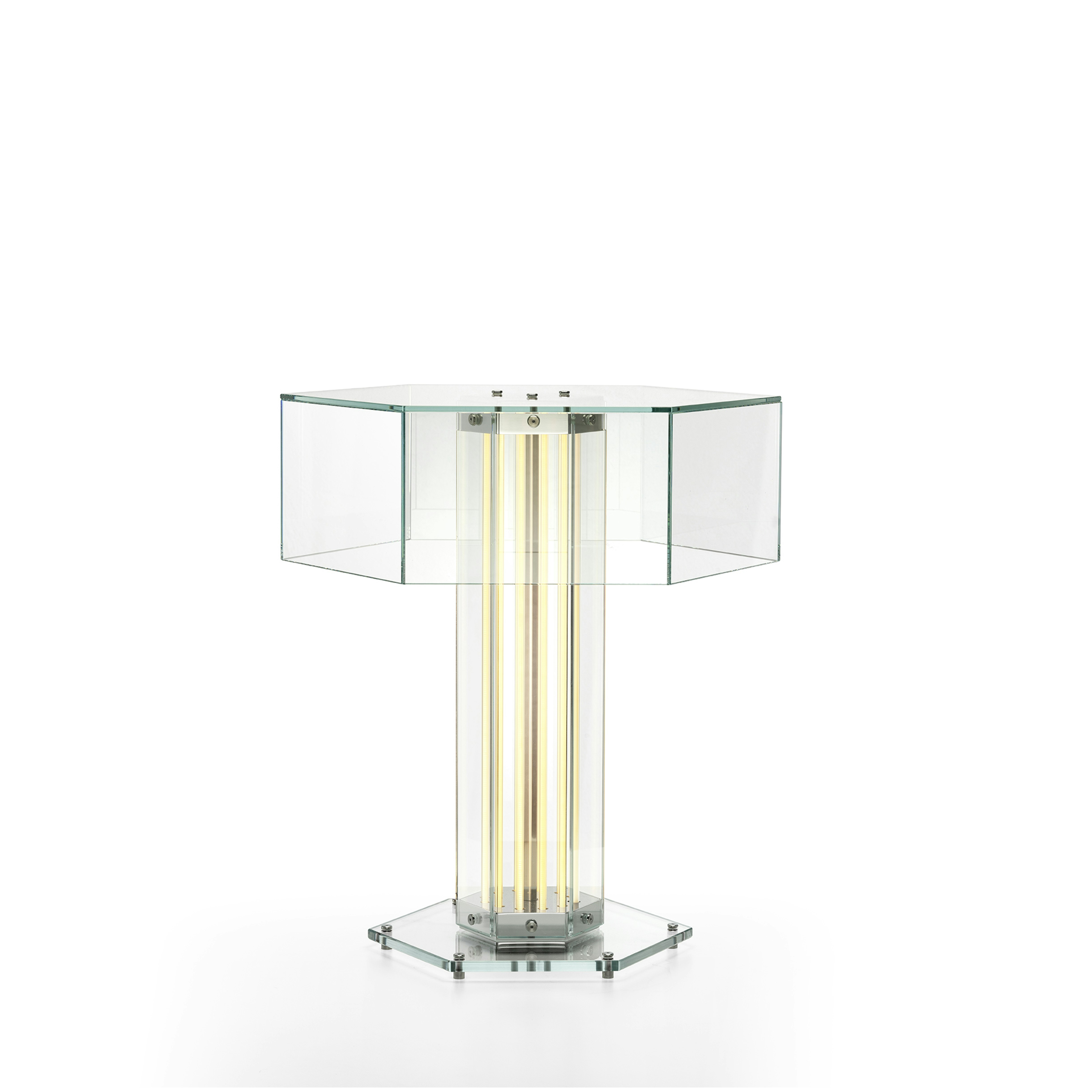

Table lamp emitting diffused light. Structure of planar glass hexagonal panels joined by polished aluminium elements, forming a single module surmounted by a hexagonal glass cover. Equipped with a custom-made light source that emits warm, uniform light along its entire length and can be easily removed for replacement or repair.
18W - 1200lm - 2700K - CRI> 90
Also available in:
Technical Drawing
Main specifications
EAN
8059607070222
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
18
System power (W)
18
Lumen Output (lm)
1200
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
, ,
Batteries inside
No
Physical
Colour
Length (mm)
449
Cord colour
productFields.physical.cordLength
2000
Net weight (kg)
9
Package volume (m3)
0.23
IP internal
Spare Parts

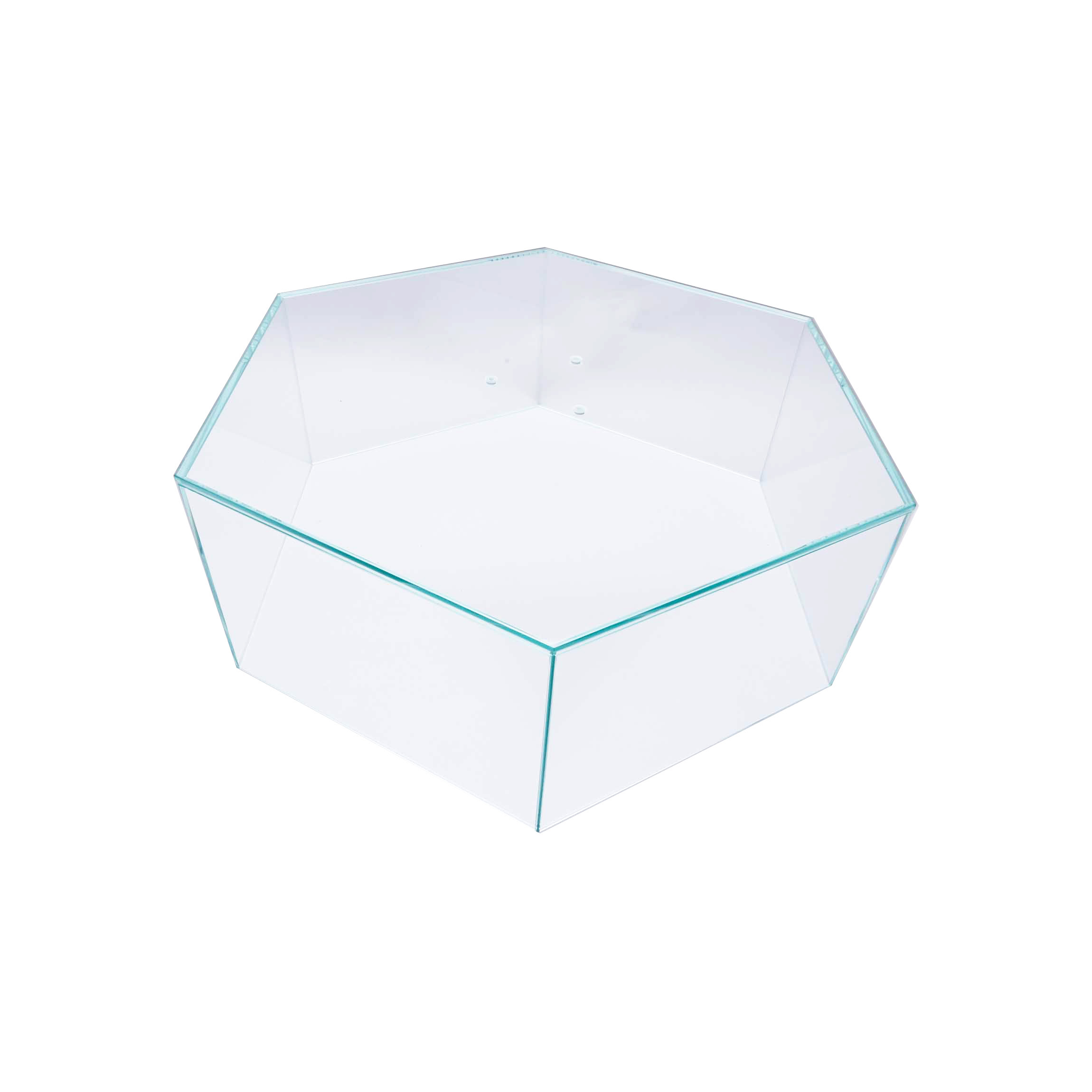

01. Superwire Table diffuser assembly
D301T04A0AASZ

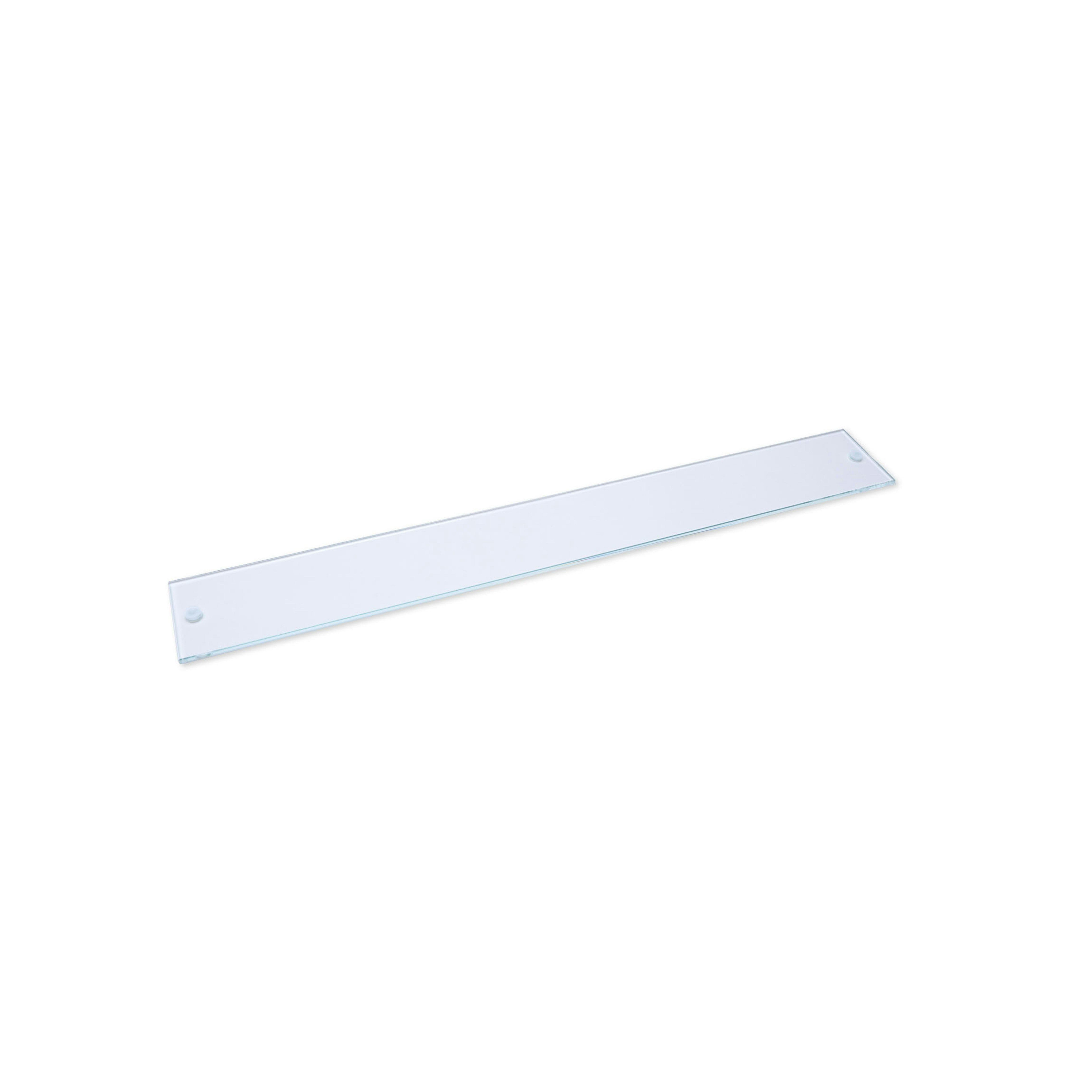

02. Superwire Table short glass plate and bushings
RF301T400

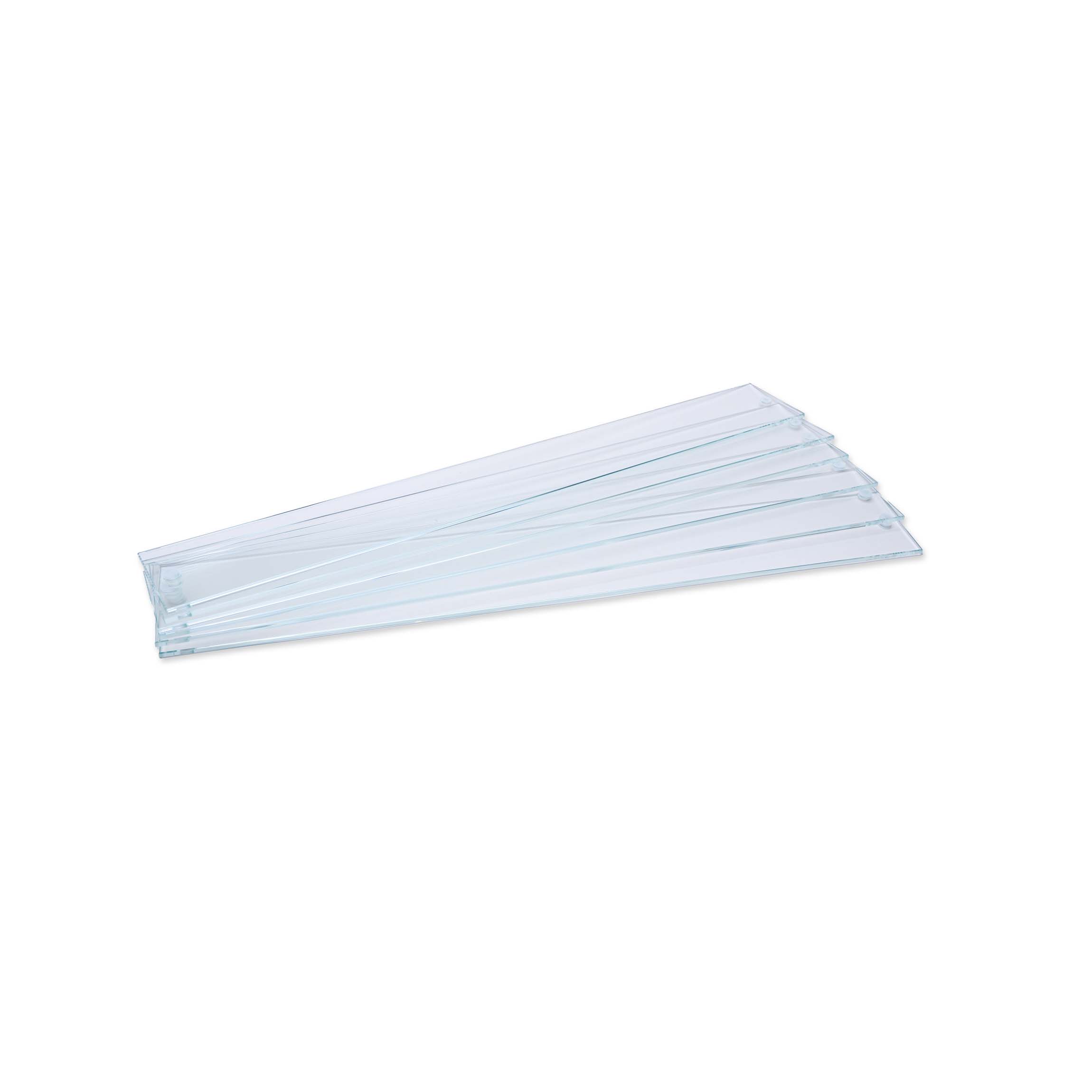

03. Superwire Table short glass plates and bushings kit 6 pcs
RF301T500

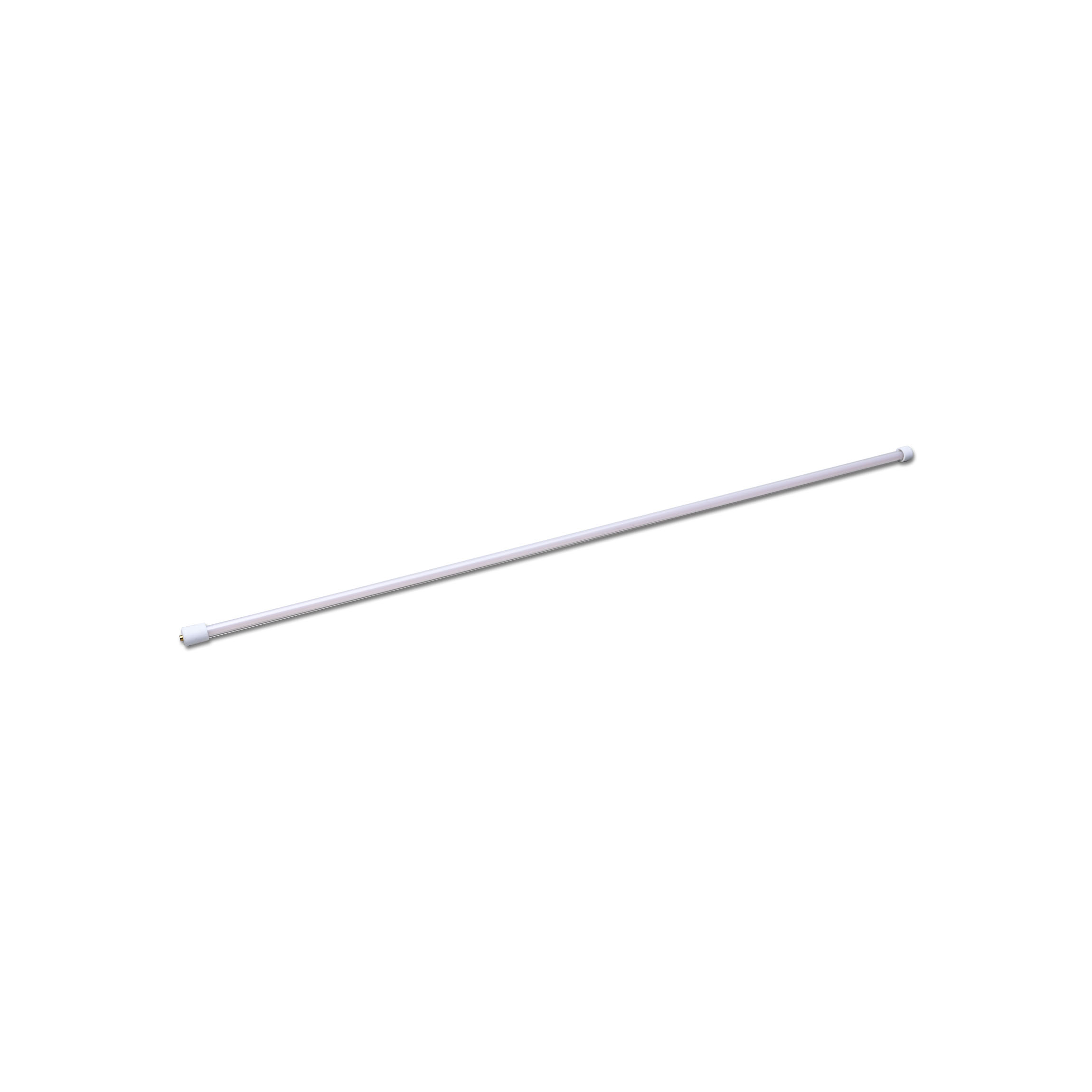

04. Superwire Table Led L450 25MA/42VDC/27K filament
RF301T200

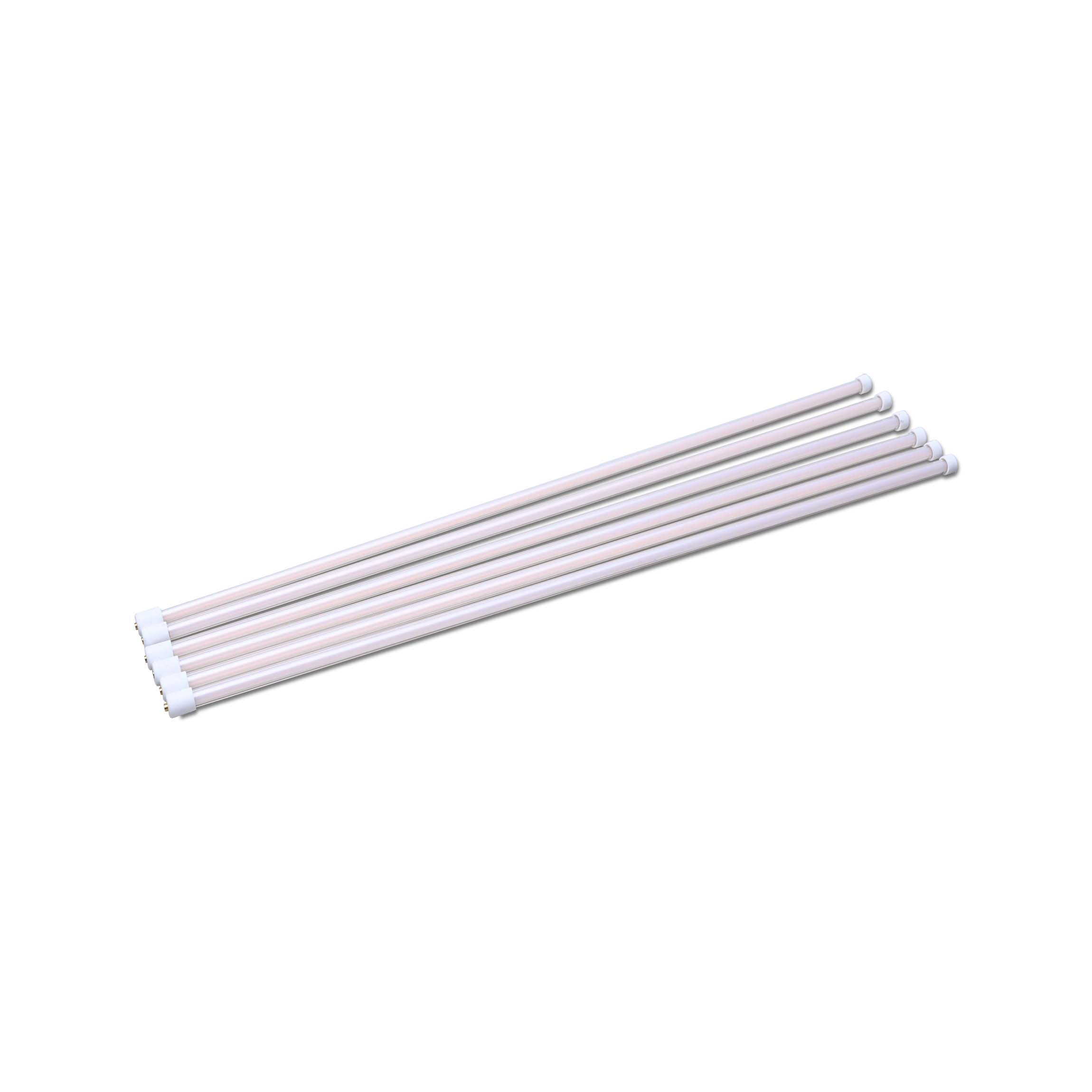

05. Superwire Table Led L450 25MA/42VDC/27K filament kit 6 pcs
RF301T300
06. Black plug assembly kit & 48V driver
RF6600130
07. Superwire Kit with special screws
RF301T100
