Infra-StructureSuspension Panel 600 Rod 100 mm Dali Version
Designed by Vincent Van Duysen, 2017

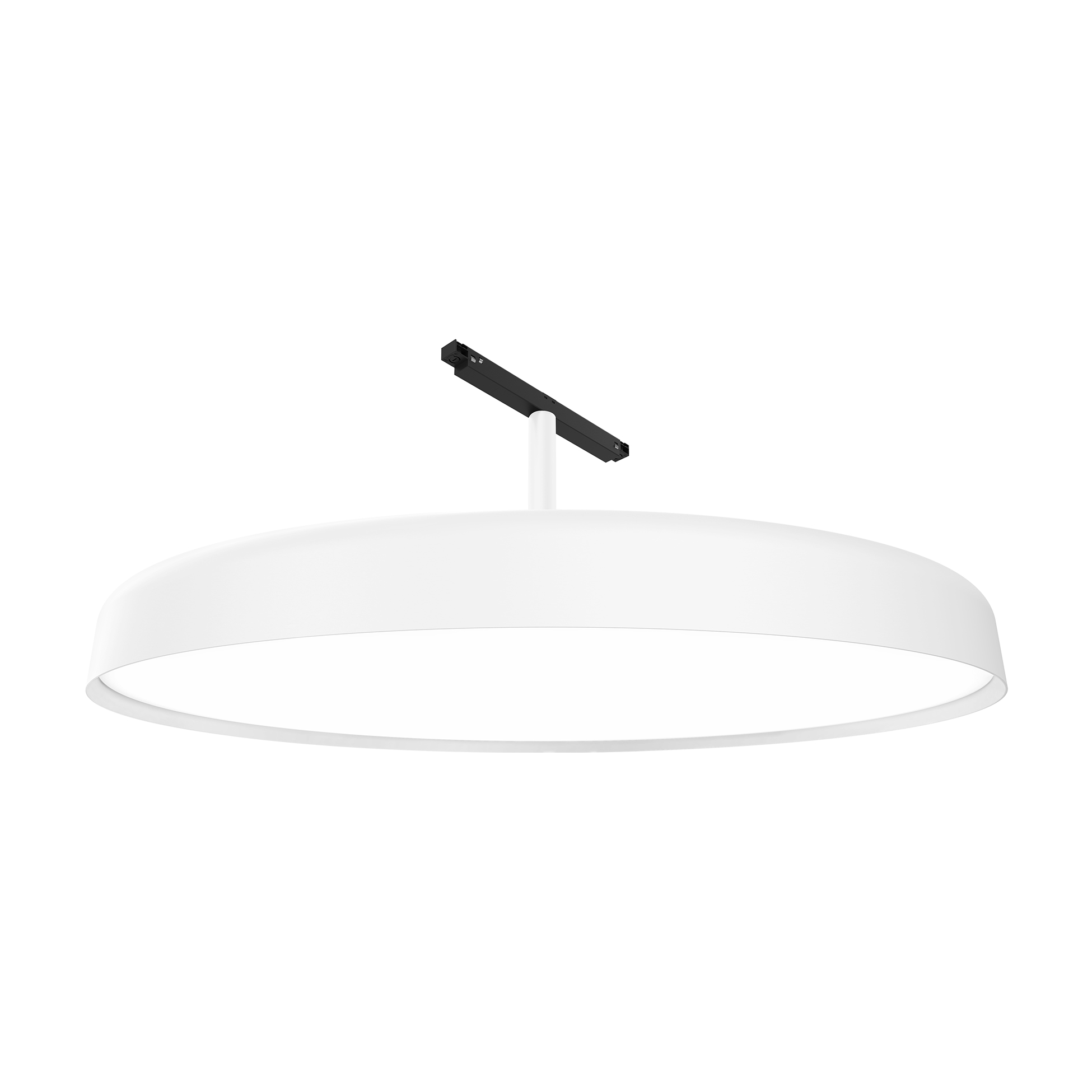

Suspended luminaire with rigid rod, to be installed in the Infra-Structure system.
LED - Top LED - 24.5W - 1694lm - 3000K - CRI> 90 - Beam° 113
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
24.5
System power (W)
25.6
Source flux (lm)
3540
Lumen Output (lm)
1694
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
LED Life / Failure Ratio
L80B50>50.000h (Tc=85ºC)
Beam angle C0-180 (º)
113
Beam angle C90-270 (º)
113
Extreme cut off
No
Electrical
Insulation class
Forward voltage (V)
48
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Trim
No
Orientation
Length (mm)
605
Net weight (kg)
4.96
IP internal
Notes
Only compatible with DALI profile version.
