Decorative Tab
F6564030 Black

Tab Floor

Floor luminaire providing direct lighting with adjustable head. Body in painted pressofused aluminium. Multi-led diffuser in specially designed PMMA to avoid the Multi Shadow effect and dazzle. Head rotation ±90°.

9W - 347lm - 2700K - CRI> 90

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8059607006573
Mounting
Floor
Enviroment
Indoor dry location
Light source type
LED
LED type
LED Module
Power (W)
9
System flux (lm)
347
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Remote included
Dimmable
No
Dimming type
Electronic 24V
Dimming interface
Switch Integrated (Not Dimmable)
Plug type
Type A, Type C, Type G
Batteries inside
No
Physical
Colour
Black
Length (mm)
240
Cord colour
Black
Net weight (kg)
1.9
Package height (cm)
160
Package width (cm)
330
Package length (cm)
1210
Package volume (m3)
0.06
IP
20
CE
CMIM Morocco
IECEE-CB
EAC
RETILAP
UKCA
USA
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class D

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL3 Replaceable control gear by an end-user

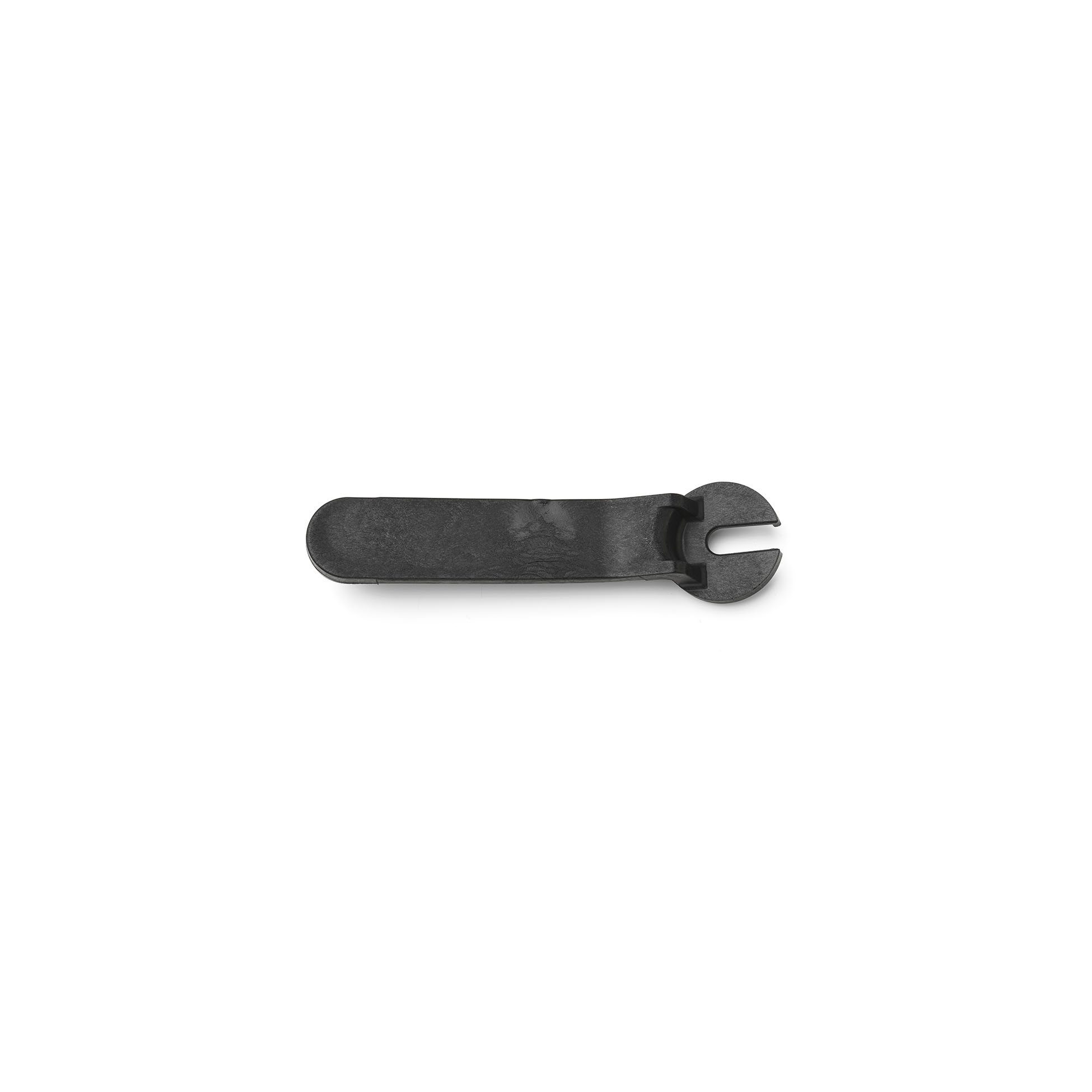

Spare Parts
