Tatou
F7766048

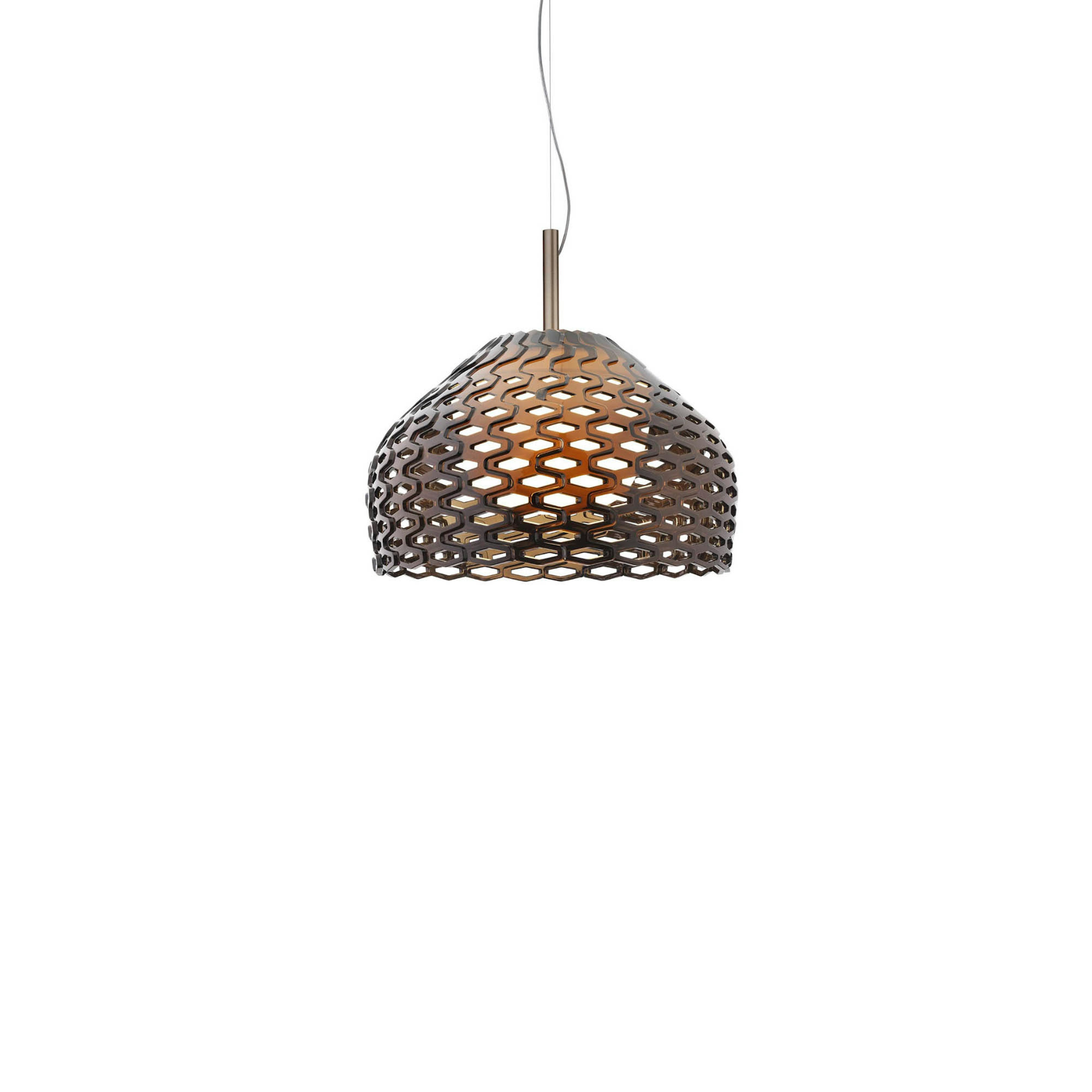

Tatou Suspension 2

Suspension lamp emitting diffused light. External diffuser in polycarbonate. Internal diffuser in injection-moulded opal polycarbonate.

Halogen - 205W

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Tatou-S2
Main specifications
EAN
8059607007525
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
205
Schematic light drawing
F7766048_TATOU_S2_205W_HL
Photometric
Lighting type
,
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
500
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
4.8
Package volume (m3)
0.17
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Bulbs

Thumbnail
x1
NOT INCLUDEDLED 21W E27 2450lm 3000K DIMMERRF26998
Thumbnail
x1
NOT INCLUDEDLED Opal Lamp E27 21W 2700K A65 DimmableRF30429

Spare Parts

F7766048-tatou-s2-flos-boom

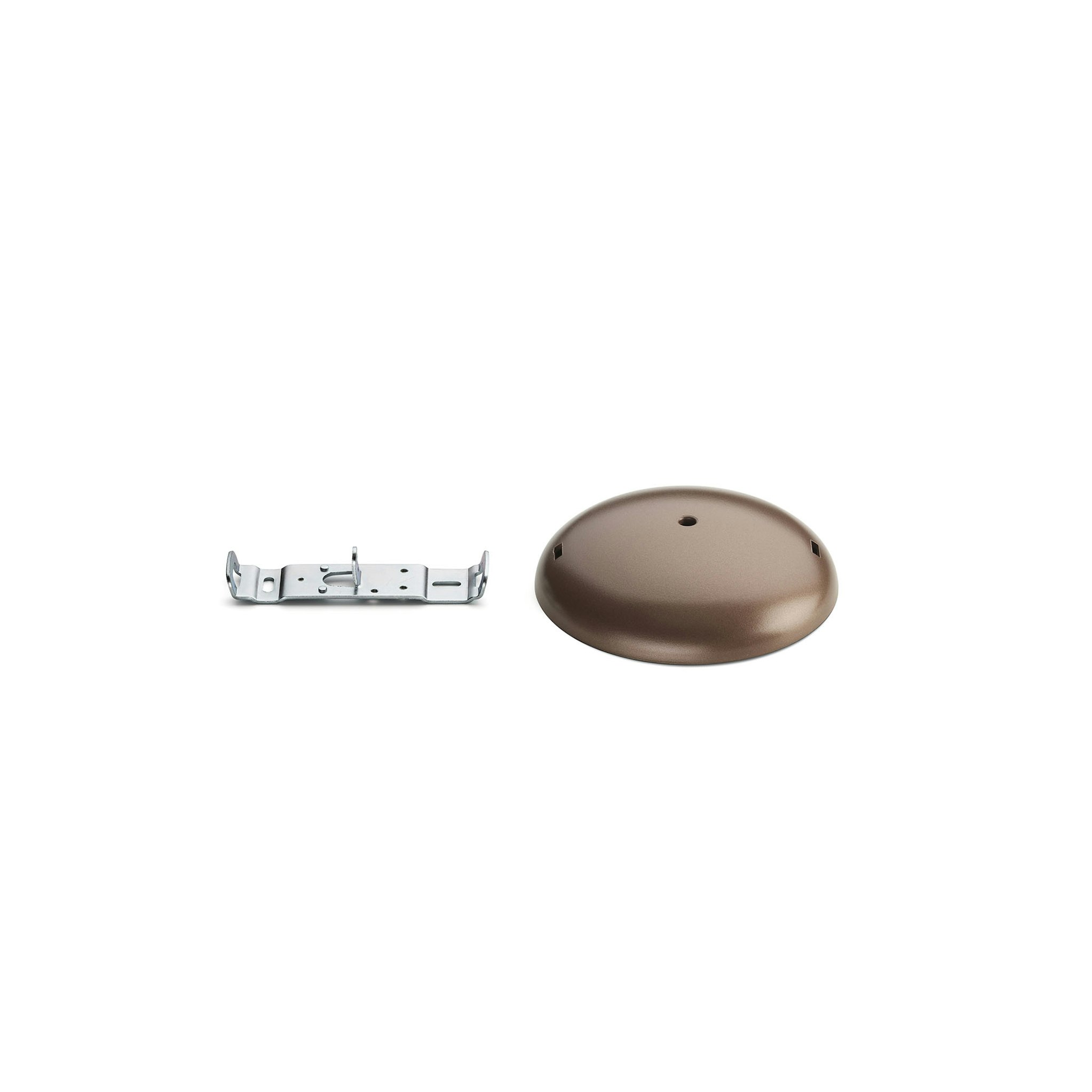

01. Tatou Suspension 2 Ochre-grey ceiling rose assembly
RF7756148

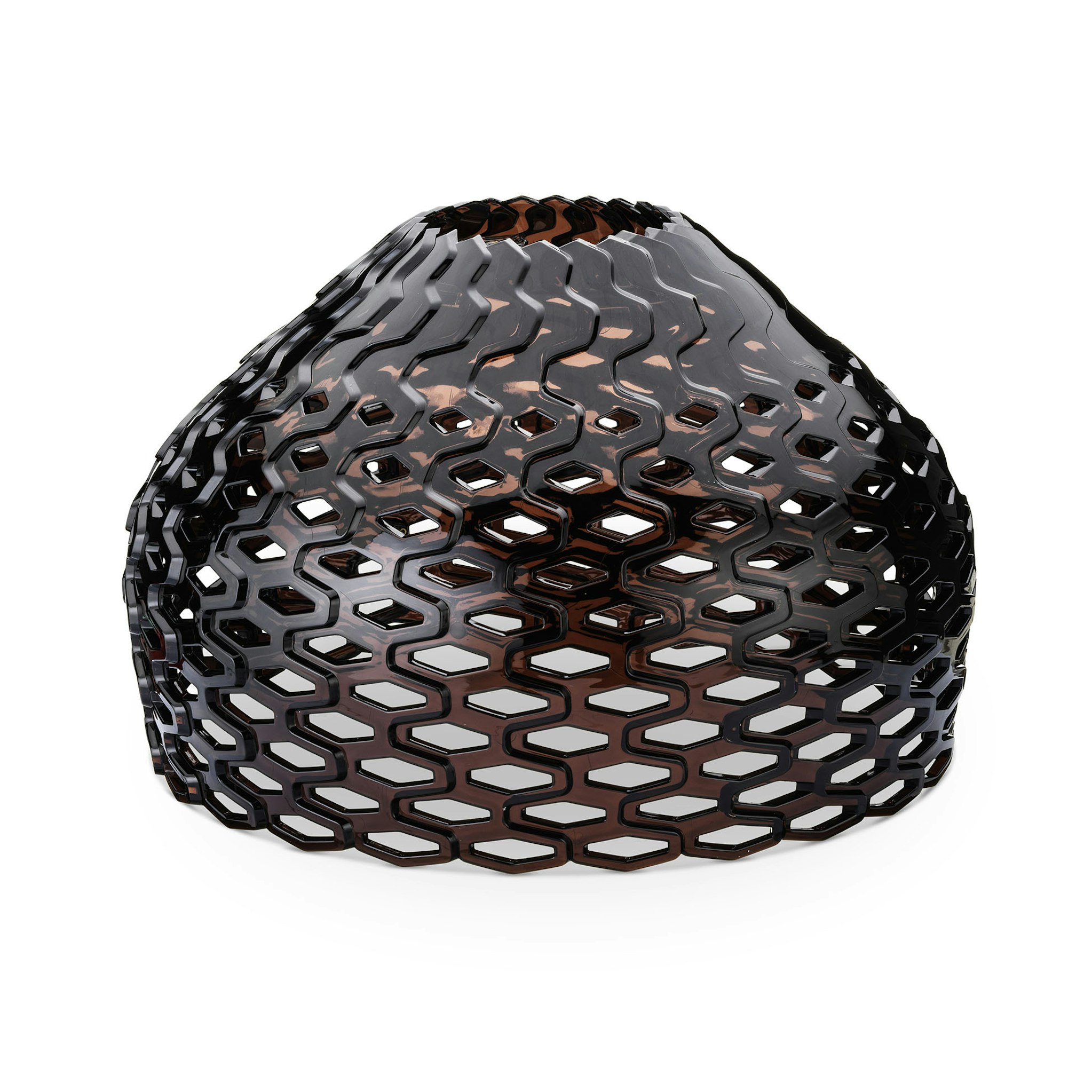

03. Tatou F/S Ochre-grey diffuser assembly
F7755048

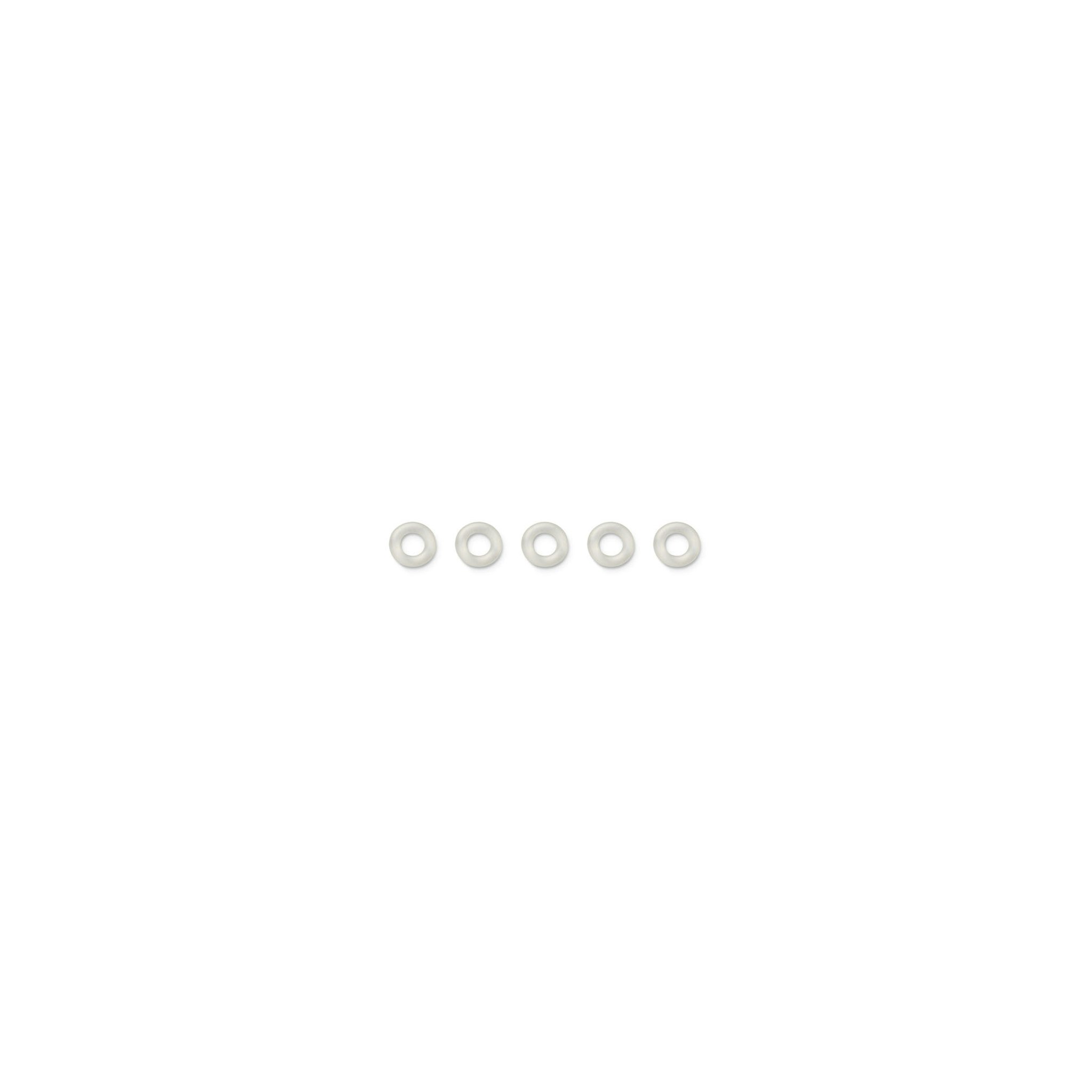

04. Kit of 5 or rings
RF05382

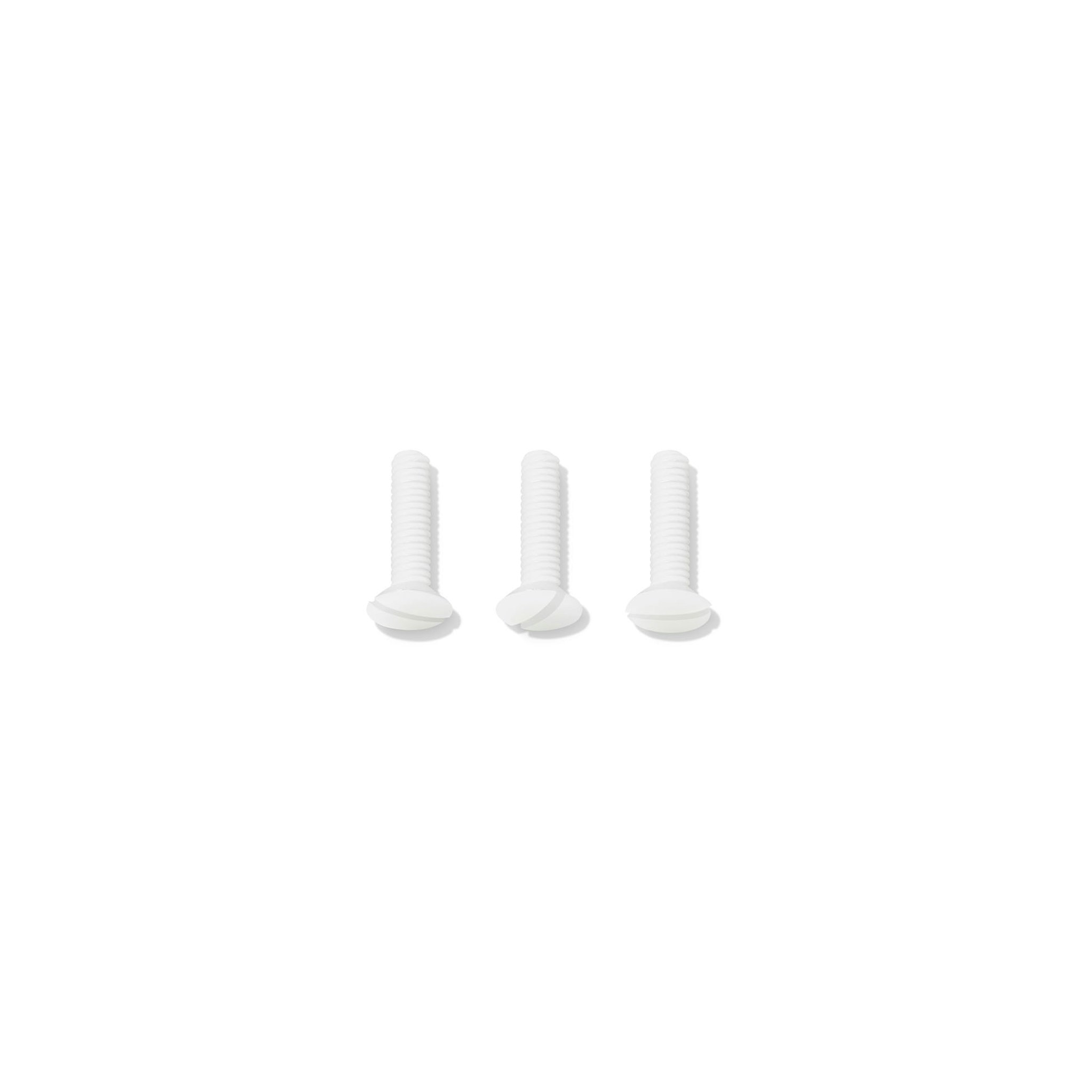

05. Tatou F/S Kit with screws opal reflector assembly
RF7755100

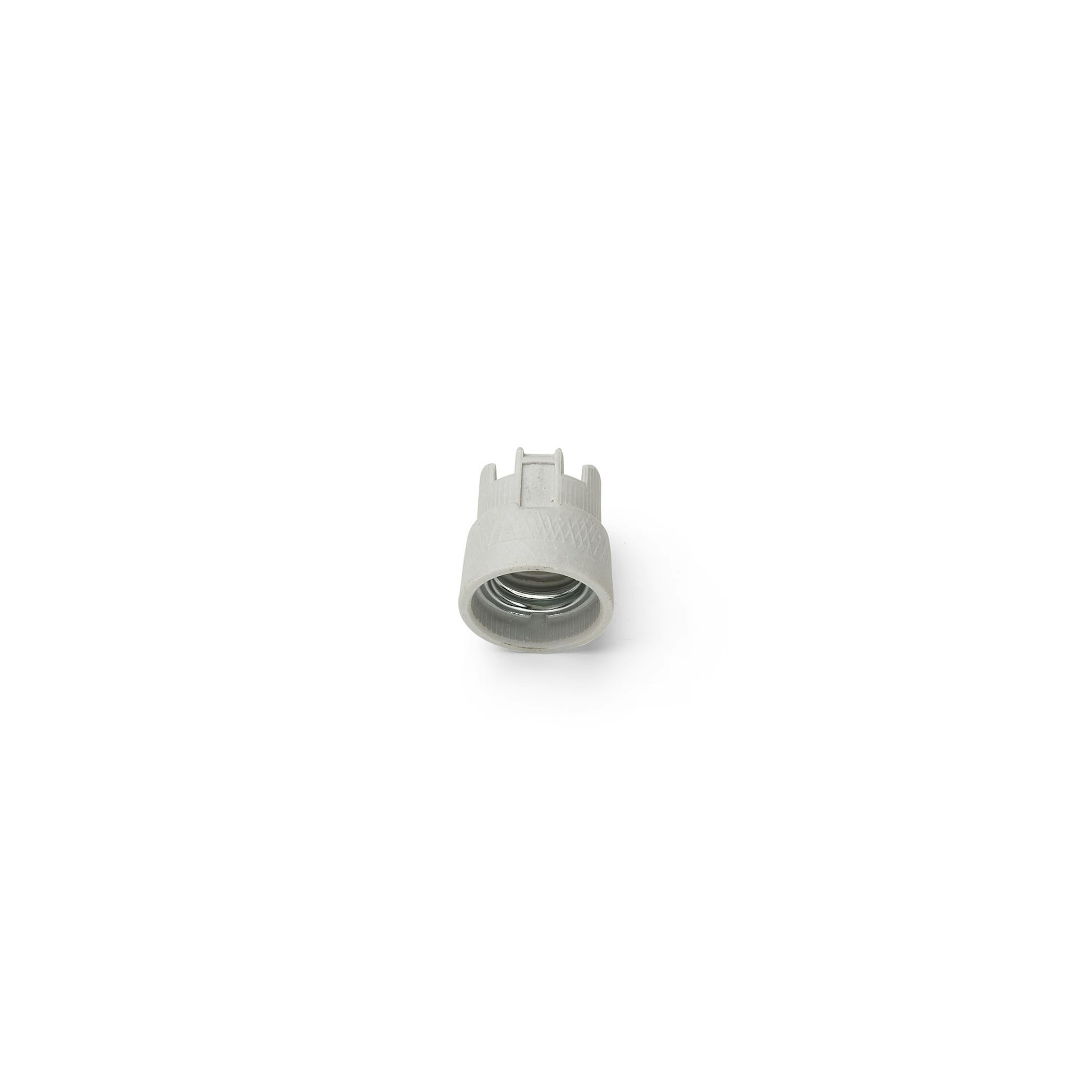

06. Porcelain E27 lamp holder
RF04487

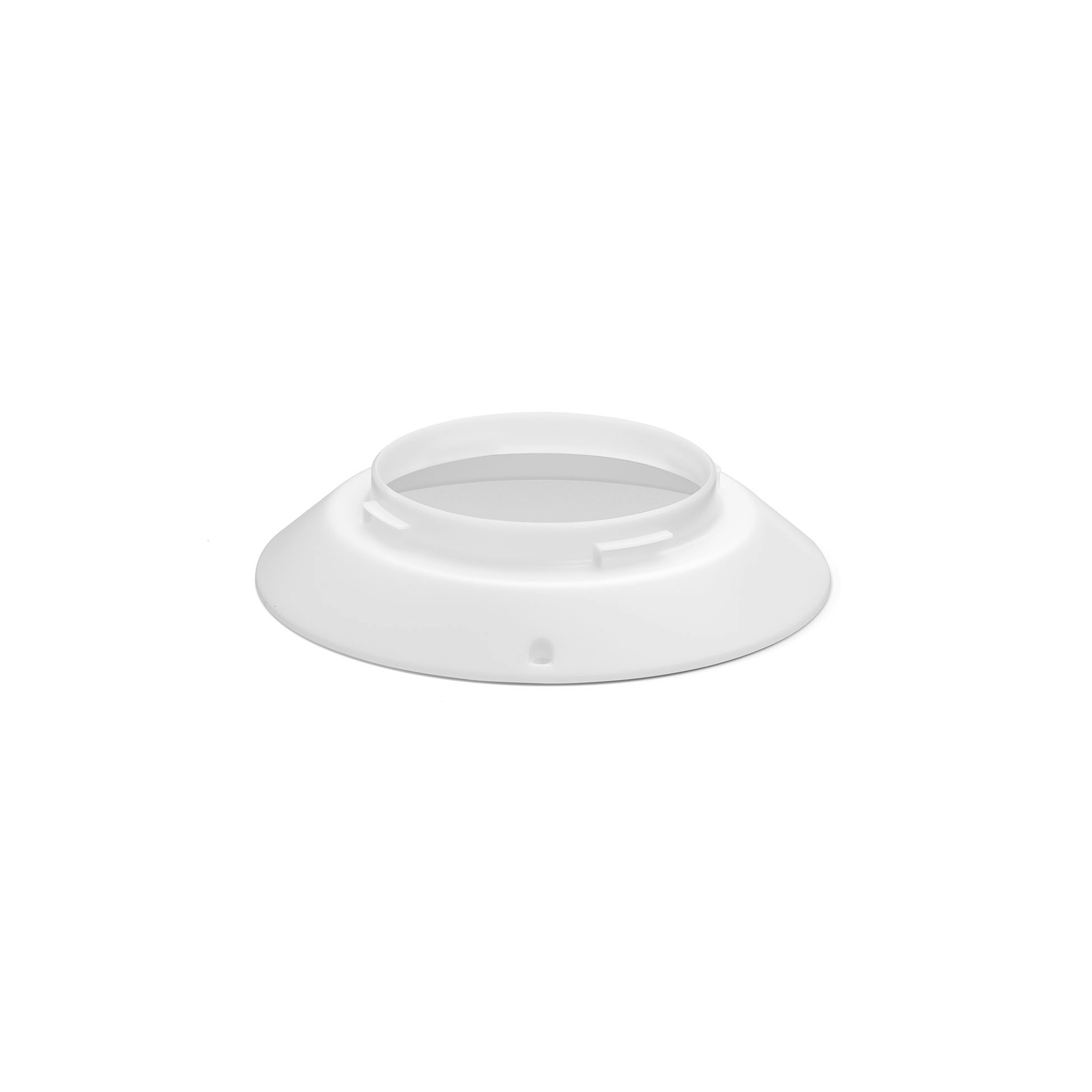

07. Tatou F/S Reflector assembly
RF7755200

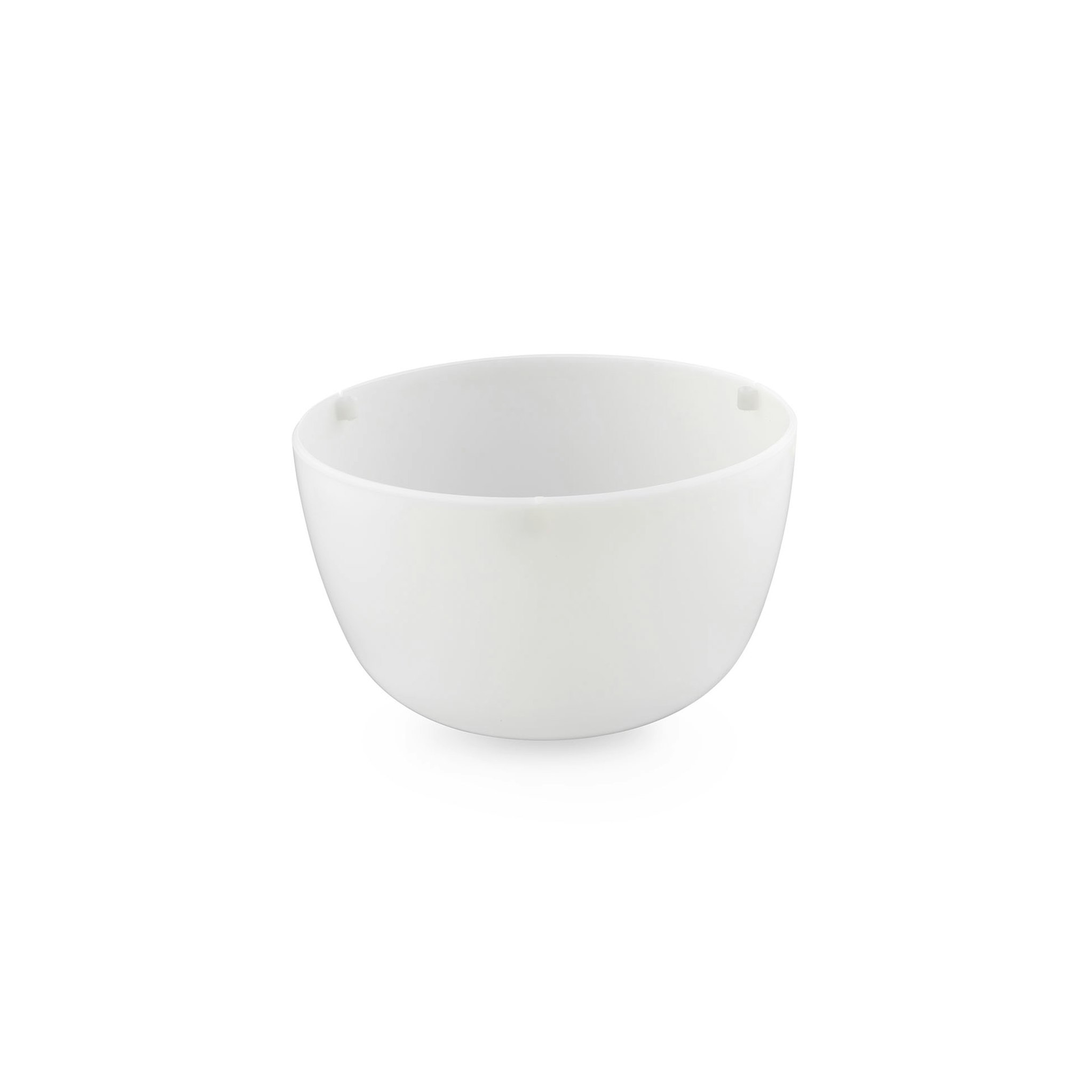

08. Tatou Suspension 2 Opal internal diffuser
RF21517
Thumbnail
x1
Tatou Suspension 2 Ochre-grey ceiling rose assemblyRF7756148
Thumbnail
x1
Tatou F/S Ochre-grey diffuser assemblyF7755048
Thumbnail
x1
Kit of 5 or ringsRF05382
Thumbnail
x1
Tatou F/S Kit with screws opal reflector assemblyRF7755100
Thumbnail
x1
Porcelain E27 lamp holderRF04487
Thumbnail
x1
Tatou F/S Reflector assemblyRF7755200
Thumbnail
x1
Tatou Suspension 2 Opal internal diffuserRF21517
