Architectural The Glowing Track
05.4573.40.DA White

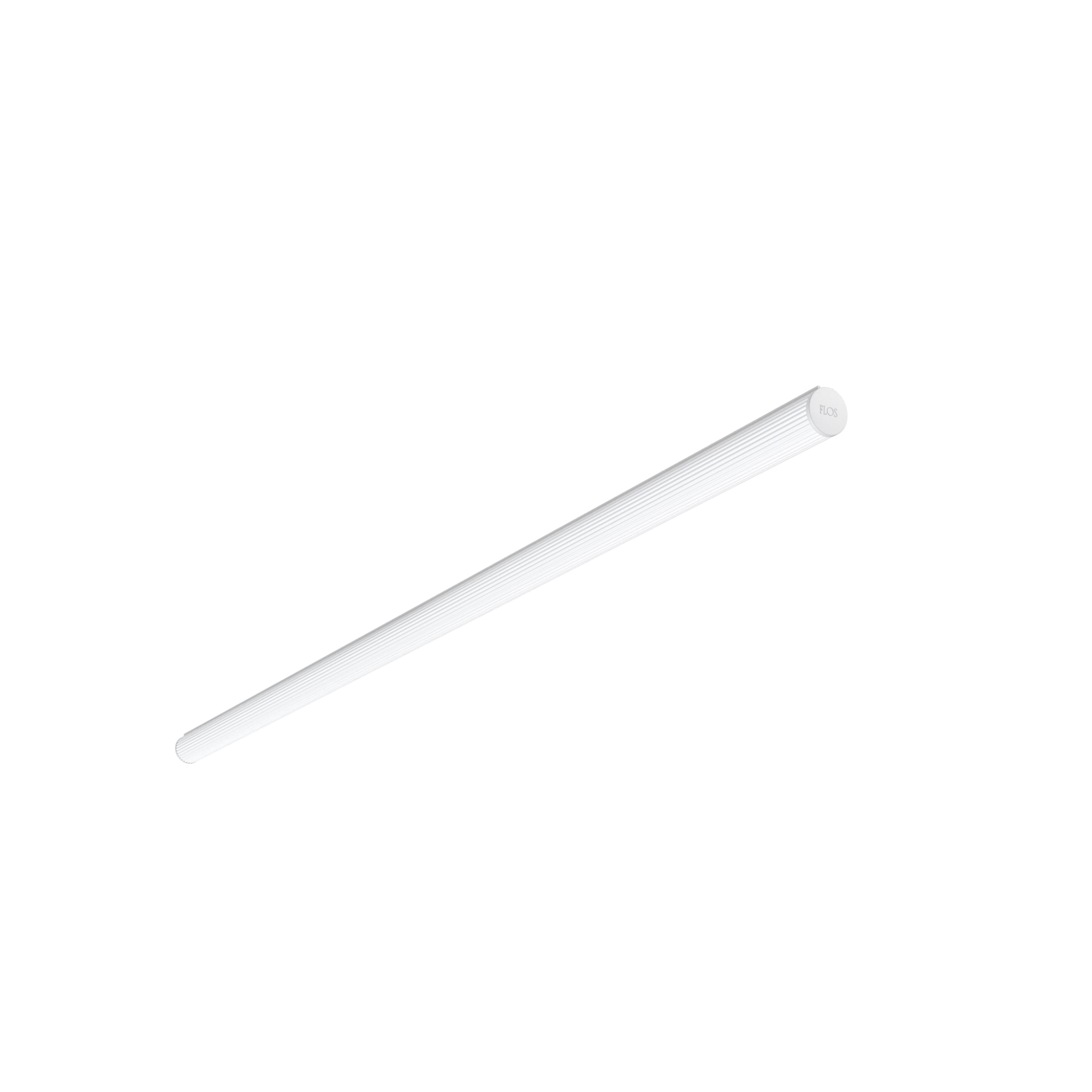

The Glowing Track 360 Surface Remote Driver Dali

360º surface ambient lighting system that provides uniform light distribution. Available in four lengths (600 mm, 1200 mm, 1800 mm, and 2400 mm). Driver not included.

Length: 1810 - Surface

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Surface
Enviroment
Indoor dry location
Light source type
LED
LED type
Top LED
Lamp category
LED
Number of heads
1
Power (W)
37.2
System power (W)
41.4
Source flux (lm)
4452
System flux (lm)
3195
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
3
Rf fidelity index
92
Rg gamut index
89
LED Life / Failure Ratio
L80B10>72.000h_Tc65ºC
Electrical
Insulation class
III
Driver
Remote
Dimmable
Yes
Dimming type
Dimmable DALI 2
Dimming range (%)
1-100
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
White
Orientation
Fixed
Length (mm)
1810
IP
20
CE
UKCA
USA
Gwt 850 (º)
20
20

Ecodesign and Energy Labelling

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

required (2)
optional (4)
