TheBlockofLightTheblockoflight
Designed by Knud Holscher, 2015

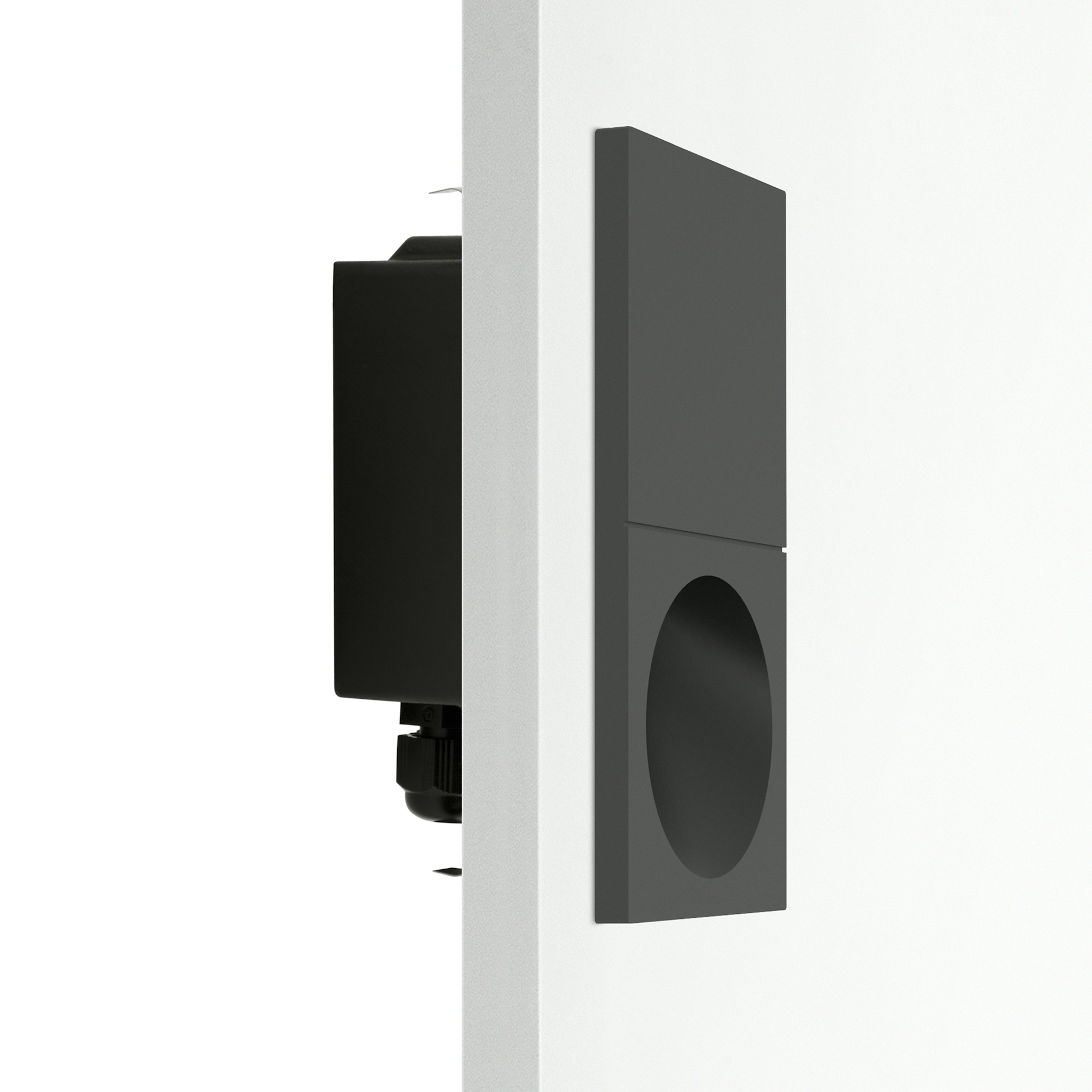

Semi-recessed signalling lamp for indoor or outdoor use. Non-regulable 100-240V, 50-60Hz power supply and 500 mm power cable included.
LED - Power LED - 2.2W - 40lm - 3000K - CRI> 80 - Beam° 41
Technical Drawing
Main specifications
Mounting
Environments
,
Light source type
Light sources included
Yes
LED type
Lamp category
Power (W)
2.2
Source flux (lm)
296
Lumen Output (lm)
40
Schematic light drawing
Photometric
Lighting type
,
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
41
Beam angle C90-270 (º)
54
Extreme cut off
No
UGRL
<16
Electrical
Insulation class
Frequency (Hz)
50/60
Power supply
Dimmable
Power supply type
Emergency
No
Physical
Colour
Trim
No
Orientation
Recessed depth (mm)
47
Length (mm)
75
Net weight (kg)
0.4
IP internal
