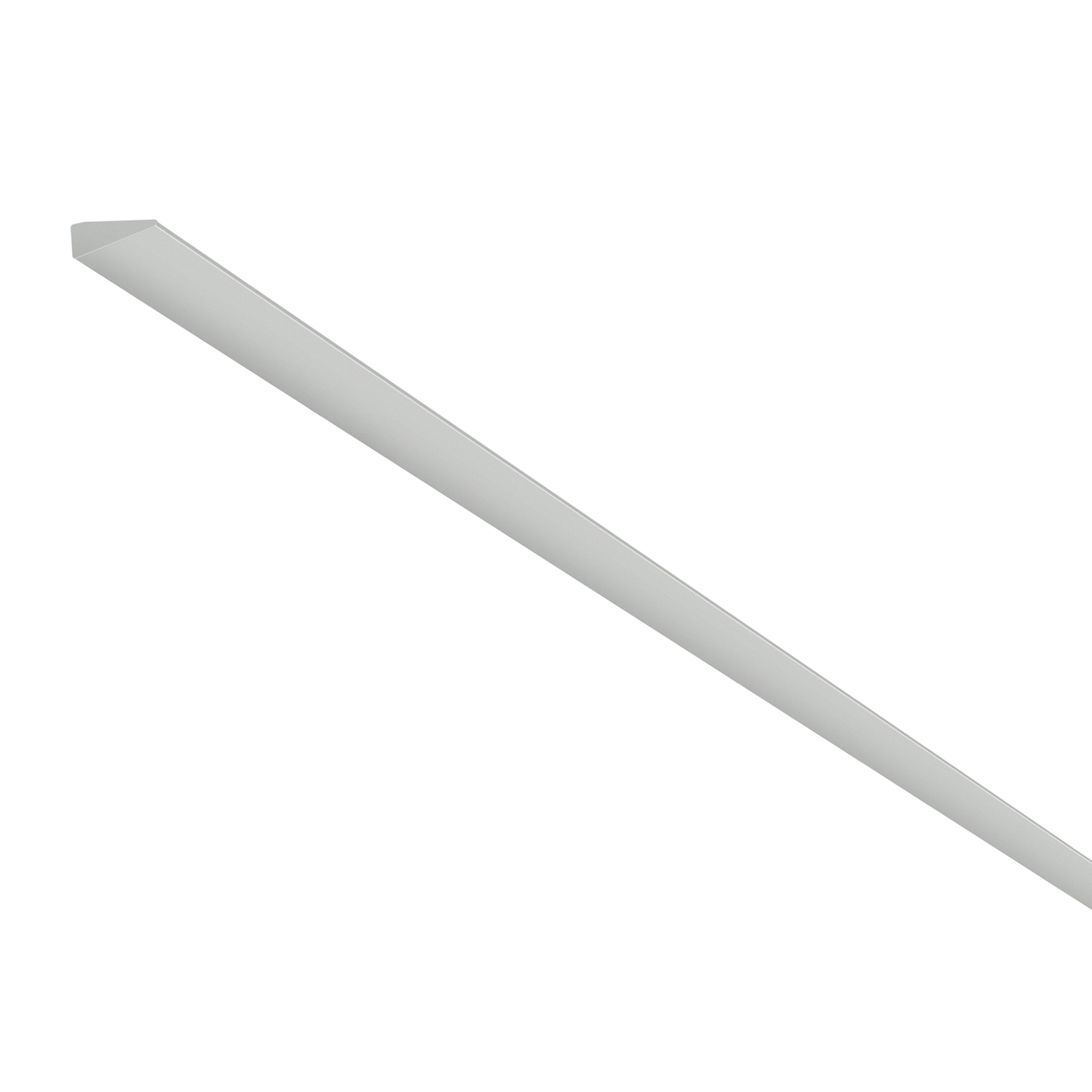

Thin LEDThin LED 3042 mm
Designed by FLOS Architectural, 2015
Wall application luminaire for indirect lighting with LED. Remote transformer not included.
LED - Top LED - 61.5W - 5588lm - 3000K - CRI> 90 - Beam° 101
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
61.5
Source flux (lm)
6399
Lumen Output (lm)
5588
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
101
Beam angle C90-270 (º)
43
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
24
Power supply
Dimmable
Power supply type
, ,
Emergency
No
Physical
Colour
Trim
No
Orientation
Length (mm)
3042
Net weight (kg)
0.9
IP internal
IP external
Notes
126 LEDs
