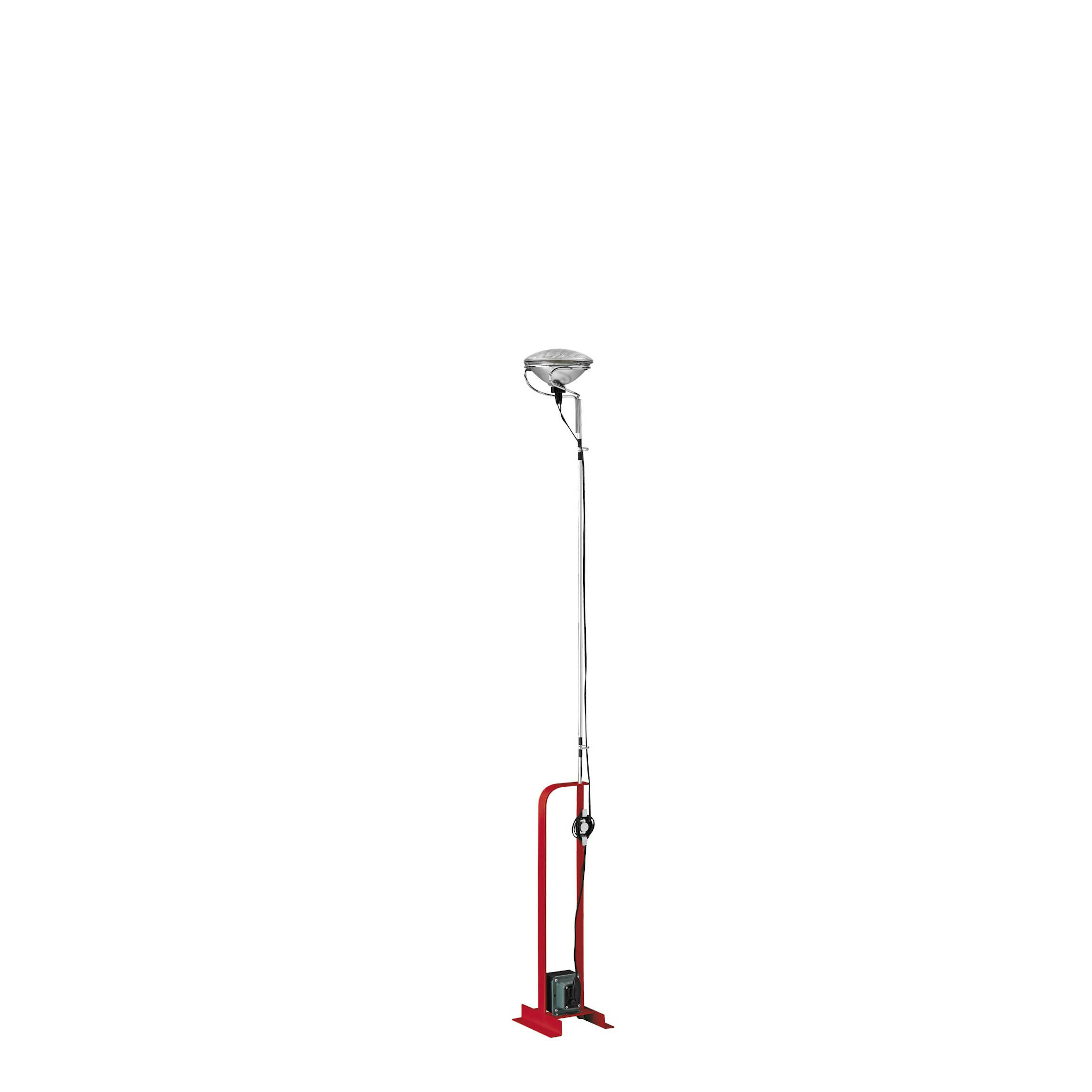

ToioToio Led
Designed by Achille and Pier Giacomo Castiglioni, 1962
Floor lamp providing indirect lighting. Angle iron and formed steel base, painted in a variety of colors. Hexagonal nickel-plated brass height-adjustable stem with telescopic head. On the cable there is the electronic dimmer which allows the regulation of light brightness.
LED retrofit - 20W
Technical Drawing
Main specifications
EAN
8059607007273
Mounting
Environments
Light source type
Light sources included
Yes
Lamp category
Lamp holders
Number of lamps
1
Power (W)
20
Schematic light drawing
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Dimming interface
Plug type
Batteries inside
No
Physical
Colour
Length (mm)
170
Cord colour
productFields.physical.cordLength
2470
Net weight (kg)
5.65
Package volume (m3)
0.12
IP internal
Spare Parts
01. Toio Led Nickel plated brass cage
RF02774
02. Toio Led Electric wiring transformer headlight new type
RF36898
03. Toio Led Body rod
RF02775

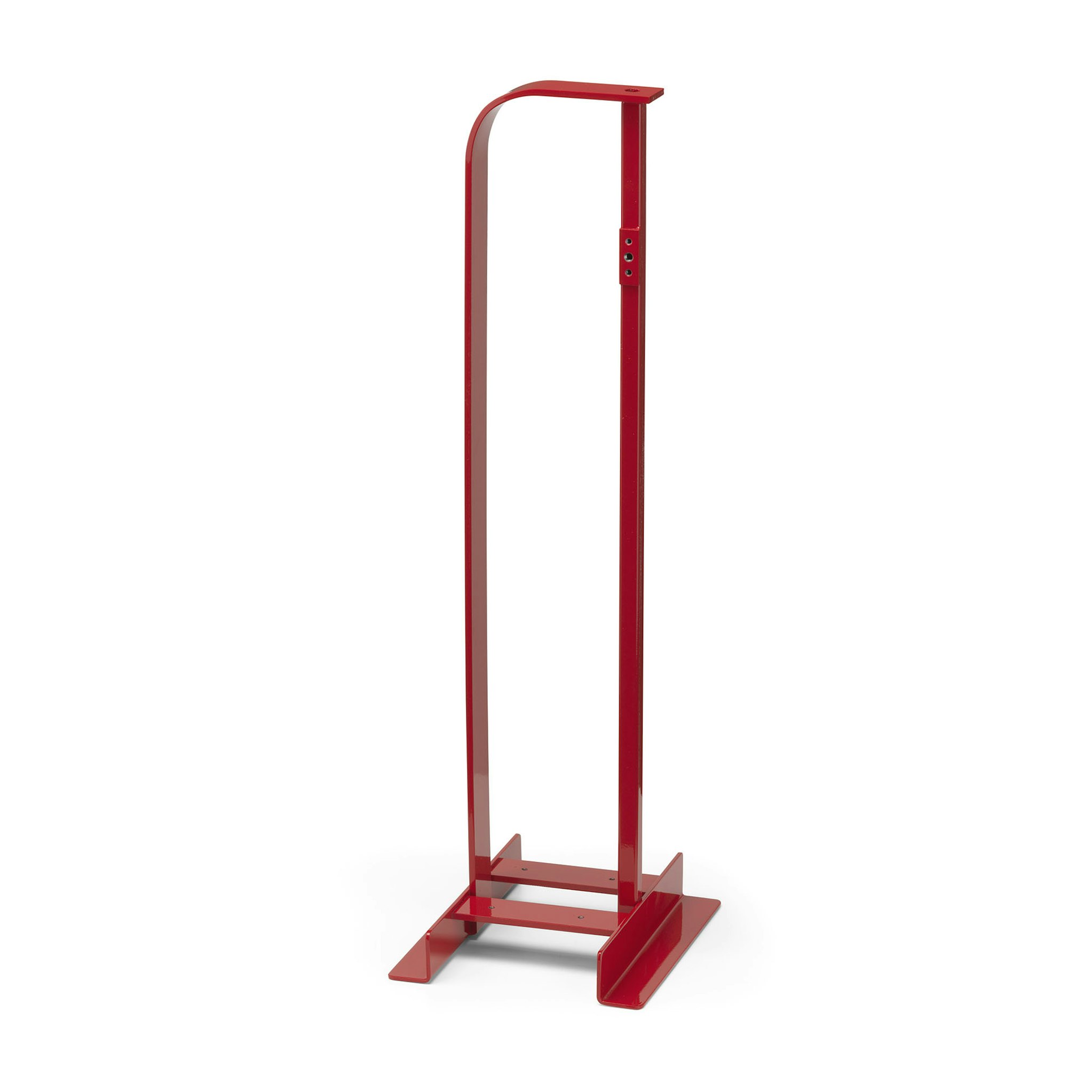

04. Toio/Toio Led Red base
RF02581
05. Toio Led wired ballast
RF7600300
07. Wire loop assembly
RF7600100
08. Toio Cable winder support
RF06730
09. Toio Nickel knob
RF06732
10. Toio switch dimmer & wiring assembly
RF28230
11. Led rondo’ dimmer 220/240v 40-250w 4-100w
RF38887
