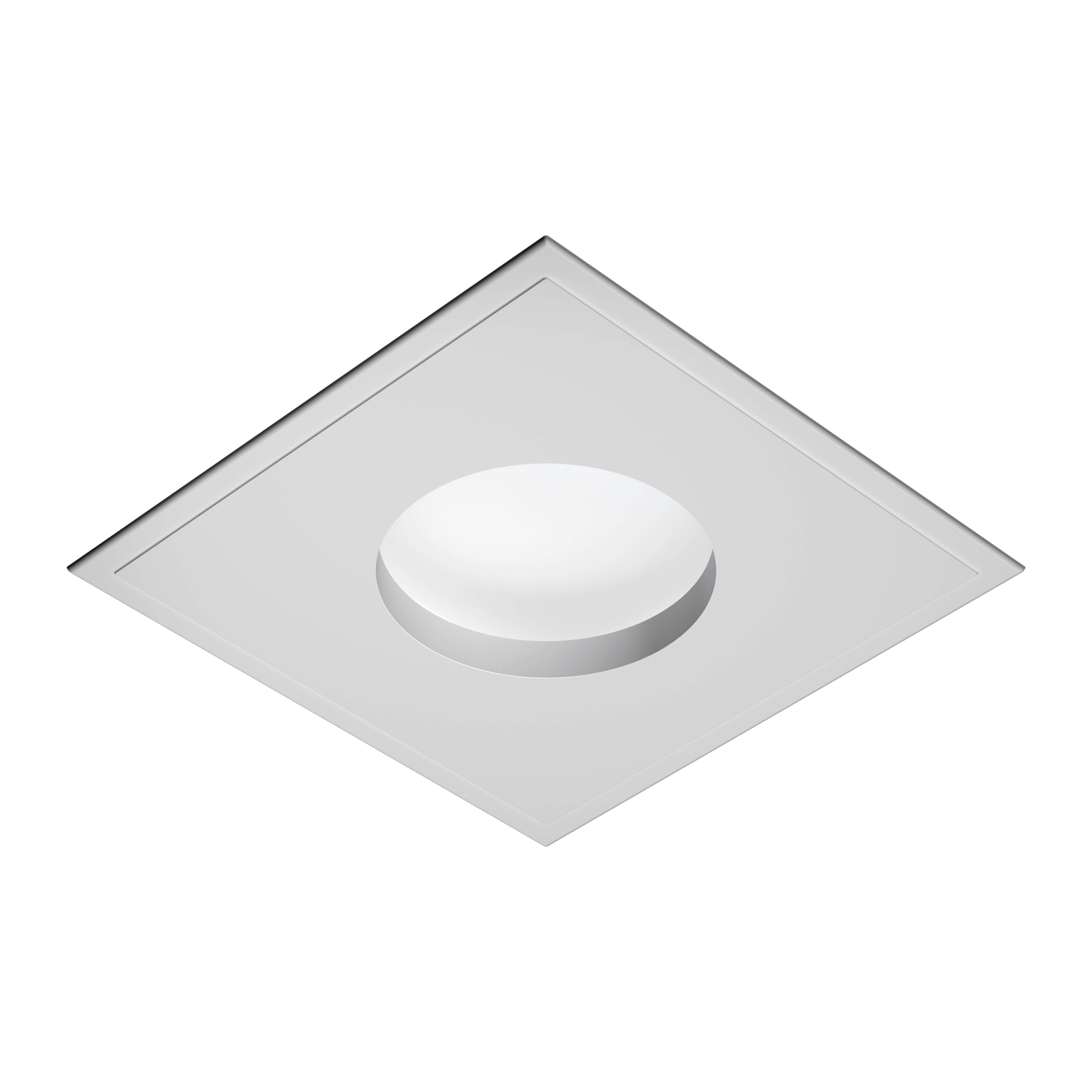

SA.1010.5E110RawUSO 100 50 Cove Lighting
Recessed soft ceiling luminaire. Direct lighting with LED lamps. See LED drivers.
LED - LED Module - 16 x 3.6W - 3000K - CRI> 90 - Beam° 138
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
LED type
LED Module
Lamp category
LED
Number of lamps
16
Power (W)
3.6
System power (W)
57.5
Source flux (lm)
6000
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
LED Life / Failure Ratio
L90B10 > 50.000h
Beam angle C0-180 (º)
138
Beam angle C90-270 (º)
138
Extreme cut off
No
Electrical
Forward voltage (V)
24
Power supply
Remote excluded
Dimmable
No
Physical
Colour
Raw
Trim
No
Orientation
Fixed
Recessed depth (mm)
180
Length (mm)
1000
Net weight (kg)
25
IP internal
20
Replaceable (LED only) light source by a professional
