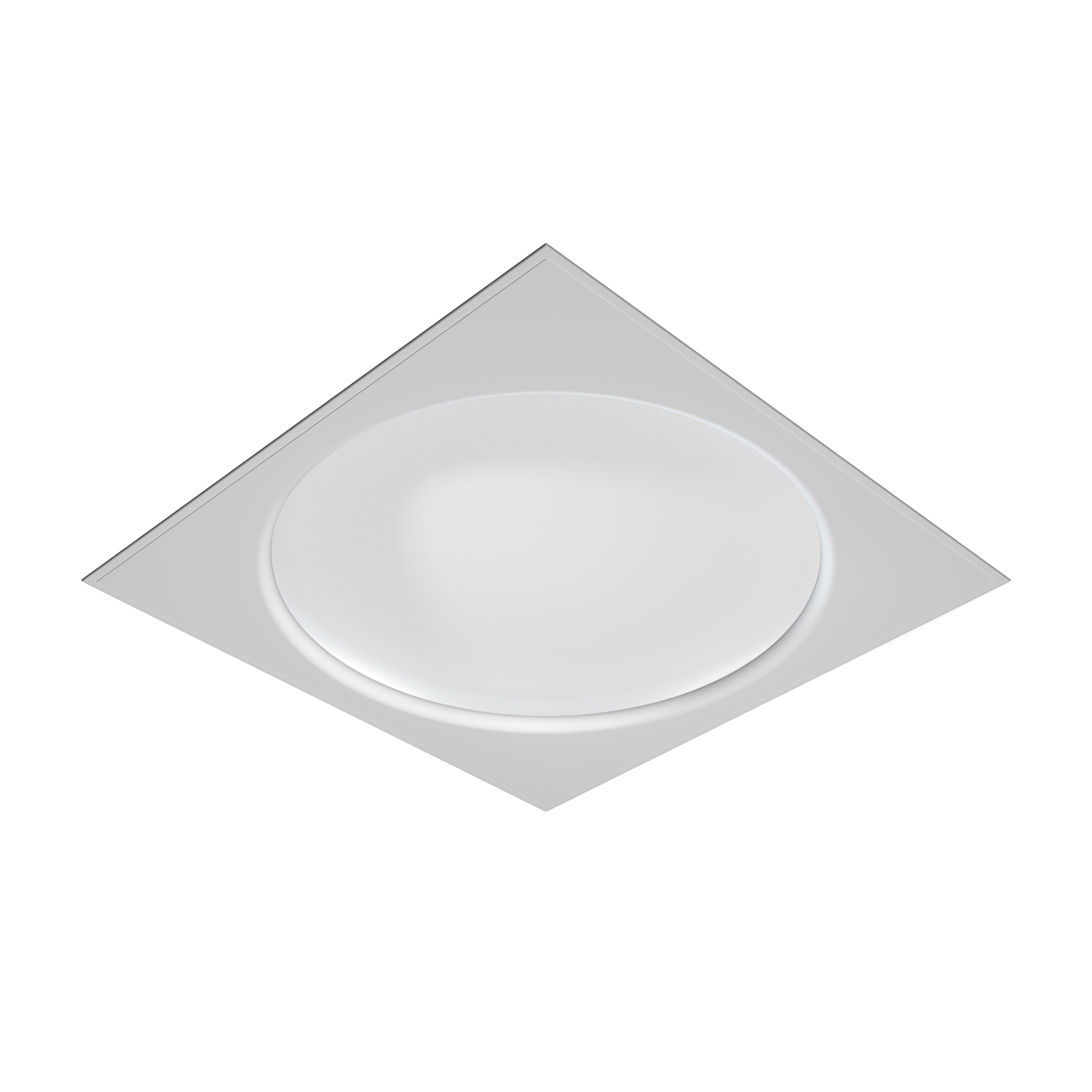

SA.1009.6E100RawUSO 2500 Cove Lighting
Recessed soft ceiling luminaire. Direct lighting with LED lamps. See LED drivers.
LED - LED RGB - 54 x 3.6W - RGBK - CRI> RGB
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
LED type
LED RGB
Lamp category
LED
Number of lamps
54
Power (W)
3.6
System power (W)
194
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
RGB
CRI>
RGB
LED Life / Failure Ratio
L80B10 > 50.000h
Extreme cut off
No
Electrical
Forward voltage (V)
24
Power supply
Remote excluded
Dimmable
No
Physical
Colour
Raw
Trim
No
Orientation
Fixed
Recessed depth (mm)
210
Length (mm)
3000
Net weight (kg)
185
IP internal
20
Notes
Delivered in two pieces.
Replaceable (LED only) light source by a professional
