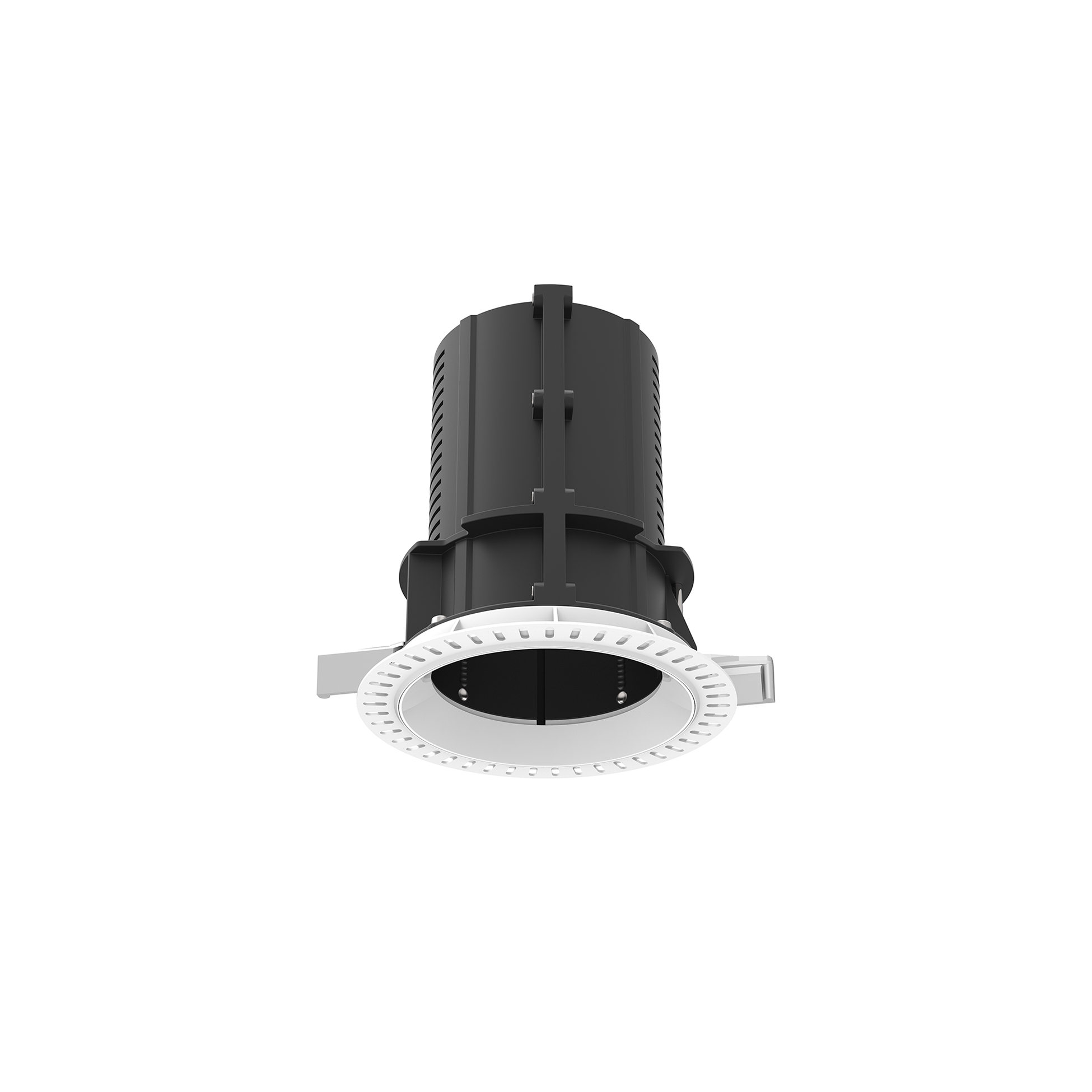

UTUT Downlight No Trim Ø 86 Dali Version
Designed by FLOS Architectural, 2017
Recessed luminaire with LED light source. 220-240V, 50-60Hz remote power supply included.
LED - LED array - 22.1W - 1867lm - 3000K - CRI> 90 - Beam° 12
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
22.1
System power (W)
26.1
Source flux (lm)
2749
Lumen Output (lm)
1867
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
12
Beam angle C90-270 (º)
12
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Trim
No
Orientation
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.74
IP internal
Notes
Pre-installation frame must be ordered separately. Screening crosspiece, lenses and honeycomb directly installable on the head of the luminaire without needing any fastening accessory. Installation compatible with honeycomb + lense at the same time.
