Architectural UT
09.4511.14A Black

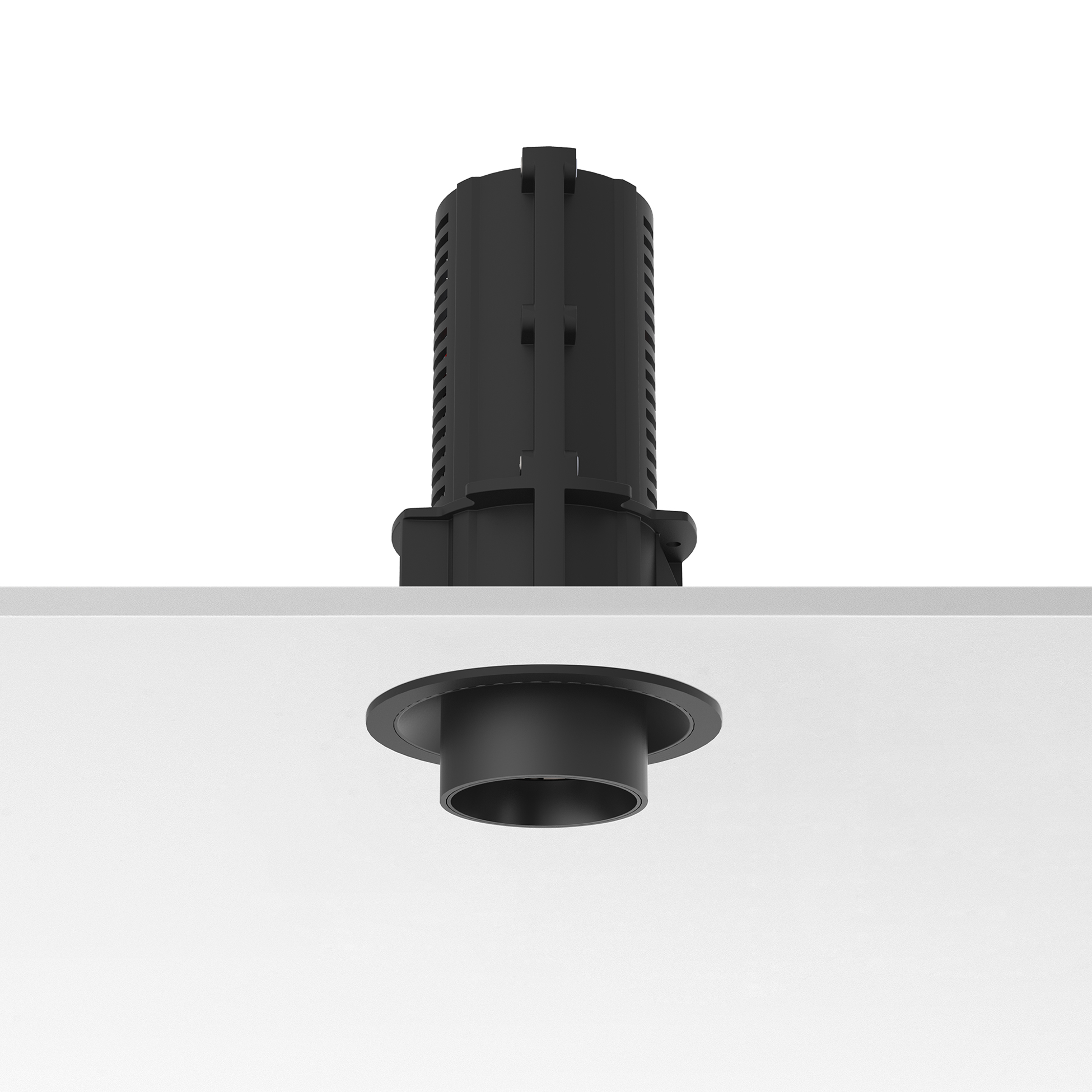

UT Downlight Trim Ø 57 Non Dimmable

Recessed luminaire with LED light source. 220-240V, 50-60Hz remote power supply included.

LED - LED array - 18W - 981lm - 3000K - CRI> 80 - Beam° 21

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
LED array
Lamp category
LED
Number of heads
1
Power (W)
18
Source flux (lm)
2008.2
System flux (lm)
981
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
21
Beam angle C90-270 (º)
21
UGRL
<10
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Driver
Remote included
Dimmable
No
Dimming type
Non Dimmable
Emergency type
No
Physical
Colour
Black
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.73
IP
20
IP external
20
EAC
CE
RETILAP
UKCA
03 - Italy
03 - Italy
USA
20
Gwt 850 (º)
20
20
20
20
Notes

Screening crosspiece, lenses and honeycomb directly installable on the head of the luminaire without needing any fastening accessory.

Accessories & Power Supply

optional (7)
