UT
09.4910.30A

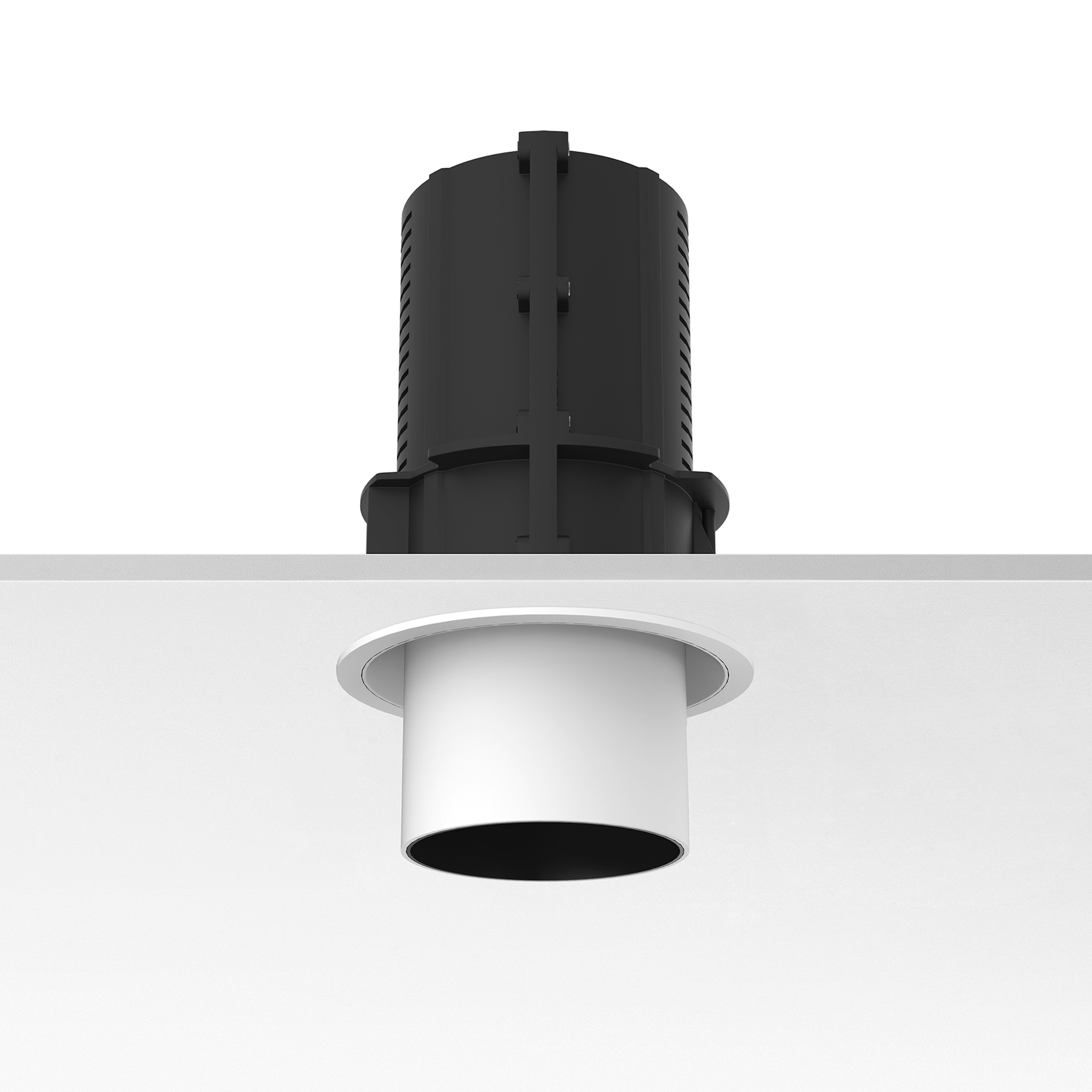

UT Downlight Trim Ø 86 Non Dimmable

Recessed luminaire with LED light source. 220-240V, 50-60Hz remote power supply included.

LED - LED array - 27W - 2259lm - 3000K - CRI> 80 - Beam° 12

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Downlight-UT_Downlight-86-Trim
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
27
Source flux (lm)
3214
Lumen Output (lm)
2259
Schematic light drawing
EU_09_4910_XXAXXW27
Photometric
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
12
Beam angle C90-270 (º)
12
UGRL
<10
Electrical
Insulation class
Frequency (Hz)
50/60
Forward voltage (V)
36
Power supply
Dimmable
Power supply type
Emergency
No
Physical
Colour
Trim
No
Orientation
Rotation (º)
360
Longitudinal tilting (°)
90
Recessed depth (mm)
176
Net weight (kg)
0.94
IP internal
IP external
Notes

Screening crosspiece, lenses and honeycomb directly installable on the head of the luminaire without needing any fastening accessory. Installation compatible with honeycomb + lense at the same time.
