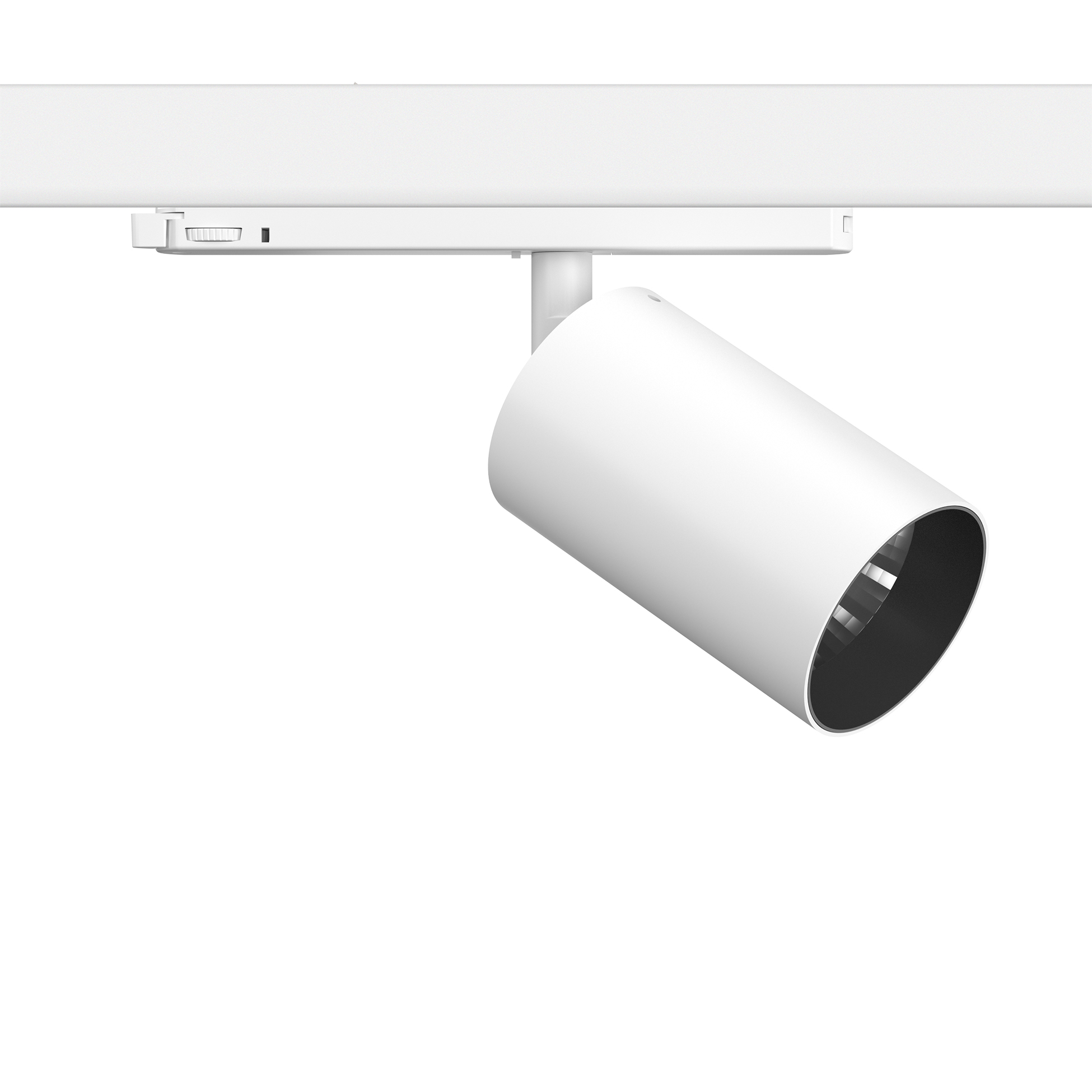

UTUT Spot Track Ø 86 GA All White
Designed by FLOS Architectural, UT S
Spotlight to be installed on 3-phase track with LED light source. 220-240V, 50-60Hz power supply integrated. In the “All white” versions, the track adapter, the arm, the rear of the head and the head are white. Only the anti-glare ring is black.
33W - 2408lm - 3000K - CRI> 80 - Beam° 37
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
33
System power (W)
33
Source flux (lm)
3959
Lumen Output (lm)
2408
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
37
Beam angle C90-270 (º)
37
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
LED current (mA)
900
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Trim
No
Orientation
Rotation (º)
360
Longitudinal tilting (°)
90
Spot diameter (mm)
86
Net weight (kg)
0.75
IP internal
IP external
Notes
Screening crosspiece, lenses and Honeycomb directly installable on the head of the luminaire without needing any fastening accessory. Installation compatible with Honeycomb + Lense at the same time. FLOS three-phase lighting track luminaires are designed and fully tested for tracks recommended by FLOS. Compatibility is guaranteed with three-phase track produced by Nordic Aluminium. Compatibility with Eutrac under request.
