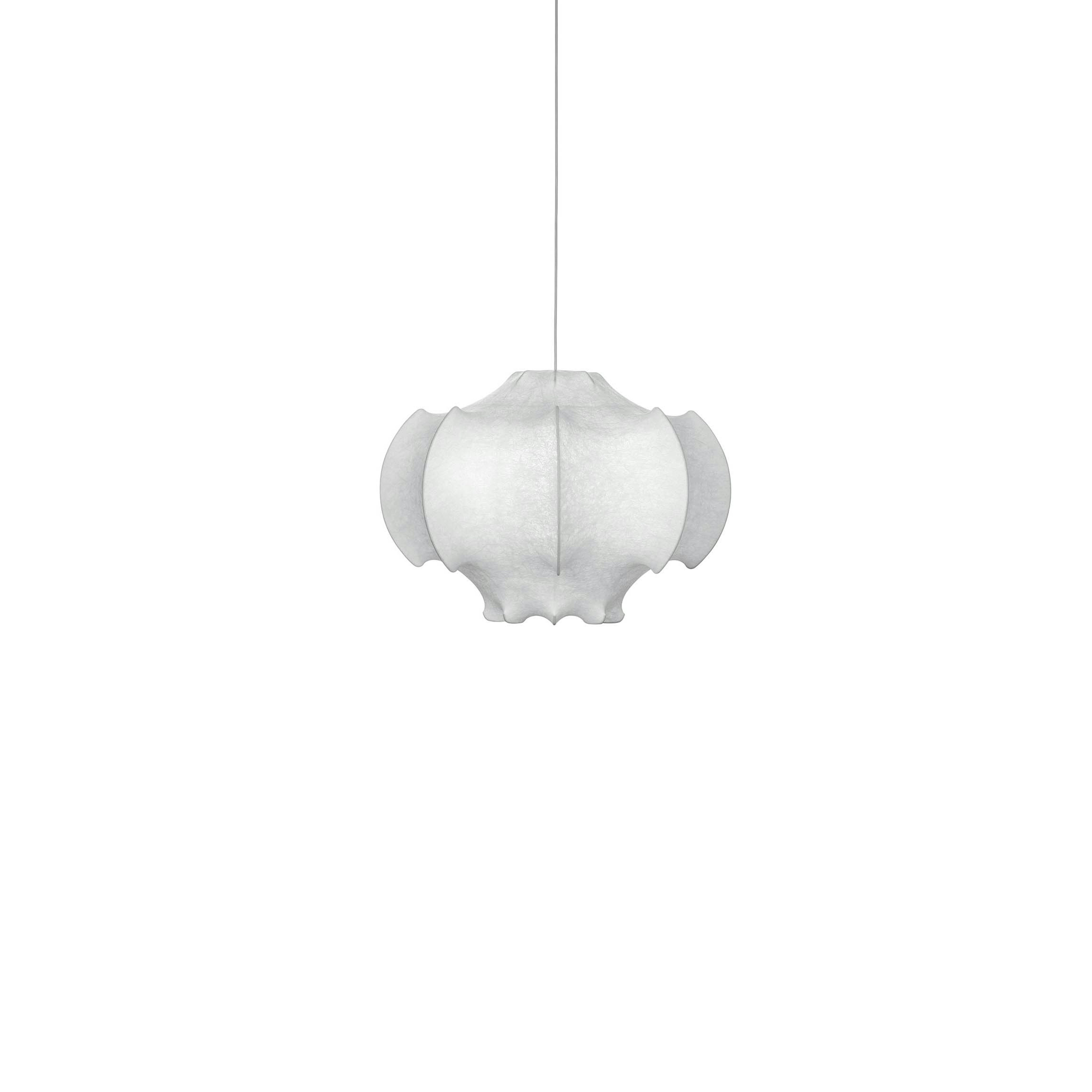

VisconteaViscontea
Designed by Achille and Pier Giacomo Castiglioni, 1960
Suspension lamp emitting diffused light. White powder-coated steel internal structure sprayed with a unique Cocoon resin to form the diffuser and protected by a transparent spray finish.
Halogen - 100W
Technical Drawing
Main specifications
EAN
8059607024010
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
100
Schematic light drawing
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
680
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
1.9
Package height (mm)
715
Package width (mm)
520
Package length (mm)
715
Package volume (m3)
0.27
IP internal
Spare Parts
01. White rose assembly
RA3690209
02. Wiring 2x0,75 3,2m
RF32763

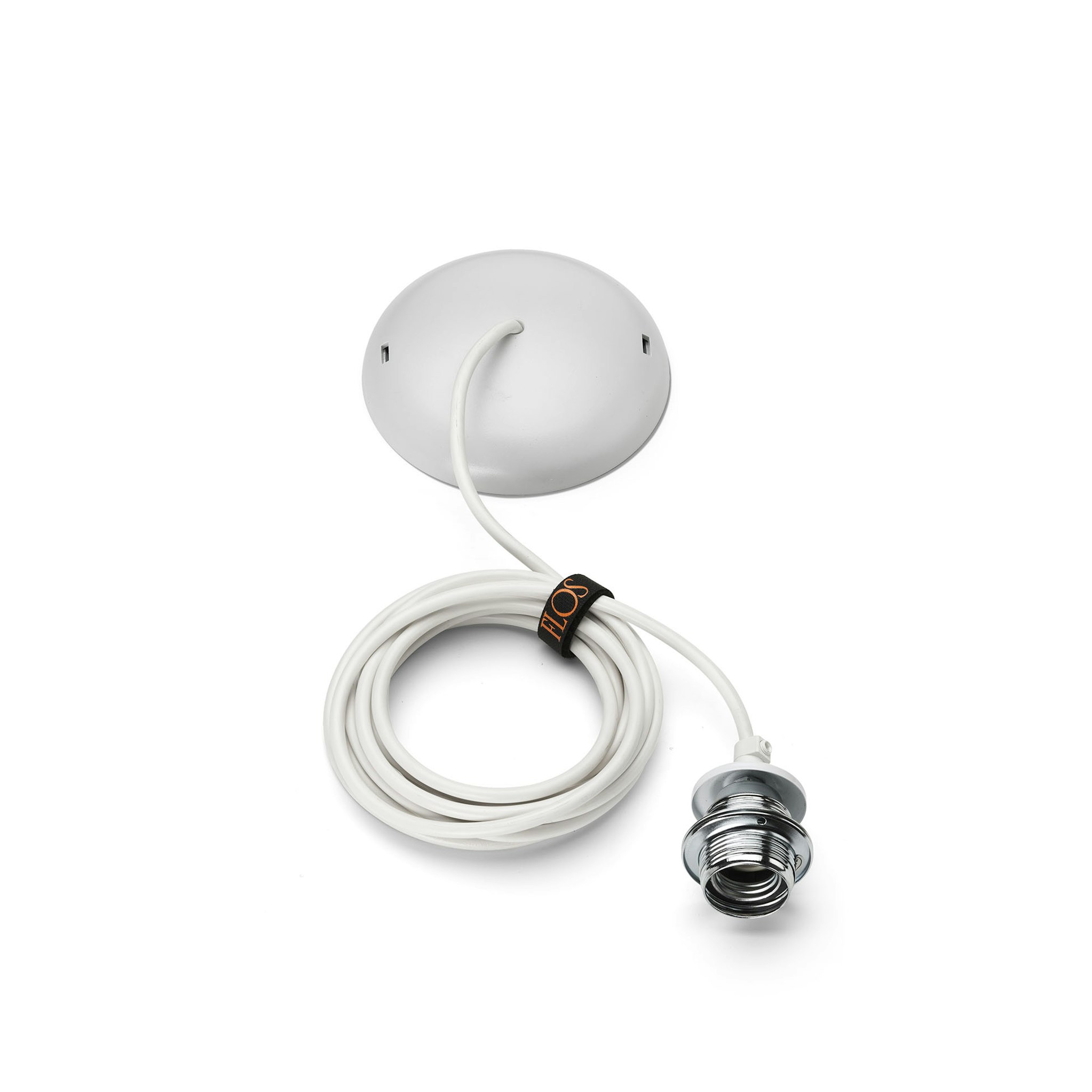

03. Electrical assembly set
RF9800200
