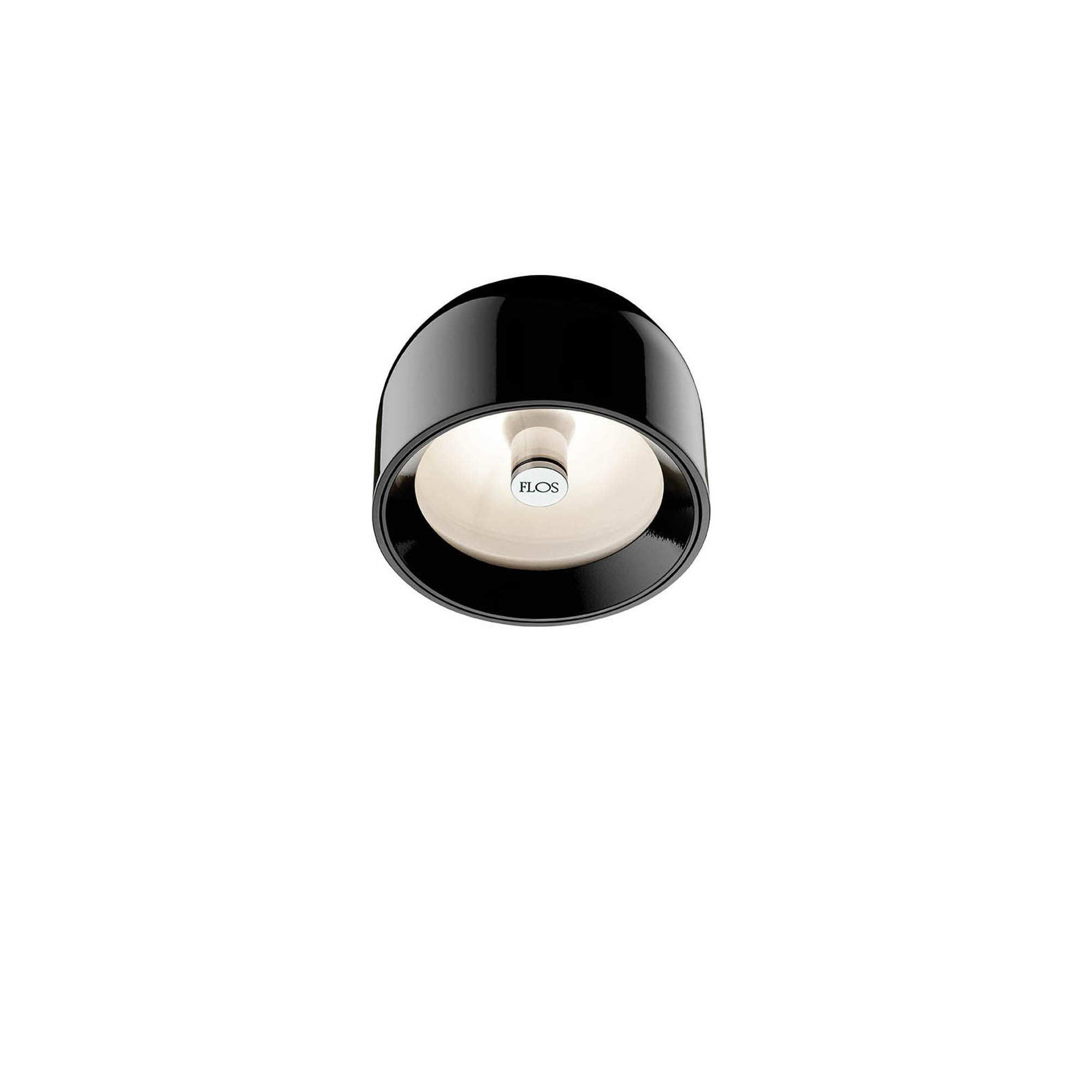

WanWan Ceiling/Wall
Designed by Johanna Grawunder, 2005
Wall or ceiling fixture providing direct lighting. Aluminum body, available in shiny white, shiny black and shiny green finishes. Low glare shield. Provided by two different ring due to block the safety tempered glass, in black and green.
Halogen
Technical Drawing
Main specifications
Mounting
,
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSG
Number of lamps
1
Schematic light drawing
Photometric
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
115
Net weight (kg)
0.62
Package height (mm)
175
Package width (mm)
220
Package length (mm)
190
Package volume (m3)
0.01
Spare Parts
01. New type attachment assembly with g9 lamp holder and safety ring
RF9550300
02. Wan glass assembly
RF9550200
03. External ring
RF13990
04. Reflector / ring assembly
RF9550130
