Wan
F9560009A

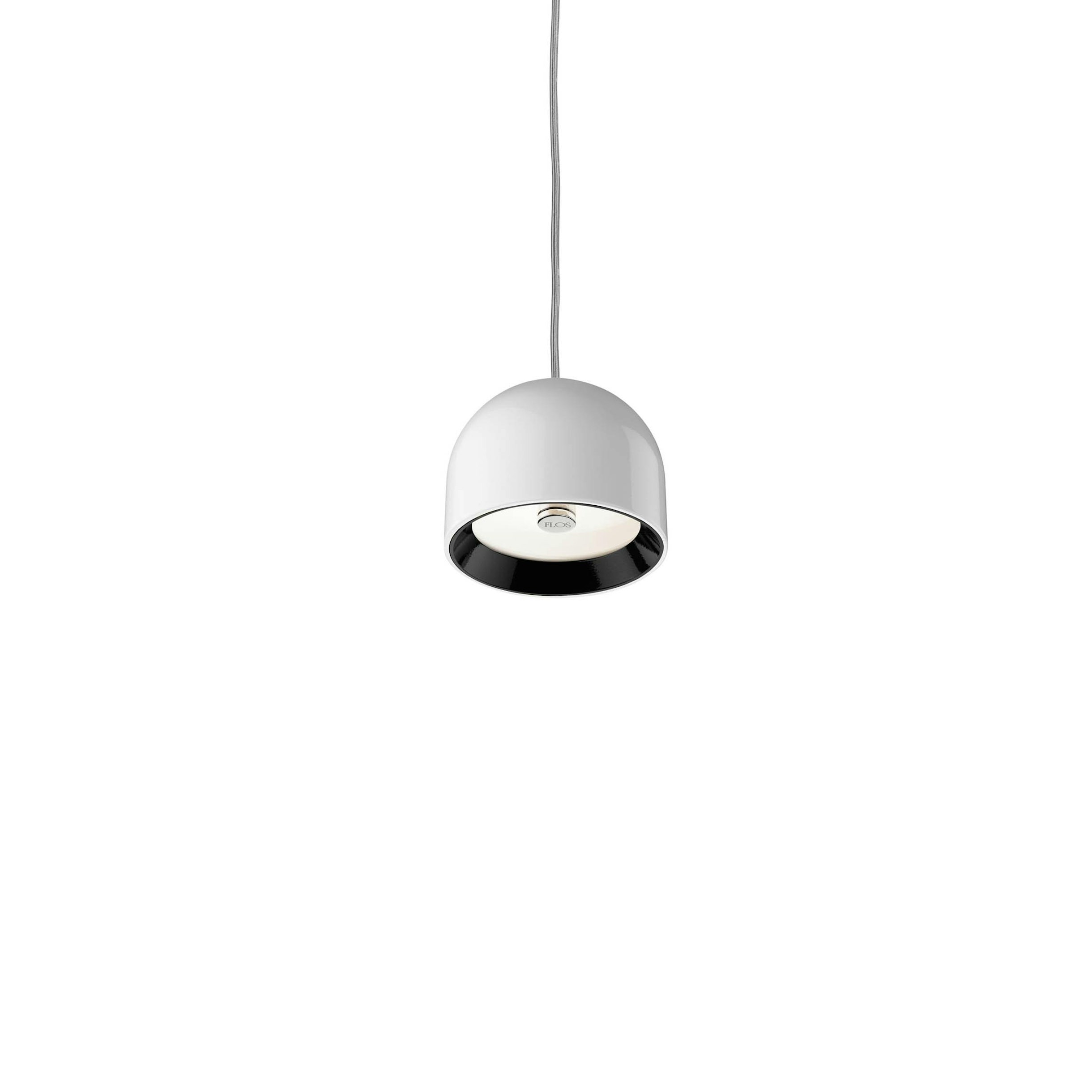

Wan Suspension

Suspension lamp providing direct lighting. Aluminum body, available in  shiny white, shiny black and shiny green finishes. Low glare shield. Provided by two different ring due to fix the safety tempered glass, in black and green.

Halogen

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Wan
Main specifications
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSG
Number of lamps
1
Schematic light drawing
F95600WWAN_S_40W-HL
Photometric
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
115
productFields.physical.cordLength
2800
Net weight (kg)
0.85
Package height (mm)
175
Package width (mm)
220
Package length (mm)
190
Package volume (m3)
0.01

Download

Tech spec pdf

Photometric Files

Technical Drawings

Bulbs

x1
NOT INCLUDEDHalogen Lamp G9 35W 2700K HALOPIN DimmableRF18863

Spare Parts

F9560009-wan-s-flos-boom
01. Black rose assembly
RF9560130
02. G9 lamp holder with inner ring and 2,5mt of eletrical cable
RF9560200
03. Wan glass assembly
RF9550200
04. External ring
RF13990
05. Reflector / ring assembly
RF9550130
Thumbnail
x1
Black rose assemblyRF9560130
Thumbnail
x1
G9 lamp holder with inner ring and 2,5mt of eletrical cableRF9560200
Thumbnail
x1
Wan glass assemblyRF9550200
Thumbnail
x1
External ringRF13990
Thumbnail
x1
Reflector / ring assemblyRF9550130
