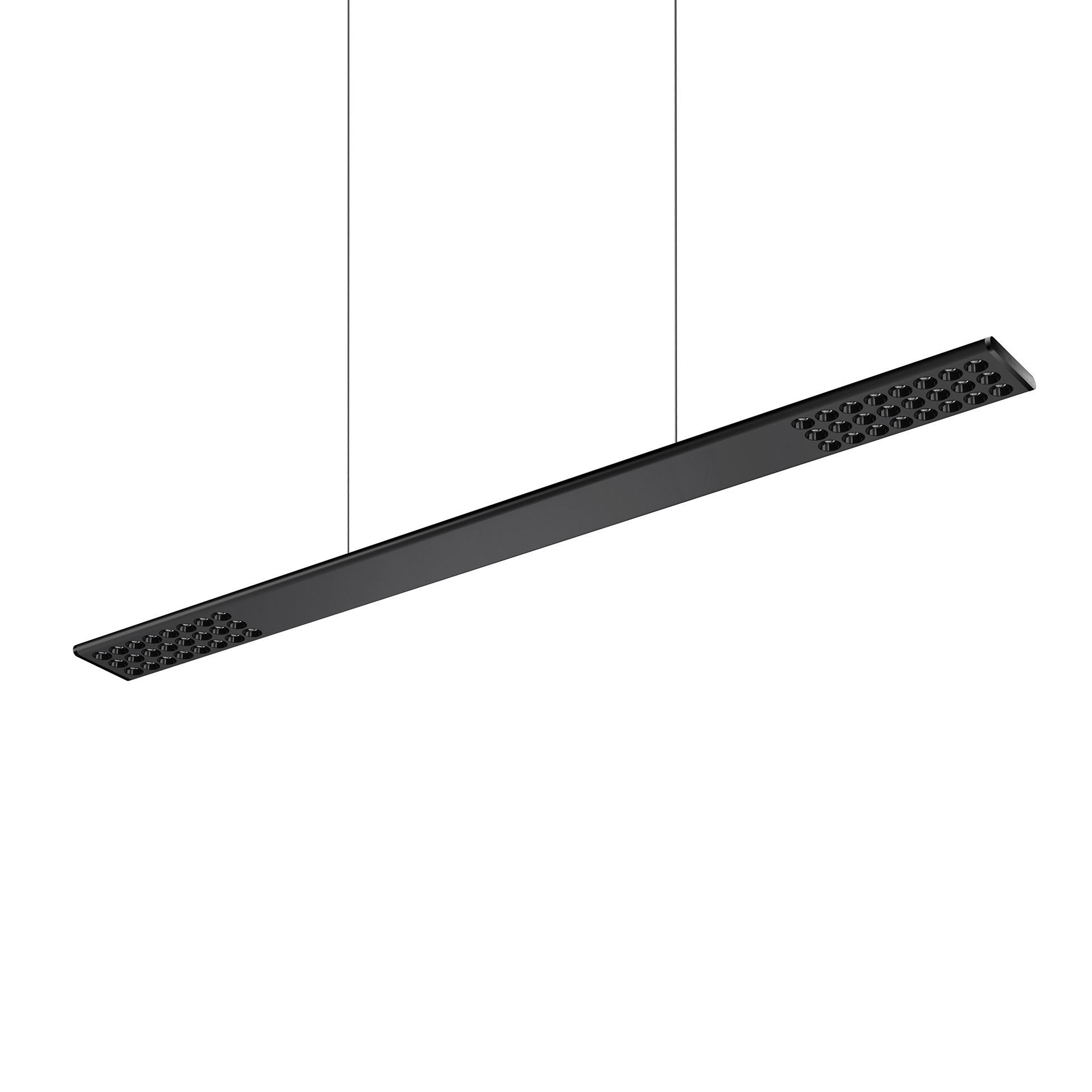

WorkmatesWorkmates Suspension Down Full Spectrum
Designed by FLOS Architectural, 2023
Suspension luminaire. Down emission. High-quality colour rendering Full Spectrum light source. Driver not included. Adjustable suspension height. Mechanical union module available for modular lines for various units. UGR<19. EN12464 - cd/m2 @ 65º<3000 compliant. Casambi, maximum distance between fixtures: 50m.
LED - Top LED - 25W - 2325lm - 3500K - CRI> 98 - Beam° 73
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
25
System power (W)
28
Source flux (lm)
2902
Lumen Output (lm)
2325
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
97
Rg gamut index
102
LED Life / Failure Ratio
L80B50>60.000h_Tc85ºC
Beam angle C0-180 (º)
73
Beam angle C90-270 (º)
75
Extreme cut off
Yes
UGRL
<16
Electrical
Forward voltage (V)
48
LED current (mA)
700
Power supply
Dimmable
Power supply type
,
Batteries inside
No
Physical
Colour
Cord colour
Net weight (kg)
1.95
IP internal
