Zeppelin
F9800009

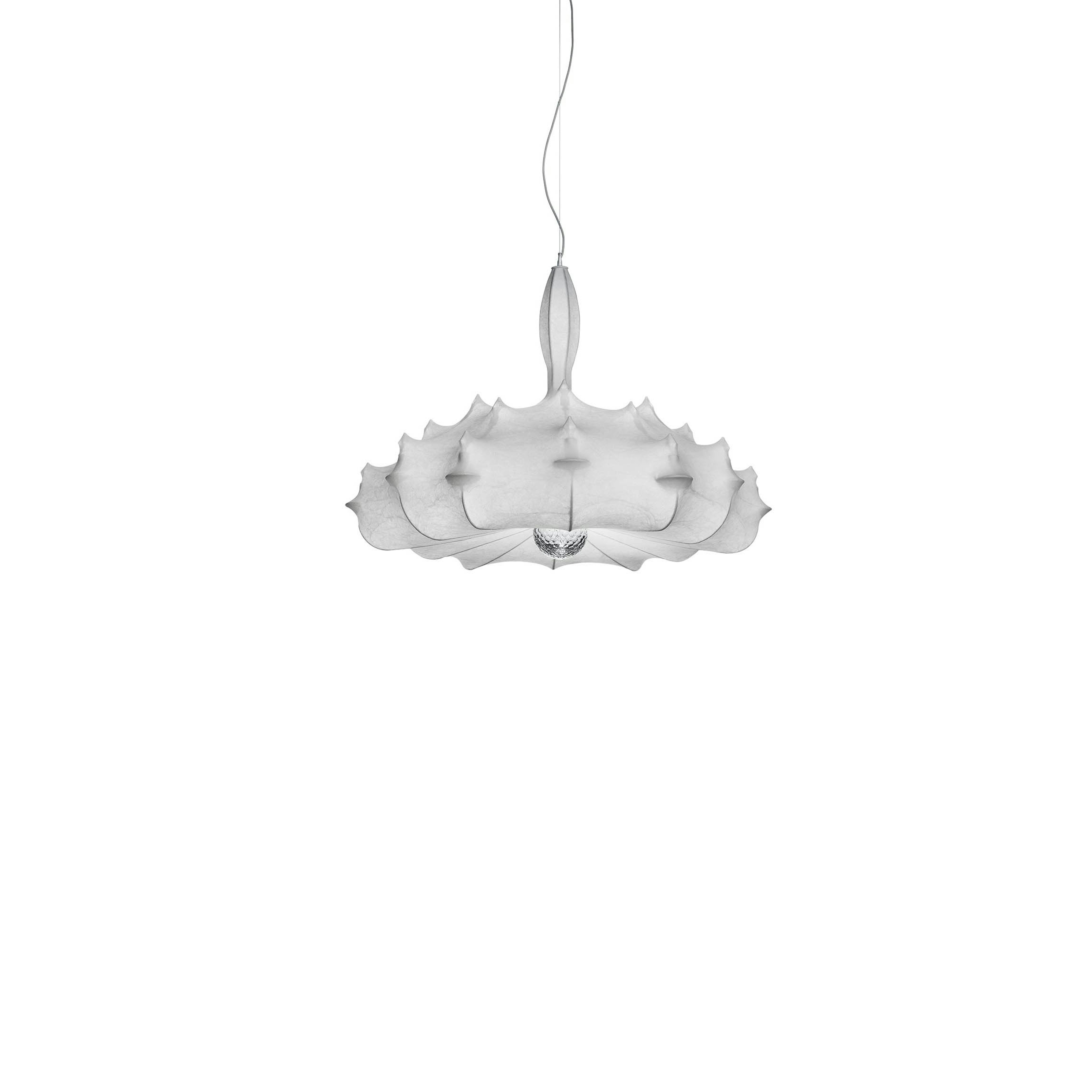

Zeppelin 1

Suspension lamp emitting diffused light. Internal structure in powder-coated steel sprayed with Cocoon resin to form the diffuser, protected by a transparent finish. Transparent PMMA candle elements. Faceted crystal globe positioned at the lower centre for a sparkling light effect.

Halogen - 250W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Zeppelin-1
Main specifications
EAN
8059607024270
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
250
Schematic light drawing
F9800009WZEPPELIN_1_230W-HL
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
1100
Cord colour
productFields.physical.cordLength
4000
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
6.2
Package height (mm)
1130
Package width (mm)
940
Package length (mm)
1130
Package volume (m3)
1.2
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Bulbs

Thumbnail
x1
NOT INCLUDEDLED 21W E27 2450lm 3000K DIMMERRF26998
Thumbnail
x1
NOT INCLUDEDLED Opal Lamp E27 21W 2700K A65 DimmableRF30429

Spare Parts

F9800009-zappelin-1-flos-boom
01. White rose assembly
RA3690209
02. Kit of 5 or rings
RF05382

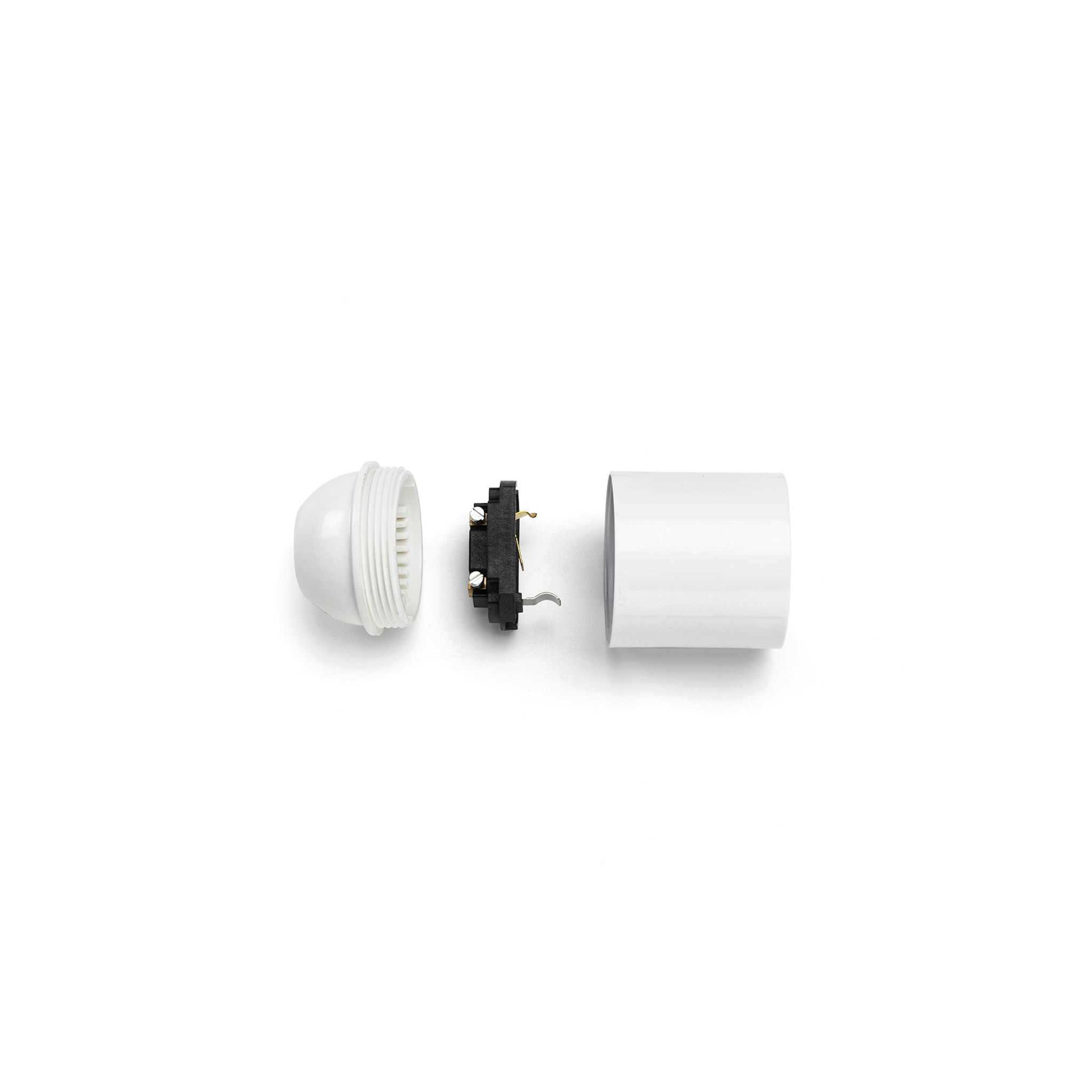

03. Zeppelin 1 Assembly E27 Lamp Holder for Zeppelin
RF9800400

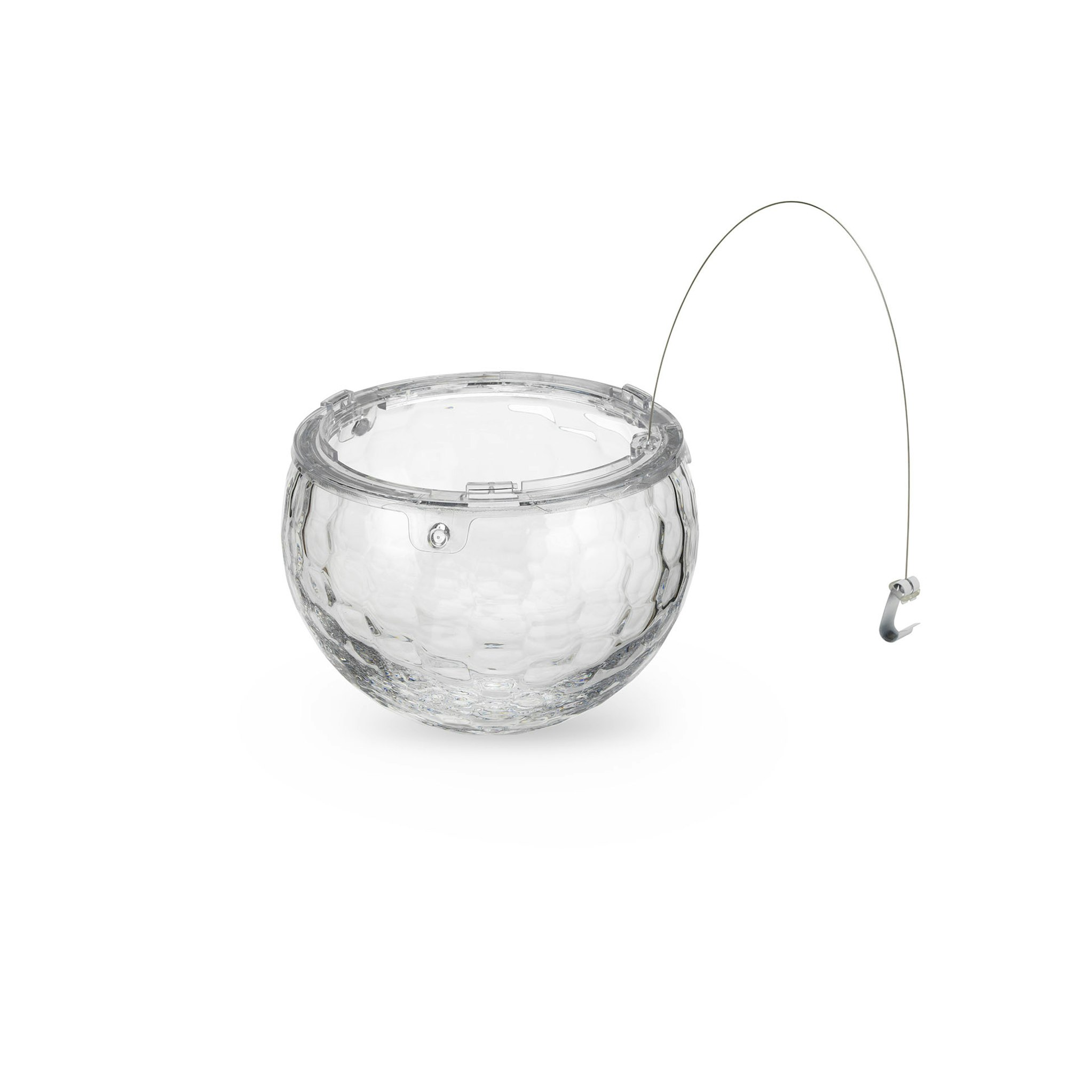

04. Zeppelin 1 Crystal sphere diffuser assembly
RF9800300
Thumbnail
x1
White rose assemblyRA3690209
Thumbnail
x1
Kit of 5 or ringsRF05382
x1
Zeppelin 1 Assembly E27 Lamp Holder for ZeppelinRF9800400
Thumbnail
x1
Zeppelin 1 Crystal sphere diffuser assemblyRF9800300
