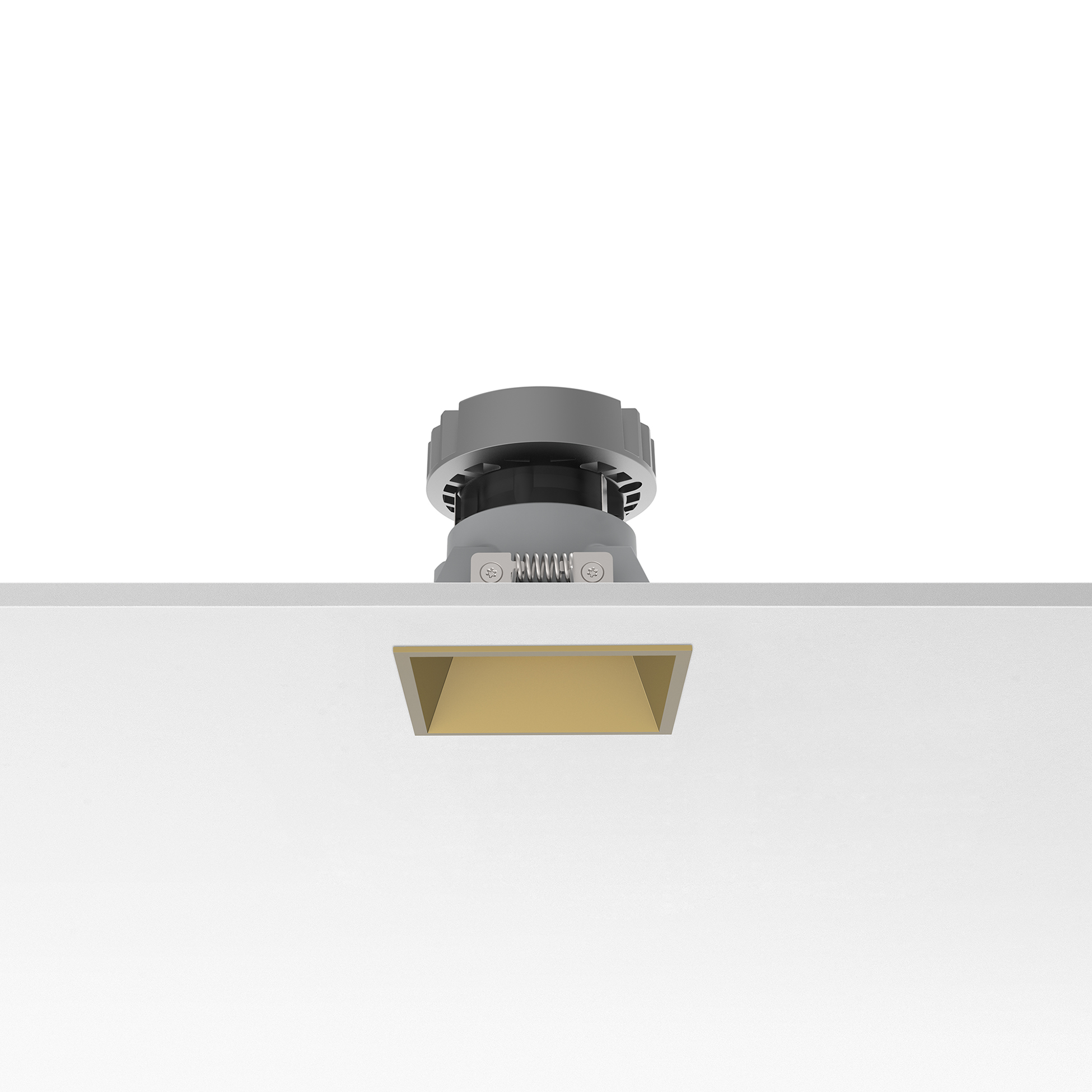

03.4177.GL GoldEasy Kap 80 Square Fixed Optic Spot
Designed by FLOS Architectural, 2017
Recessed luminaire with LED light source. Power supply not included. Installation frame not necessary.
LED - LED array - 9.2W - 732lm - 2700K - CRI> 90 - Beam° 18
Also available in:
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
LED array
Lamp category
LED
Number of heads
1
Power (W)
9.2
System power (W)
9.2
Source flux (lm)
908
System flux (lm)
732
Efficacy (lm/W)
79
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
18
Beam angle C90-270 (º)
18
UGRL
<16
Electrical
Insulation class
III
Frequency (Hz)
0
Forward voltage (V)
17.8
LED current (mA)
500
Driver
Remote excluded
Dimmable
Yes
Dimming type
Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1
Physical
Colour
Gold
Trim
Yes
Orientation
Fixed
Recessed depth (mm)
93
Spot diameter (mm)
80
Length (mm)
80
Net weight (kg)
0.24
Package height (cm)
90
Package width (cm)
145
Package length (cm)
125
IP
20
IP external
54
Notes
Diffusing lens included
Photometric Files
Ecodesign and Energy Labelling
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
