Architectural Wan
03.6174.GNA Green

Wan Spot

Spotlight to be installed recessed on ceiling/wall. Power supply not included.

LED - LED array - 9.2W - 505lm - 3000K - CRI> 80 - Beam° 83

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Ceiling surface
Enviroment
Indoor dry location
Light source type
LED
LED type
LED array
Lamp category
LED
Number of heads
1
Power (W)
9.2
System flux (lm)
505
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
83
Beam angle C90-270 (º)
83
Electrical
Insulation class
III
Frequency (Hz)
50/60
Driver
Remote excluded
Dimmable
Yes
Dimming type
Non Dimmable, Mains Cut Dimming, Dimmable 1-10V, Dimmable DALI 1, Dimmable Push
Emergency type
No
Physical
Colour
Green
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
60
Recessed depth (mm)
50
Net weight (kg)
0.50
IP
20
IP external
20
CE
UKCA
USA
20
Gwt 850 (º)
20
20

Accessories & Power Supply

required (5)
All
Power supply
Thumbnail
x1
Electrical Continuous current power supply of 13-20W, 110*/240V - 50/60Hz with current selected through adjustable 200 mA - 13W / 300 mA - 15W / 350 mA - 18W / 400 / 450 / 500 / 550 / 600 / 650 / 700 / 750 / 800 / 850 / 900 mA - 20W. switch. 0/1-10V or push. 60.9188
Thumbnail
x1
Electrical Casambi continuous current power supply, dimmable 220/240V - 50/60Hz, 300mA - 16W / 350mA - 18,5W / 400mA - 21,5W / 450 mA - 24W / 500mA - 27W / 600mA - 32W / 650 mA - 35W / 700 mA - 36W /750 /800 /900 /1000 /1050 /1200 mA - 38W. 60.9207
Thumbnail
x1
Electrical Mains dimming 20W Constant current power supply, AC phase-cut adjustable, trailing & leading edge dimming, 220/240V - 50/60Hz, with dip-switch programmable power supply current. Output current: 900mA - 20W / 850mA - 20W / 800mA - 20W / 750mA - 20W / 70... 60.9467
x1
Electrical Non dimmable continuous current power supply of 220/240V - 50/60Hz with power current selected through adjustable with DIP-switch 350 mA - 7,3W / 400mA - 8,4W / 450 mA - 9,4W / 500 mA - 10,5W 60.9768
x1

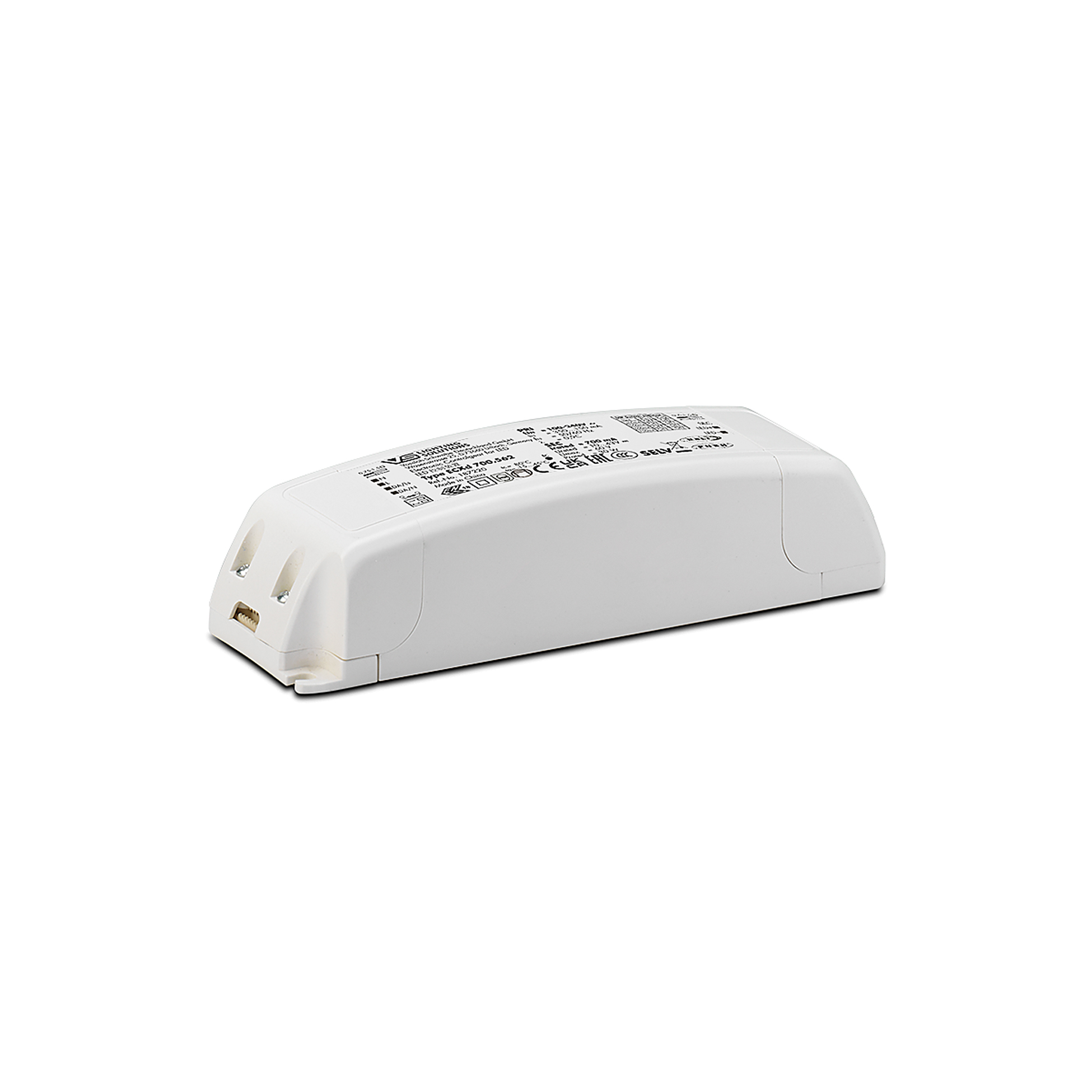

Electrical Continuous current power supply of 12-20W, 110/240V - 50/60Hz with power current selected through DIP-switch 350mA - 15W / 500mA - 21W / 600mA - 26W / 700mA - 30W dimmable Dali 1, Dali 2 & PUSH 60.9826
