Decorative Wireline
F9520039 Green

Wireline

Suspension lamp with diffused light.  Tubular in transparent extruded glass and internal diffuser in opal PC. Ferrules made with CNC technology in satin stainless steel.  Extruded cable in pink and forest green rubber. Injection molded PC rosette in the same finishes as the cable.  The electronics integrated in the ceiling rose allows the use of different dimerization systems: push, 1-10, potentiometer, DALI.  In the absence of these systems, the luminous flux can be set during installation, with the push system included in the canopy.  Useful length of the cable 3mt.

45W - 2793lm - 2700K - CRI> 90

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
LED Module
Power (W)
45
System power (W)
45
System flux (lm)
2793
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
120-277
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable 0-10V, Dimmable 1-10V, Dimmable DALI 1, Dimmable Push
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Green
Length (mm)
1300
Cord colour
Green
Canopy colour
Green
Canopy dimension (mm)
130
Net weight (kg)
7.8
Package volume (m3)
0.05
IP
20
CE
CMIM Morocco
IECEE-CB
EAC
RETILAP
UKCA
USA
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

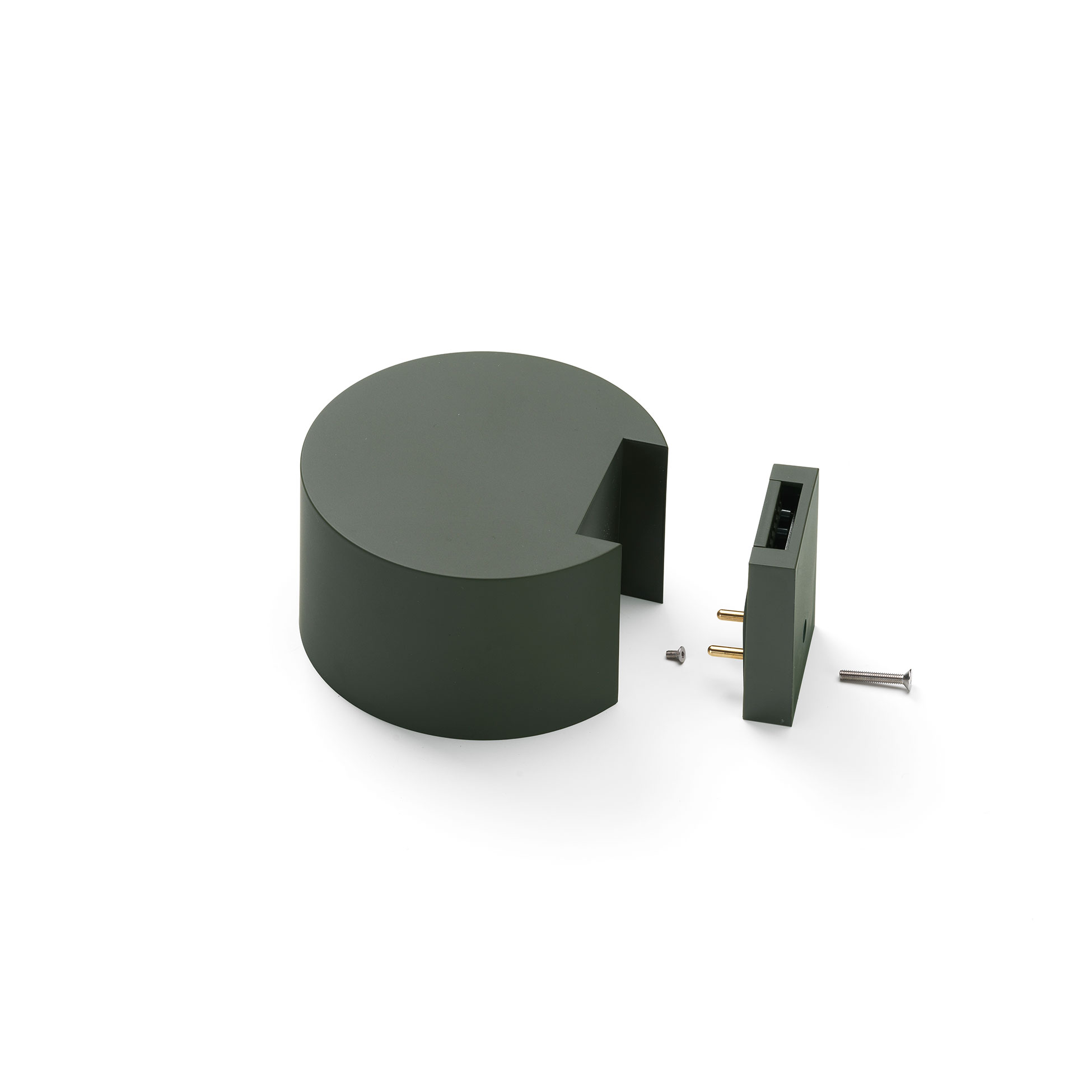

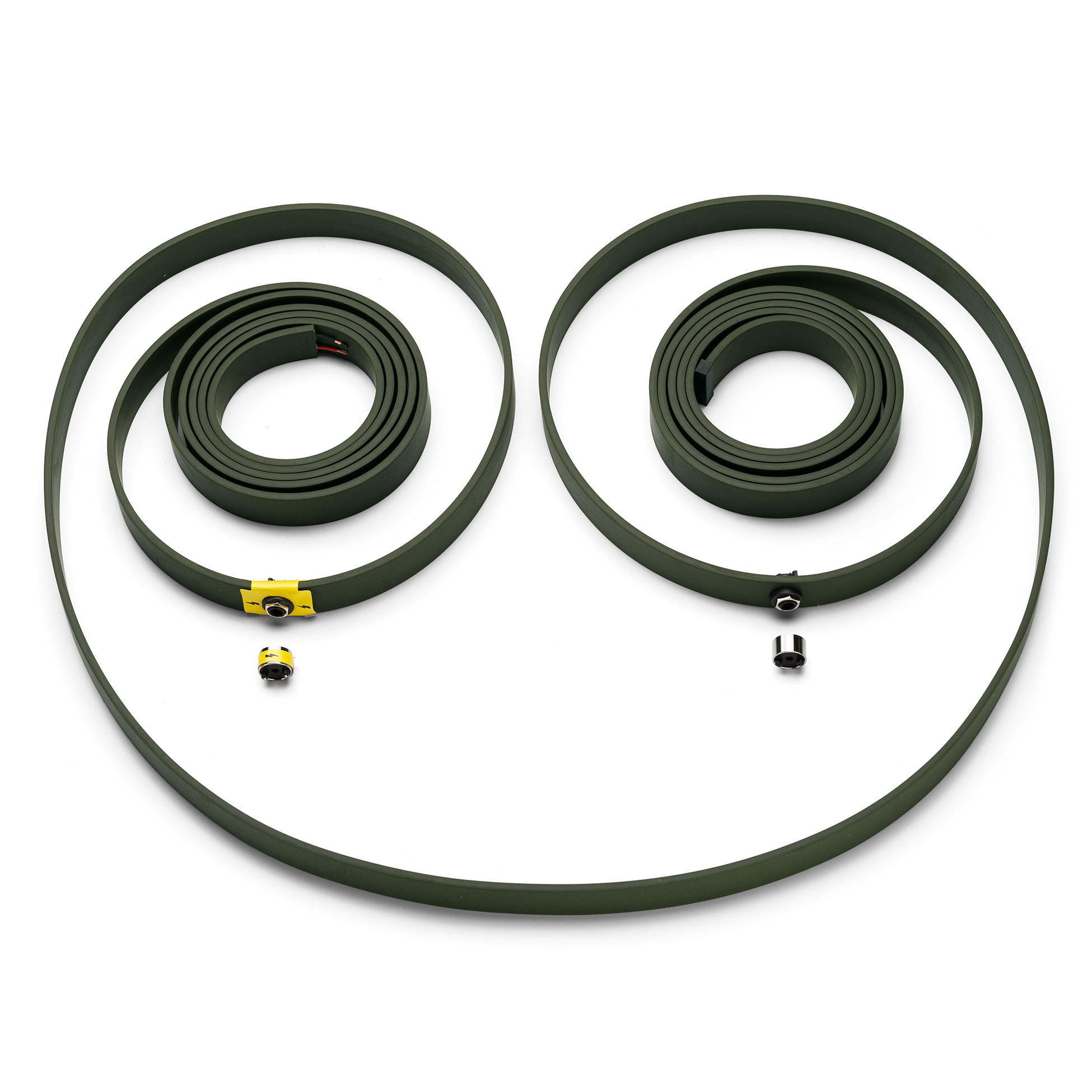

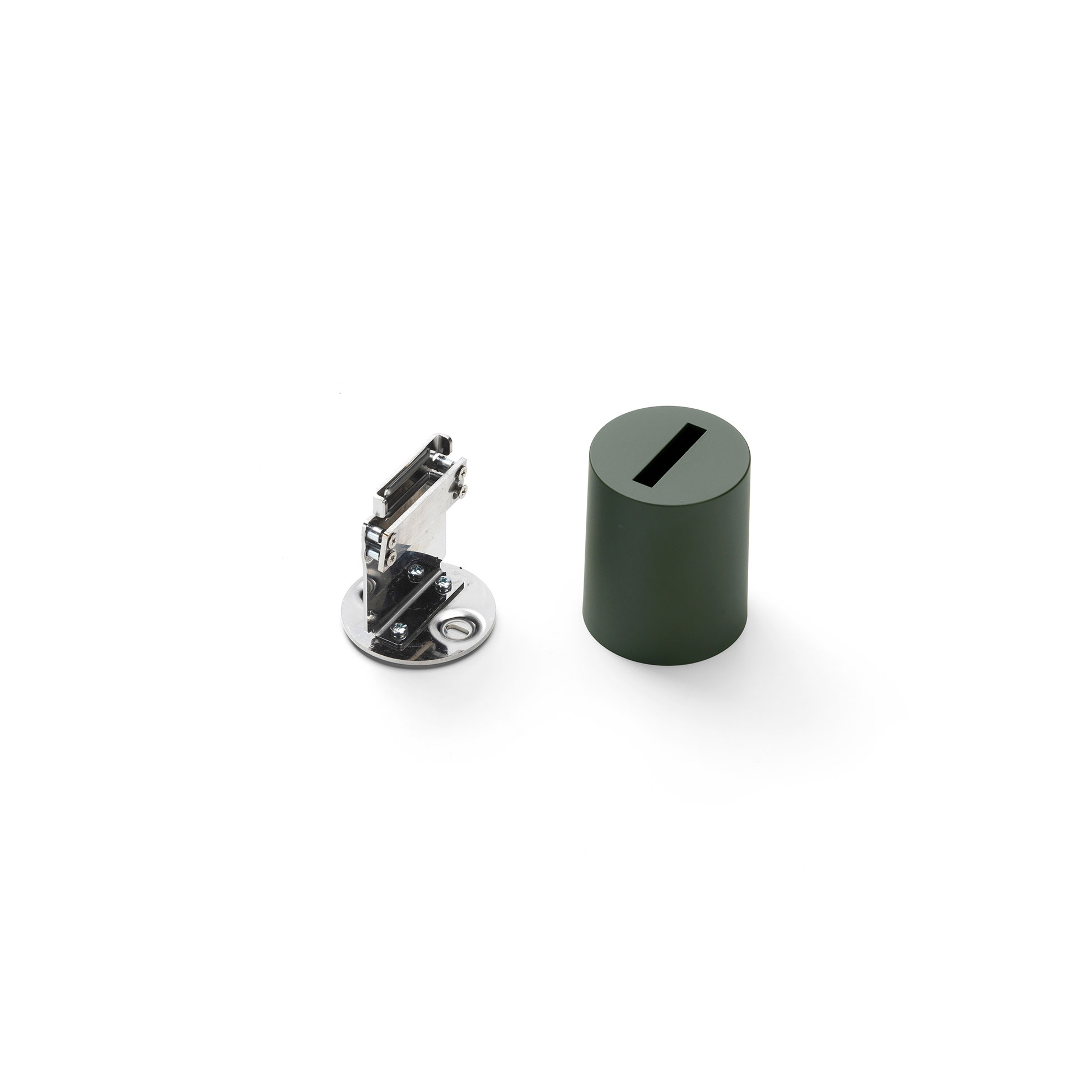

Spare Parts
