Atom 90

Designed by Piero Lissoni

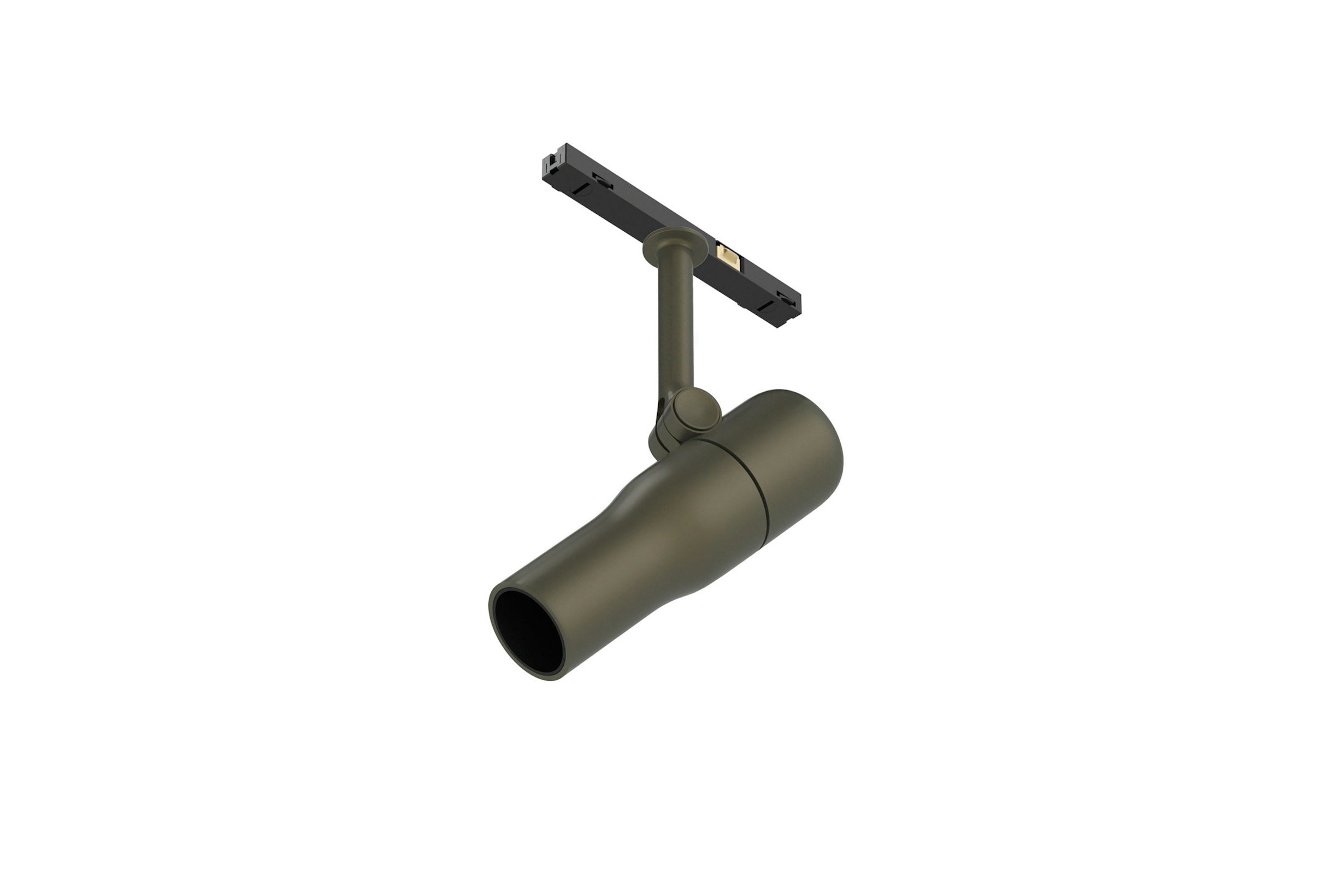

Accent lighting LED module.

Download Documentation

Product highlight

Deceiving the eye

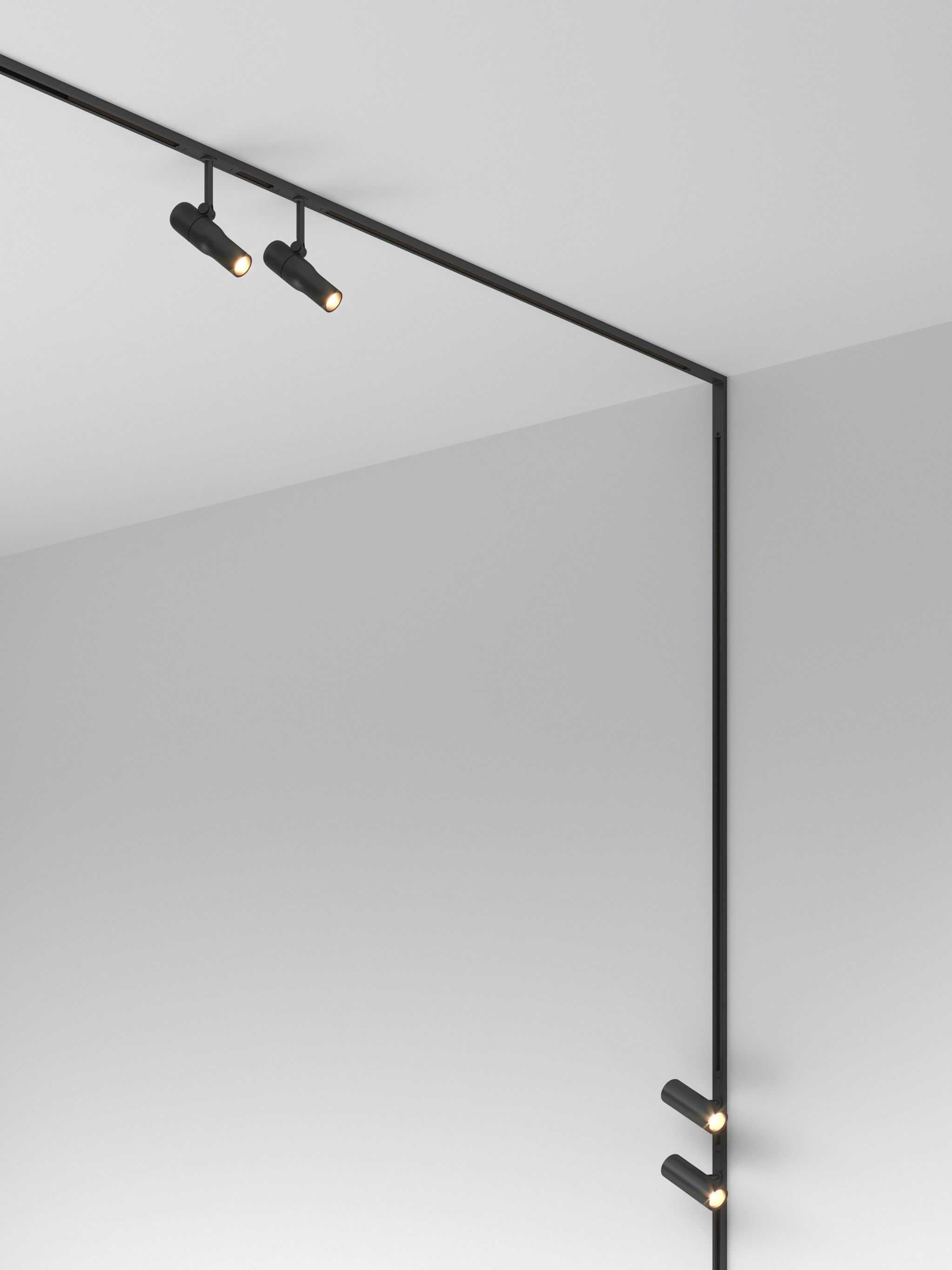

Innovative 24V system composed of a miniaturized track that subtly adapts to the surface offering a variety of dimmable luminaries.


Luminaire

(40)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
09.3933.CZA	Atom 90 Casambi integrated	5.5	261	2700	90	25	Dimmable Casambi	Track
09.3933.40A	Atom 90 Casambi integrated	5.5	261	2700	90	25	Dimmable Casambi	Track
09.3933.18A	Atom 90 Casambi integrated	5.5	261	2700	90	25	Dimmable Casambi	Track
09.3933.14A	Atom 90 Casambi integrated	5.5	261	2700	90	25	Dimmable Casambi	Track
09.3933.05A	Atom 90 Casambi integrated	4.7	250	2700	90	25	Dimmable Casambi	Track
09.3932.CZA	Atom 90 Casambi integrated	5.5	289	3000	90	25	Dimmable Casambi	Track
09.3932.40A	Atom 90 Casambi integrated	5.5	289	3000	90	25	Dimmable Casambi	Track
09.3932.18A	Atom 90 Casambi integrated	5.5	289	3000	90	25	Dimmable Casambi	Track
09.3932.14A	Atom 90 Casambi integrated	5.5	289	3000	90	25	Dimmable Casambi	Track
09.3932.05A	Atom 90 Casambi integrated	4.7	261	3000	90	25	Dimmable Casambi	Track
09.3931.CZA	Atom 90 Casambi integrated	5.5	224	2700	90	14	Dimmable Casambi	Track
09.3931.40A	Atom 90 Casambi integrated	5.5	224	2700	90	14	Dimmable Casambi	Track
09.3931.18A	Atom 90 Casambi integrated	5.5	224	2700	90	14	Dimmable Casambi	Track
09.3931.14A	Atom 90 Casambi integrated	5.5	224	2700	90	14	Dimmable Casambi	Track
09.3931.05A	Atom 90 Casambi integrated	4.7	214	2700	90	14	Dimmable Casambi	Track
09.3930.CZA	Atom 90 Casambi integrated	5.5	247	3000	90	14	Dimmable Casambi	Track
09.3930.40A	Atom 90 Casambi integrated	5.5	247	3000	90	14	Dimmable Casambi	Track
09.3930.18A	Atom 90 Casambi integrated	5.5	247	3000	90	14	Dimmable Casambi	Track
09.3930.14A	Atom 90 Casambi integrated	5.5	247	3000	90	14	Dimmable Casambi	Track
09.3930.05A	Atom 90 Casambi integrated	4.7	223	3000	90	14	Dimmable Casambi	Track
09.3833.CZA	Atom 90	5.5	261	2700	90	25	Non Dimmable	Track
09.3833.40A	Atom 90	5.5	261	2700	90	25	Non Dimmable	Track
09.3833.18A	Atom 90	5.5	261	2700	90	25	Non Dimmable	Track
09.3833.14A	Atom 90	5.5	261	2700	90	25	Non Dimmable	Track
09.3833.05A	Atom 90	4.7	250	2700	90	25	Non Dimmable	Track
09.3832.CZA	Atom 90	5.5	289	3000	90	25	Non Dimmable	Track
09.3832.40A	Atom 90	5.5	289	3000	90	25	Non Dimmable	Track
09.3832.18A	Atom 90	5.5	289	3000	90	25	Non Dimmable	Track
09.3832.14A	Atom 90	5.5	289	3000	90	25	Non Dimmable	Track
09.3832.05A	Atom 90	4.7	261	3000	90	25	Non Dimmable	Track
09.3831.CZA	Atom 90	5.5	224	2700	90	14	Non Dimmable	Track
09.3831.40A	Atom 90	5.5	224	2700	90	14	Non Dimmable	Track
09.3831.18A	Atom 90	5.5	224	2700	90	14	Non Dimmable	Track
09.3831.14A	Atom 90	5.5	224	2700	90	14	Non Dimmable	Track
09.3831.05A	Atom 90	4.7	214	2700	90	14	Non Dimmable	Track
09.3830.CZA	Atom 90	5.5	247	3000	90	14	Non Dimmable	Track
09.3830.40A	Atom 90	5.5	247	3000	90	14	Non Dimmable	Track
09.3830.18A	Atom 90	5.5	247	3000	90	14	Non Dimmable	Track
09.3830.14A	Atom 90	5.5	247	3000	90	14	Non Dimmable	Track
09.3830.05A	Atom 90	4.7	223	3000	90	14	Non Dimmable	Track
