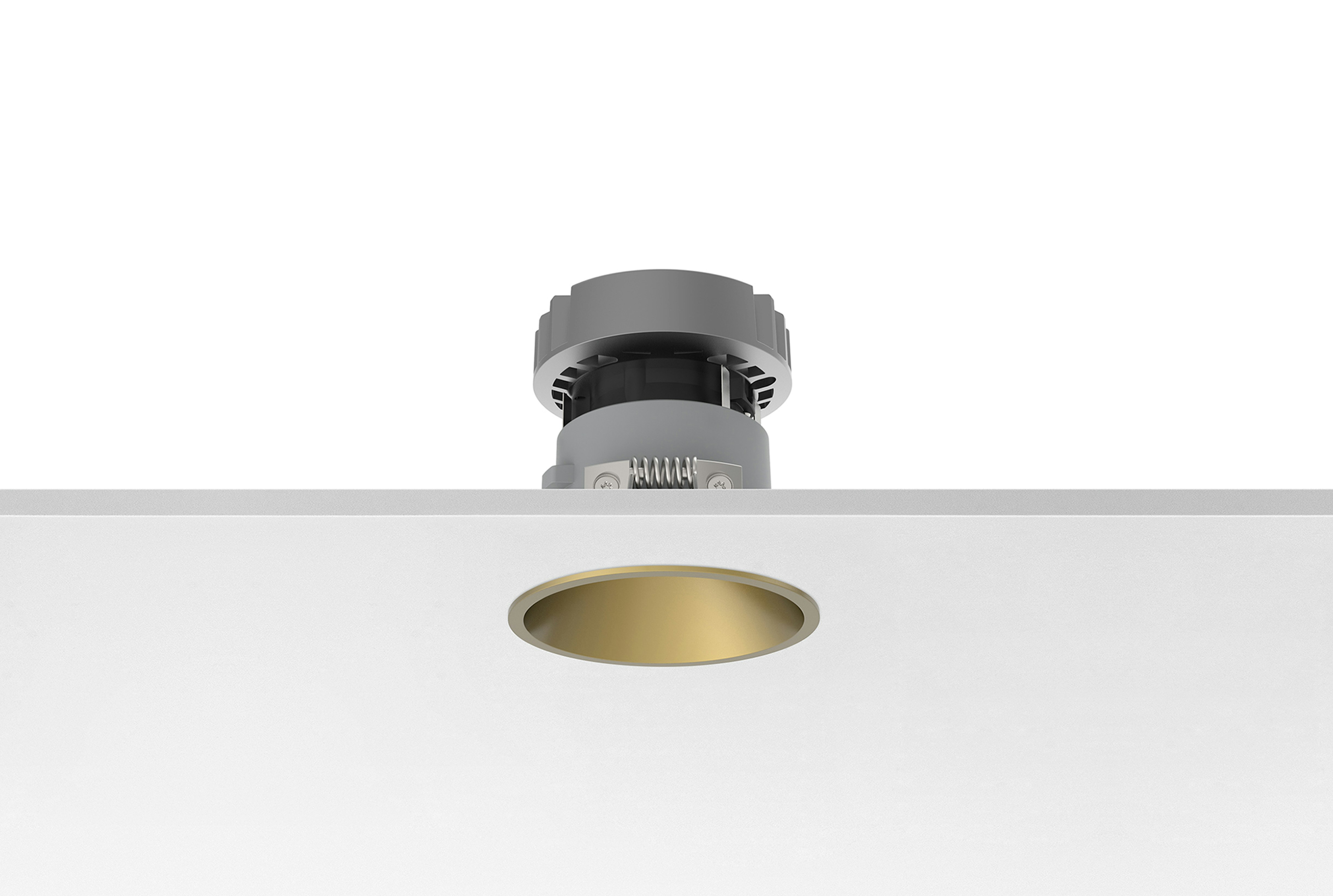

Easy Kap 80

Designed by FLOS Architectural

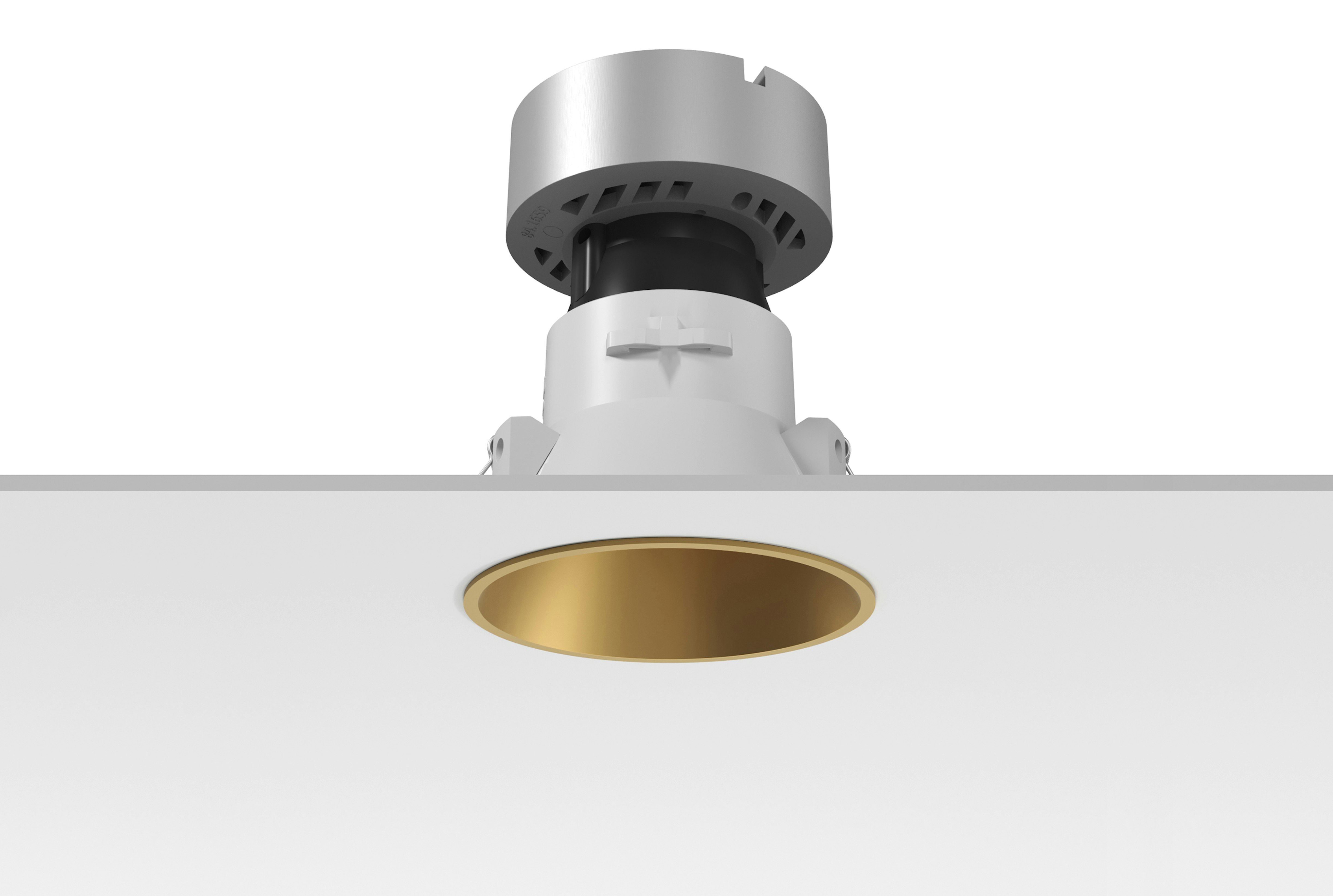

Minimal recessed downlights with main voltage source, Easy Kap is available in different colors and finishes.

Download Documentation

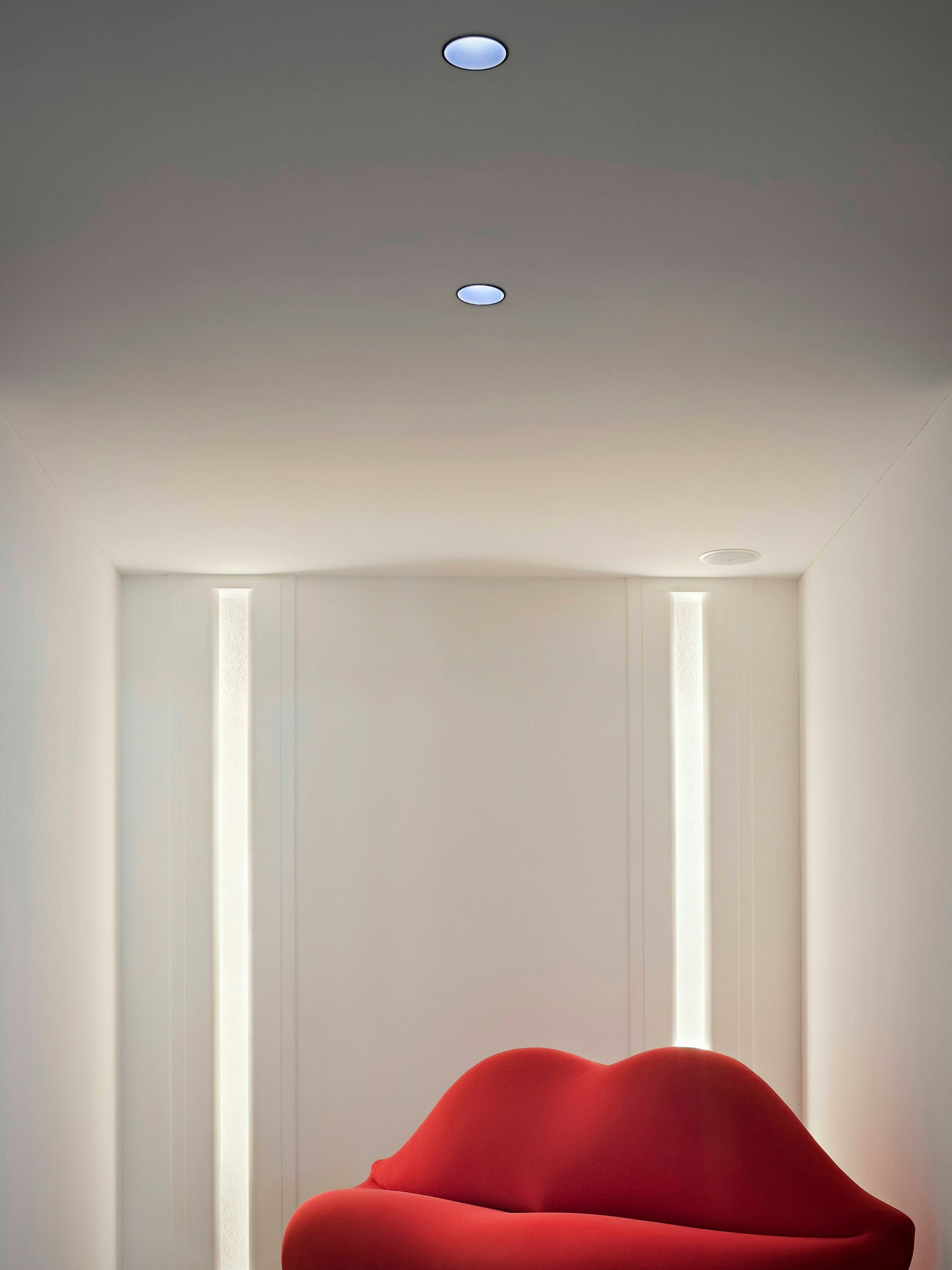

Product highlight

Functional minimalism

A collection of embedded elements for interior installations that include LED solutions and luminaires with traditional light sources.

Discover the Story


Luminaire

(282)

Shape

Orientation

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

CRI>

IP Rating

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7717.GL	Easy Kap 80 Plus Fixed IP65 Optic Flood	13	1003	3000	90	45	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7717.B1	Easy Kap 80 Plus Fixed IP65 Optic Flood	13	1045	3000	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7717.74	Easy Kap 80 Plus Fixed IP65 Optic Flood	13	909	3000	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7716.GL	Easy Kap 80 Plus Fixed IP65 Optic Medium	13	903	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7716.B1	Easy Kap 80 Plus Fixed IP65 Optic Medium	13	921	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7716.74	Easy Kap 80 Plus Fixed IP65 Optic Medium	13	822	3000	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7715.GL	Easy Kap 80 Plus Fixed IP65 Optic Spot	13	1039	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7715.B1	Easy Kap 80 Plus Fixed IP65 Optic Spot	13	1079	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7715.74	Easy Kap 80 Plus Fixed IP65 Optic Spot	13	955	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7712.GL	Easy Kap 80 Plus Fixed IP65 Optic Flood	13	976	2700	90	45	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7712.B1	Easy Kap 80 Plus Fixed IP65 Optic Flood	13	1017	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7712.74	Easy Kap 80 Plus Fixed IP65 Optic Flood	13	885	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7711.GL	Easy Kap 80 Plus Fixed IP65 Optic Medium	13	879	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7711.B1	Easy Kap 80 Plus Fixed IP65 Optic Medium	13	896	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7711.74	Easy Kap 80 Plus Fixed IP65 Optic Medium	13	800	2700	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7710.GL	Easy Kap 80 Plus Fixed IP65 Optic Spot	13	1011	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7710.B1	Easy Kap 80 Plus Fixed IP65 Optic Spot	13	1050	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7710.74	Easy Kap 80 Plus Fixed IP65 Optic Spot	13	929	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed

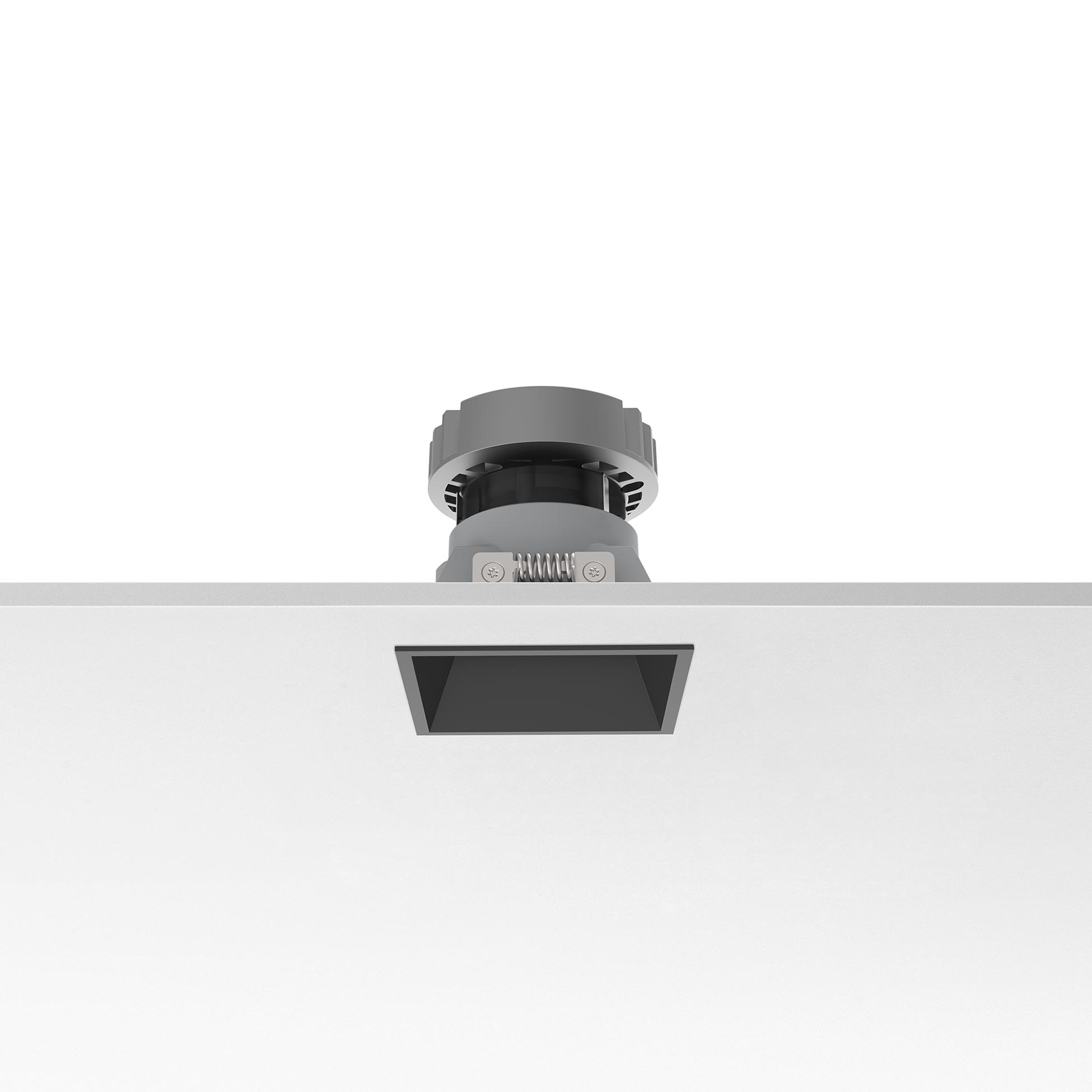

05.7707.GL	Easy Kap 80 Fixed IP65 Optic Flood	9.2	687	3000	90	45	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7707.B1	Easy Kap 80 Fixed IP65 Optic Flood	9.2	715	3000	90	50	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7707.74	Easy Kap 80 Fixed IP65 Optic Flood	9.2	623	3000	90	50	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7706.GL	Easy Kap 80 Fixed IP65 Optic Medium	9.2	618	3000	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7706.B1	Easy Kap 80 Fixed IP65 Optic Medium	9.2	630	3000	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7706.74	Easy Kap 80 Fixed IP65 Optic Medium	9.2	563	3000	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7705.GL	Easy Kap 80 Fixed IP65 Optic Spot	9.2	712	3000	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7705.B1	Easy Kap 80 Fixed IP65 Optic Spot	9.2	739	3000	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7705.74	Easy Kap 80 Fixed IP65 Optic Spot	9.2	654	3000	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7702.GL	Easy Kap 80 Fixed IP65 Optic Flood	9.2	660	2700	90	45	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7702.B1	Easy Kap 80 Fixed IP65 Optic Flood	9.2	688	2700	90	50	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7702.74	Easy Kap 80 Fixed IP65 Optic Flood	9.2	599	2700	90	50	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7701.GL	Easy Kap 80 Fixed IP65 Optic Medium	9.2	594	2700	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7701.B1	Easy Kap 80 Fixed IP65 Optic Medium	9.2	606	2700	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7701.74	Easy Kap 80 Fixed IP65 Optic Medium	9.2	541	2700	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7700.GL	Easy Kap 80 Fixed IP65 Optic Spot	9.2	684	2700	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7700.B1	Easy Kap 80 Fixed IP65 Optic Spot	9.2	710	2700	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed
05.7700.74	Easy Kap 80 Fixed IP65 Optic Spot	9.2	628	2700	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V	Ceiling recessed

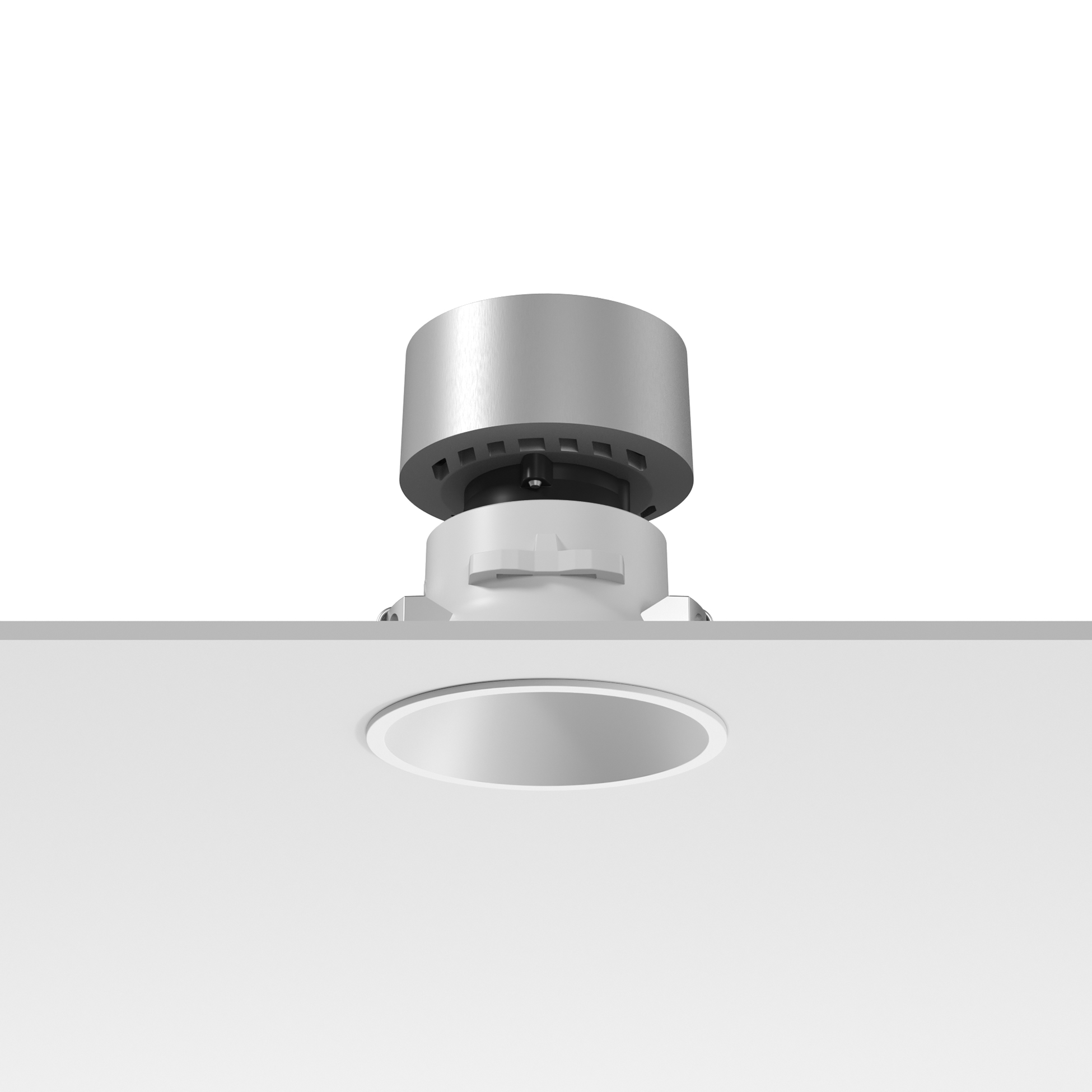

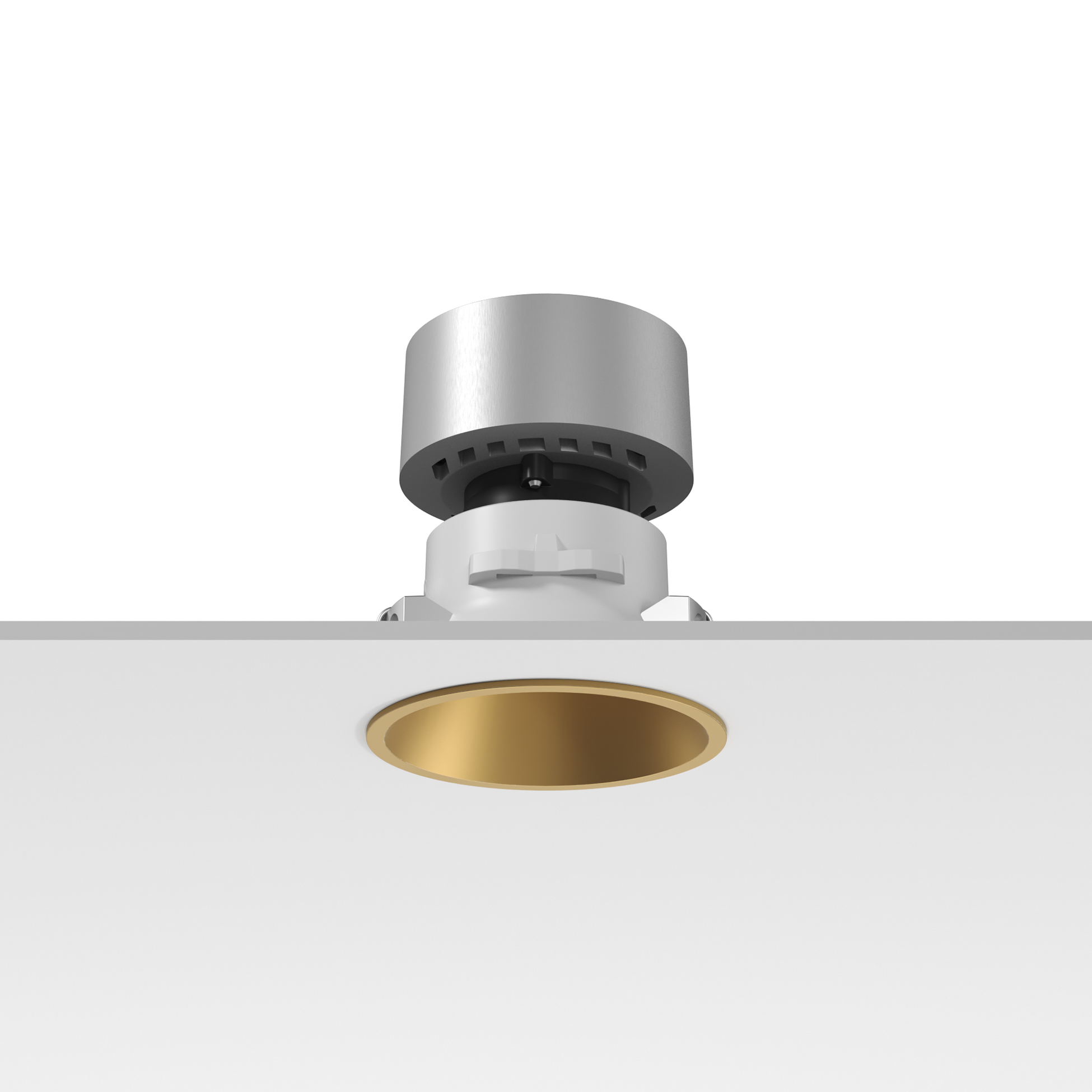

05.7447.GL	Easy Kap Ø 80 Plus Fixed Optic Flood	13	976	2700	90	45	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7447.B1	Easy Kap Ø 80 Plus Fixed Optic Flood	13	1017	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7447.74	Easy Kap Ø 80 Plus Fixed Optic Flood	13	885	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7446.GL	Easy Kap Ø 80 Plus Fixed Optic Flood	13	1003	3000	90	45	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7446.B1	Easy Kap Ø 80 Plus Fixed Optic Flood	13	1045	3000	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7446.74	Easy Kap Ø 80 Plus Fixed Optic Flood	13	909	3000	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed

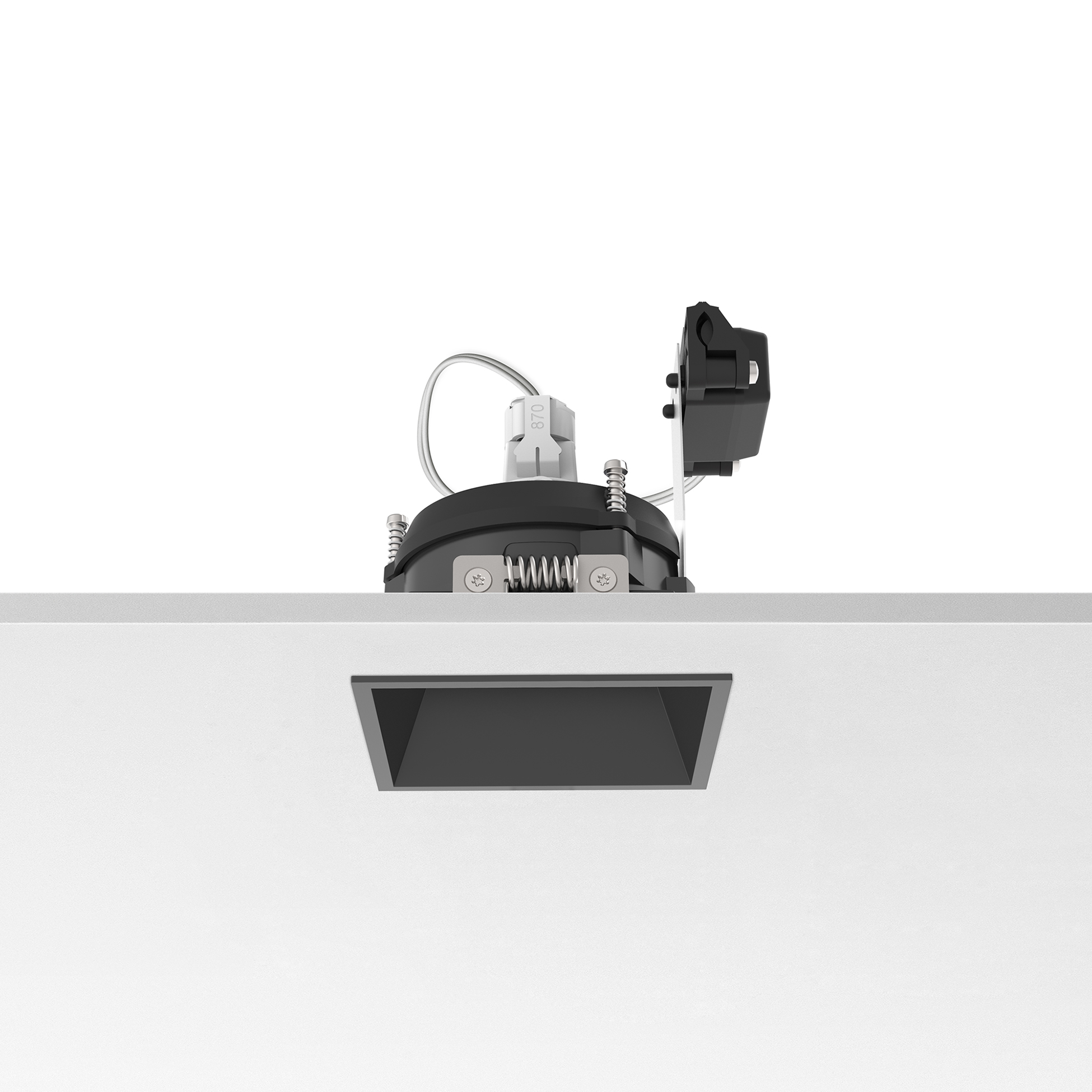

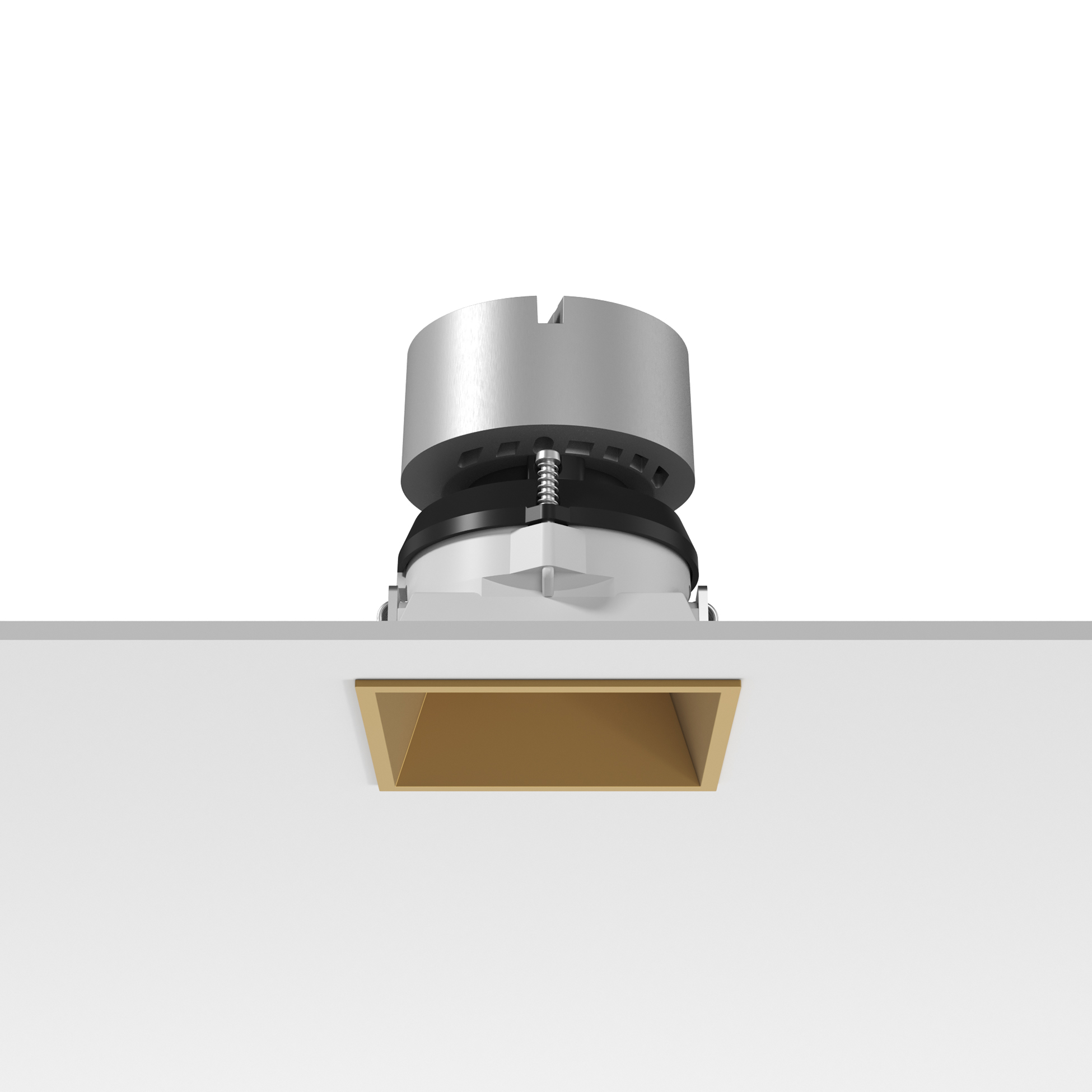

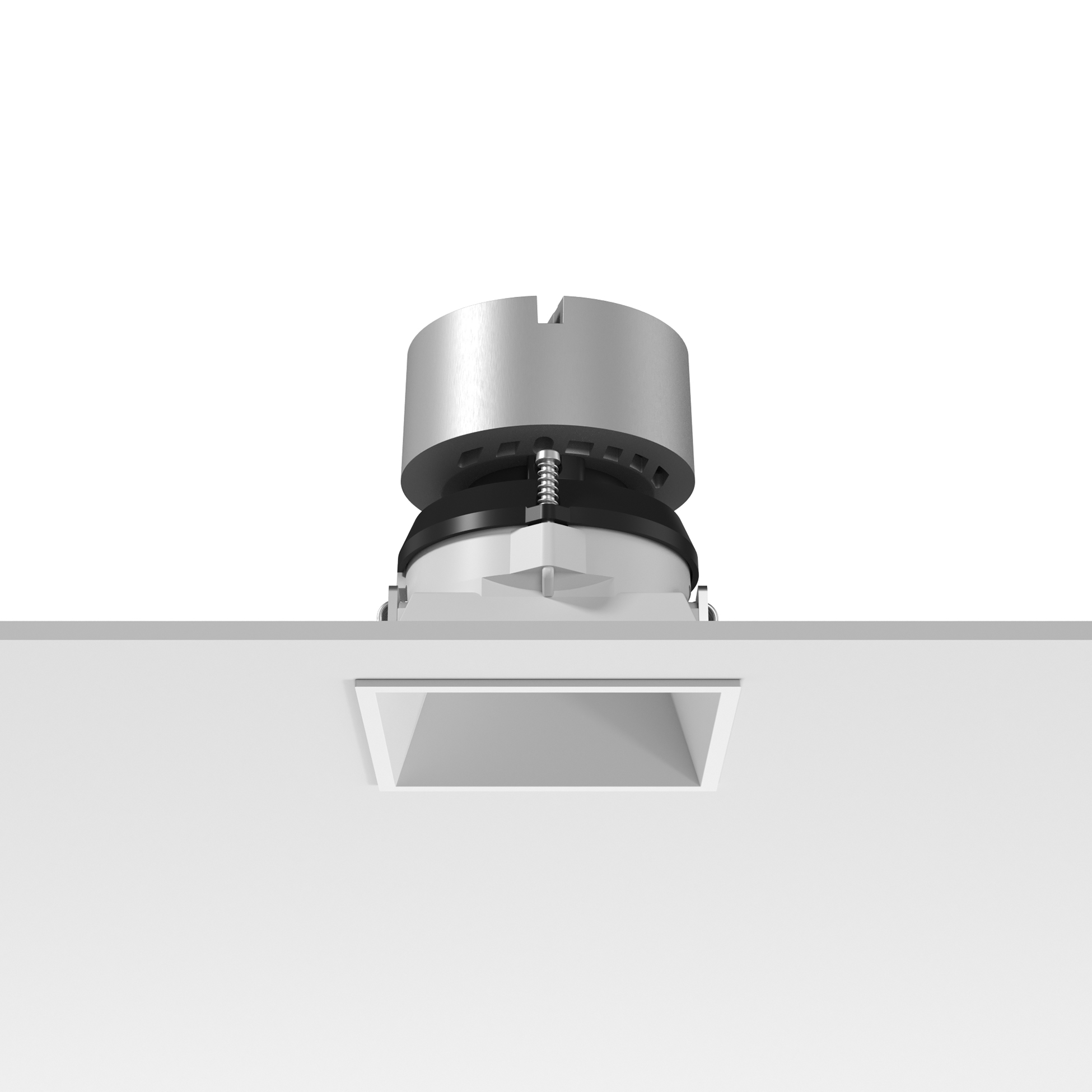

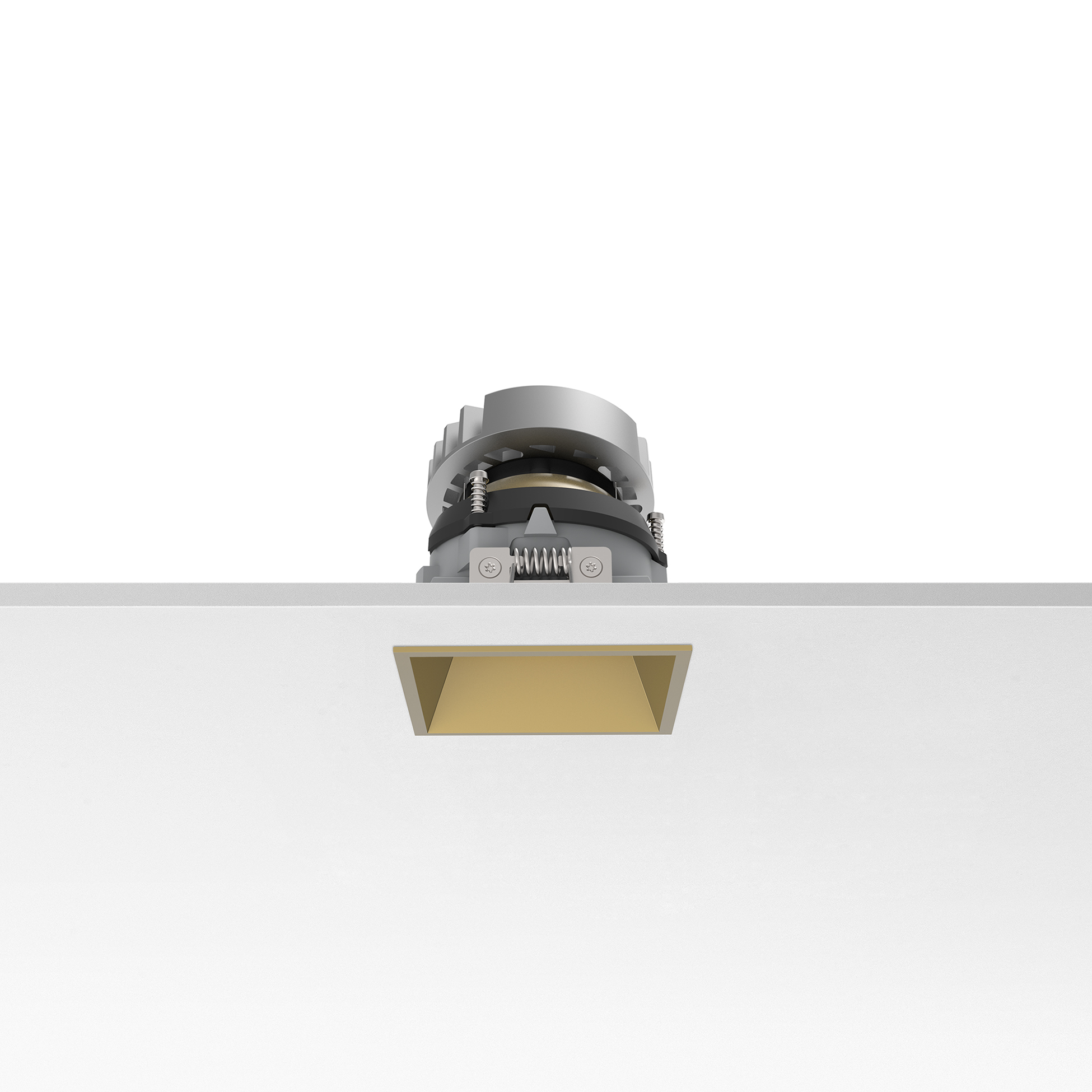

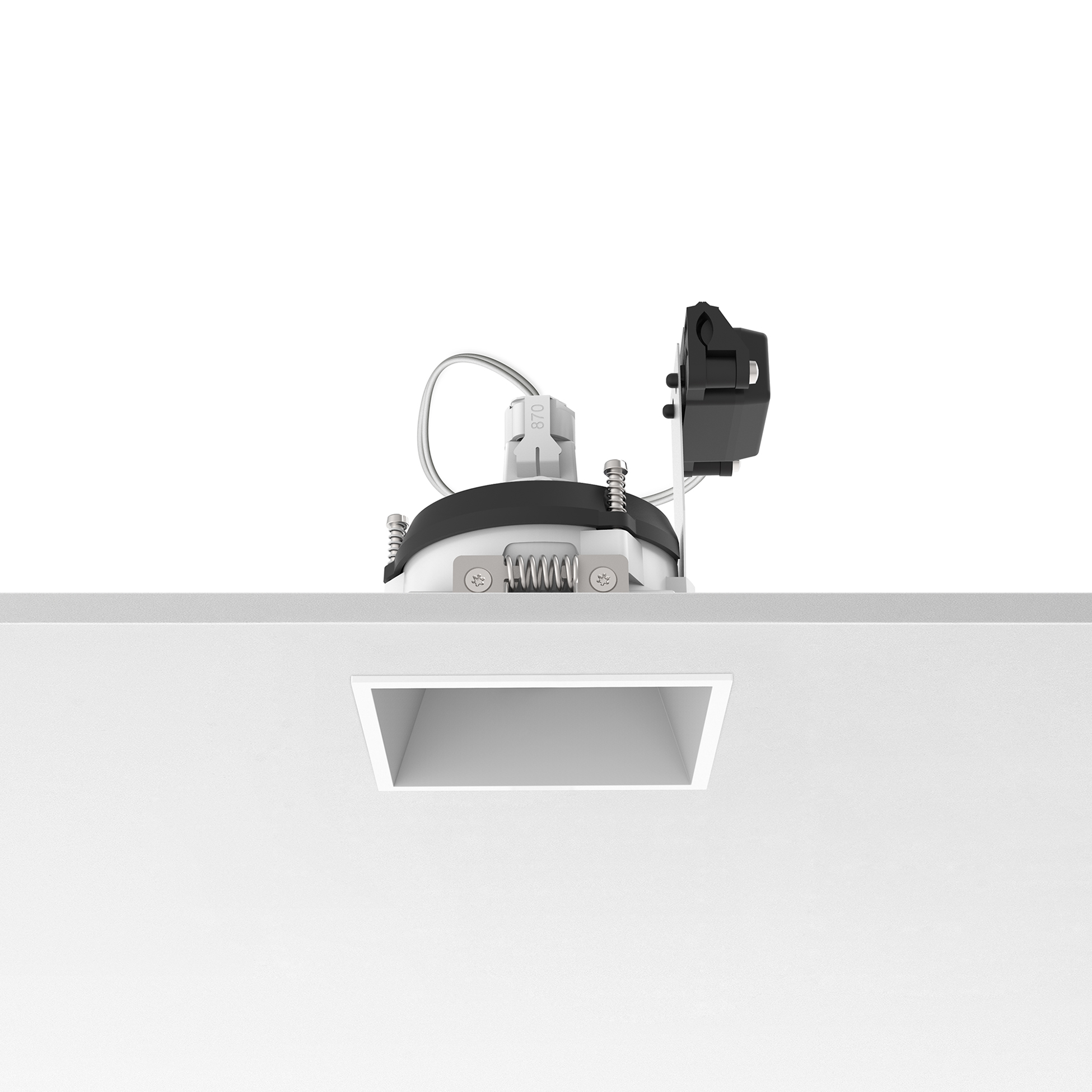

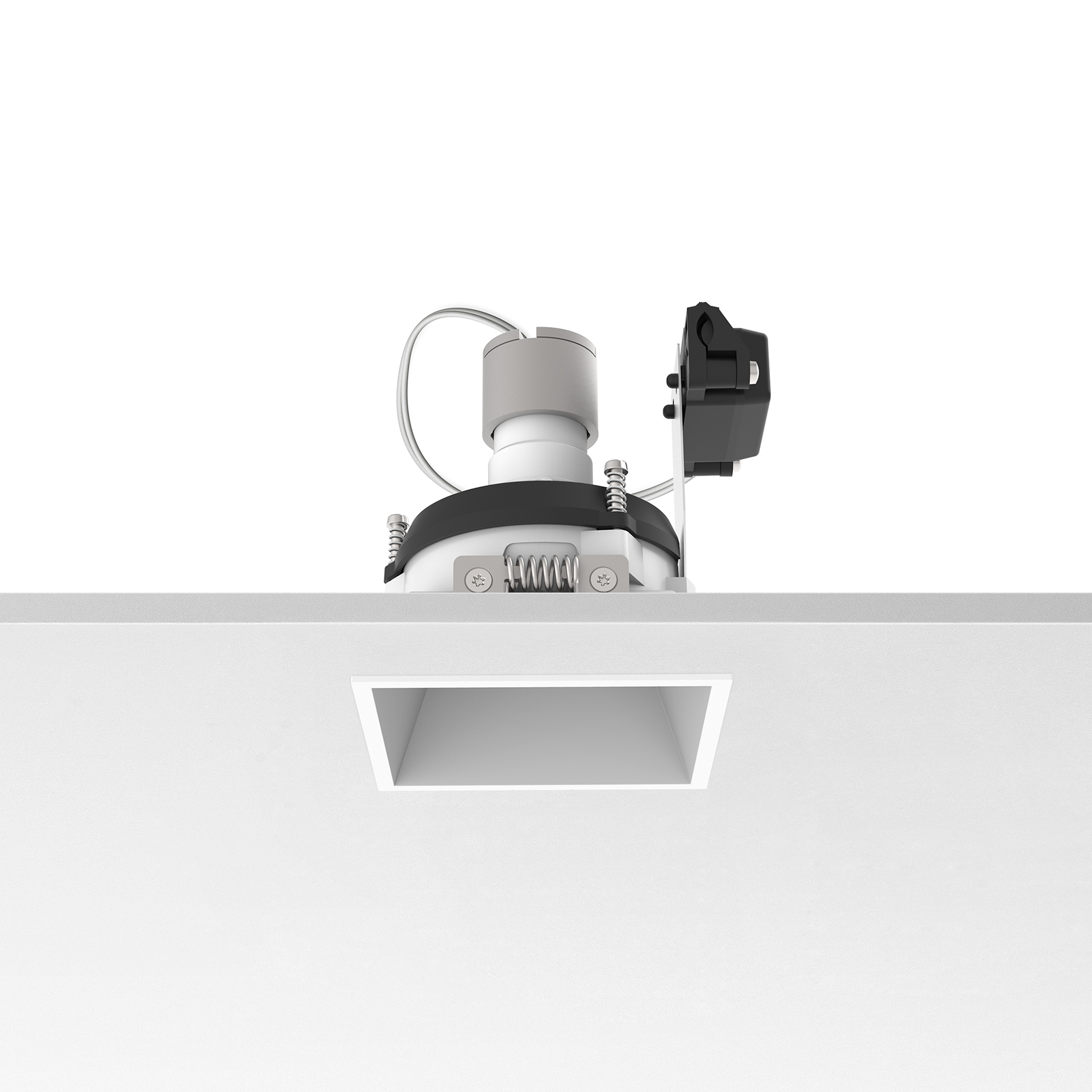

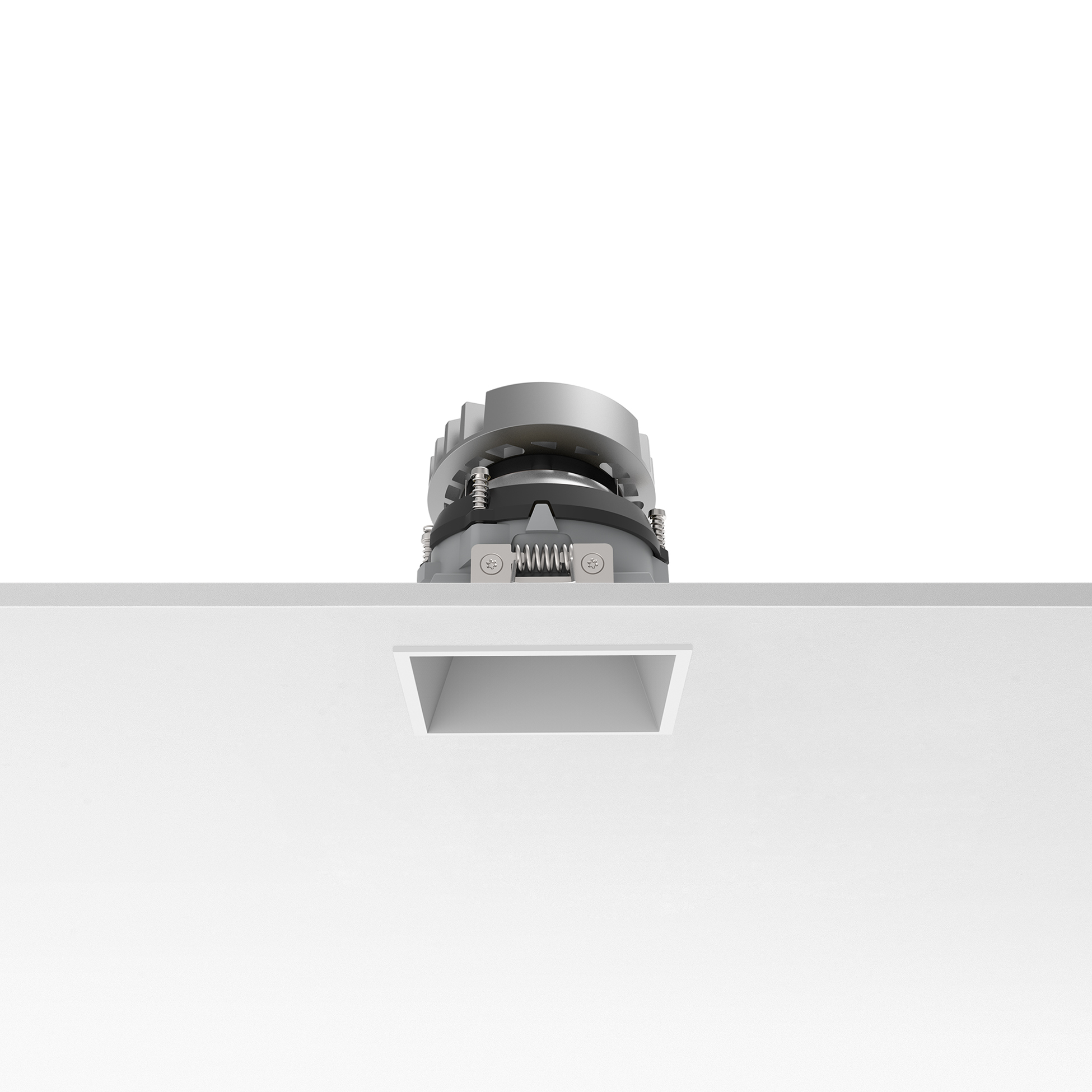

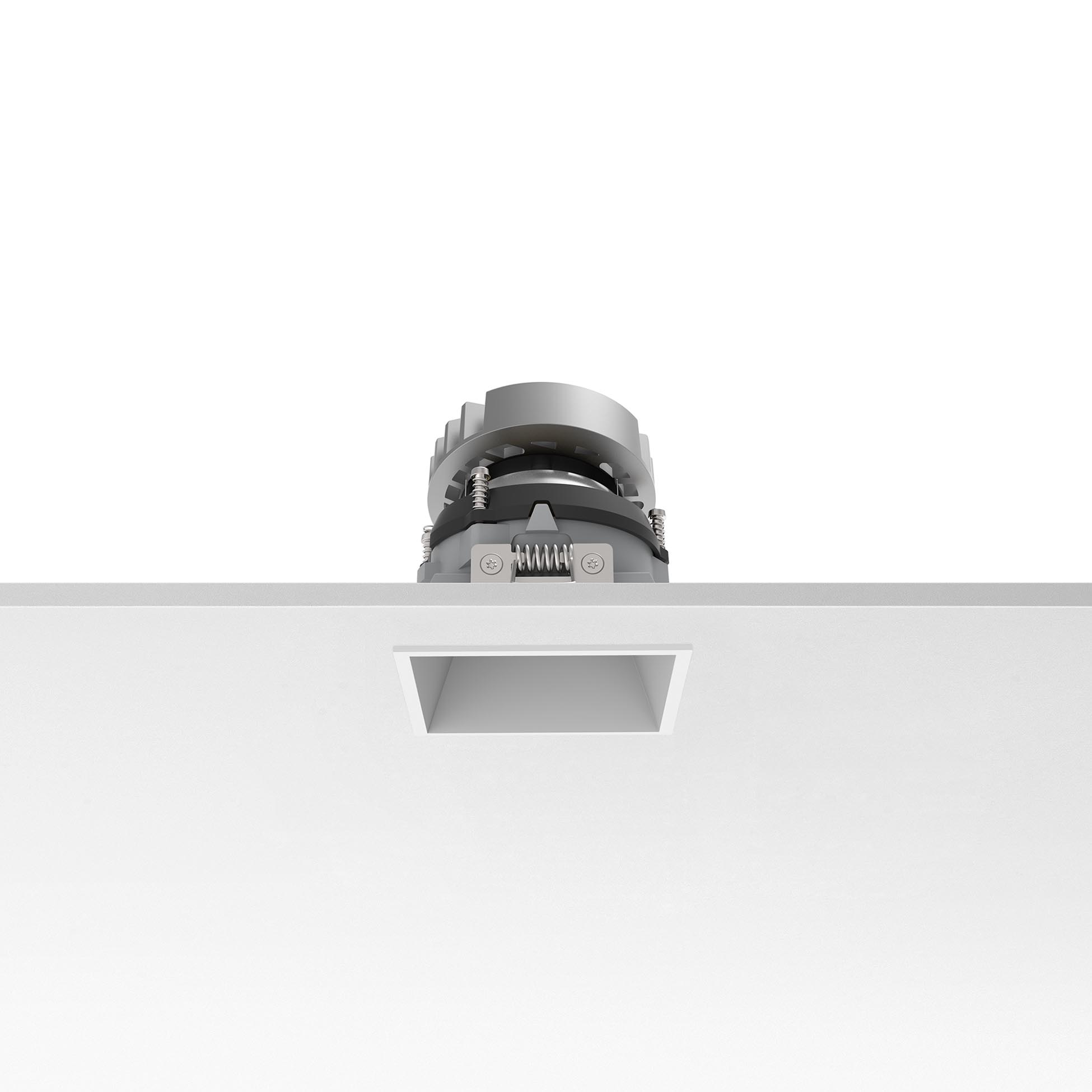

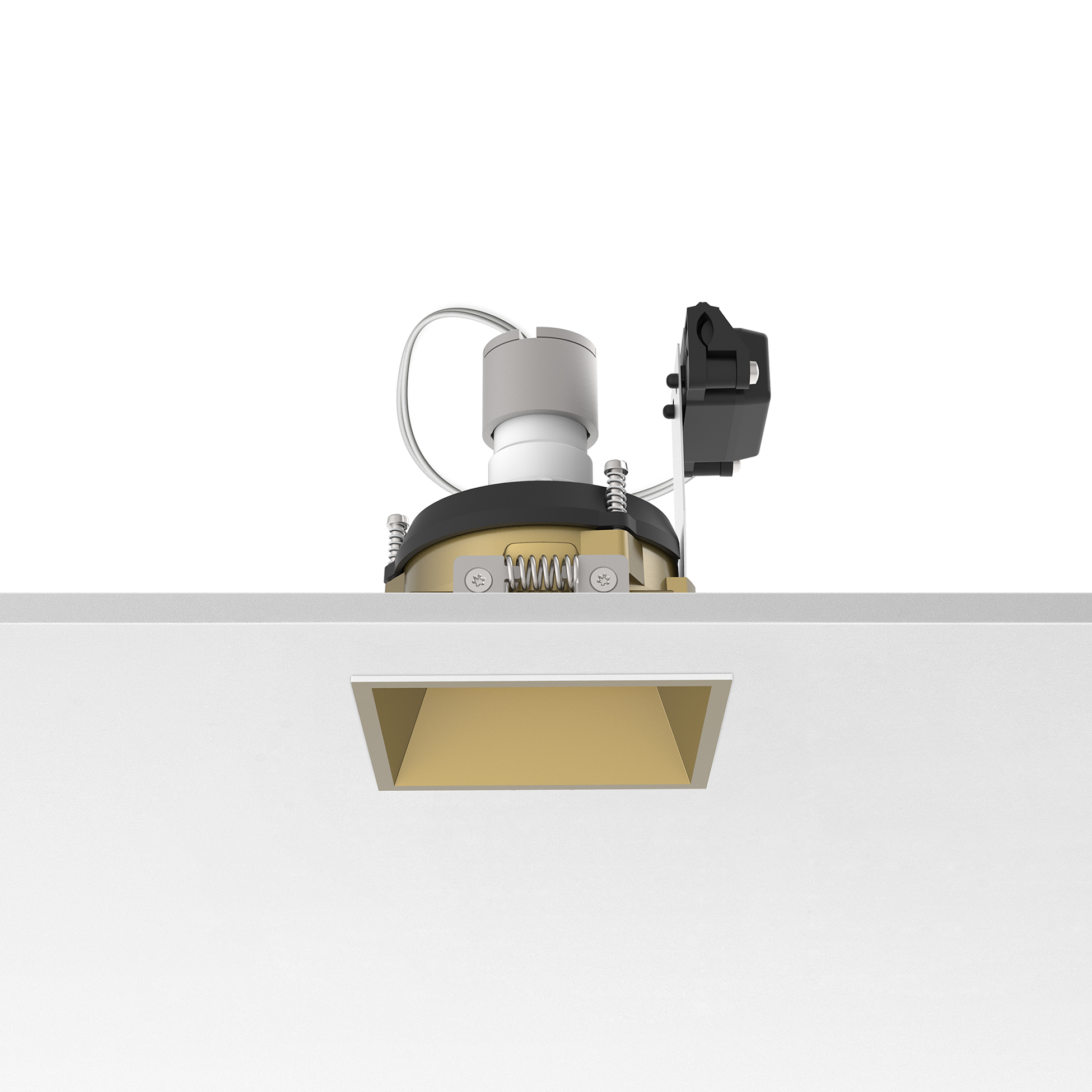

05.7445.GL	Easy Kap 80 Plus Square Adjustable Optic Flood	13	1032	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7445.B1	Easy Kap 80 Plus Square Adjustable Optic Flood	13	1068	2700	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7445.74	Easy Kap 80 Plus Square Adjustable Optic Flood	13	950	2700	90	55	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7444.GL	Easy Kap 80 Plus Square Adjustable Optic Flood	13	1060	3000	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7444.B1	Easy Kap 80 Plus Square Adjustable Optic Flood	13	1097	3000	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7444.74	Easy Kap 80 Plus Square Adjustable Optic Flood	13	976	3000	90	55	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7443.GL	Easy Kap 80 Plus Square Adjustable Optic Spot	13	1067	2700	90	17	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7443.B1	Easy Kap 80 Plus Square Adjustable Optic Spot	13	1092	2700	90	18	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7443.74	Easy Kap 80 Plus Square Adjustable Optic Spot	13	997	2700	90	18	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7442.GL	Easy Kap 80 Plus Square Adjustable Optic Spot	13	937	3000	90	17	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7442.B1	Easy Kap 80 Plus Square Adjustable Optic Spot	13	1122	3000	90	18	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7442.74	Easy Kap 80 Plus Square Adjustable Optic Spot	13	1025	3000	90	18	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7441.GL	Easy Kap Ø 80 Plus Fixed Optic Spot	13	1011	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7441.B1	Easy Kap Ø 80 Plus Fixed Optic Spot	13	1050	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7441.74	Easy Kap Ø 80 Plus Fixed Optic Spot	13	929	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7440.GL	Easy Kap Ø 80 Plus Fixed Optic Spot	13	1039	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7440.B1	Easy Kap Ø 80 Plus Fixed Optic Spot	13	1079	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7440.74	Easy Kap Ø 80 Plus Fixed Optic Spot	13	955	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7439.GL	Easy Kap 80 Plus Square Adjustable Optic Medium	13	901	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7439.B1	Easy Kap 80 Plus Square Adjustable Optic Medium	13	932	2700	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7439.74	Easy Kap 80 Plus Square Adjustable Optic Medium	13	845	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7438.GL	Easy Kap 80 Plus Square Adjustable Optic Medium	13	926	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7438.B1	Easy Kap 80 Plus Square Adjustable Optic Medium	13	958	3000	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7438.74	Easy Kap 80 Plus Square Adjustable Optic Medium	13	868	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed

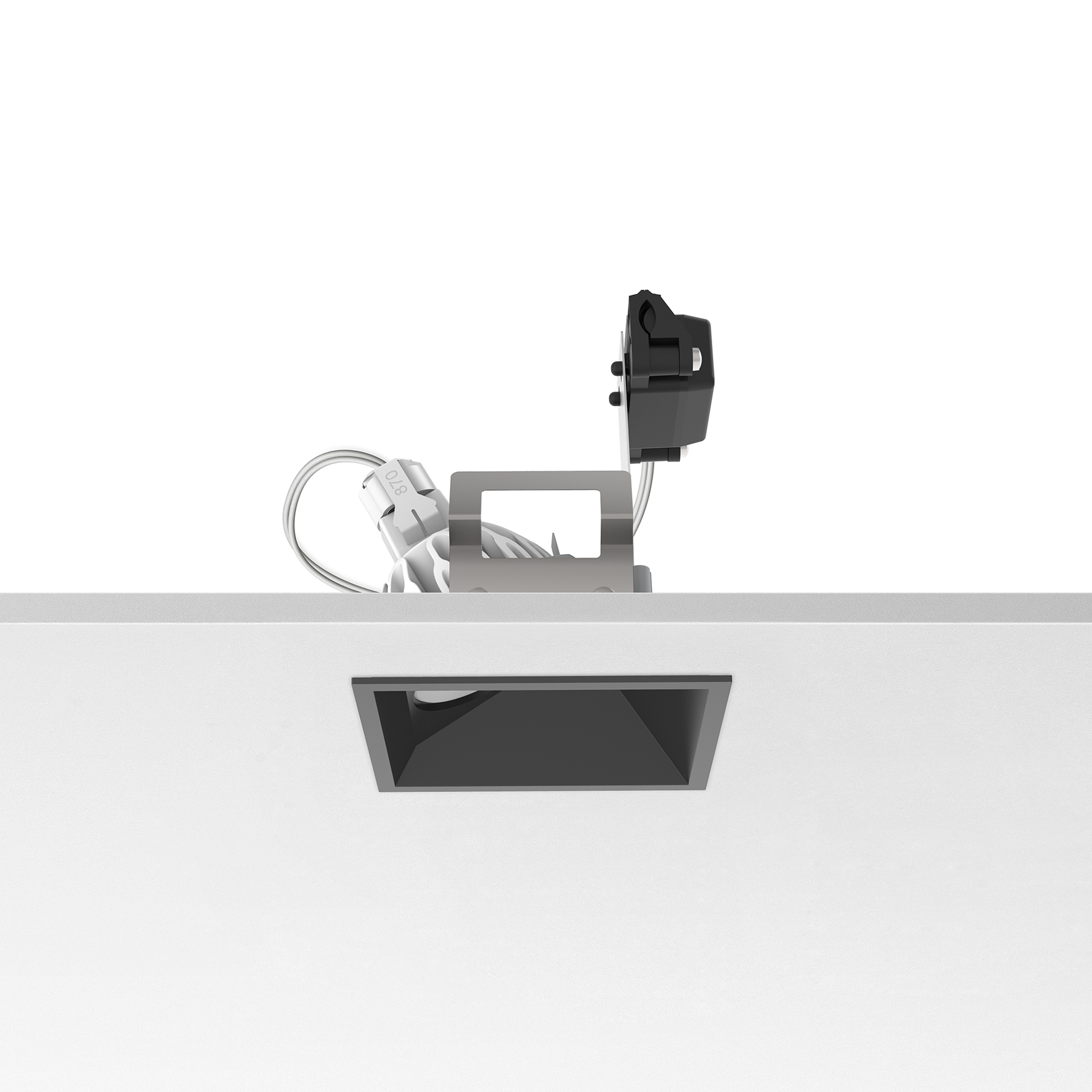

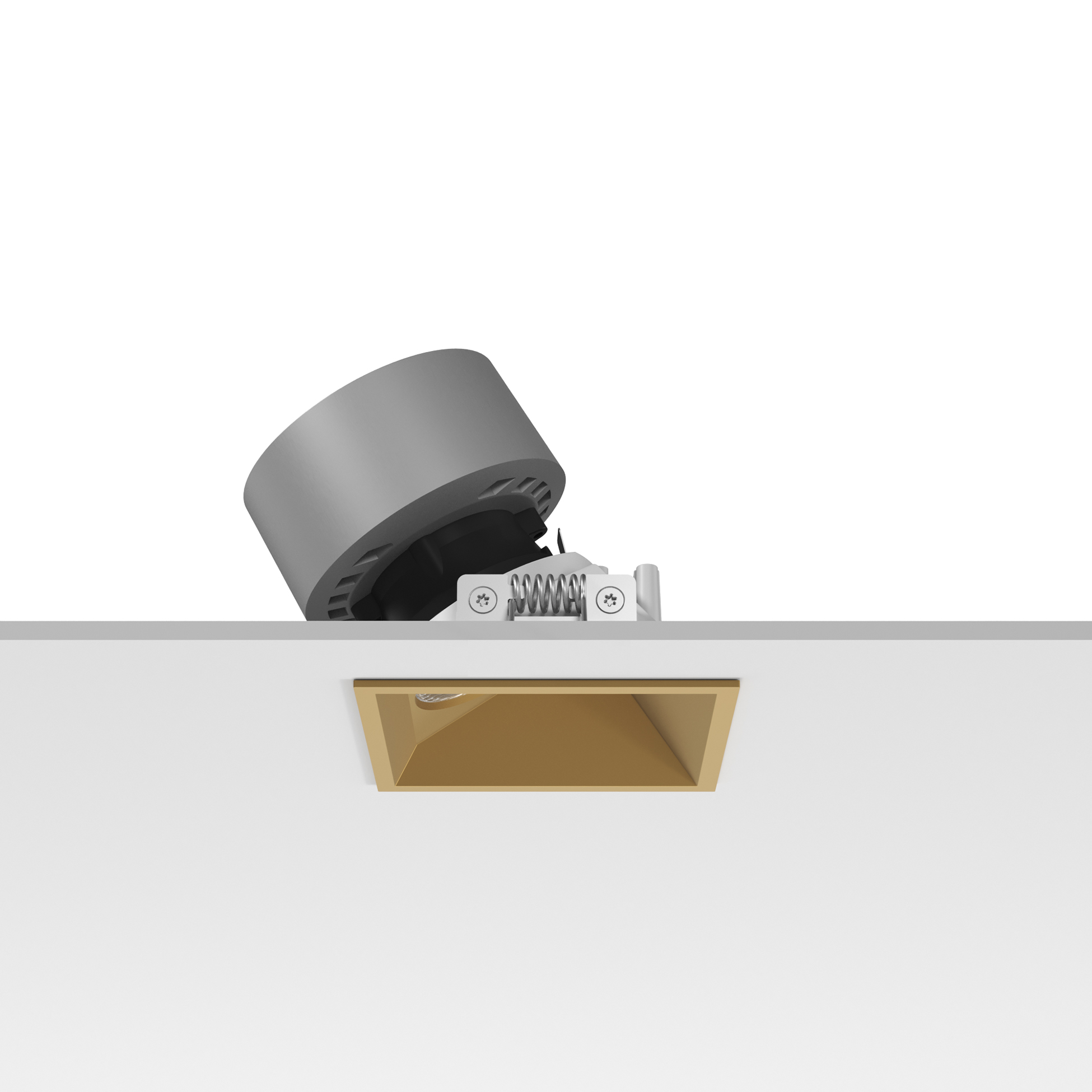

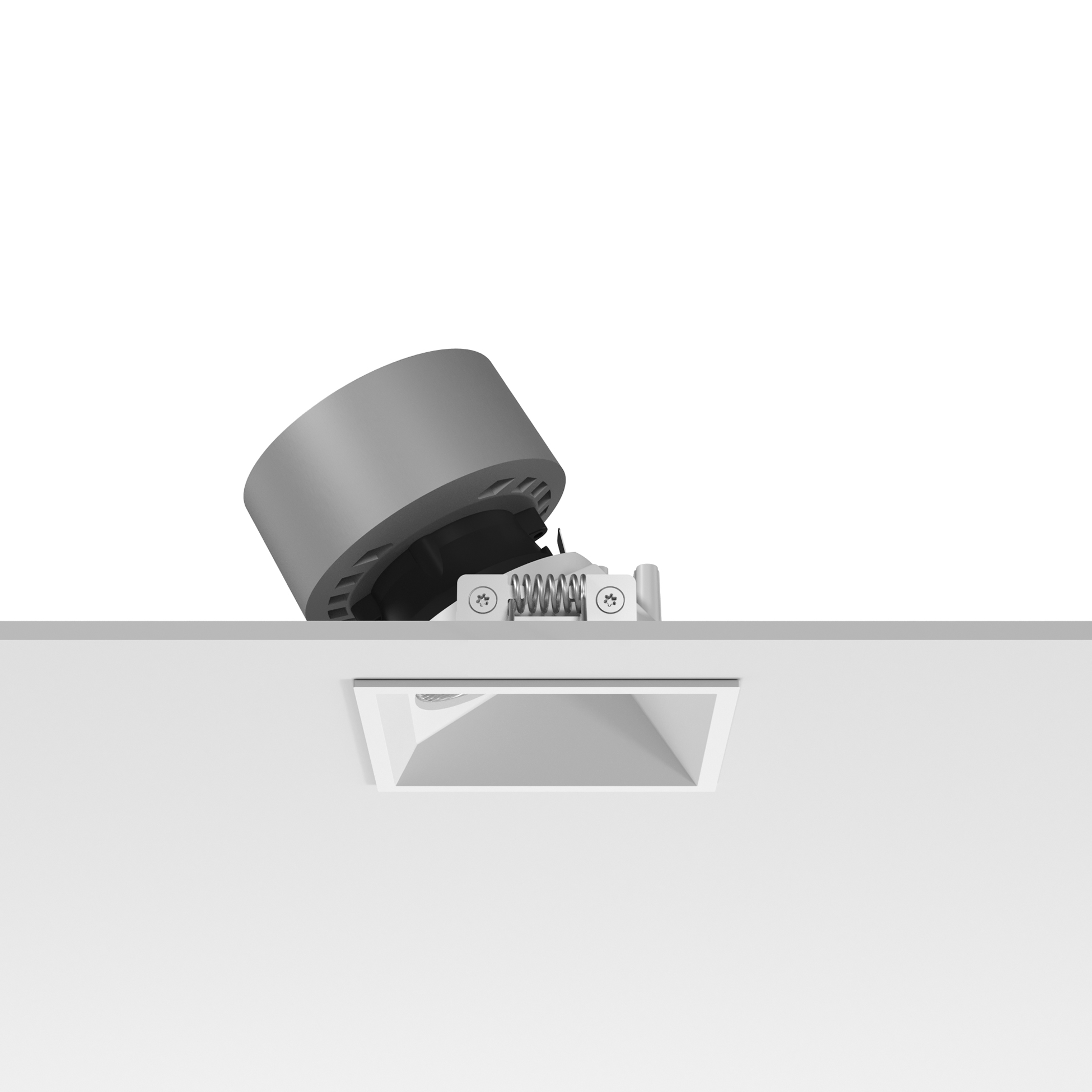

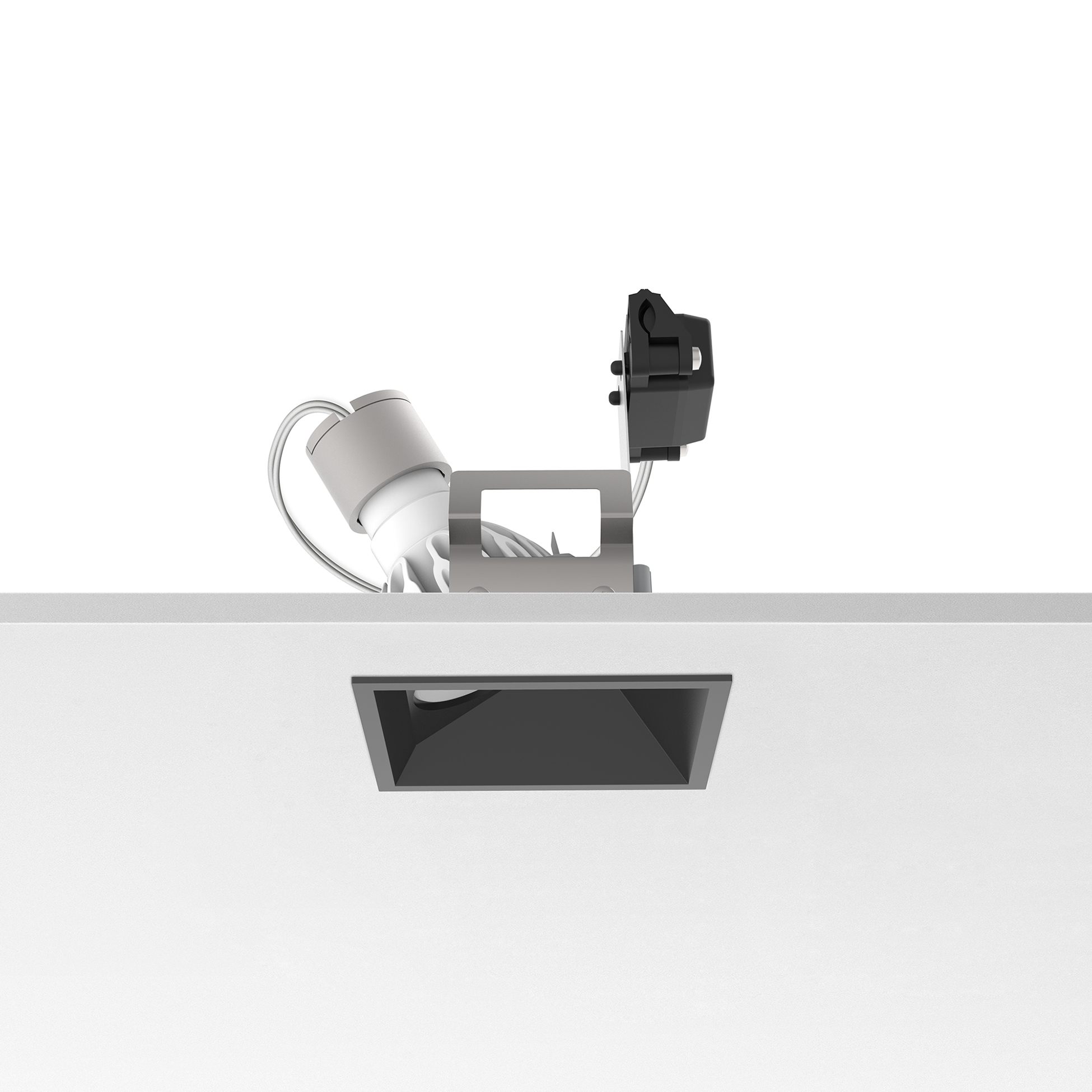

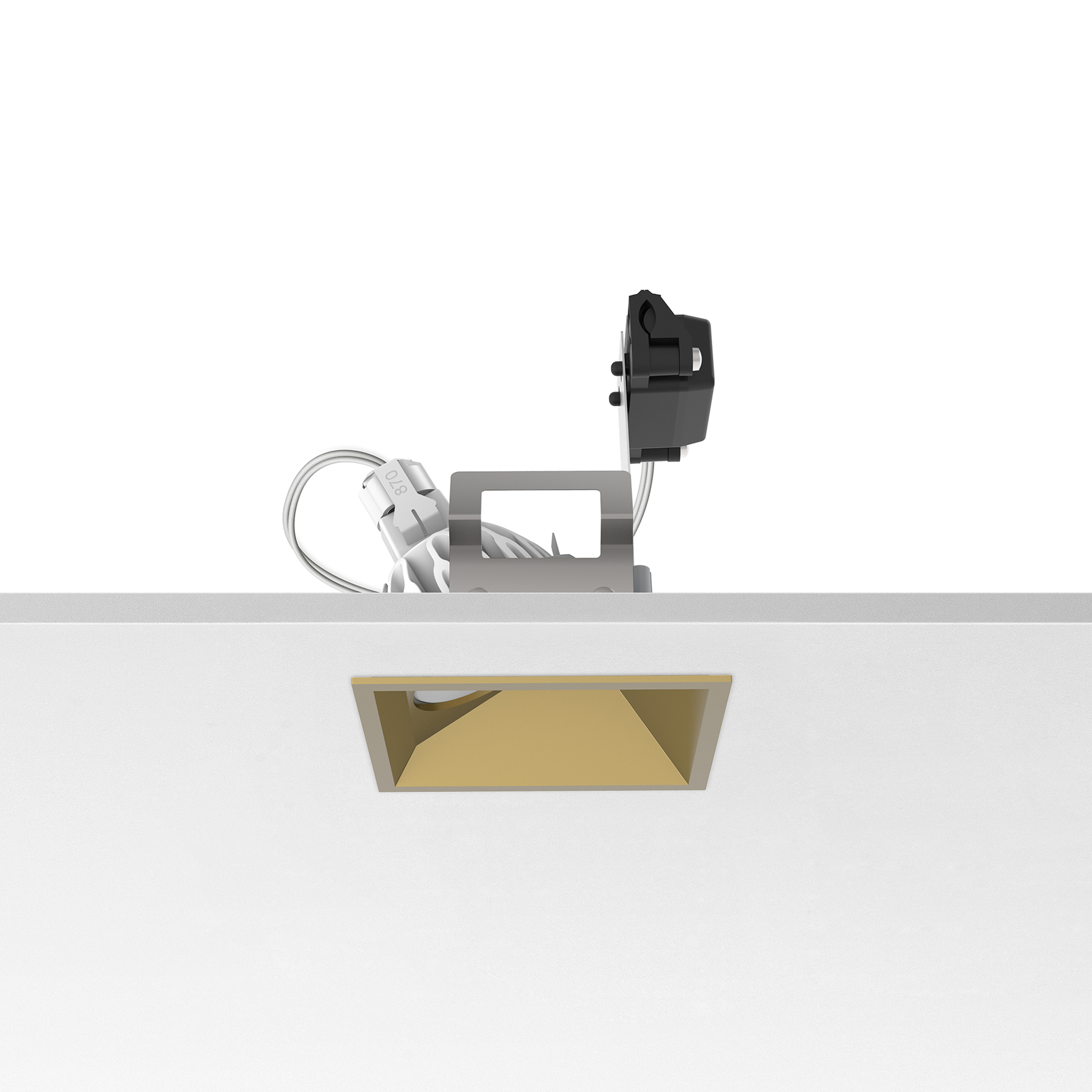

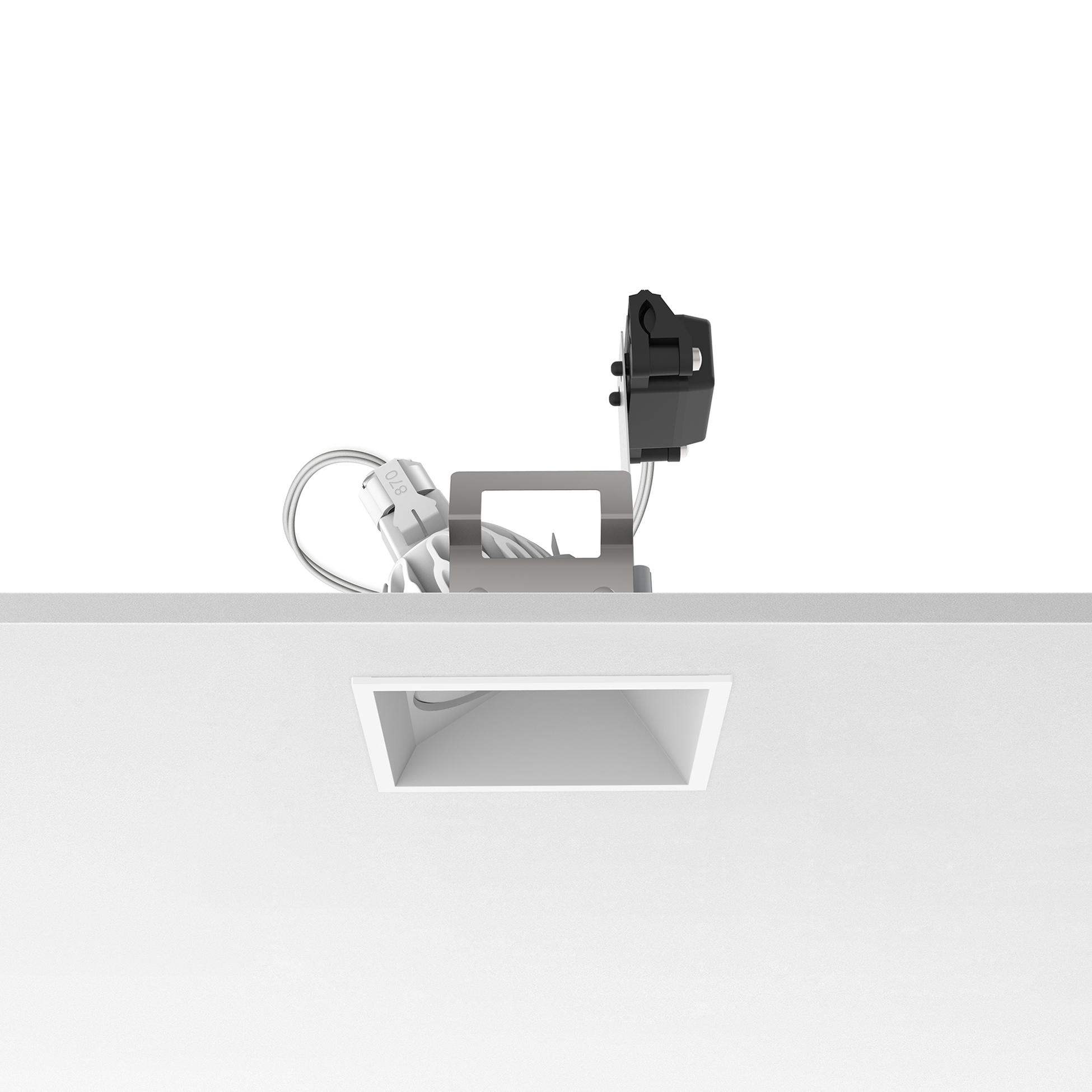

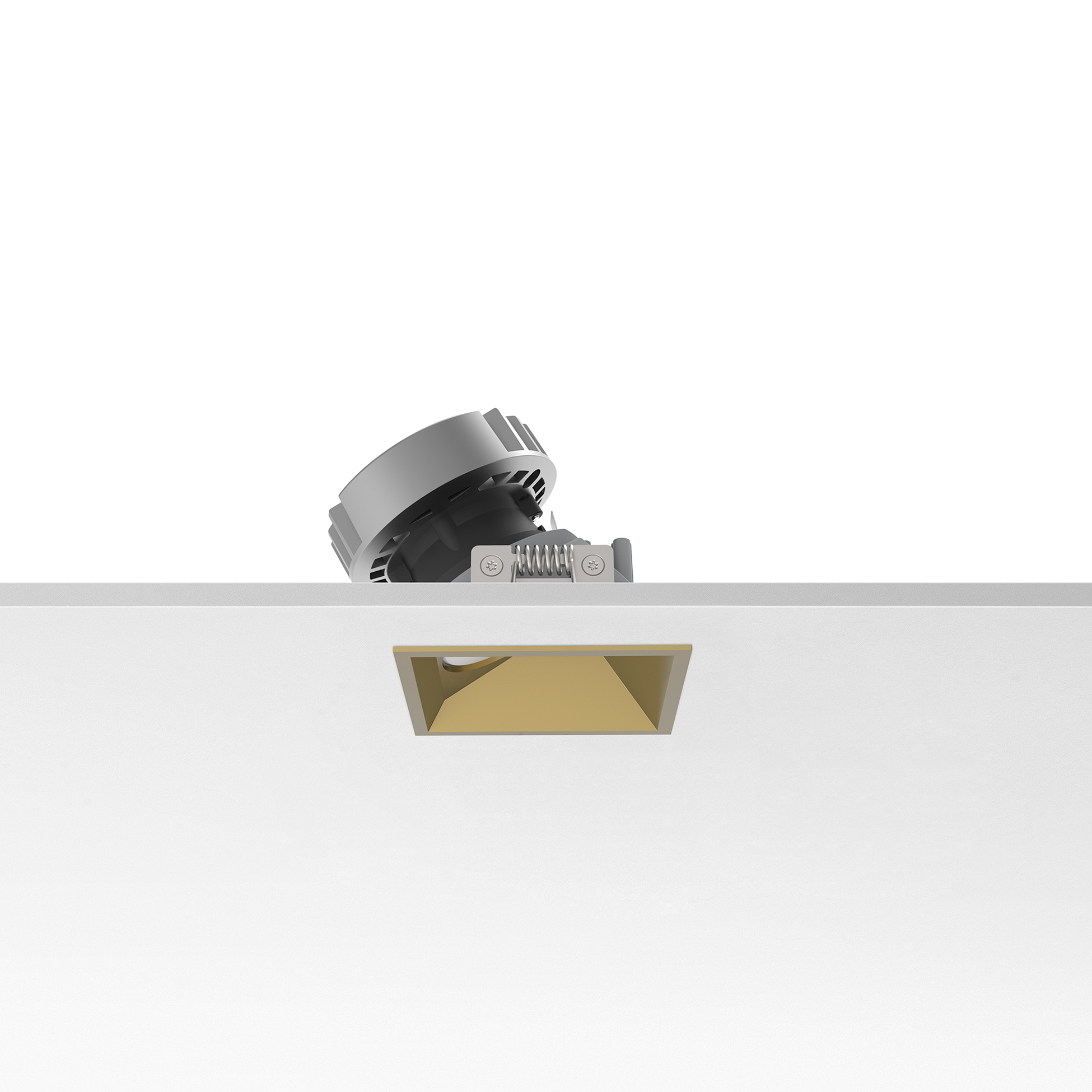

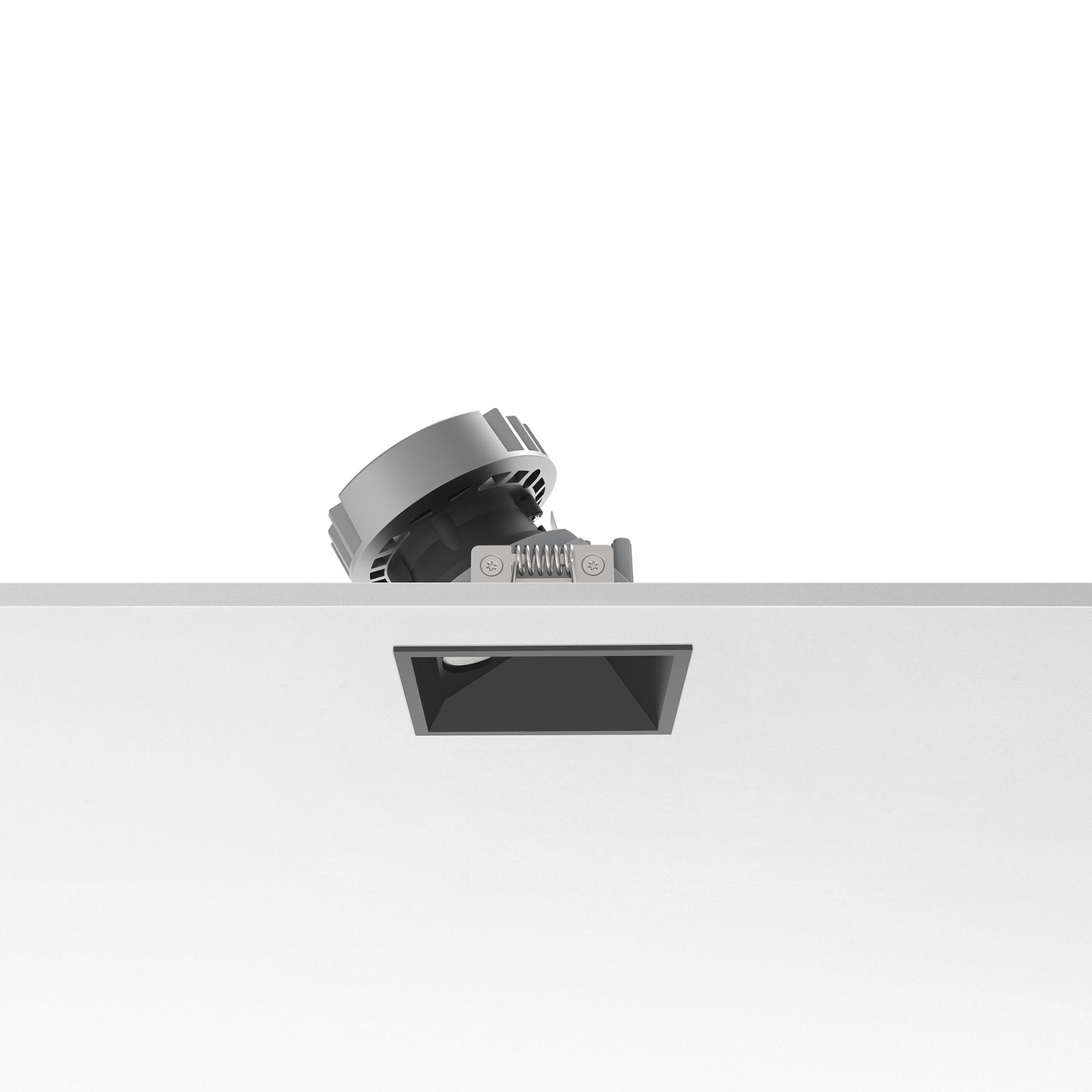

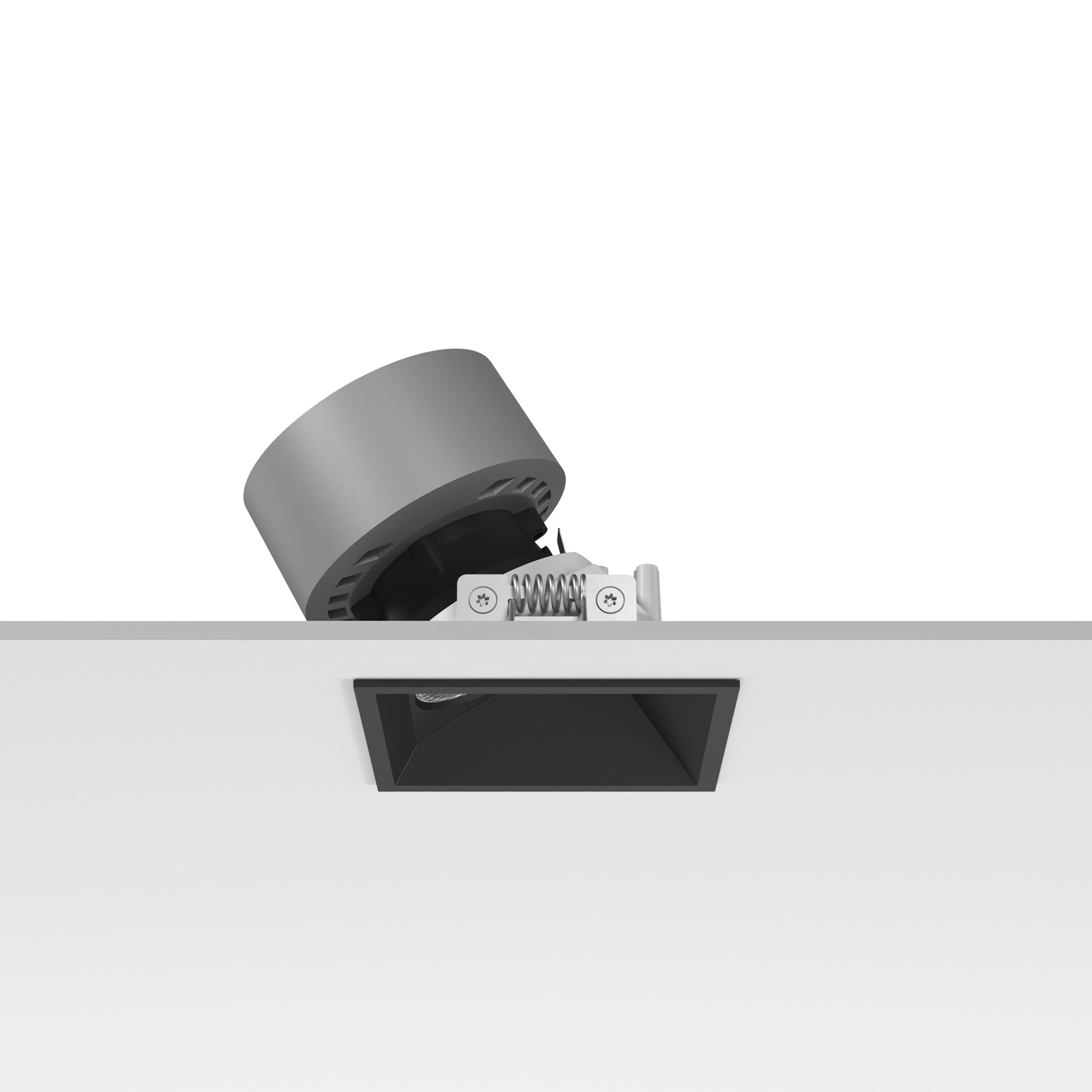

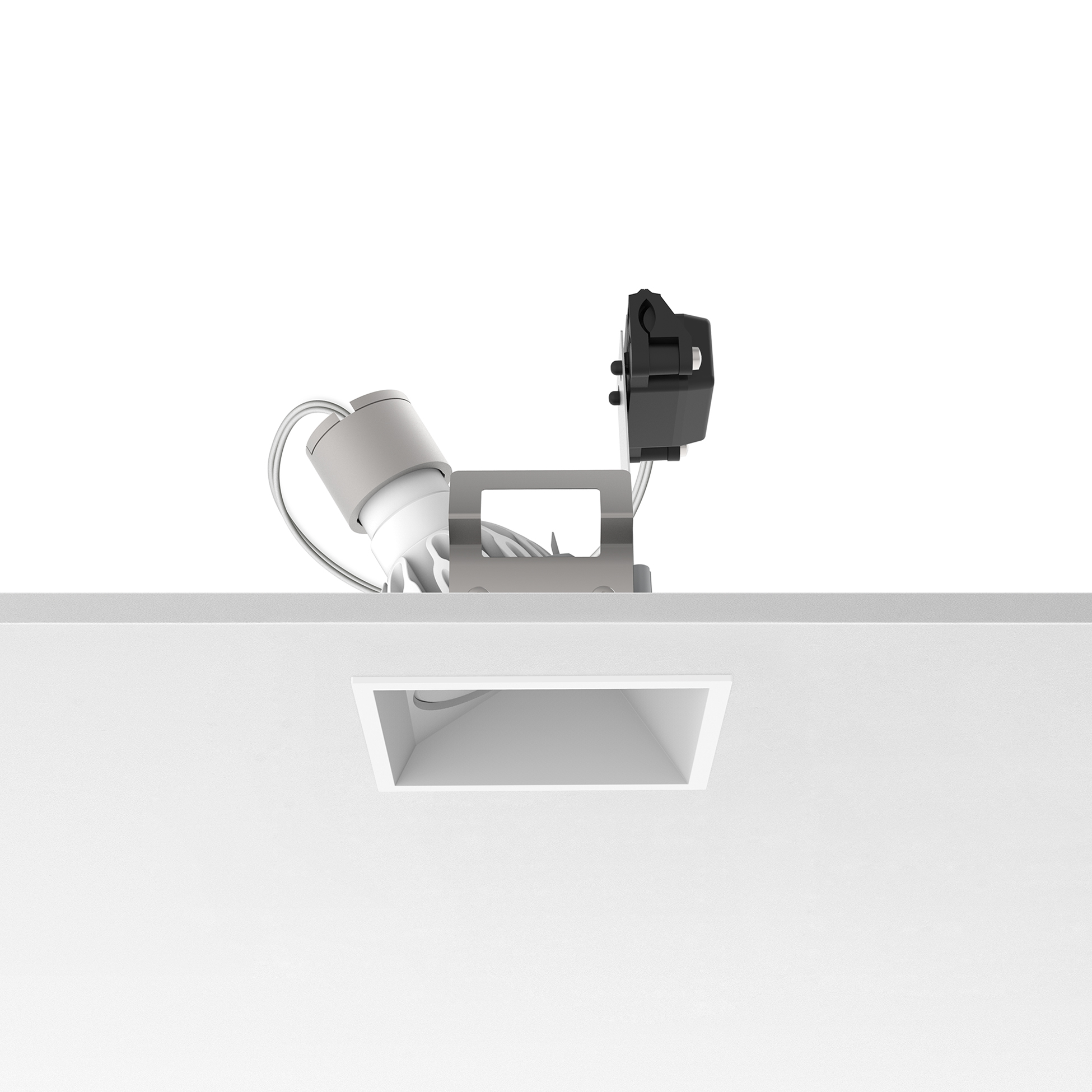

05.7437.GL	Easy Kap 80 Plus Square Wall-Washer	13	1051	2700	90	28	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7437.B1	Easy Kap 80 Plus Square Wall-Washer	13	924	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7437.74	Easy Kap 80 Plus Square Wall-Washer	13	844	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7436.GL	Easy Kap 80 Plus Square Wall-Washer	13	1080	3000	90	28	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7436.B1	Easy Kap 80 Plus Square Wall-Washer	13	950	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7436.74	Easy Kap 80 Plus Square Wall-Washer	13	867	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed

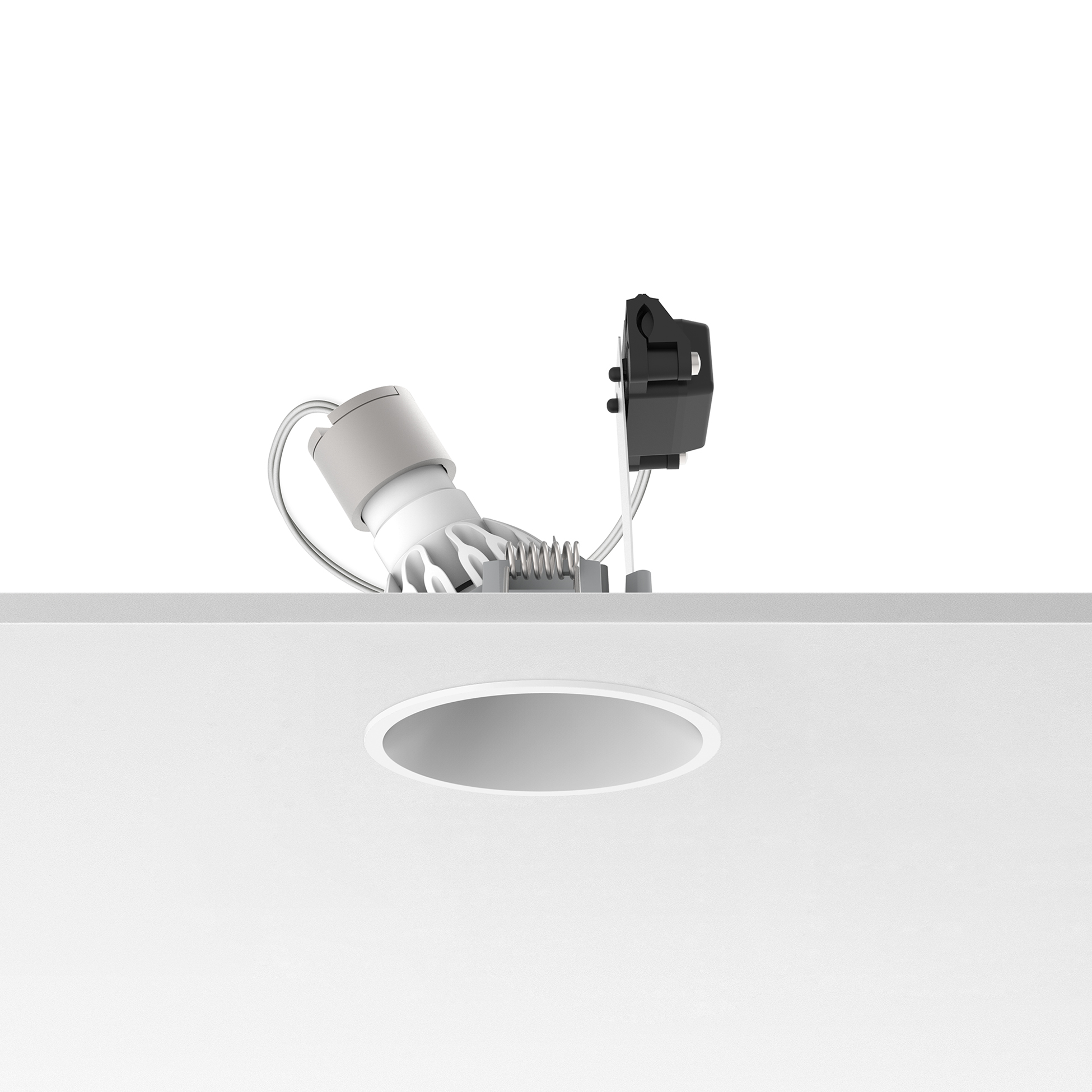

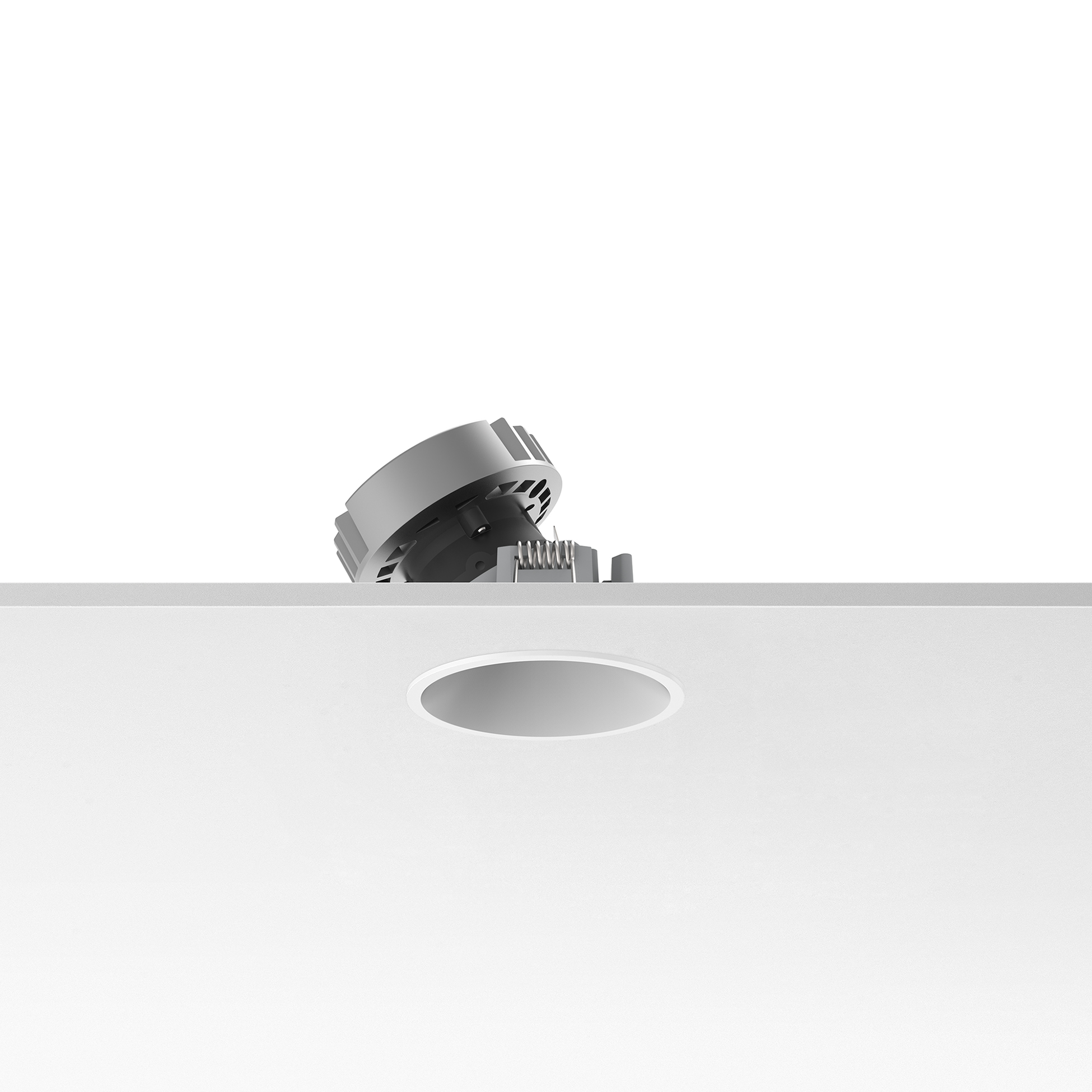

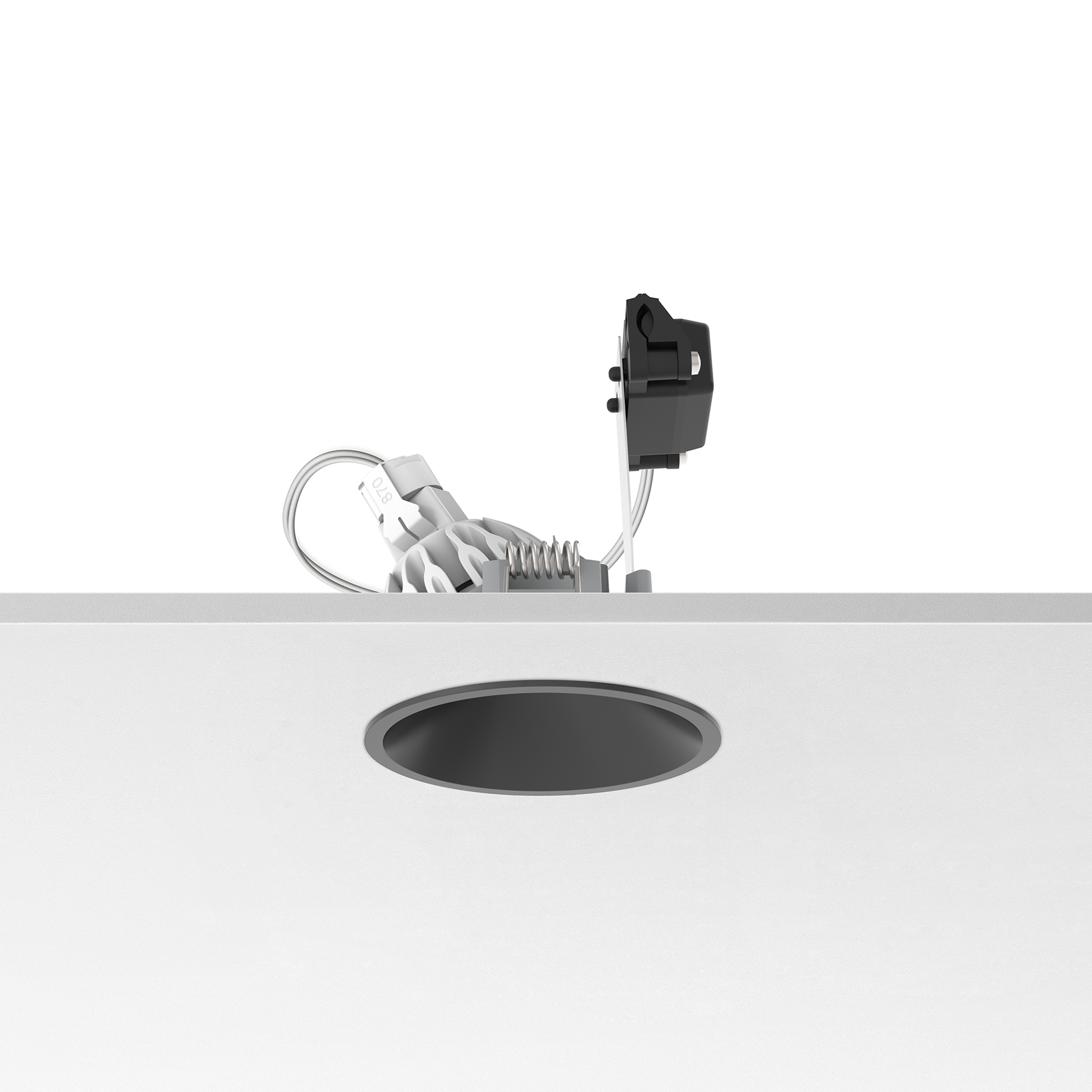

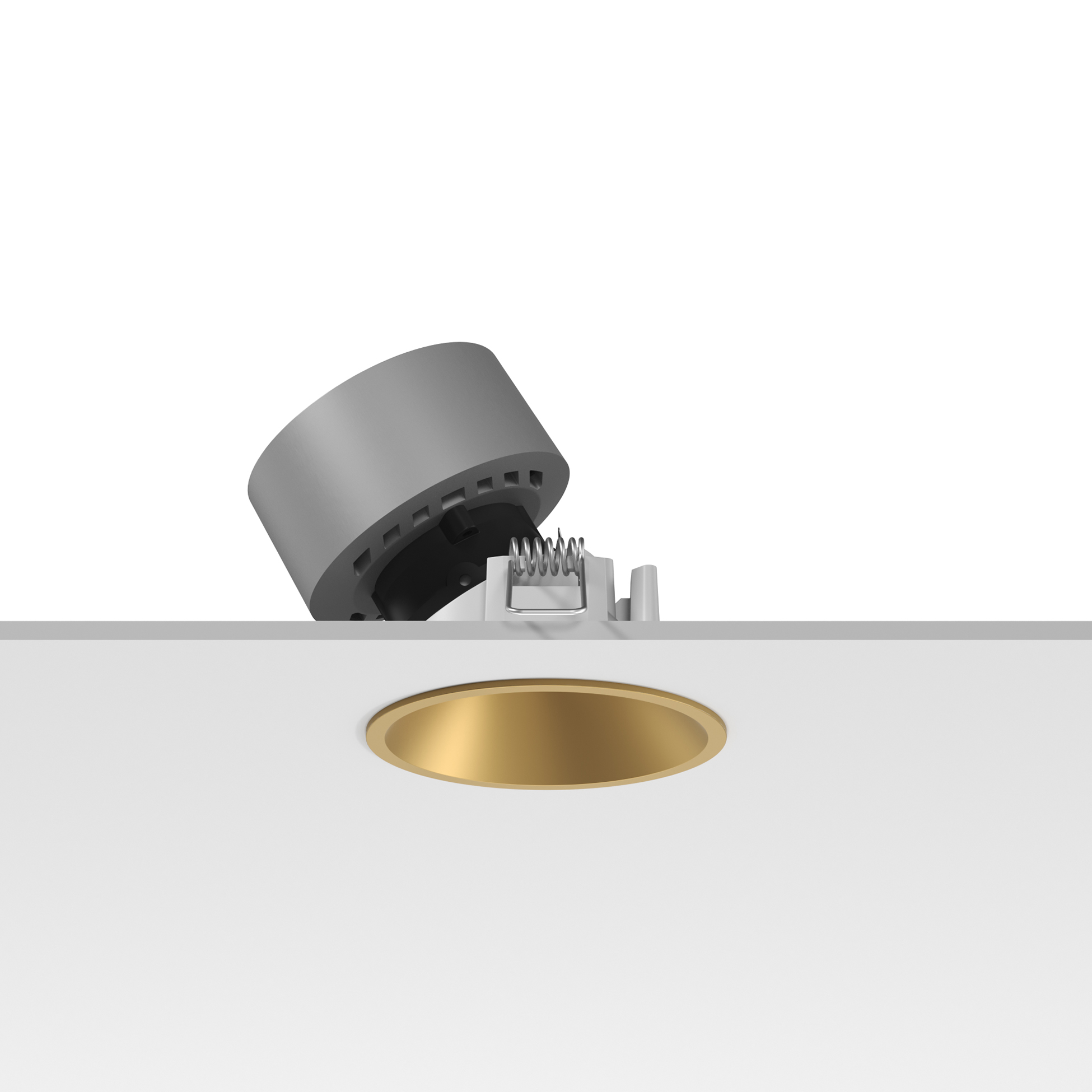

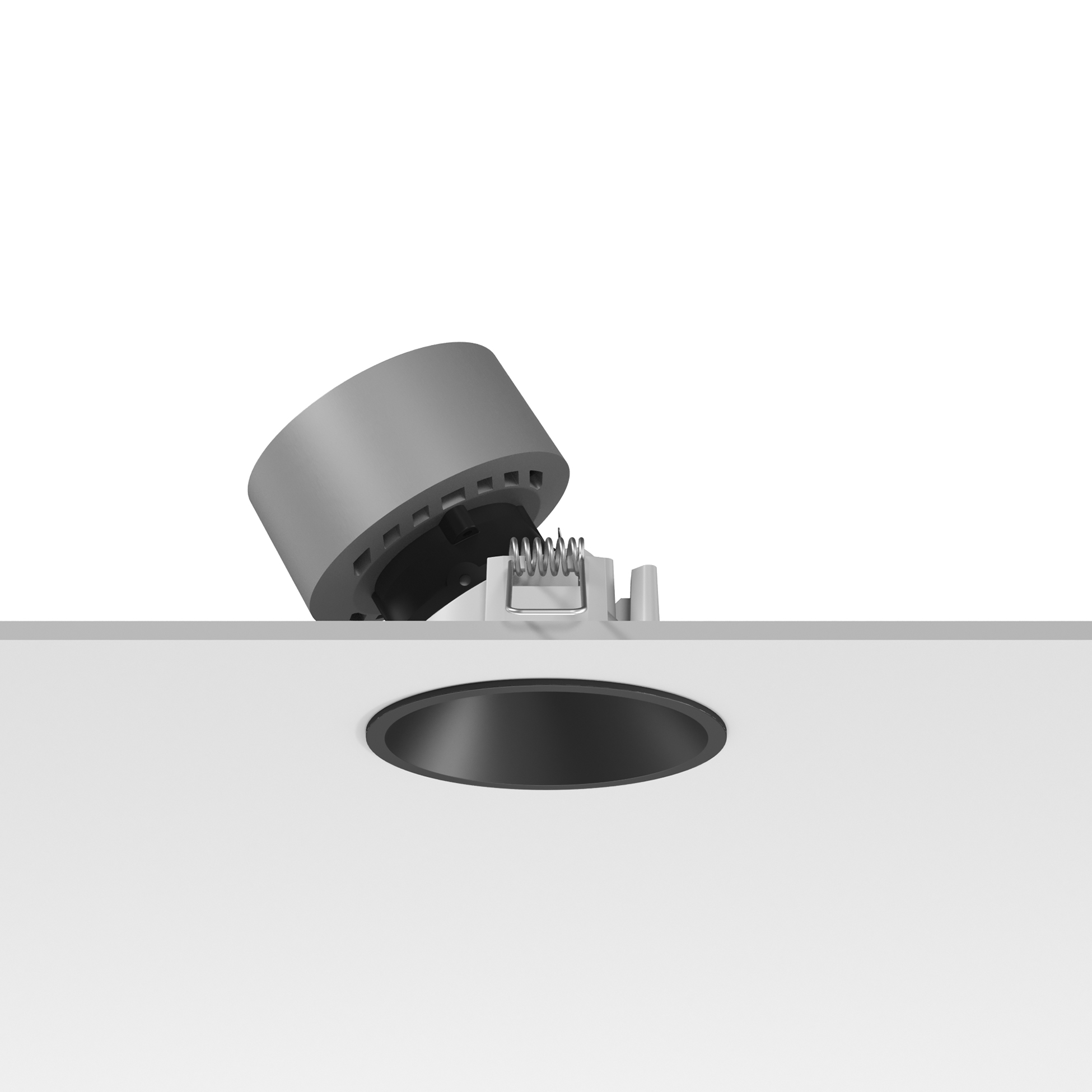

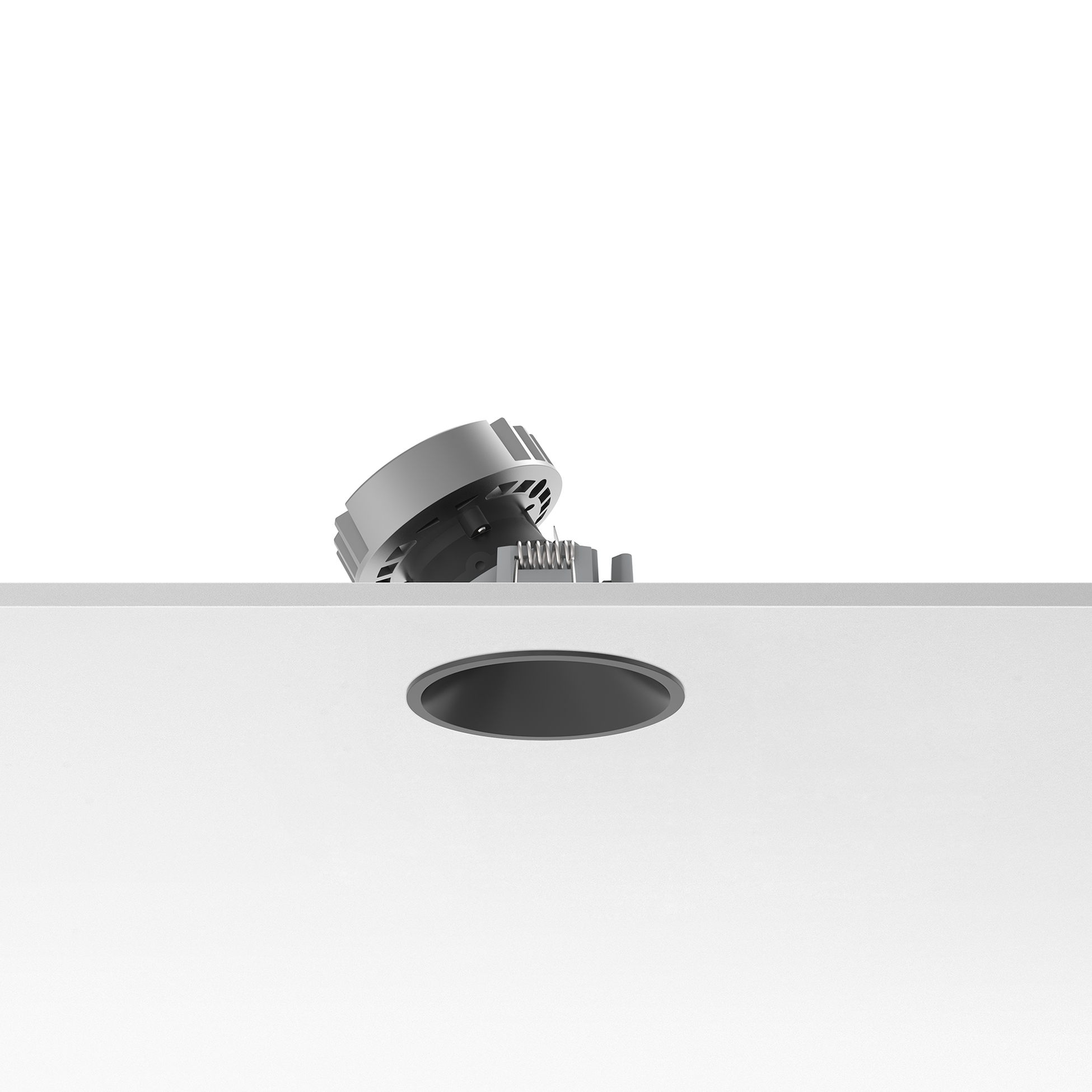

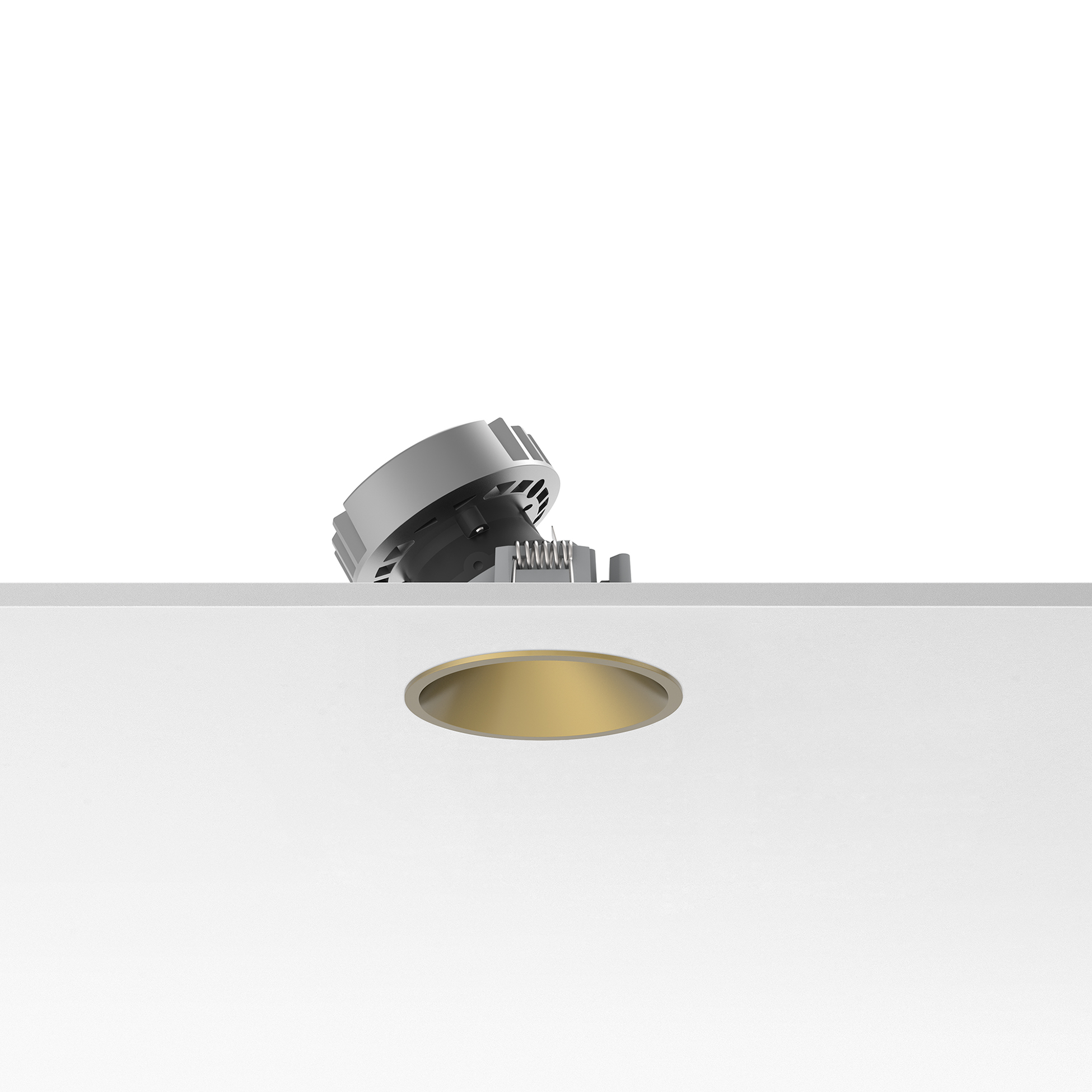

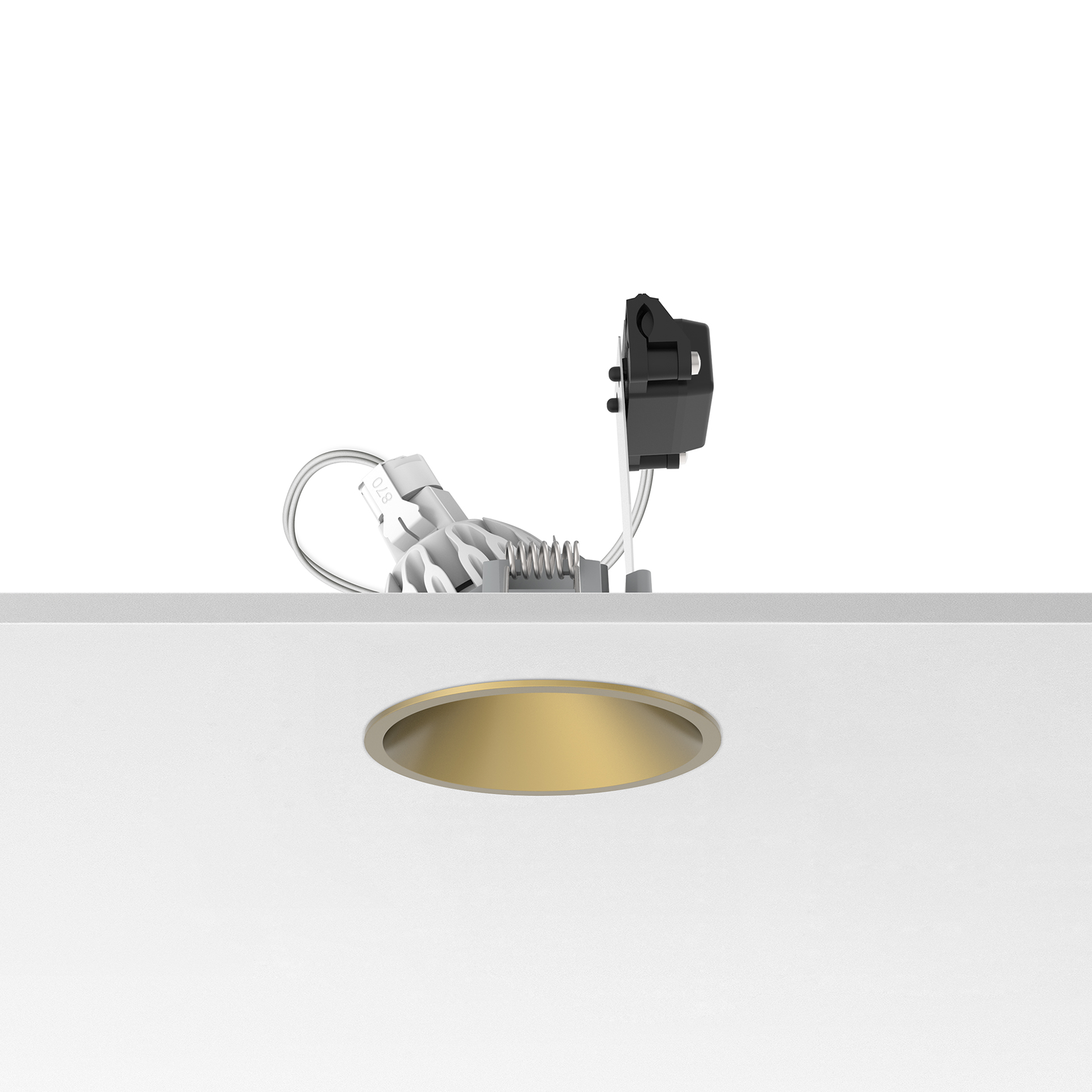

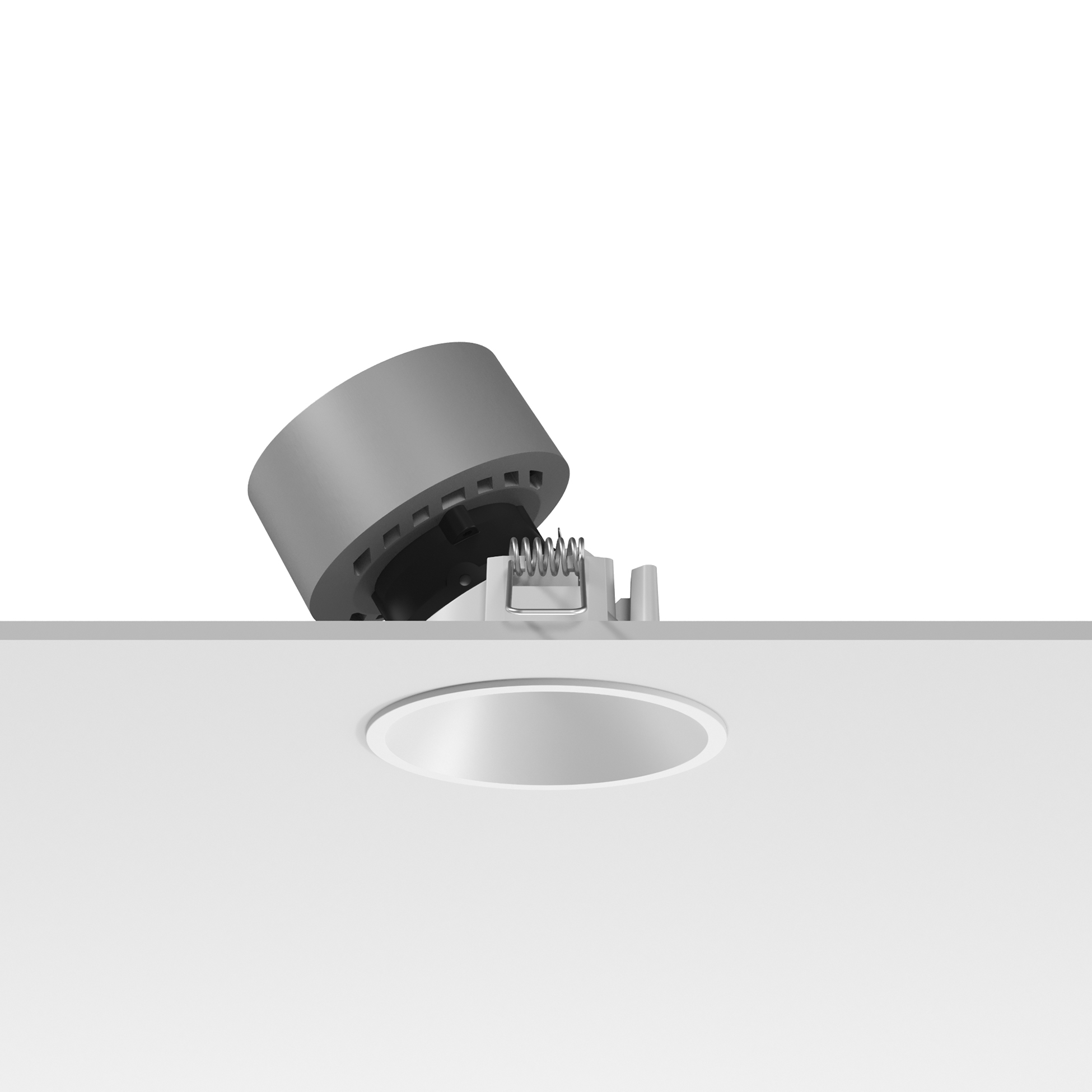

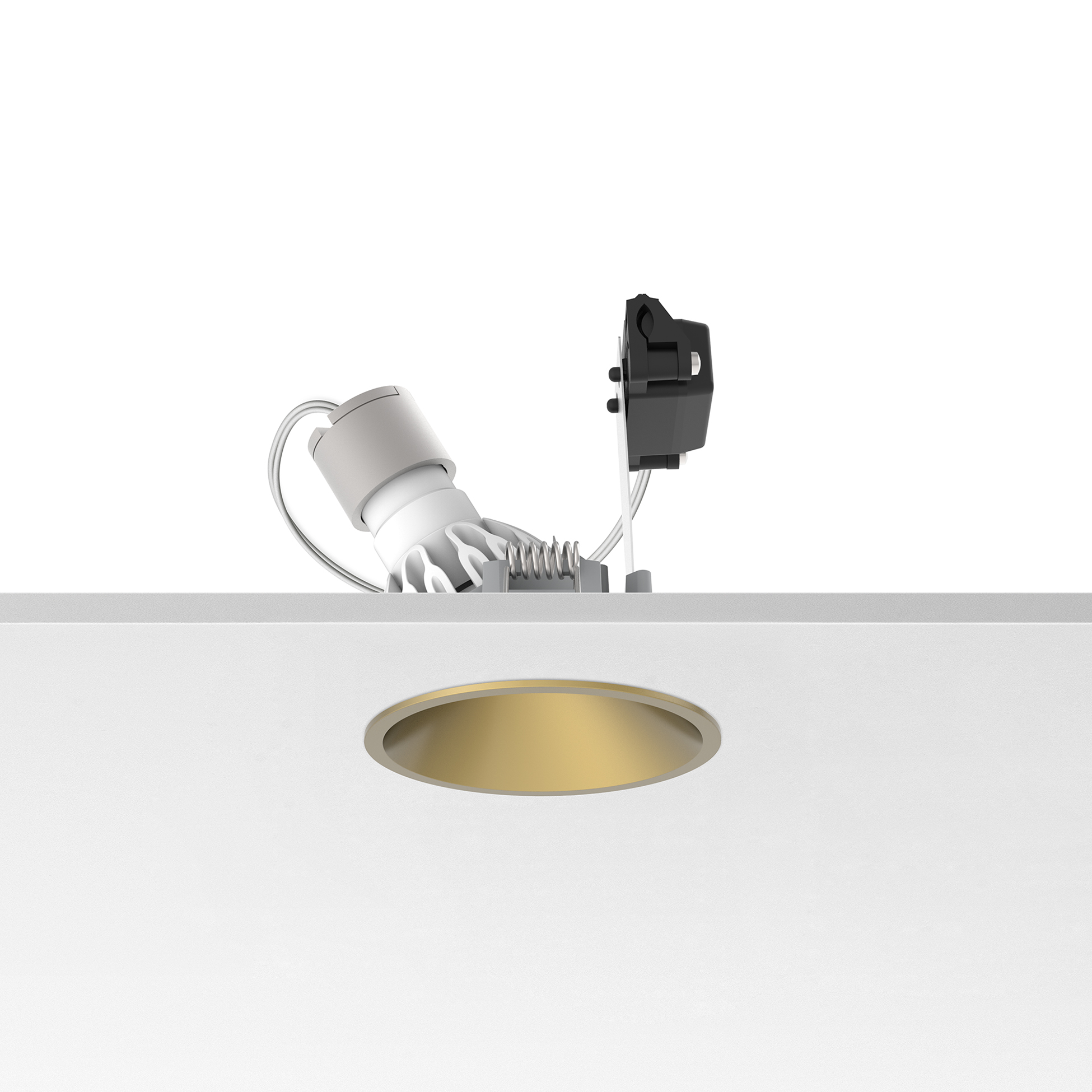

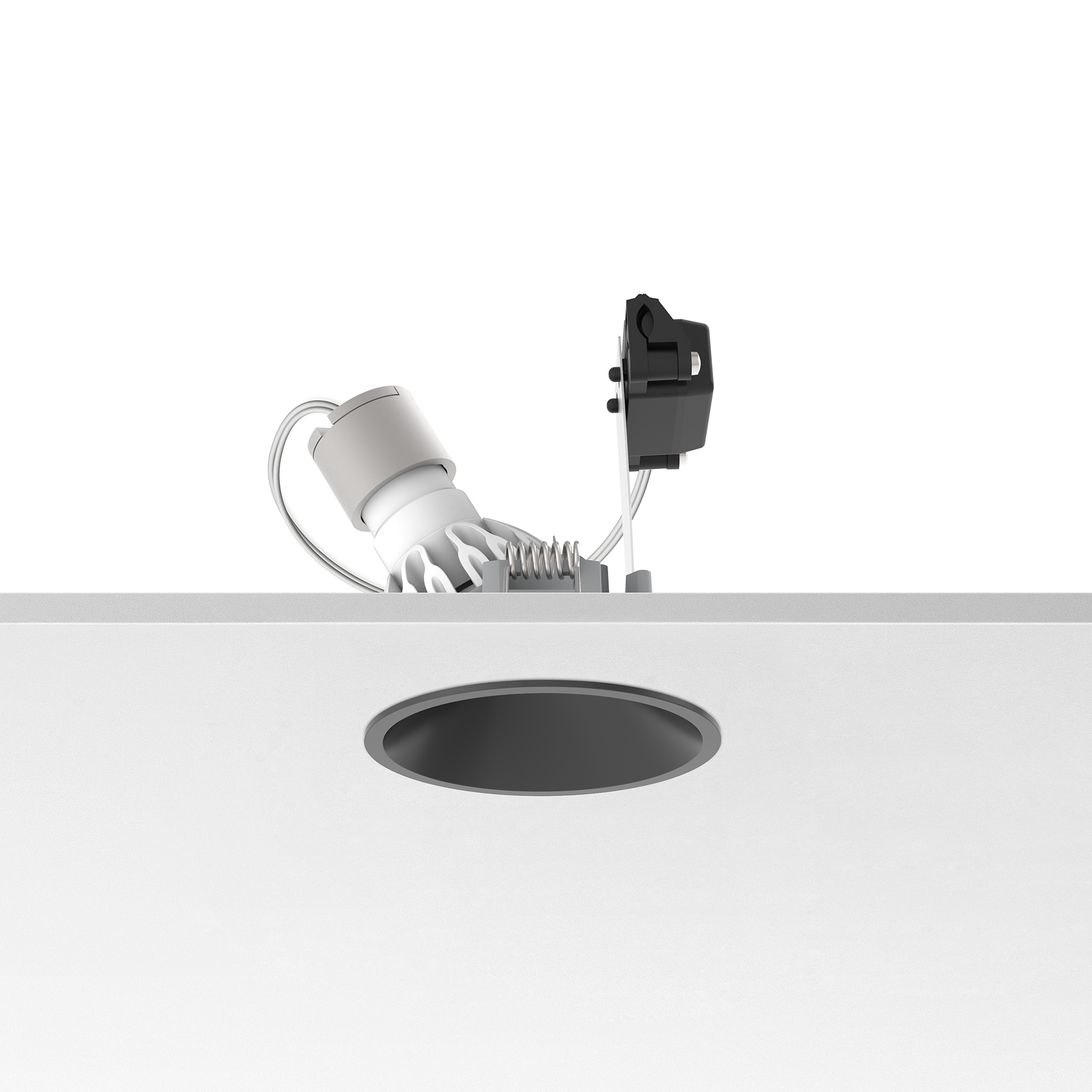

05.7435.GL	Easy Kap Ø 80 Plus Wall-Washer	13	838	2700	90	30	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7435.B1	Easy Kap Ø 80 Plus Wall-Washer	13	884	2700	90	28	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7435.74	Easy Kap Ø 80 Plus Wall-Washer	13	806	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7434.GL	Easy Kap Ø 80 Plus Wall-Washer	13	861	3000	90	30	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7434.B1	Easy Kap Ø 80 Plus Wall-Washer	13	908	3000	90	28	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7434.74	Easy Kap Ø 80 Plus Wall-Washer	13	828	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed

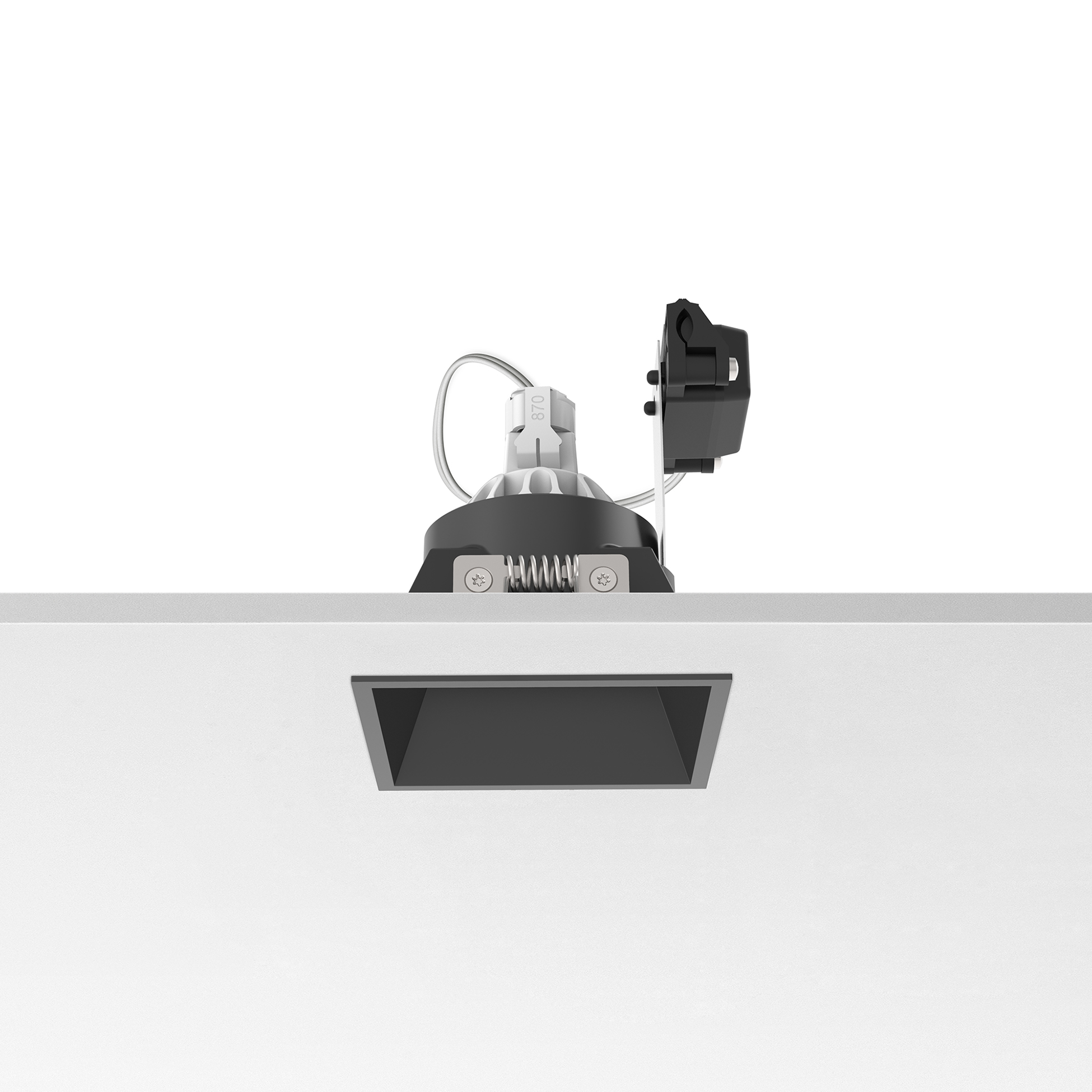

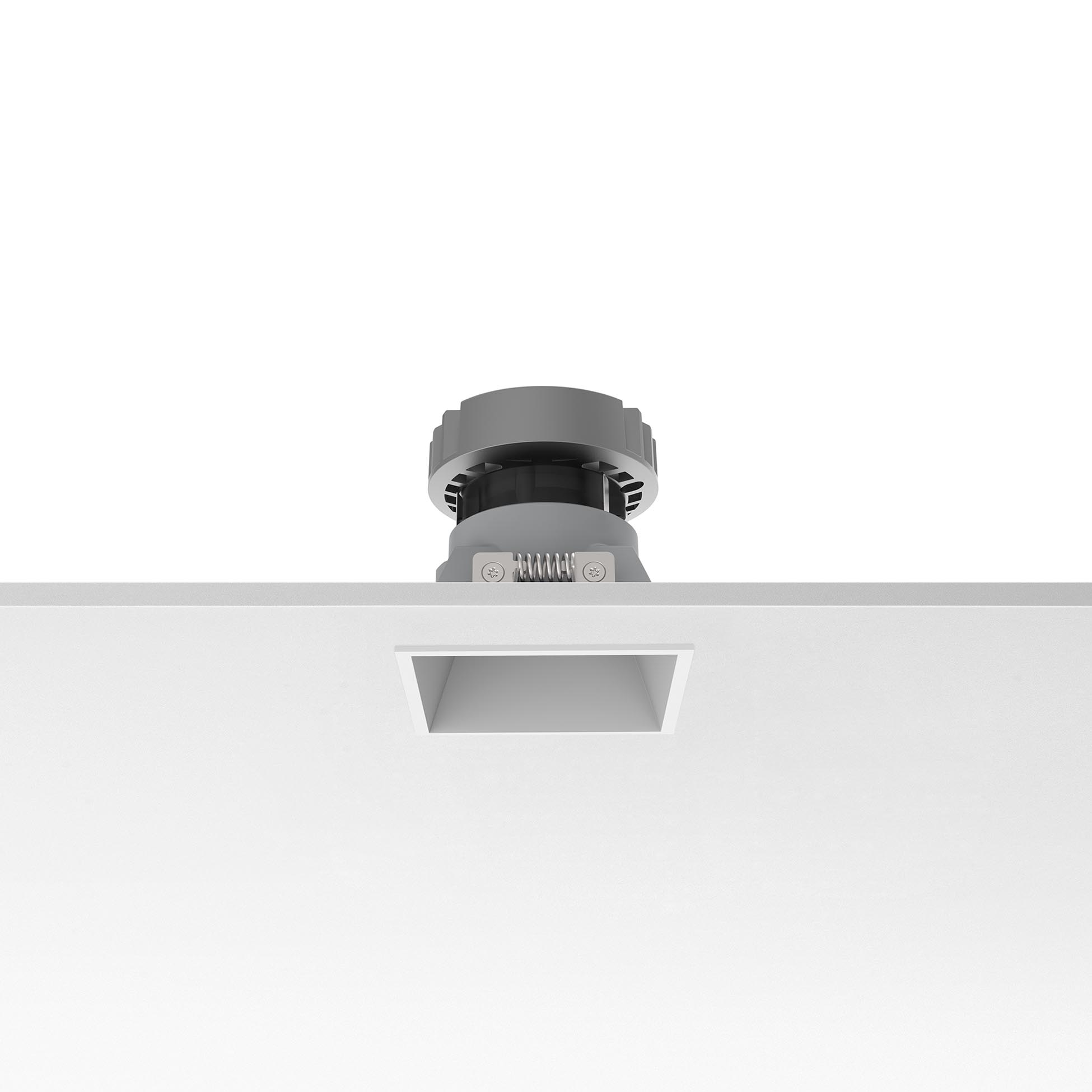

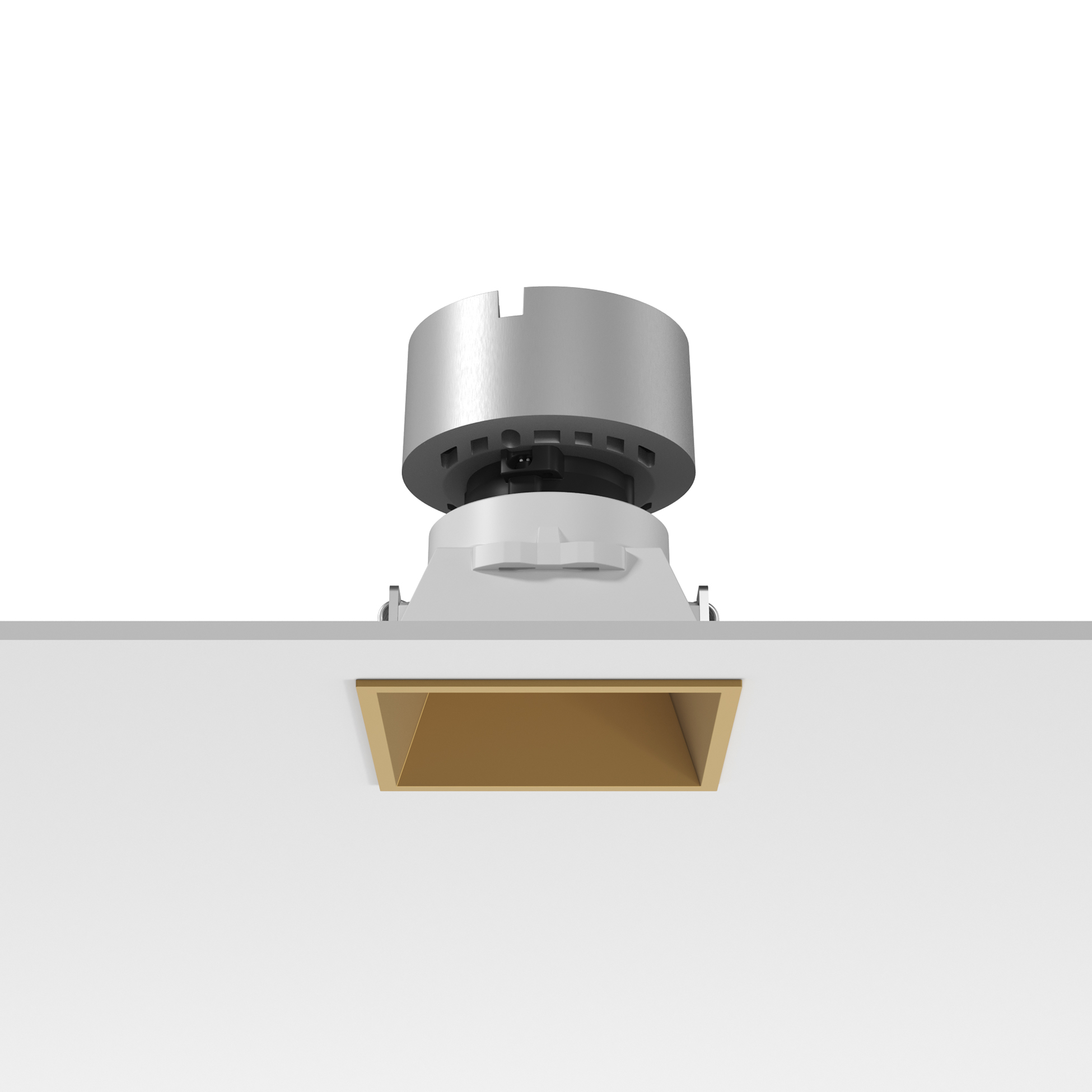

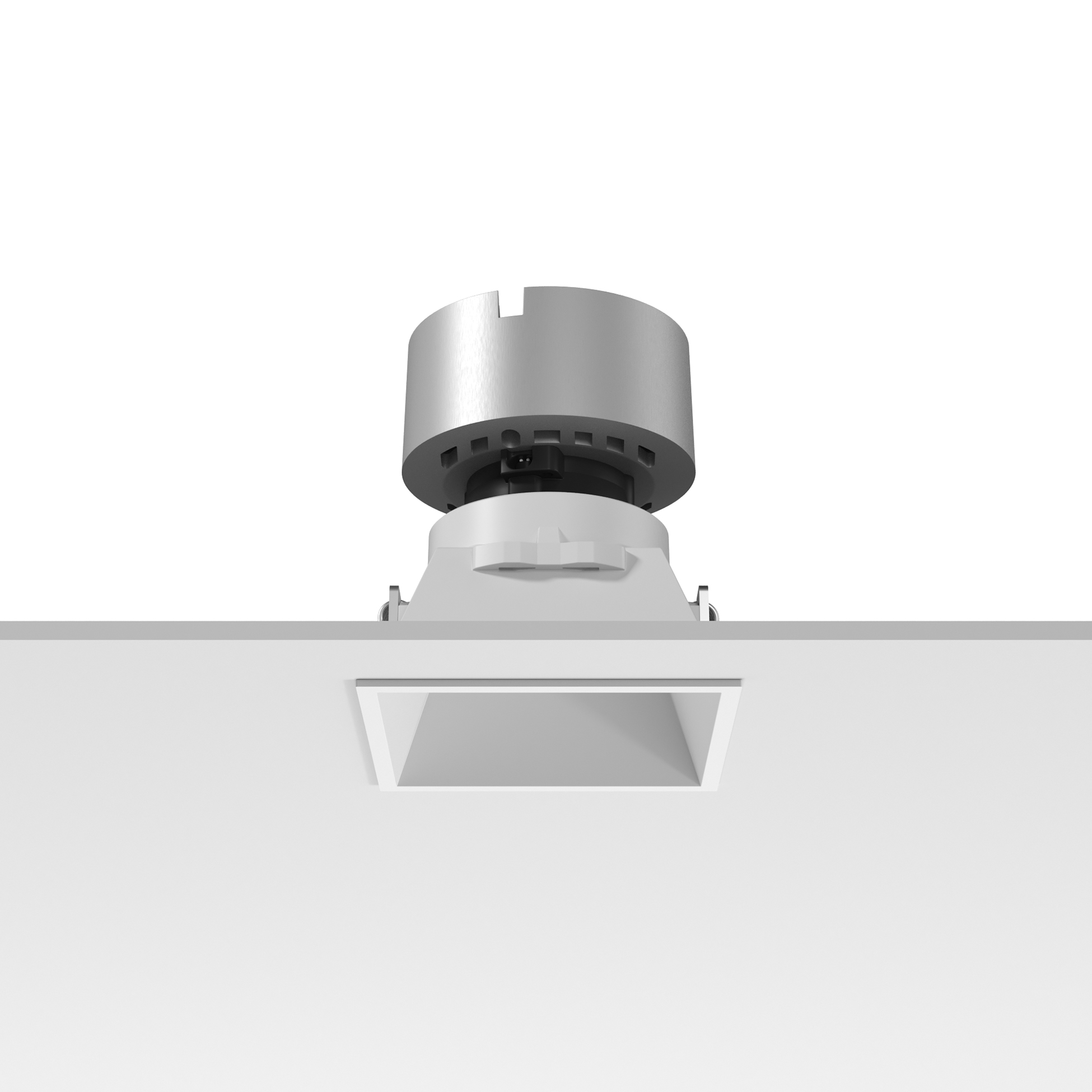

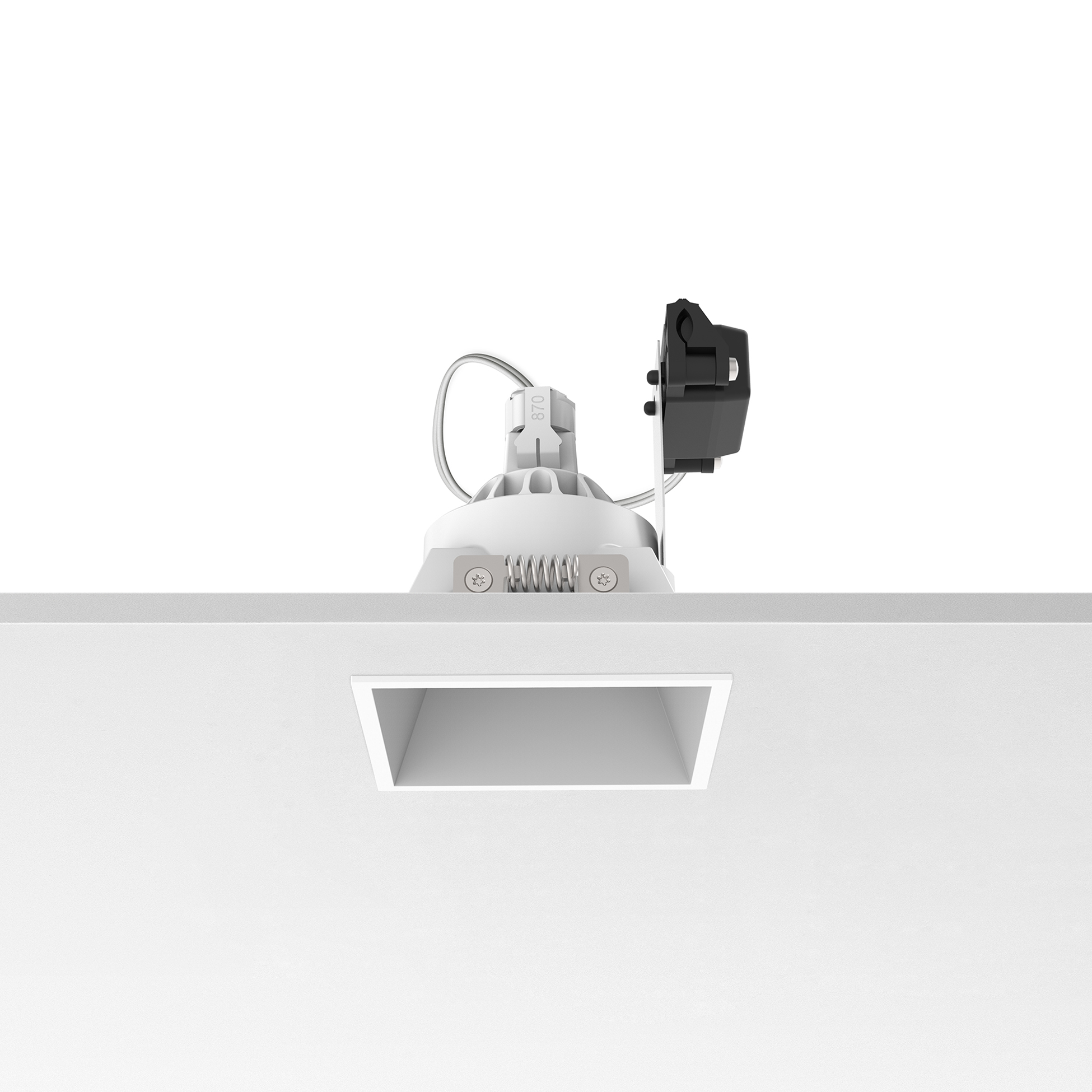

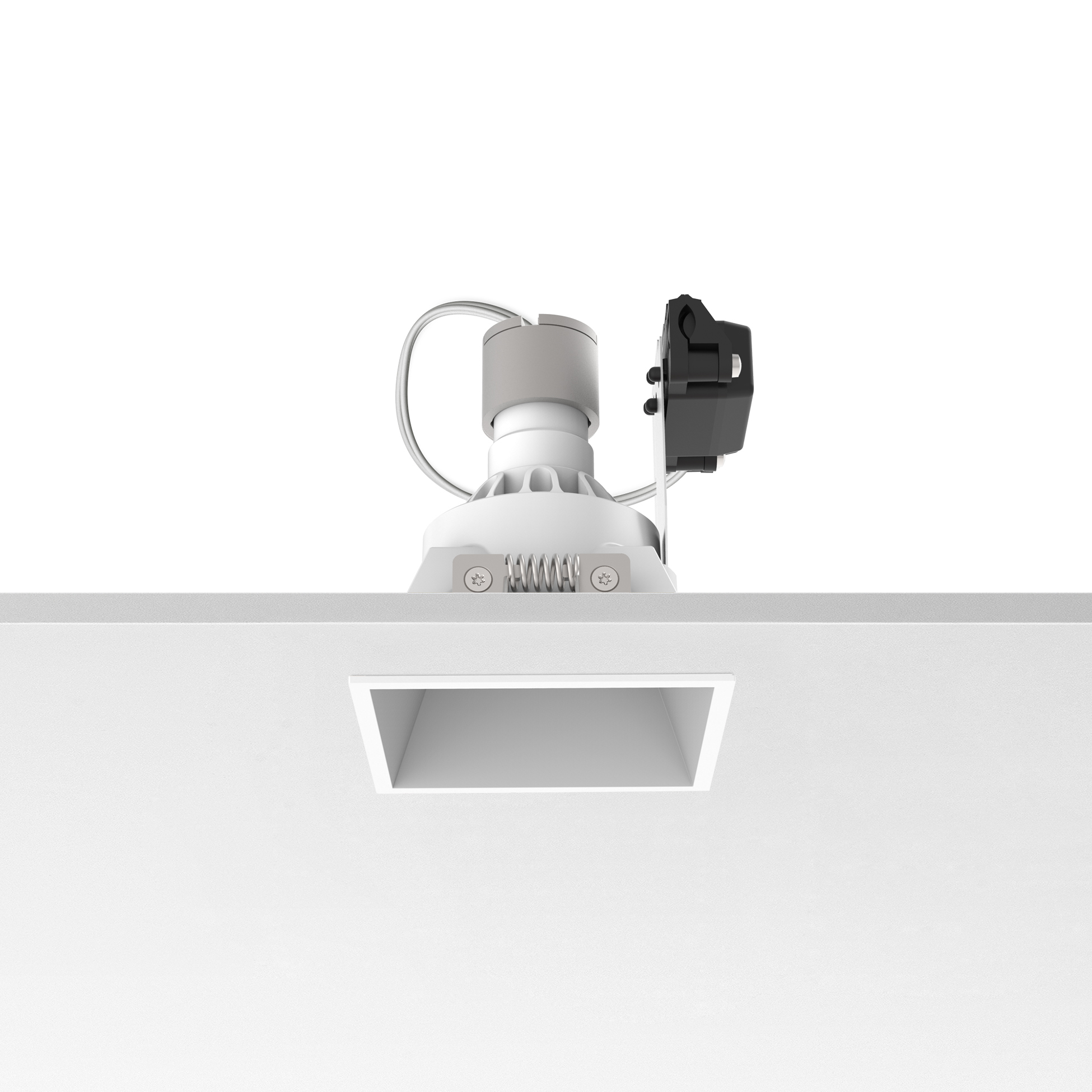

05.7433.GL	Easy Kap 80 Plus Square Fixed Optic Medium	13	887	2700	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7433.B1	Easy Kap 80 Plus Square Fixed Optic Medium	13	910	2700	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7433.74	Easy Kap 80 Plus Square Fixed Optic Medium	13	827	2700	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7432.GL	Easy Kap 80 Plus Square Fixed Optic Medium	13	911	3000	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7432.B1	Easy Kap 80 Plus Square Fixed Optic Medium	13	935	3000	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7432.74	Easy Kap 80 Plus Square Fixed Optic Medium	13	850	3000	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7431.GL	Easy Kap Ø 80 Plus Fixed Optic Medium	13	879	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7431.B1	Easy Kap Ø 80 Plus Fixed Optic Medium	13	896	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7431.74	Easy Kap Ø 80 Plus Fixed Optic Medium	13	800	2700	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7430.GL	Easy Kap Ø 80 Plus Fixed Optic Medium	13	903	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7430.B1	Easy Kap Ø 80 Plus Fixed Optic Medium	13	921	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7430.74	Easy Kap Ø 80 Plus Fixed Optic Medium	13	822	3000	90	25	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7409.GL	Easy Kap 80 Plus Square Fixed Optic Flood	13	1041	2700	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7409.B1	Easy Kap 80 Plus Square Fixed Optic Flood	13	1069	2700	90	55	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7409.74	Easy Kap 80 Plus Square Fixed Optic Flood	13	947	2700	90	55	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7408.GL	Easy Kap 80 Plus Square Fixed Optic Flood	13	1070	3000	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7408.B1	Easy Kap 80 Plus Square Fixed Optic Flood	13	1099	3000	90	55	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7408.74	Easy Kap 80 Plus Square Fixed Optic Flood	13	973	3000	90	55	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7407.GL	Easy Kap 80 Plus Square Fixed Optic Spot	13	1083	2700	90	18	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7407.B1	Easy Kap 80 Plus Square Fixed Optic Spot	13	1096	2700	90	18	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7407.74	Easy Kap 80 Plus Square Fixed Optic Spot	13	989	2700	90	17	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7406.GL	Easy Kap 80 Plus Square Fixed Optic Spot	13	1113	3000	90	18	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7406.B1	Easy Kap 80 Plus Square Fixed Optic Spot	13	1126	3000	90	18	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7406.74	Easy Kap 80 Plus Square Fixed Optic Spot	13	1016	3000	90	17	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed

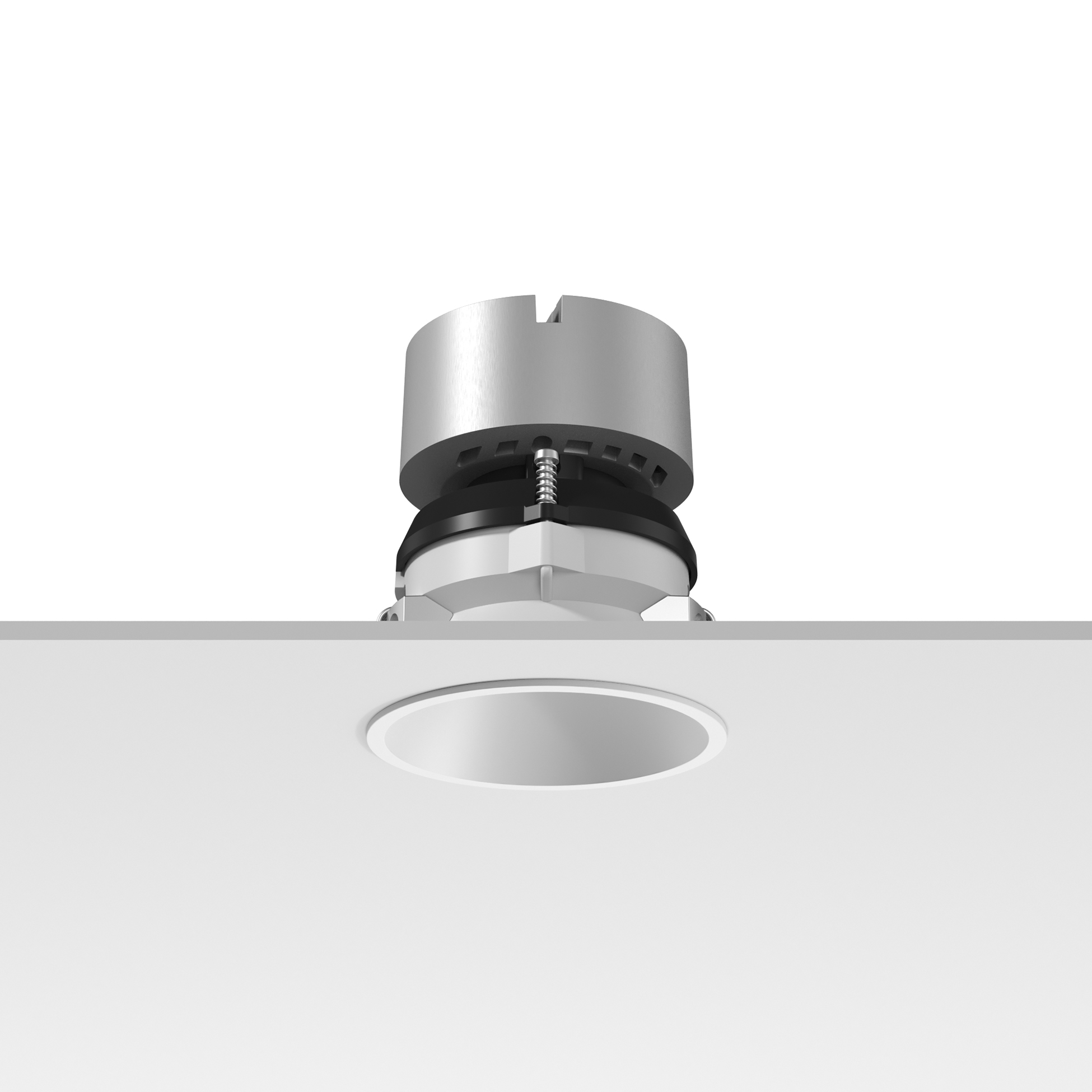

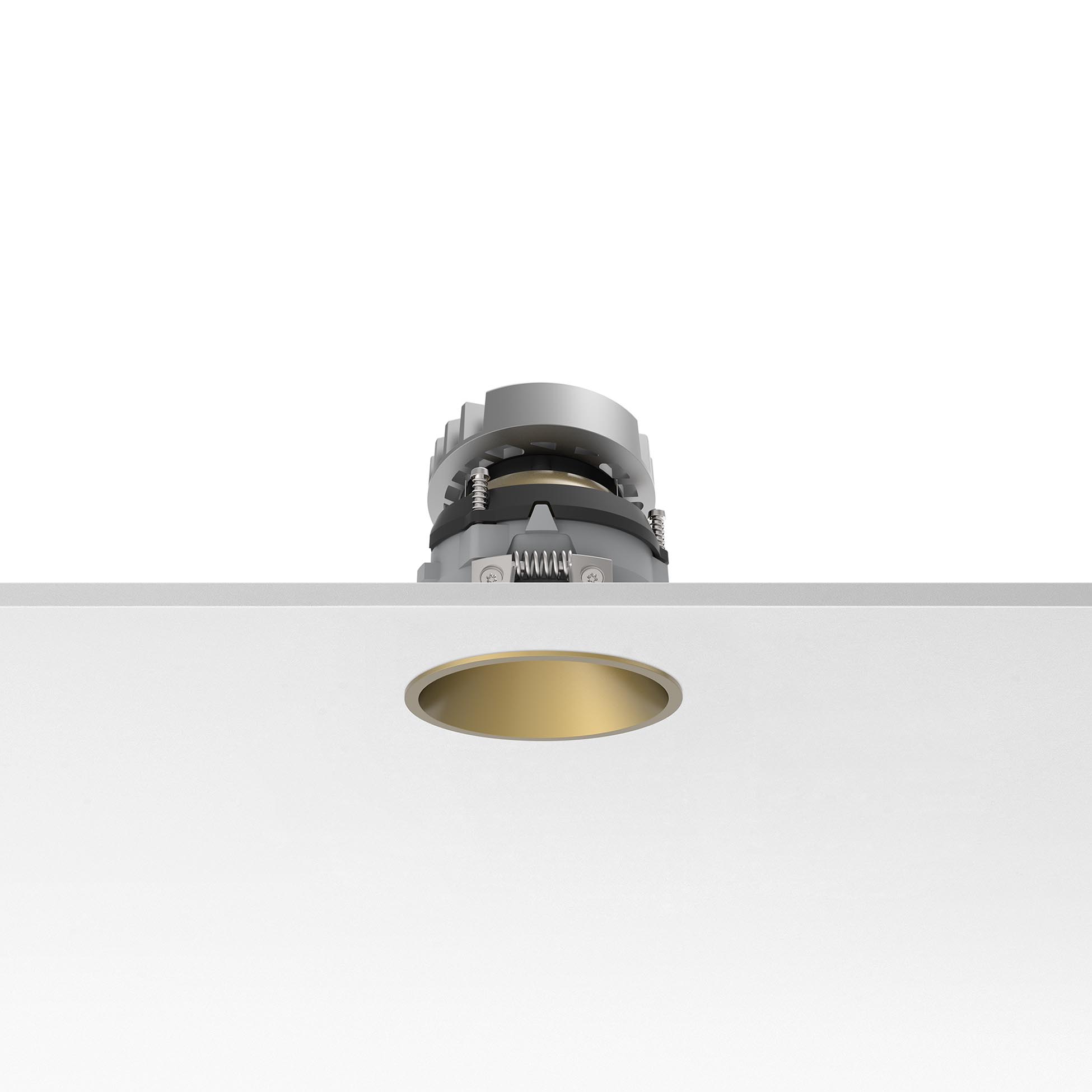

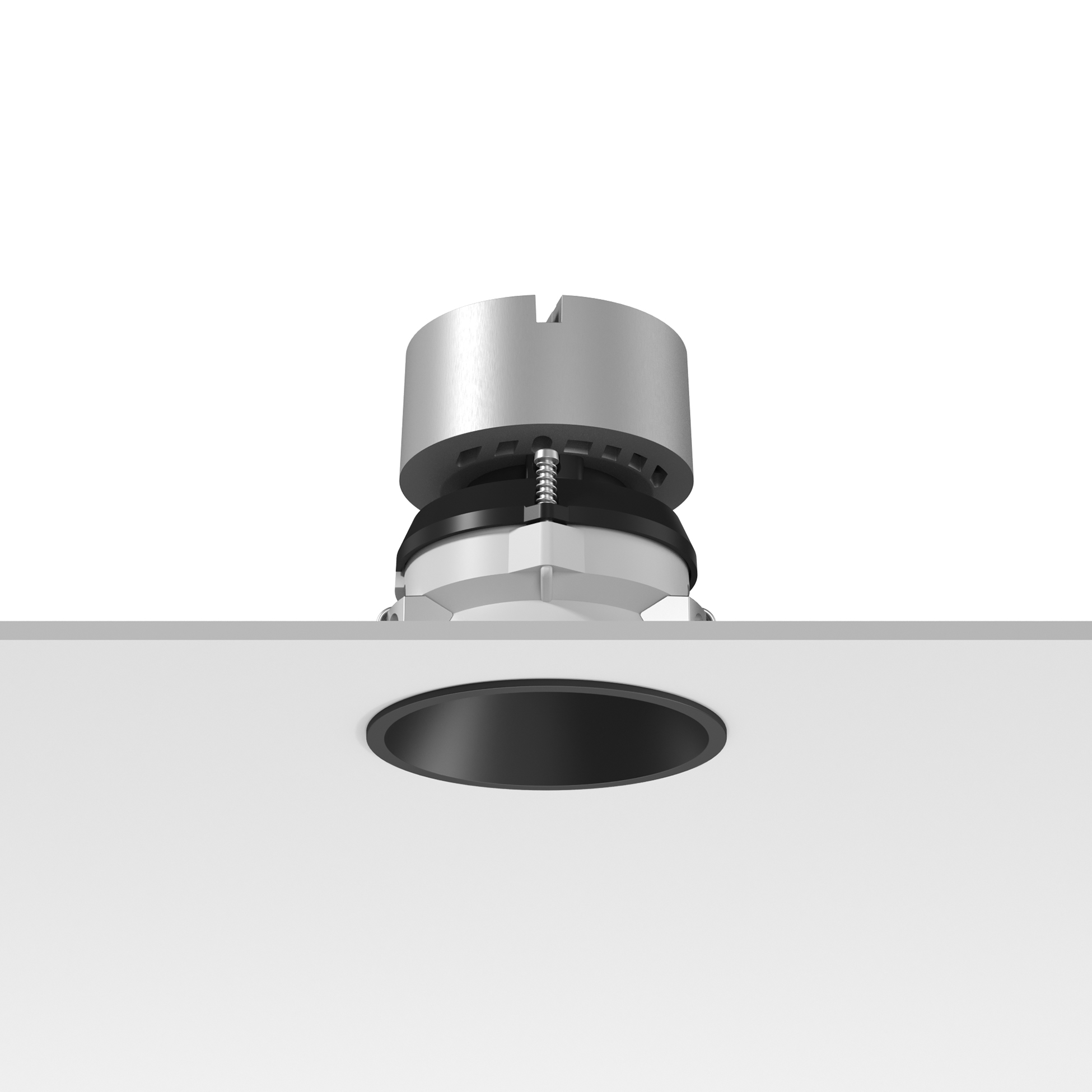

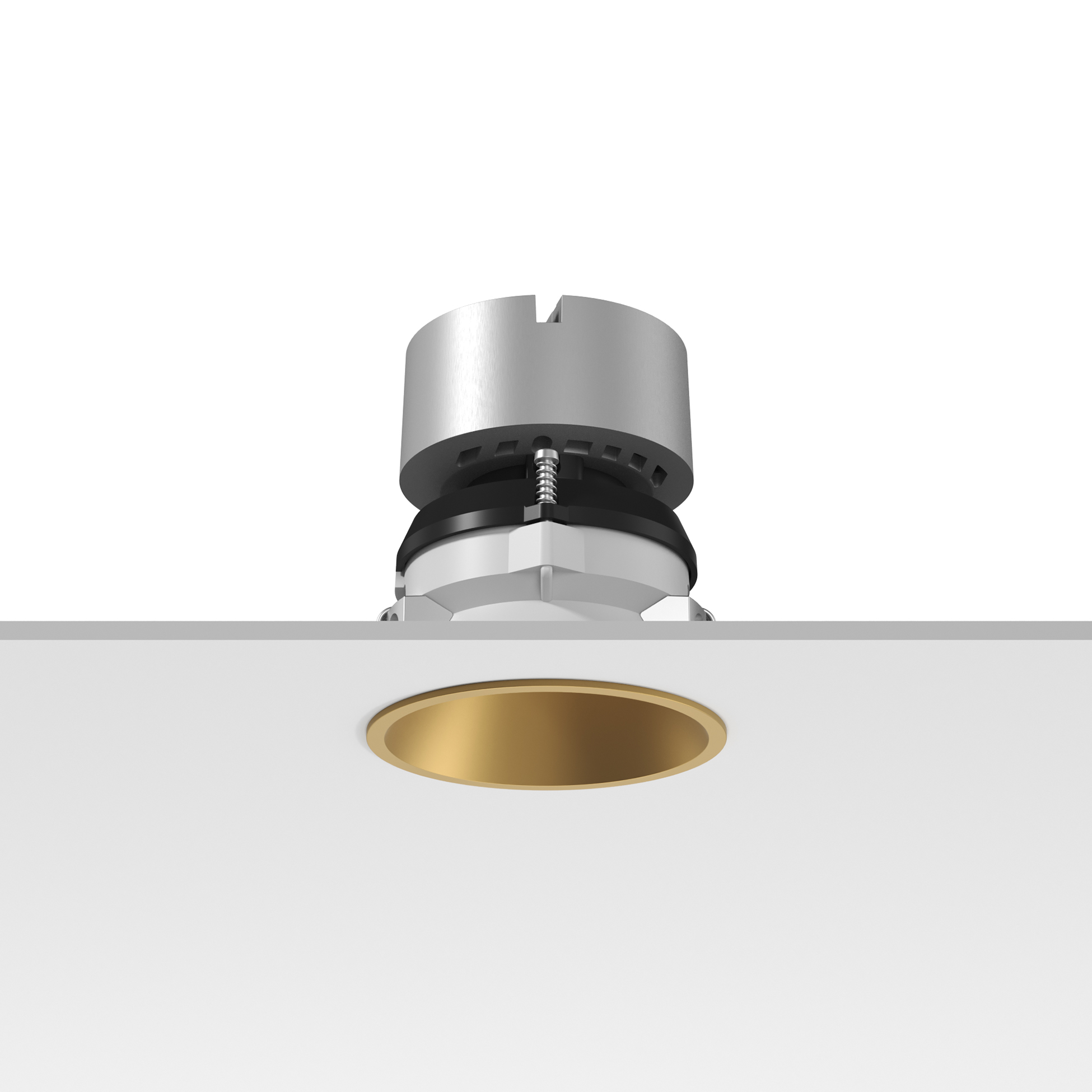

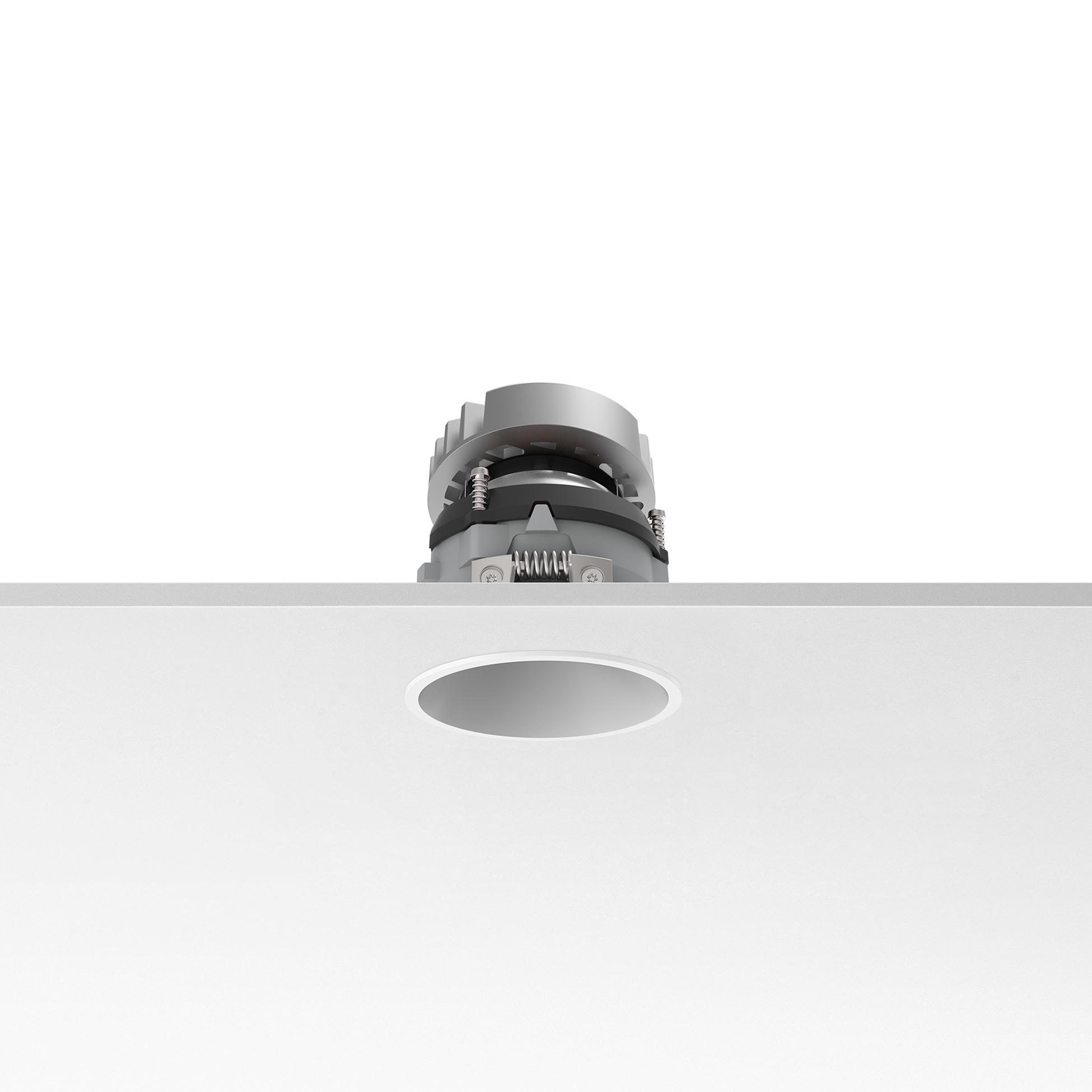

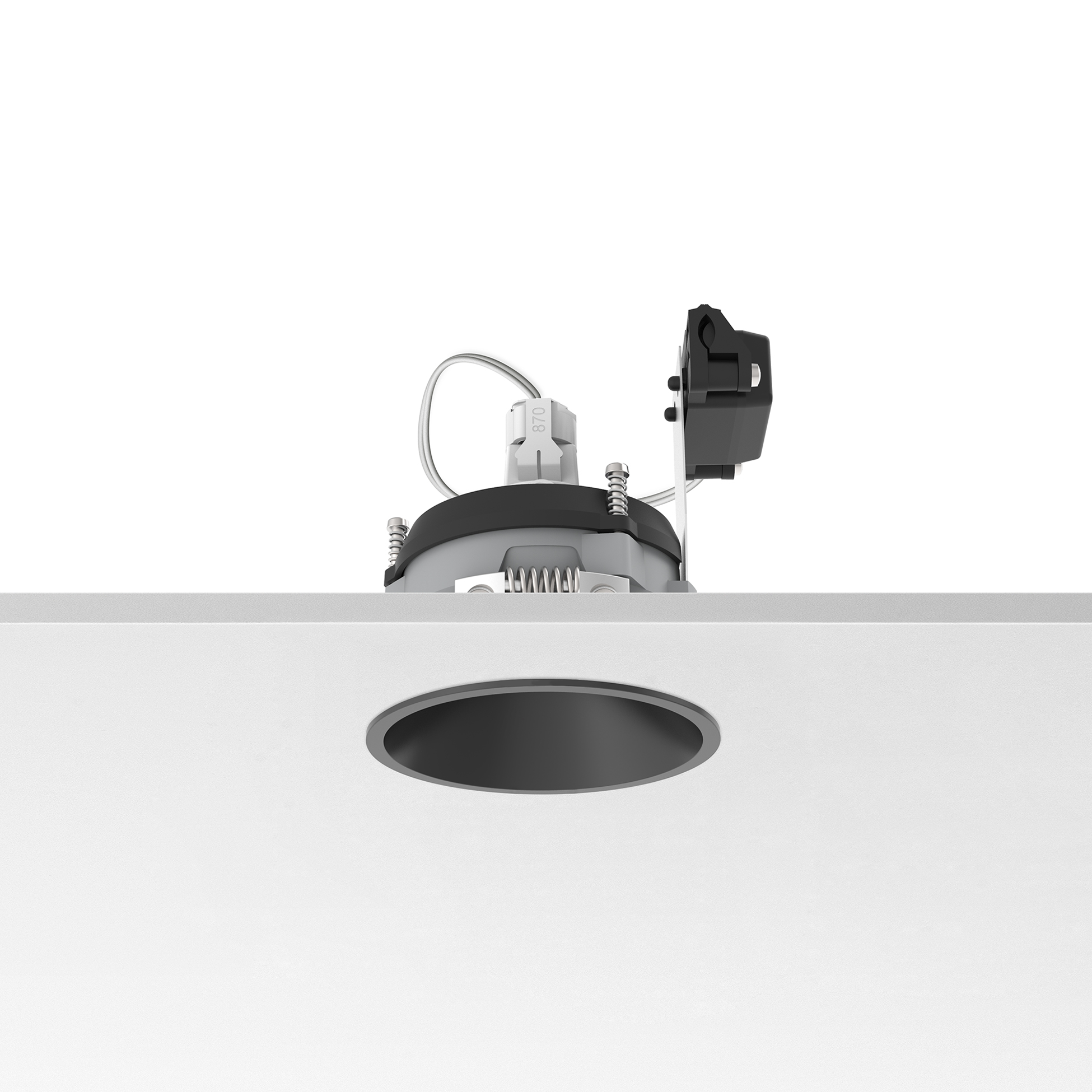

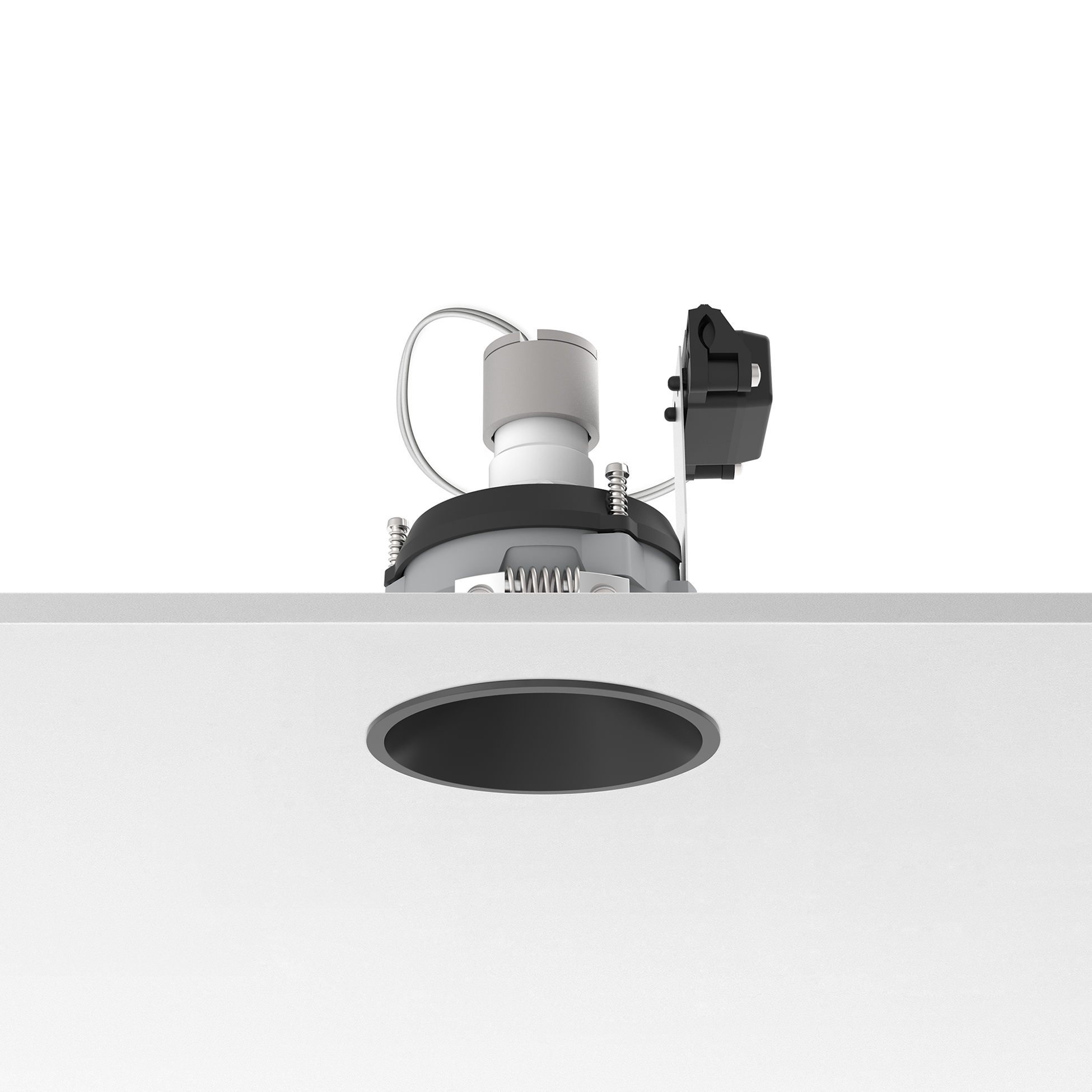

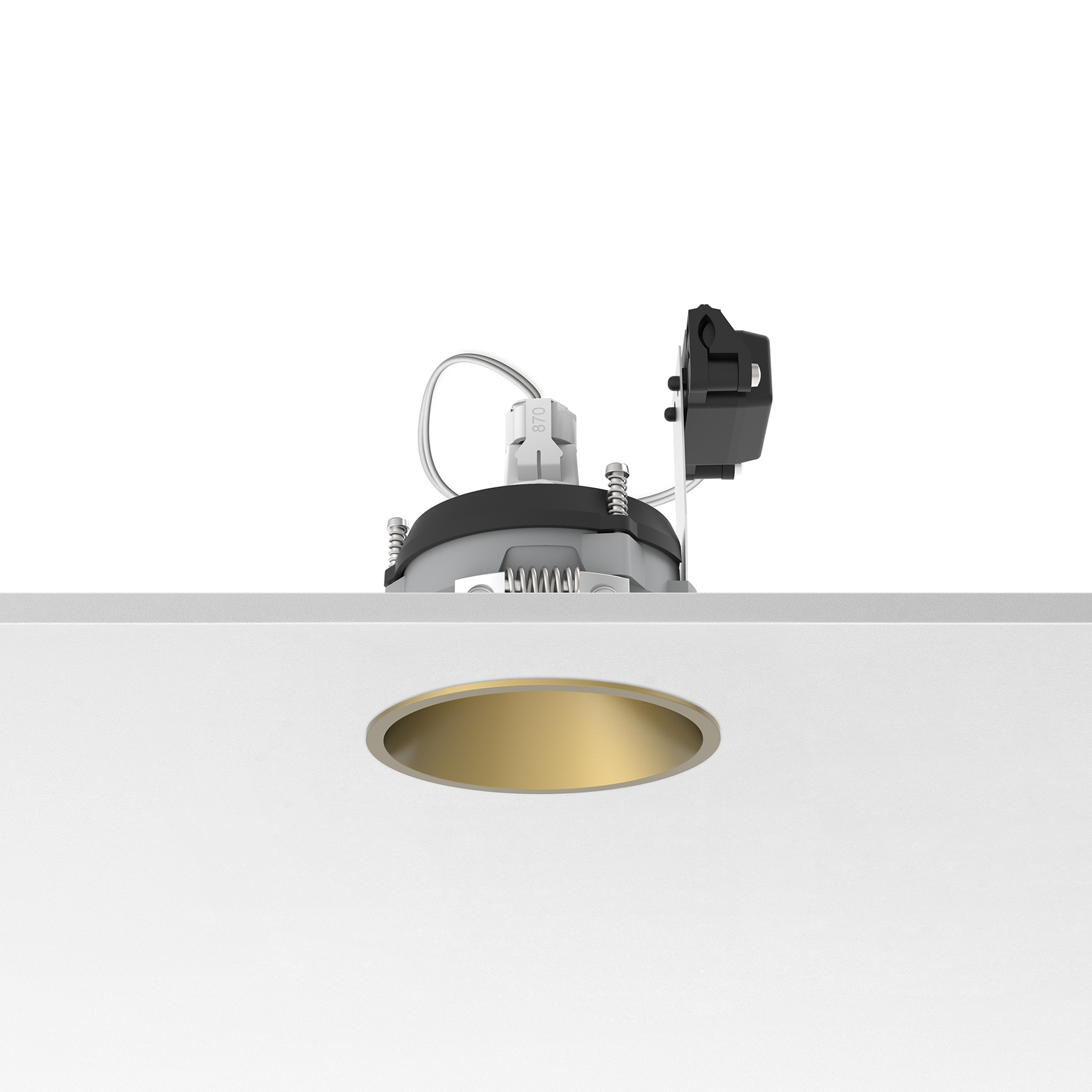

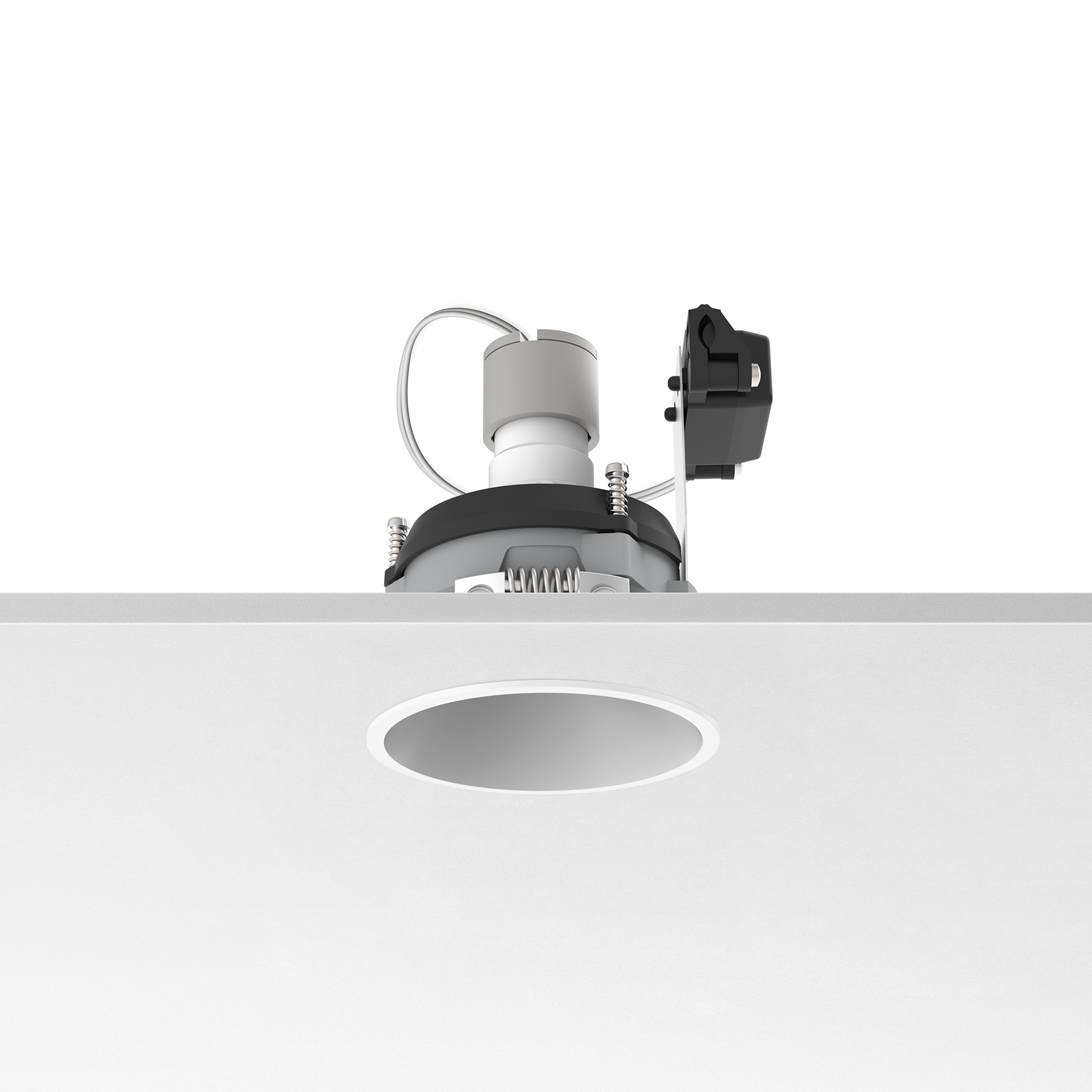

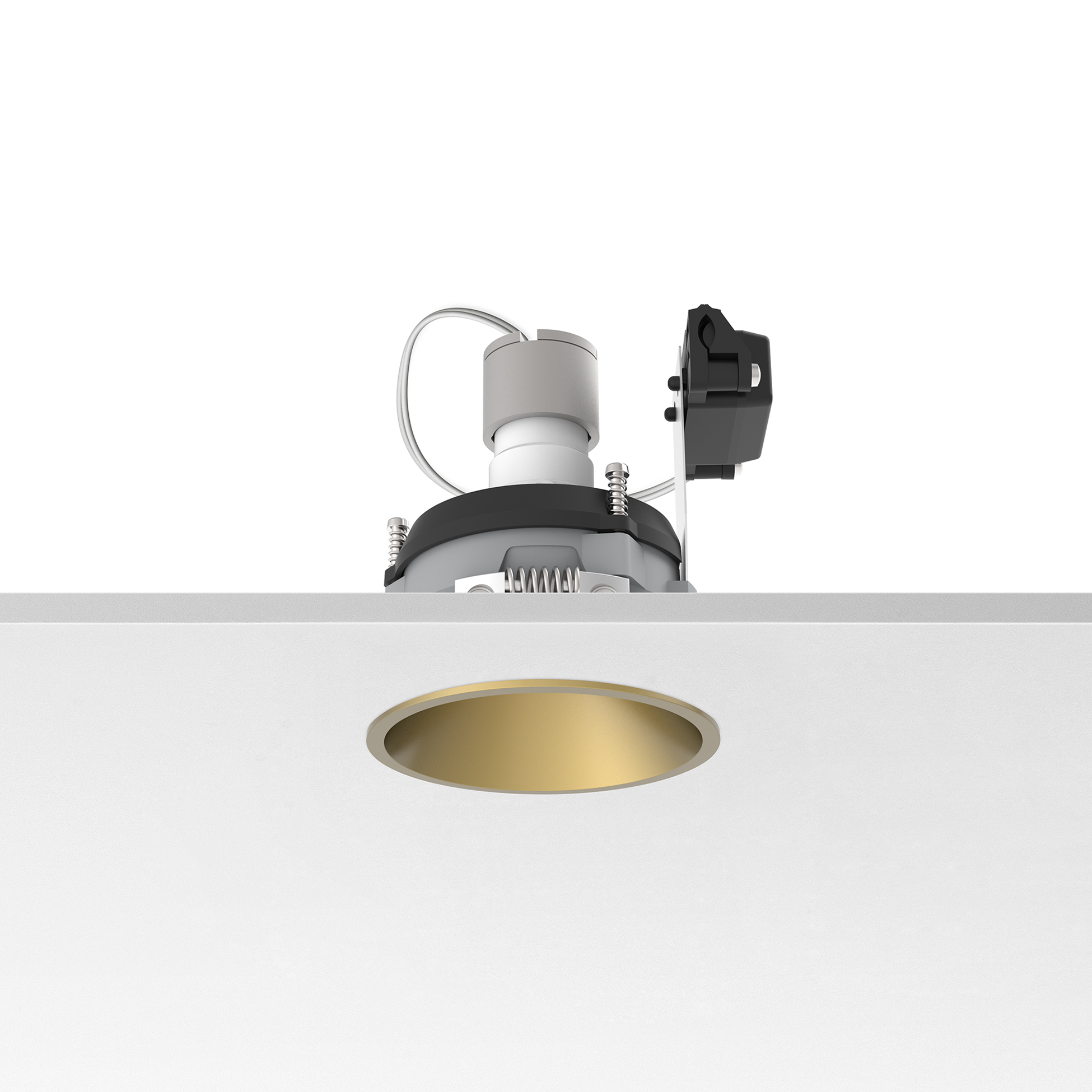

05.7405.GL	Easy Kap Ø 80 Plus Adjustable Optic Flood	13	1014	3000	90	45	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7405.B1	Easy Kap Ø 80 Plus Adjustable Optic Flood	13	1045	3000	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7405.74	Easy Kap Ø 80 Plus Adjustable Optic Flood	13	909	3000	90	55	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7404.GL	Easy Kap Ø 80 Plus Adjustable Optic Medium	13	947	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7404.B1	Easy Kap Ø 80 Plus Adjustable Optic Medium	13	1009	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7404.74	Easy Kap Ø 80 Plus Adjustable Optic Medium	13	854	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7403.GL	Easy Kap Ø 80 Plus Adjustable Optic Spot	13	1054	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7403.B1	Easy Kap Ø 80 Plus Adjustable Optic Spot	13	1069	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7403.74	Easy Kap Ø 80 Plus Adjustable Optic Spot	13	957	3000	90	18	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7402.GL	Easy Kap Ø 80 Plus Adjustable Optic Flood	13	987	2700	90	45	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7402.B1	Easy Kap Ø 80 Plus Adjustable Optic Flood	13	1017	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7402.74	Easy Kap Ø 80 Plus Adjustable Optic Flood	13	884	2700	90	55	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7401.GL	Easy Kap Ø 80 Plus Adjustable Optic Medium	13	922	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7401.B1	Easy Kap Ø 80 Plus Adjustable Optic Medium	13	982	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7401.74	Easy Kap Ø 80 Plus Adjustable Optic Medium	13	831	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7400.GL	Easy Kap Ø 80 Plus Adjustable Optic Spot	13	1026	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7400.B1	Easy Kap Ø 80 Plus Adjustable Optic Spot	13	1040	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7400.74	Easy Kap Ø 80 Plus Adjustable Optic Spot	13	932	2700	90	18	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed

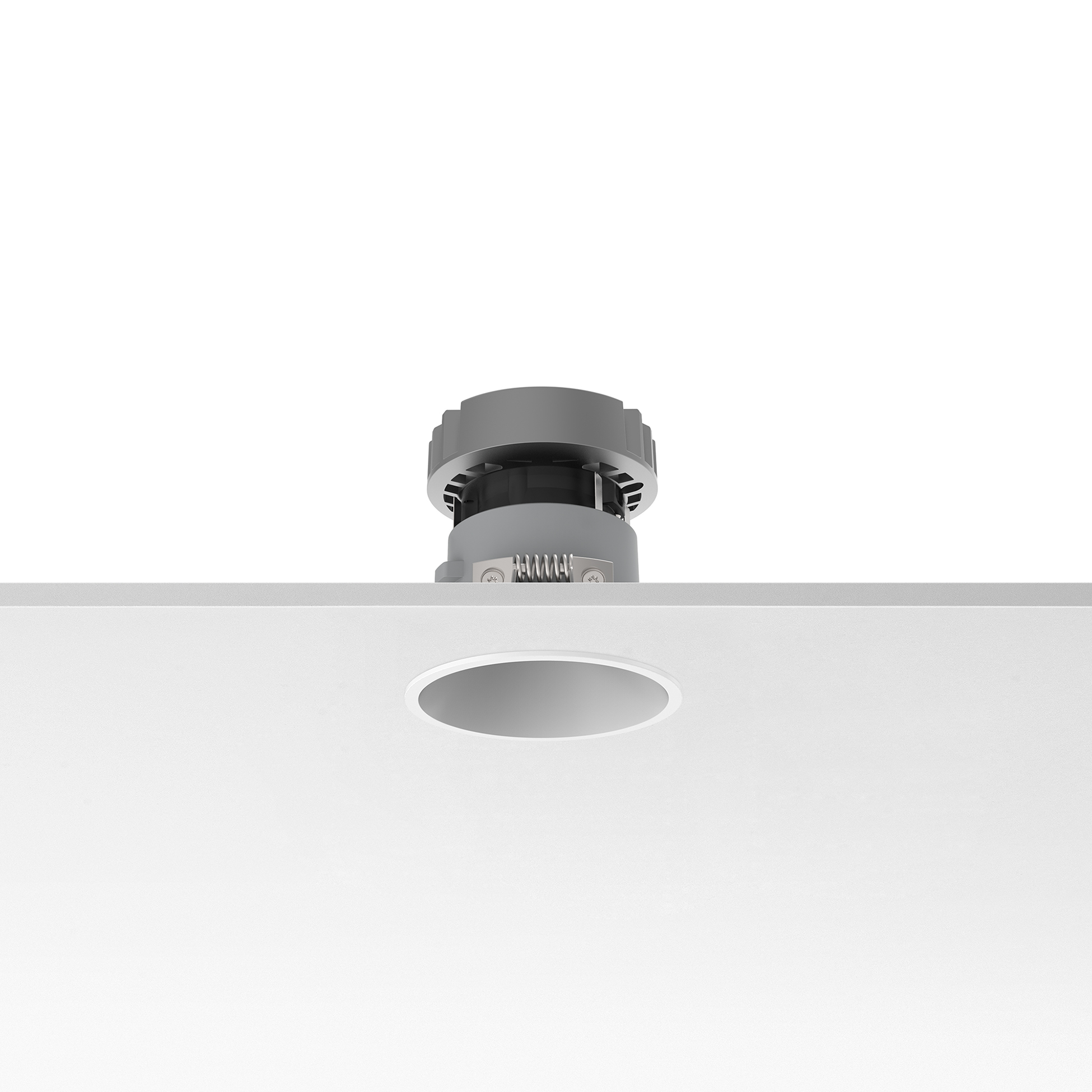

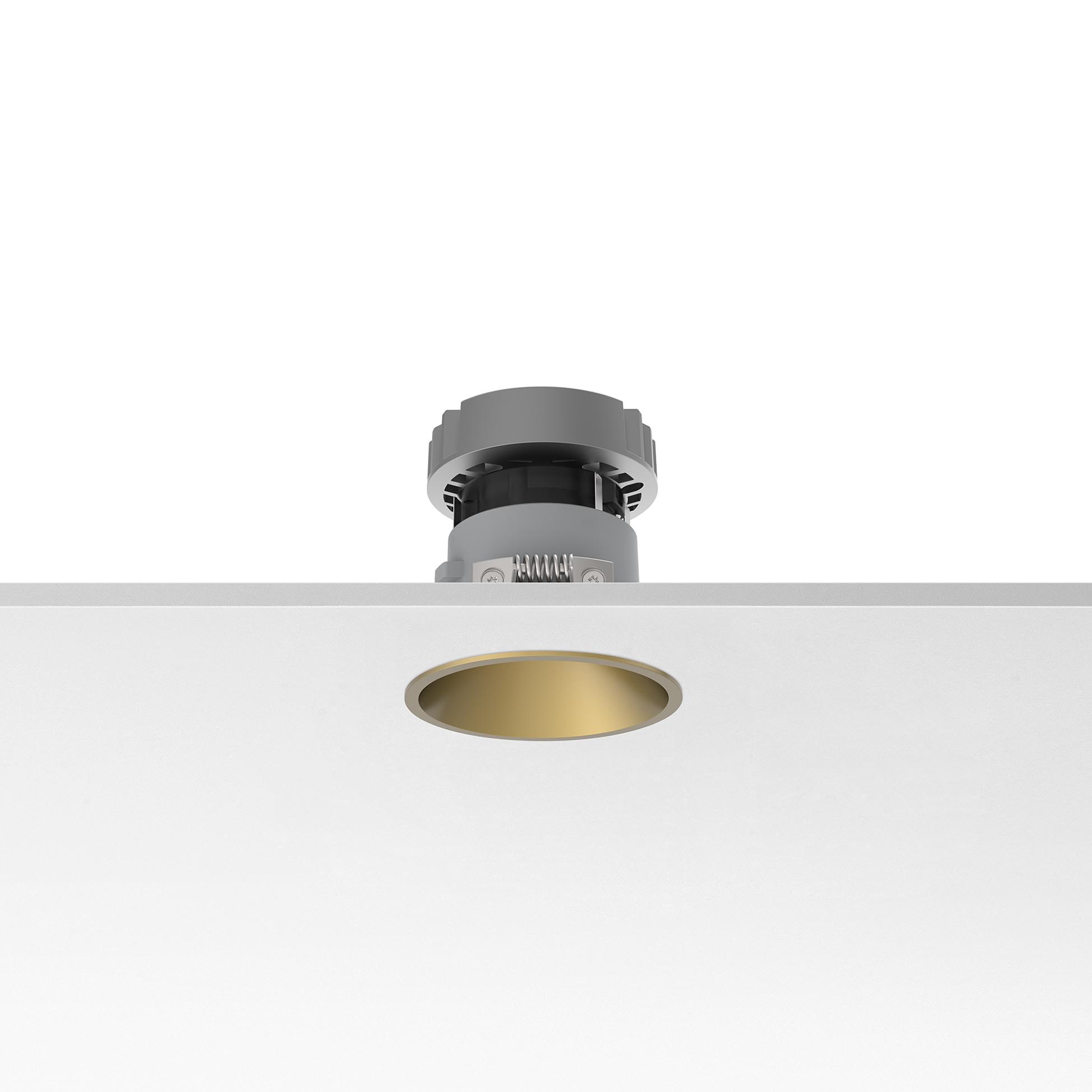

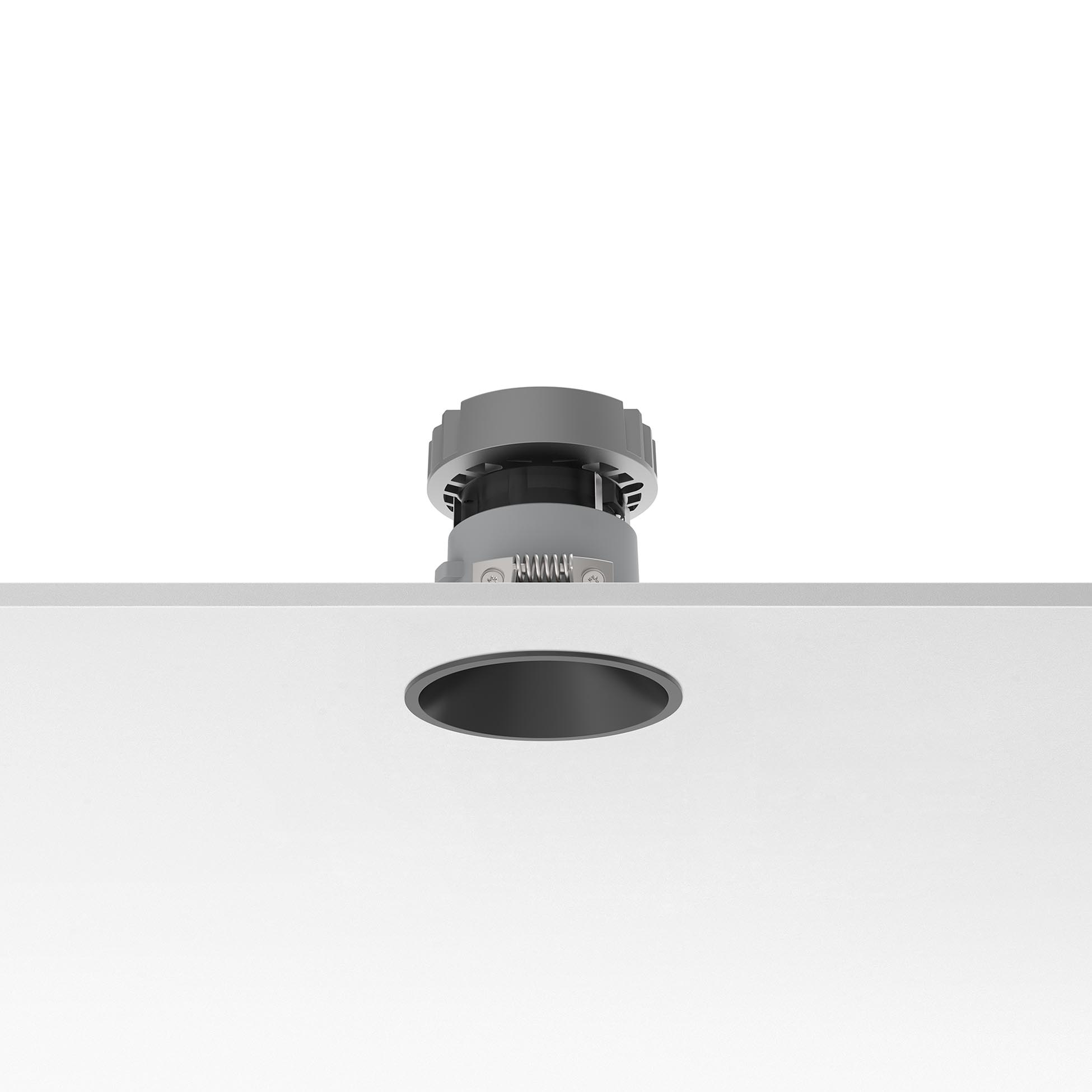

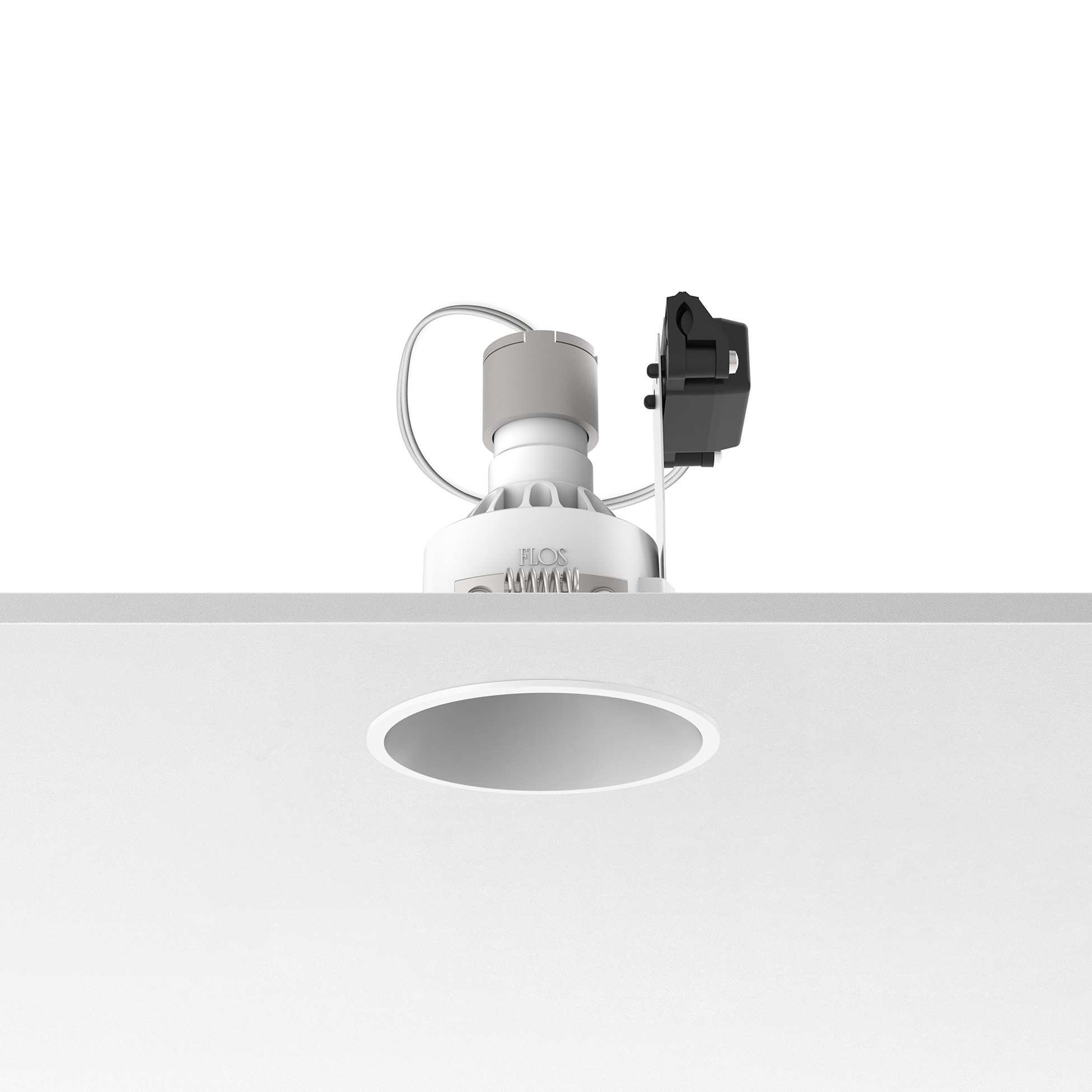

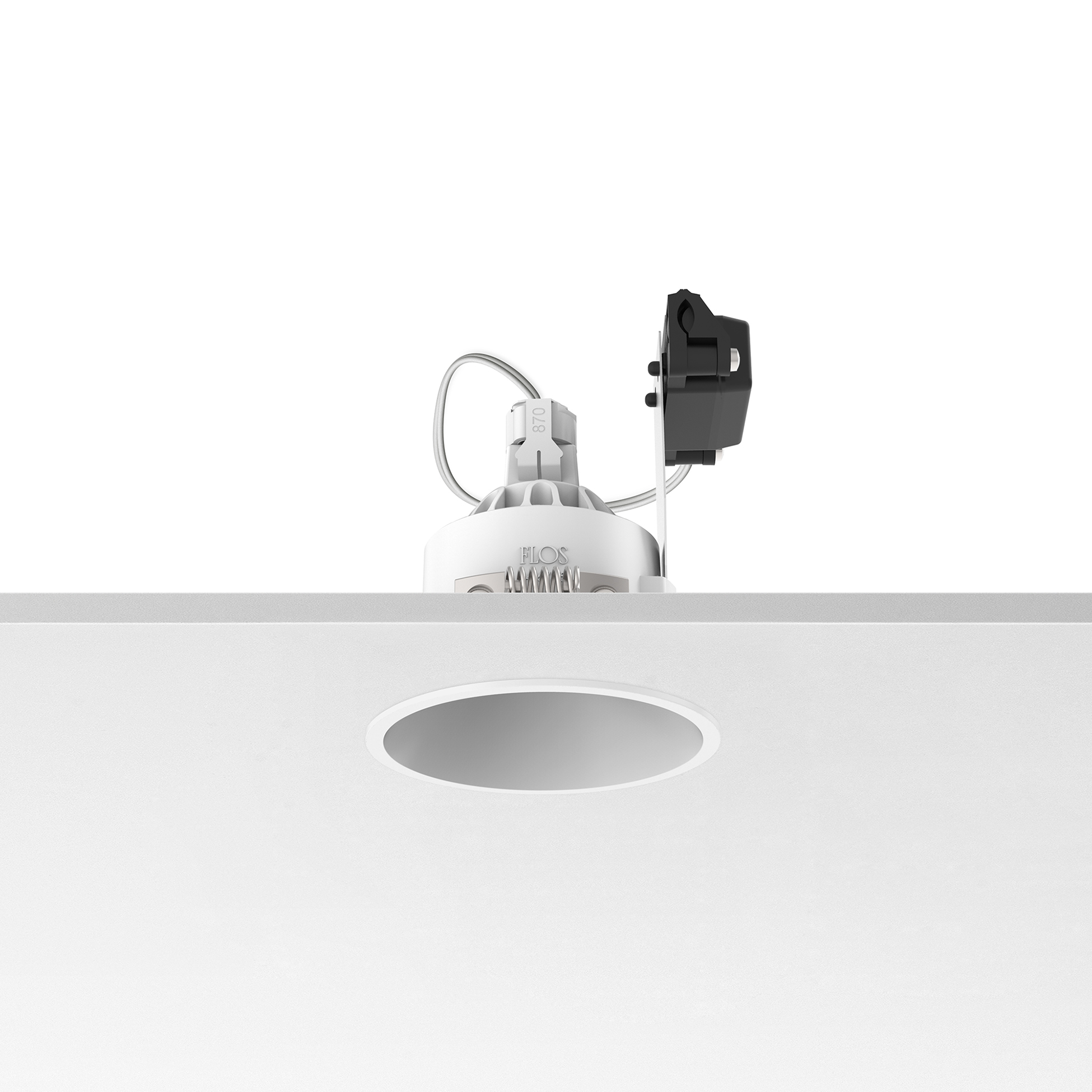

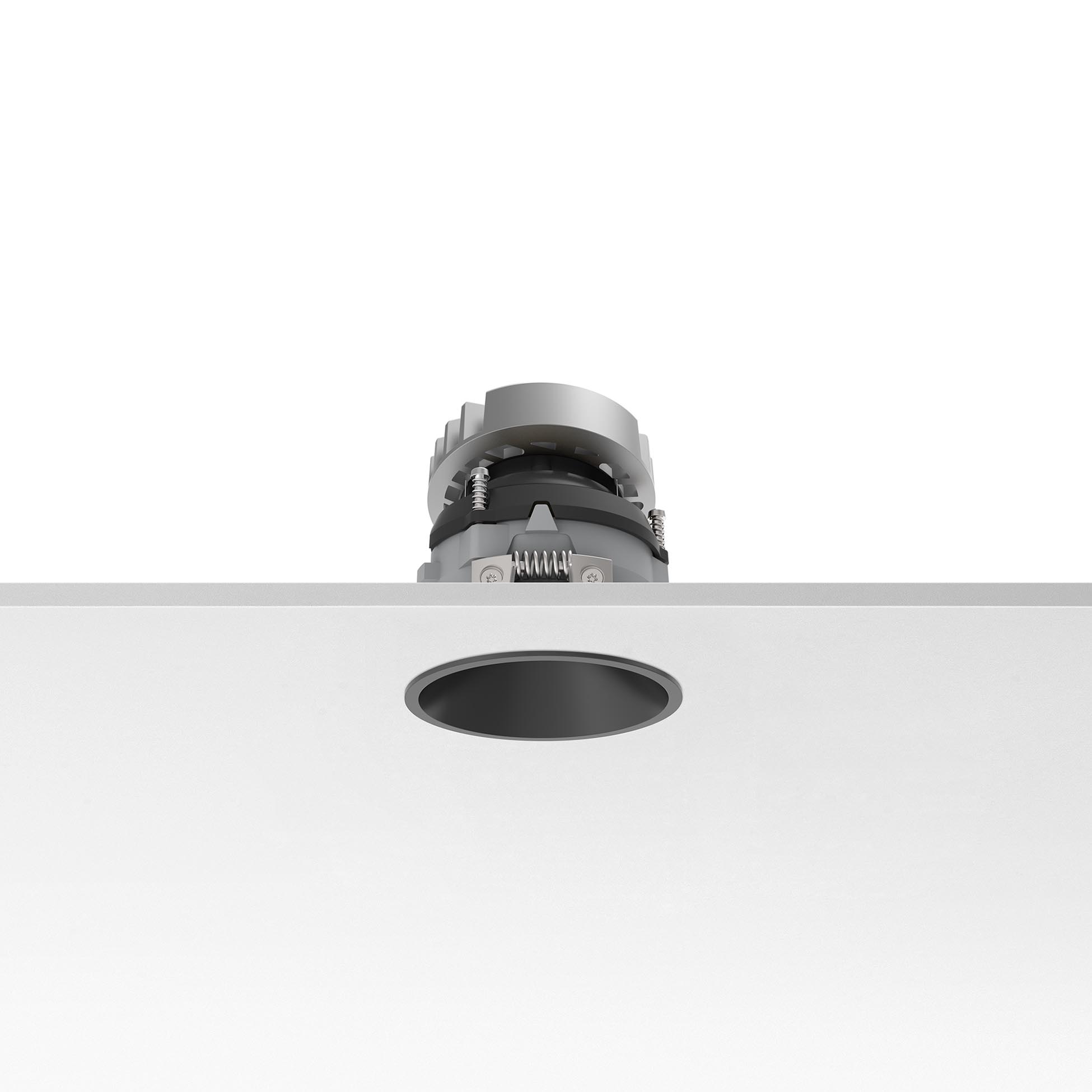

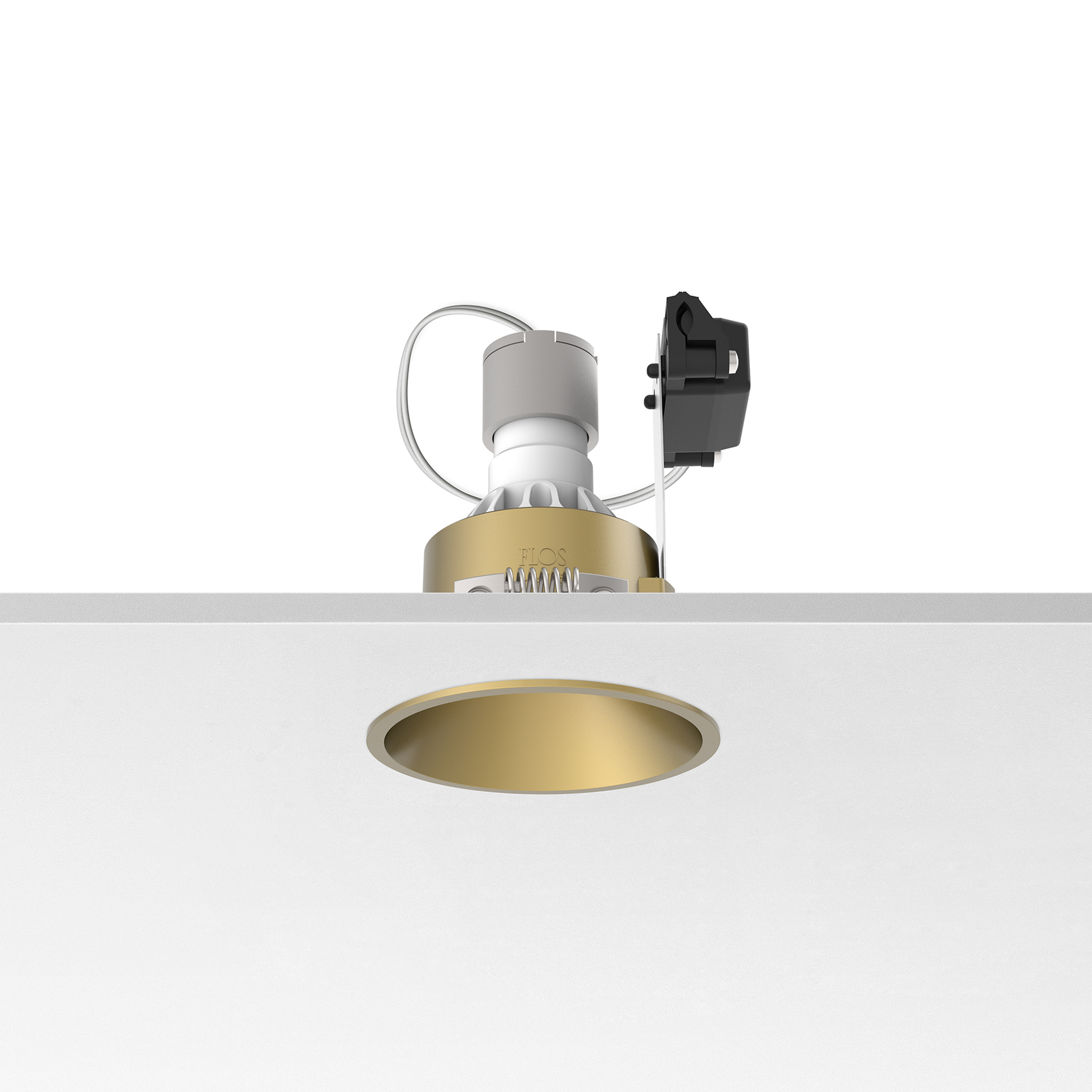

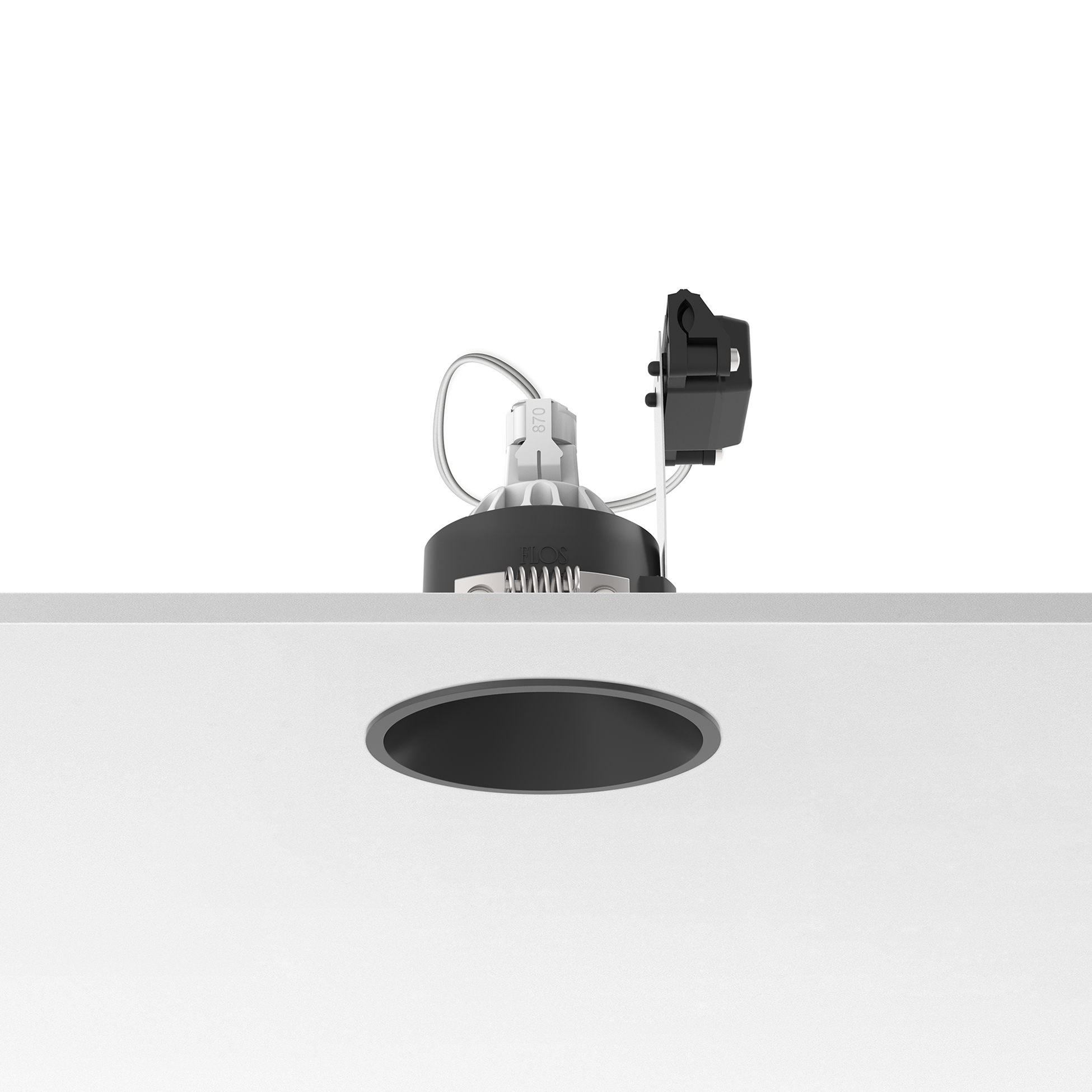

03.4298.GL	Easy Kap Ø 80 Fixed Optic Flood	9.2	660	2700	90	45	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4298.B1	Easy Kap Ø 80 Fixed Optic Flood	9.2	688	2700	90	50	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4298.74	Easy Kap Ø 80 Fixed Optic Flood	9.2	599	2700	90	50	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4297.GL.LE	Easy Kap Ø 80 Fixed Optic Flood - Dim-To-Warm	9.9	690	2850-1800	95	47	Dimmable 1-10V	Ceiling recessed
03.4297.GL	Easy Kap Ø 80 Fixed Optic Flood	9.2	687	3000	90	45	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4297.B1.LE	Easy Kap Ø 80 Fixed Optic Flood - Dim-To-Warm	9.9	729	2850-1800	95	49	Dimmable 1-10V	Ceiling recessed
03.4297.B1	Easy Kap Ø 80 Fixed Optic Flood	9.2	715	3000	90	50	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4297.74.LE	Easy Kap Ø 80 Fixed Optic Flood - Dim-To-Warm	9.9	622	2850-1800	95	54	Dimmable 1-10V	Ceiling recessed
03.4297.74	Easy Kap Ø 80 Fixed Optic Flood	9.2	623	3000	90	50	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed

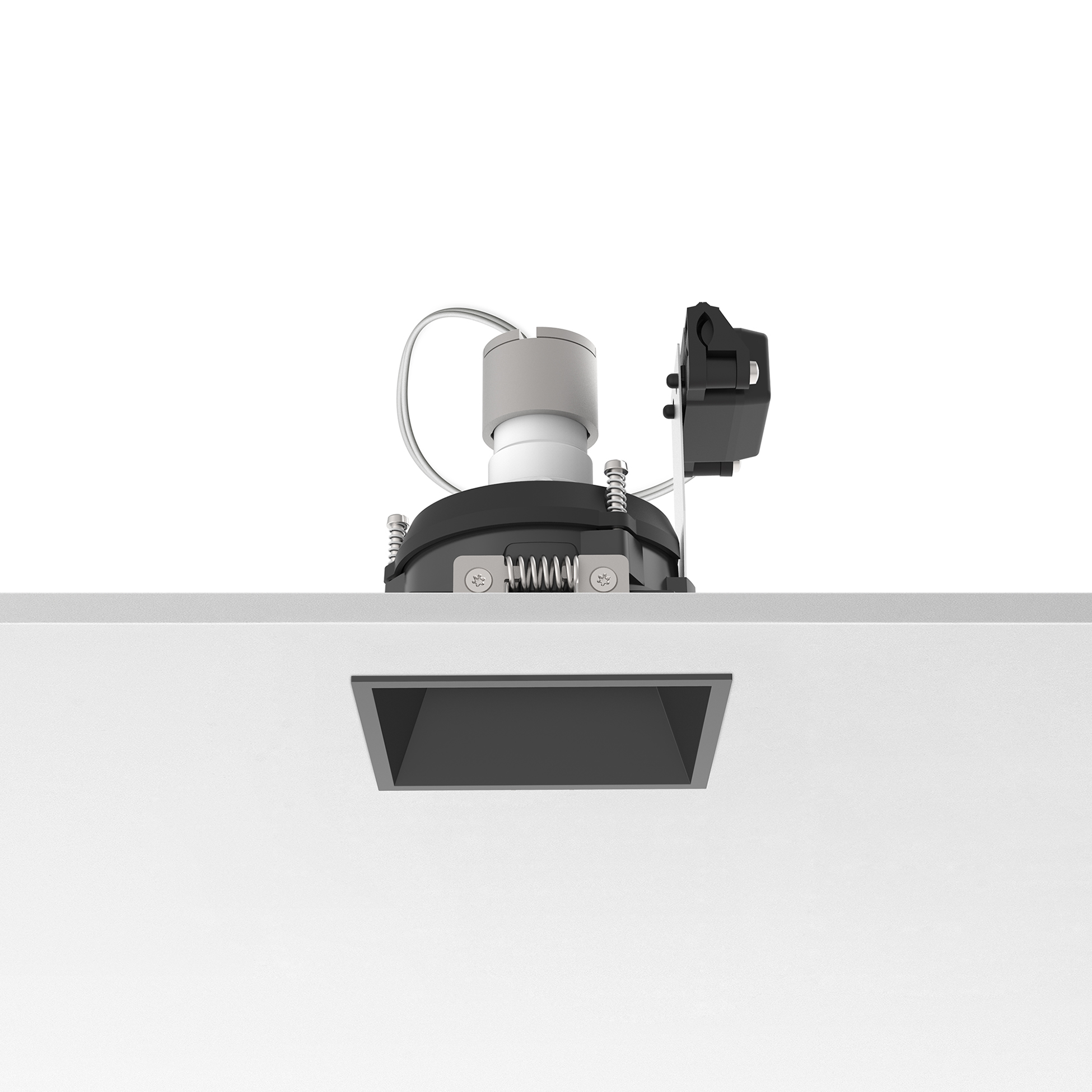

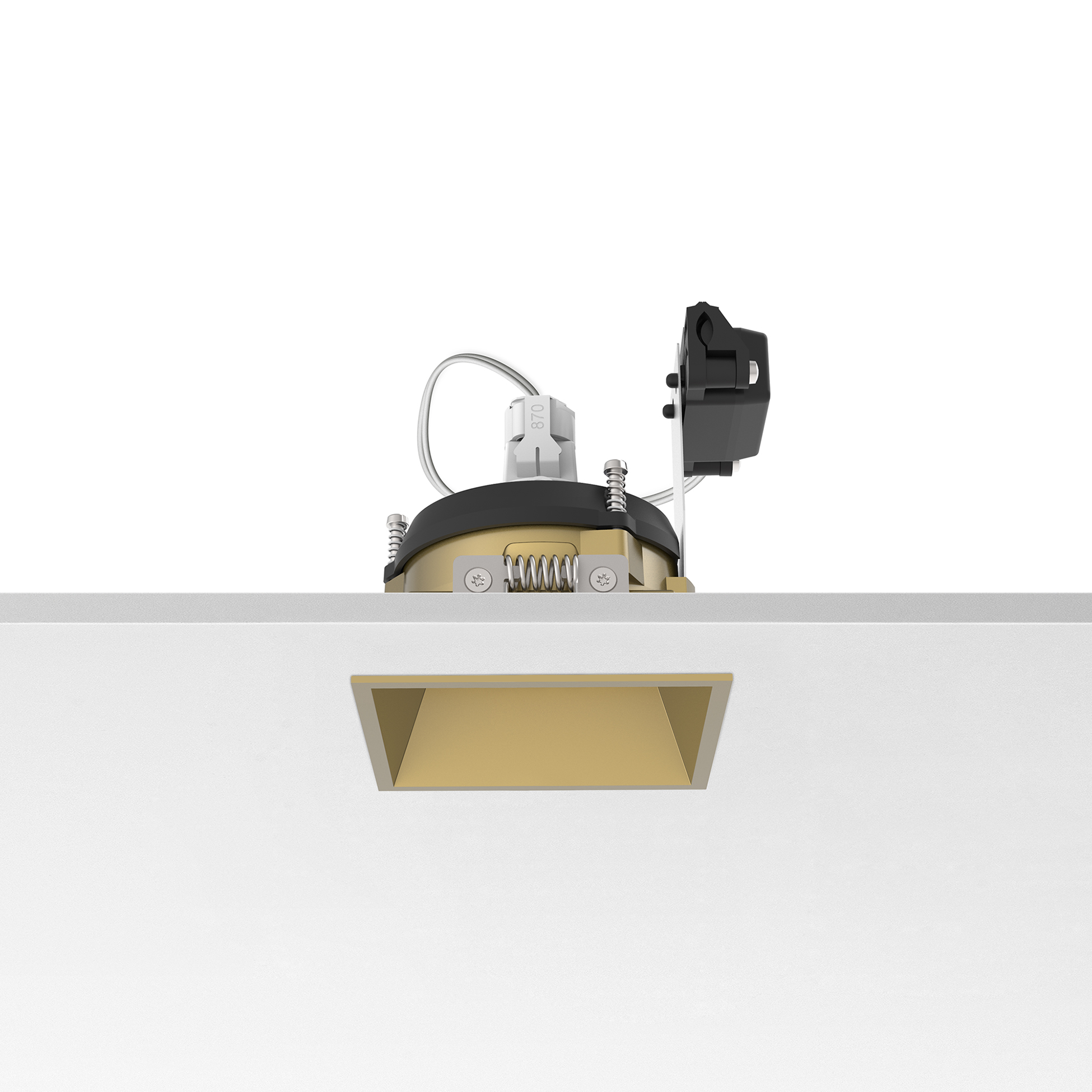

03.4296.GL	Easy Kap 80 Square Adjustable Optic Flood	9.2	698	2700	90	50	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4296.B1	Easy Kap 80 Square Adjustable Optic Flood	9.2	722	2700	90	53	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4296.74	Easy Kap 80 Square Adjustable Optic Flood	9.2	642	2700	90	55	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4295.GL.LE	Easy Kap 80 Square Adjustable Optic Flood - Dim-To-Warm	9.9	720	2850-1800	95	53	Dimmable 1-10V	Ceiling recessed
03.4295.GL	Easy Kap 80 Square Adjustable Optic Flood	9.2	726	3000	90	50	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4295.B1.LE	Easy Kap 80 Square Adjustable Optic Flood - Dim-To-Warm	9.9	732	2850-1800	95	53	Dimmable 1-10V	Ceiling recessed
03.4295.B1	Easy Kap 80 Square Adjustable Optic Flood	9.2	751	3000	90	53	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4295.74.LE	Easy Kap 80 Square Adjustable Optic Flood - Dim-To-Warm	9.9	660	2850-1800	95	55	Dimmable 1-10V	Ceiling recessed
03.4295.74	Easy Kap 80 Square Adjustable Optic Flood	9.2	668	3000	90	55	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4294.GL	Easy Kap 80 Square Adjustable Optic Spot	9.2	722	2700	90	17	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4294.B1	Easy Kap 80 Square Adjustable Optic Spot	9.2	738	2700	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4294.74	Easy Kap 80 Square Adjustable Optic Spot	9.2	674	2700	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4293.GL.LE	Easy Kap 80 Square Adjustable Optic Spot - Dim-To-Warm	9.9	728	2850-1800	95	18	Dimmable 1-10V	Ceiling recessed
03.4293.GL	Easy Kap 80 Square Adjustable Optic Spot	9.2	642	3000	90	17	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4293.B1.LE	Easy Kap 80 Square Adjustable Optic Spot - Dim-To-Warm	9.9	754	2850-1800	95	18	Dimmable 1-10V	Ceiling recessed
03.4293.B1	Easy Kap 80 Square Adjustable Optic Spot	9.2	768	3000	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4293.74.LE	Easy Kap 80 Square Adjustable Optic Spot - Dim-To-Warm	9.9	685	2850-1800	95	18	Dimmable 1-10V	Ceiling recessed
03.4293.74	Easy Kap 80 Square Adjustable Optic Spot	9.2	702	3000	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4288.GL	Easy Kap Ø 80 Fixed Optic Spot	9.2	684	2700	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4288.B1	Easy Kap Ø 80 Fixed Optic Spot	9.2	710	2700	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4288.74	Easy Kap Ø 80 Fixed Optic Spot	9.2	628	2700	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4287.GL.LE	Easy Kap Ø 80 Fixed Optic Spot - Dim-To-Warm	9.9	696	2850-1800	95	19	Dimmable 1-10V	Ceiling recessed
03.4287.GL	Easy Kap Ø 80 Fixed Optic Spot	9.2	712	3000	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4287.B1.LE	Easy Kap Ø 80 Fixed Optic Spot - Dim-To-Warm	9.9	740	2850-1800	95	20	Dimmable 1-10V	Ceiling recessed
03.4287.B1	Easy Kap Ø 80 Fixed Optic Spot	9.2	739	3000	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4287.74.LE	Easy Kap Ø 80 Fixed Optic Spot - Dim-To-Warm	9.9	632	2850-1800	95	19	Dimmable 1-10V	Ceiling recessed
03.4287.74	Easy Kap Ø 80 Fixed Optic Spot	9.2	654	3000	90	19	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed

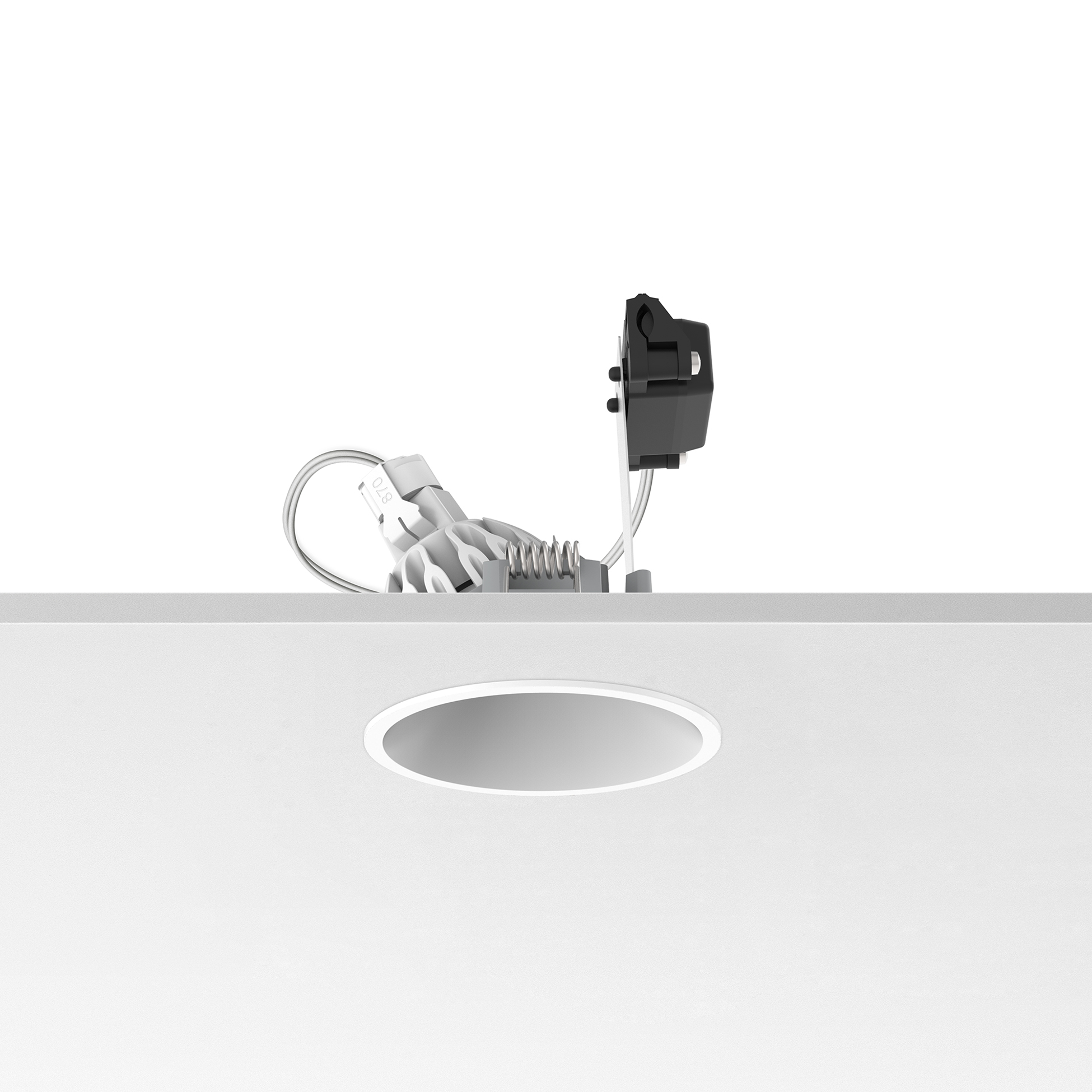

03.4221.GL	Easy Kap Ø 80 Wall-Washer	-	-	-	-	18	-	Ceiling recessed
03.4221.B1	Easy Kap Ø 80 Wall-Washer	-	-	-	-	19	-	Ceiling recessed
03.4221.74	Easy Kap Ø 80 Wall-Washer	-	-	-	-	20	-	Ceiling recessed
03.4220.GL	Easy Kap Ø 80 Wall-Washer	-	-	-	-	-	-	Ceiling recessed
03.4220.B1	Easy Kap Ø 80 Wall-Washer	-	-	-	-	-	-	Ceiling recessed
03.4220.74	Easy Kap Ø 80 Wall-Washer	-	-	-	-	-	-	Ceiling recessed

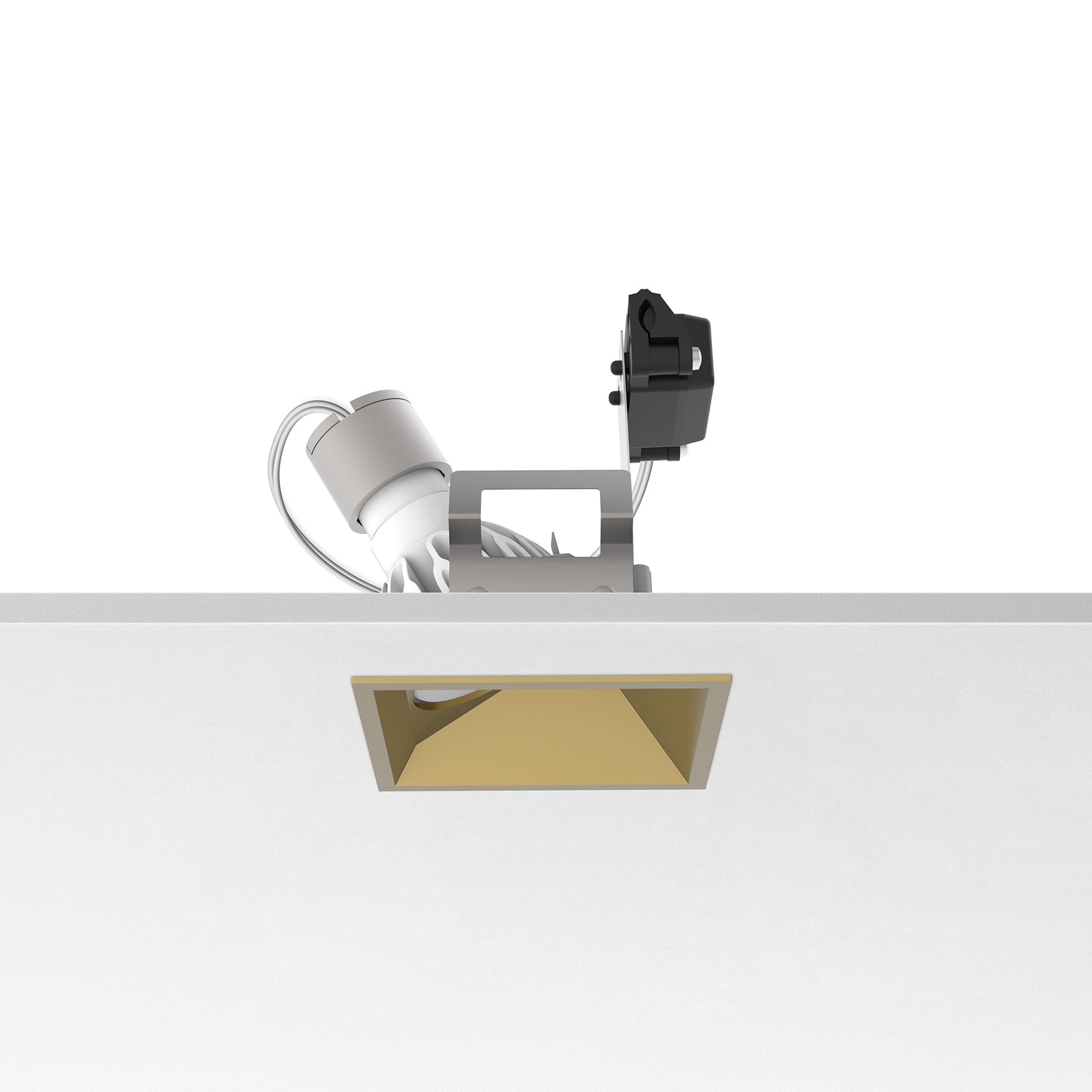

03.4219.GL	Easy Kap 80 Square Wall-Washer	-	-	-	-	-	-	Ceiling recessed
03.4219.B1	Easy Kap 80 Square Wall-Washer	-	-	-	-	-	-	Ceiling recessed
03.4219.74	Easy Kap 80 Square Wall-Washer	-	-	-	-	-	-	Ceiling recessed
03.4218.GL	Easy Kap 80 Square Wall-Washer	-	-	-	-	-	-	Ceiling recessed
03.4218.B1	Easy Kap 80 Square Wall-Washer	-	-	-	-	-	-	Ceiling recessed
03.4218.74	Easy Kap 80 Square Wall-Washer	-	-	-	-	-	-	Ceiling recessed

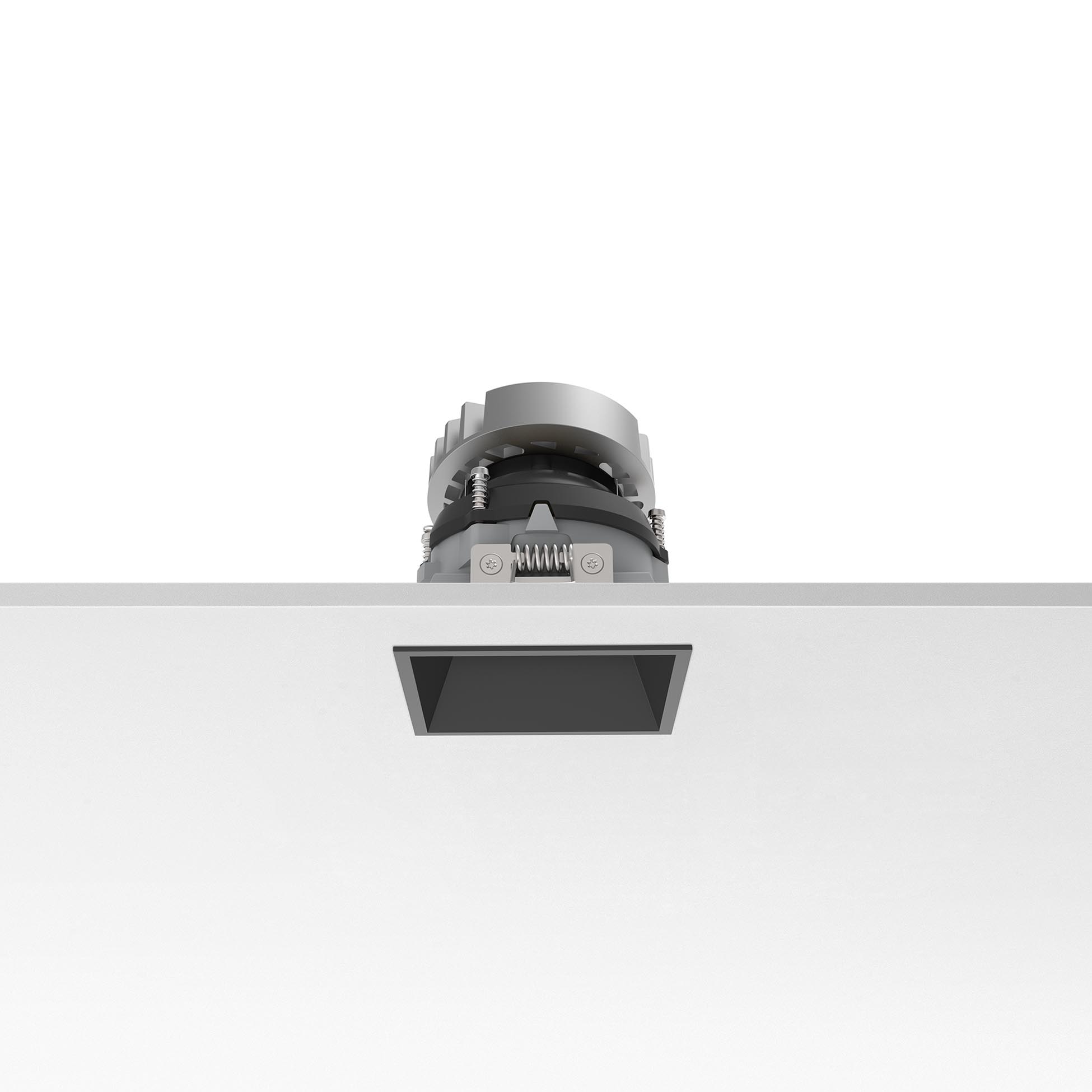

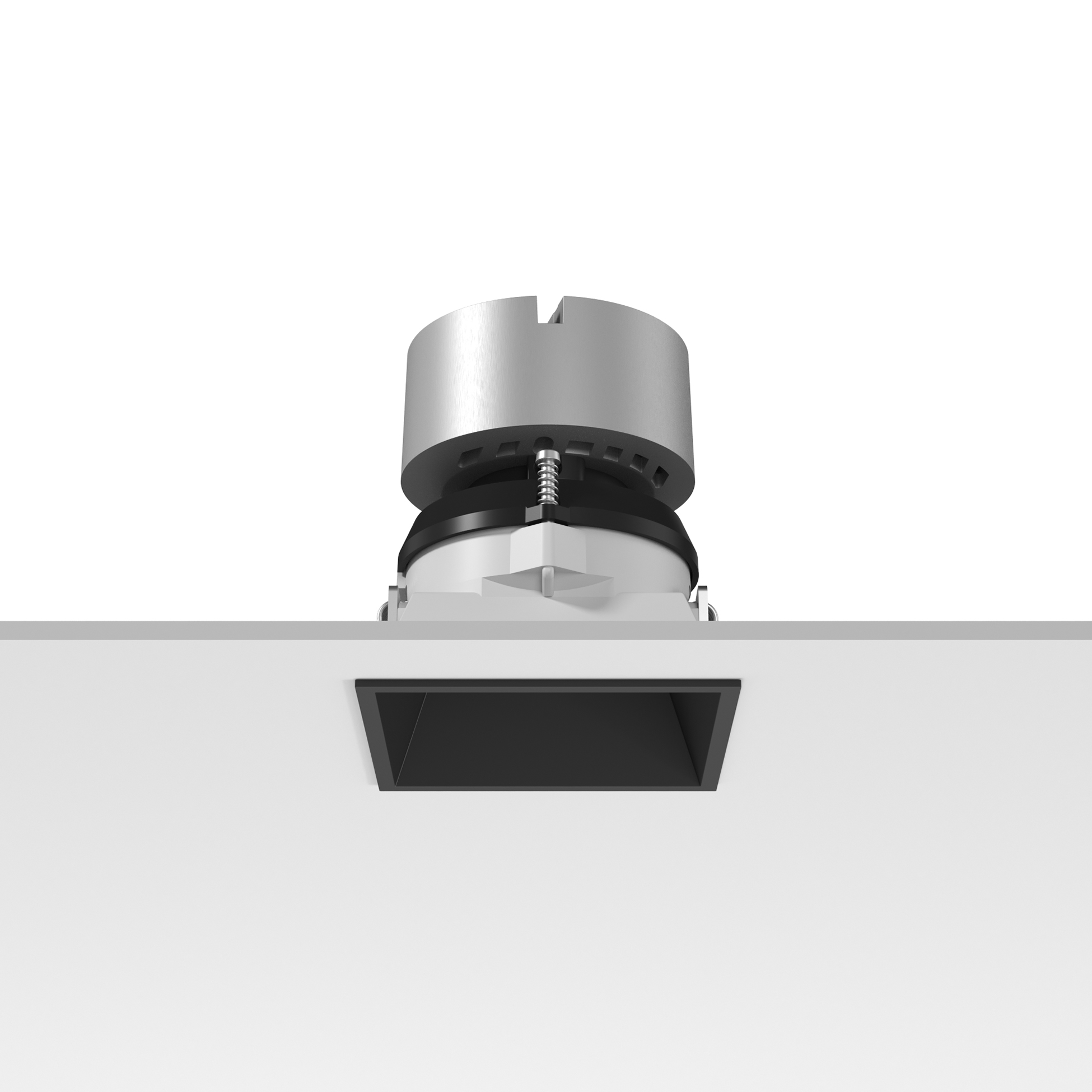

03.4213.GL	Easy Kap 80 Square Adjustable	-	-	-	-	-	-	Ceiling recessed
03.4213.B1	Easy Kap 80 Square Adjustable	-	-	-	-	-	-	Ceiling recessed
03.4213.74	Easy Kap 80 Square Adjustable	-	-	-	-	-	-	Ceiling recessed
03.4212.GL	Easy Kap 80 Square Adjustable	-	-	-	-	-	-	Ceiling recessed
03.4212.B1	Easy Kap 80 Square Adjustable	-	-	-	-	-	-	Ceiling recessed
03.4212.74	Easy Kap 80 Square Adjustable	-	-	-	-	-	-	Ceiling recessed

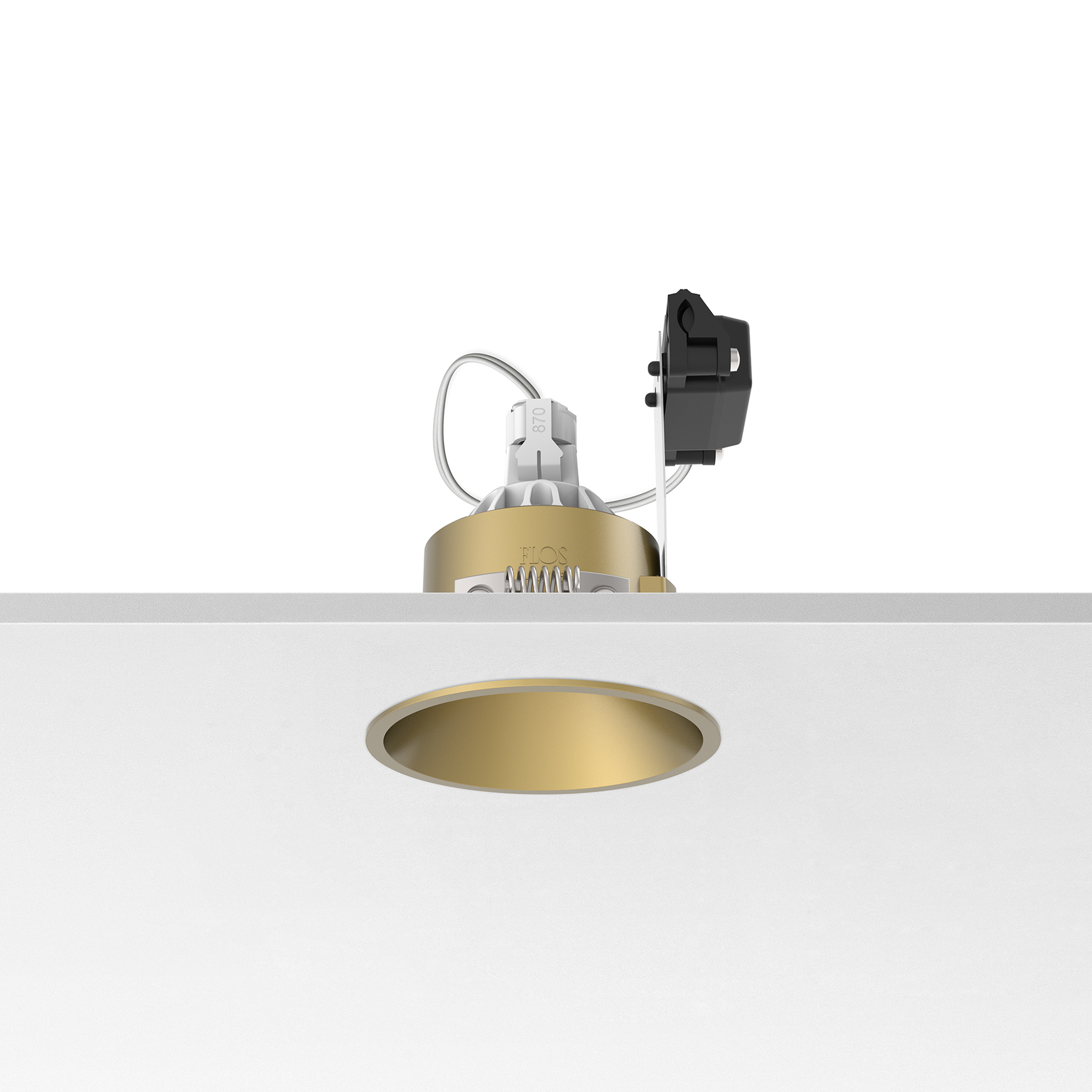

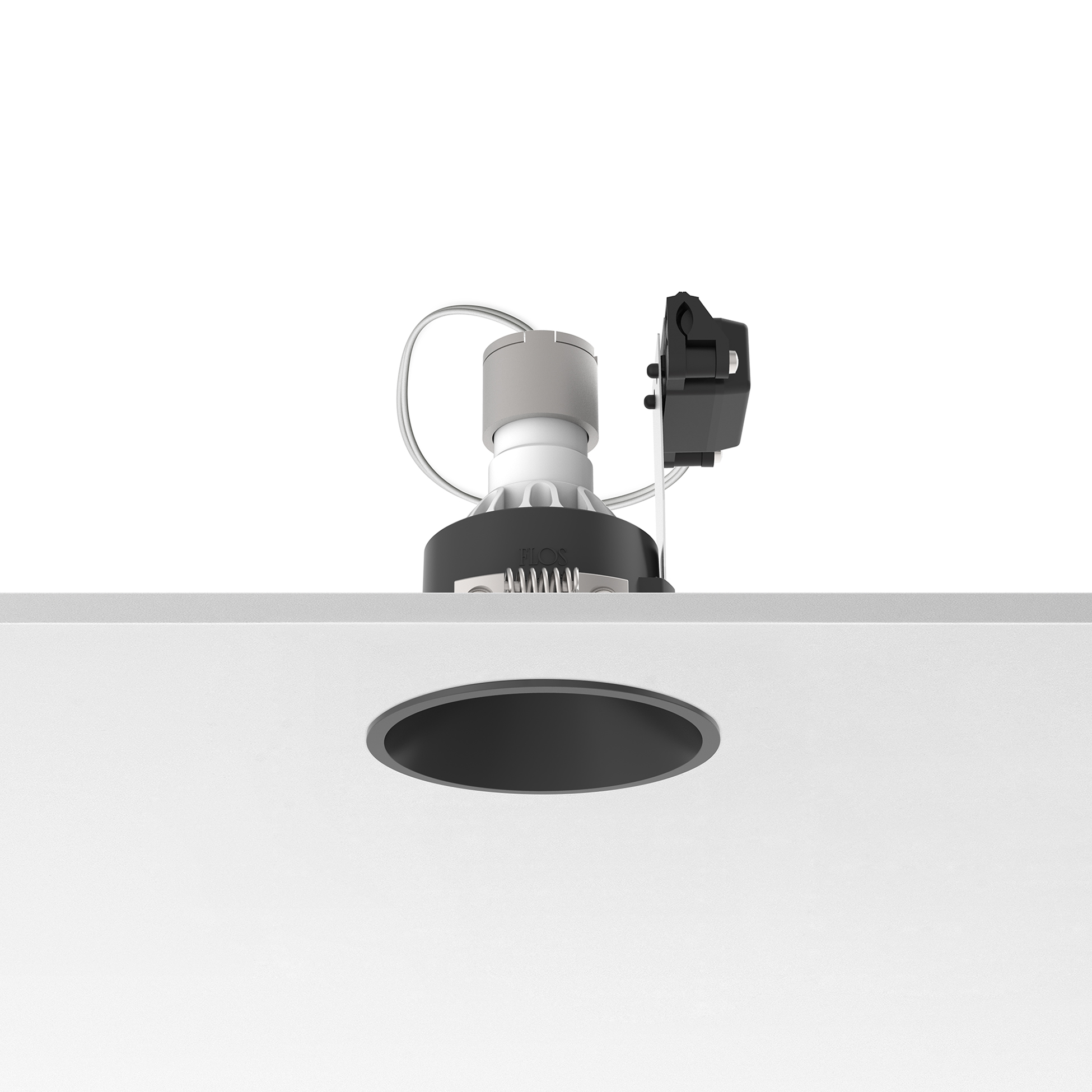

03.4211.GL	Easy Kap Ø 80 Fixed	-	-	-	-	-	-	Ceiling recessed
03.4211.B1	Easy Kap Ø 80 Fixed	-	-	-	-	-	-	Ceiling recessed
03.4211.74	Easy Kap Ø 80 Fixed	-	-	-	-	-	-	Ceiling recessed
03.4210.GL	Easy Kap Ø 80 Fixed	-	-	-	-	-	-	Ceiling recessed
03.4210.B1	Easy Kap Ø 80 Fixed	-	-	-	-	-	-	Ceiling recessed
03.4210.74	Easy Kap Ø 80 Fixed	-	-	-	-	-	-	Ceiling recessed

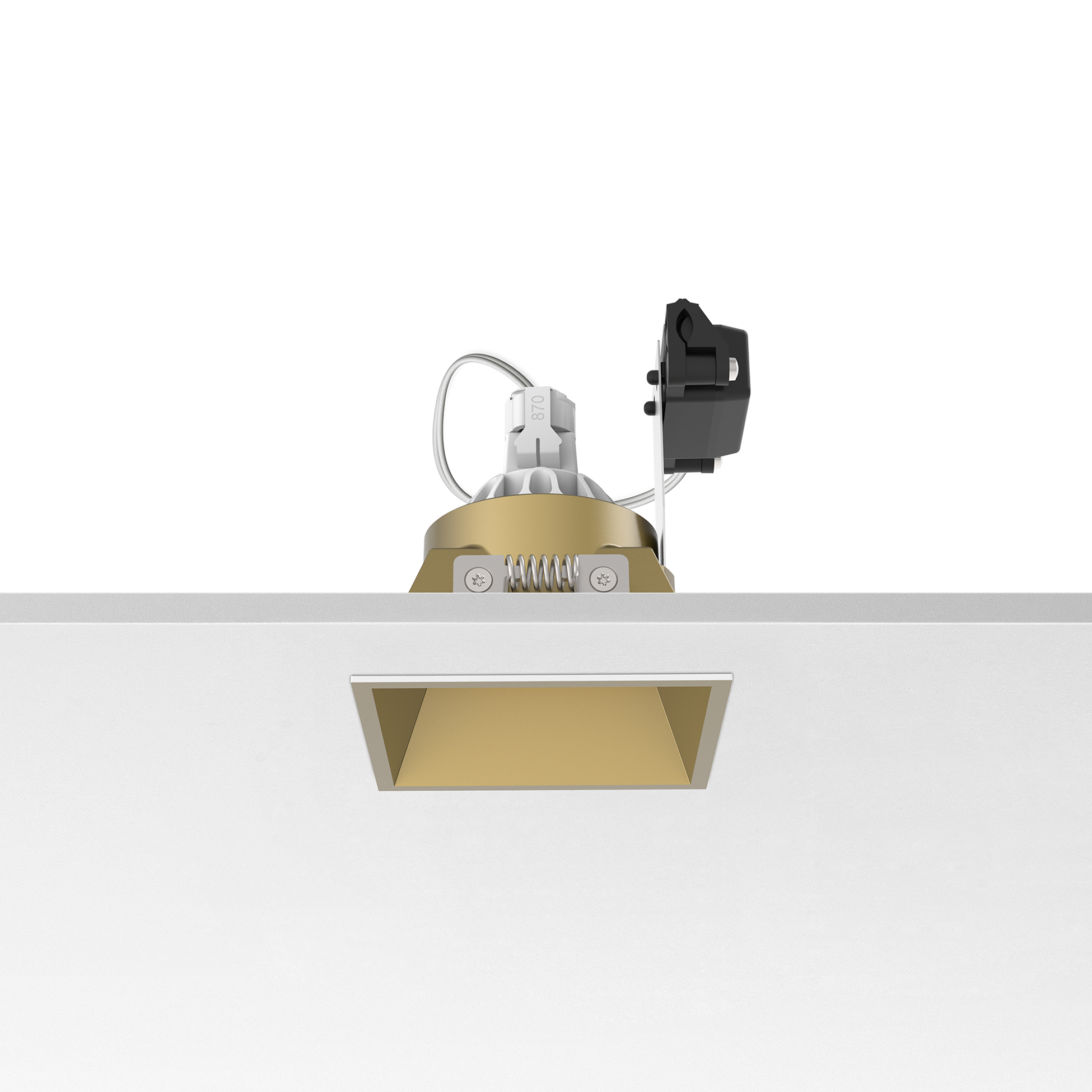

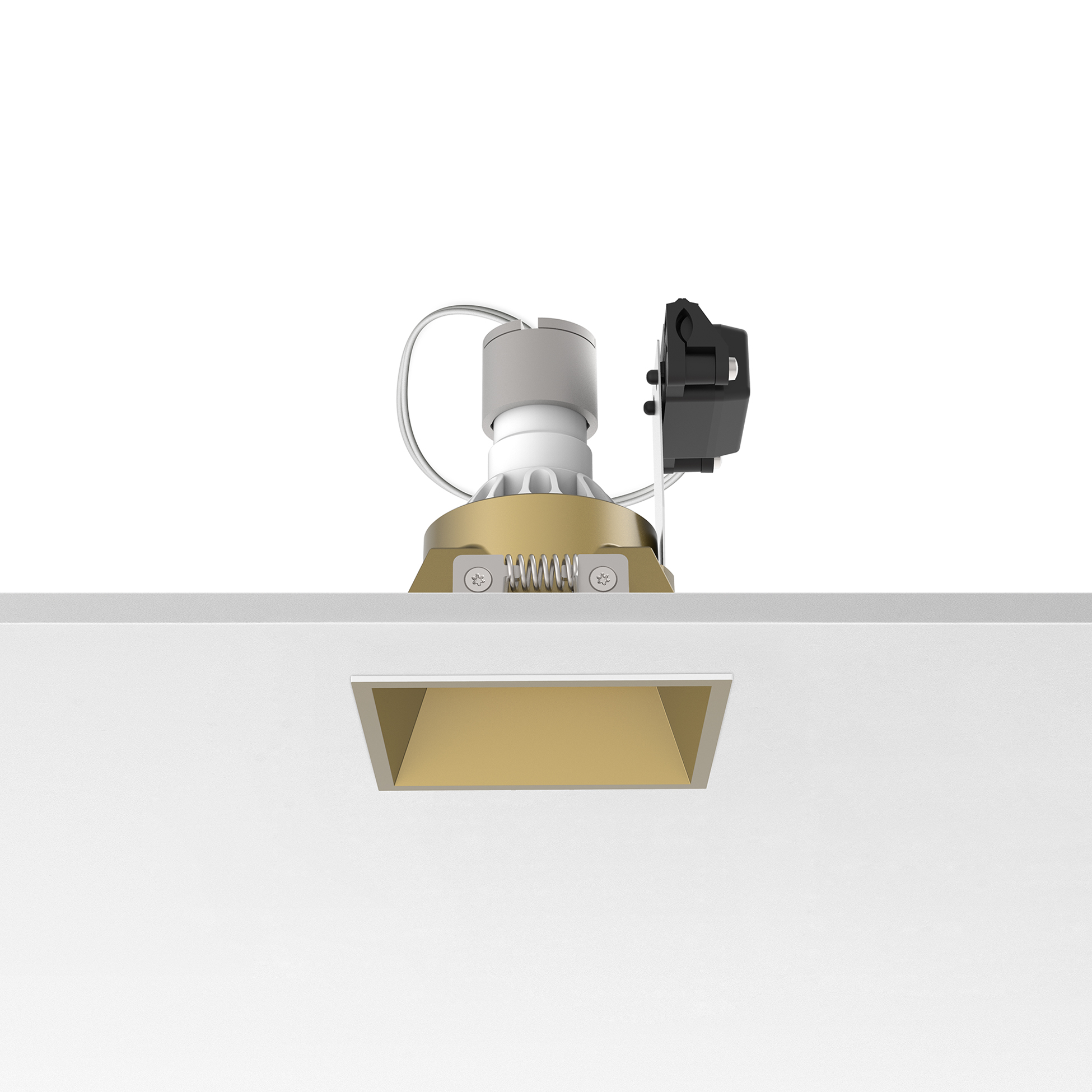

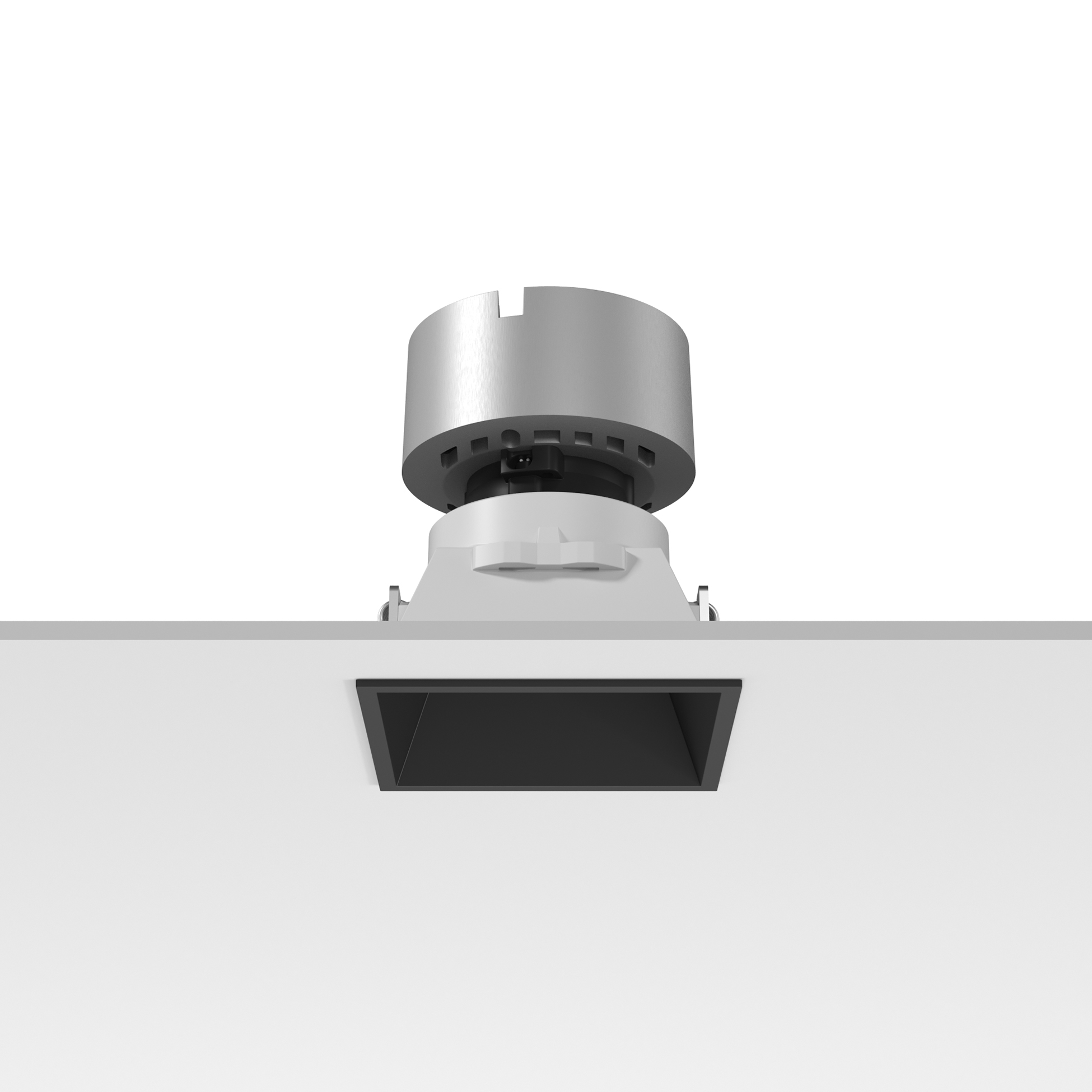

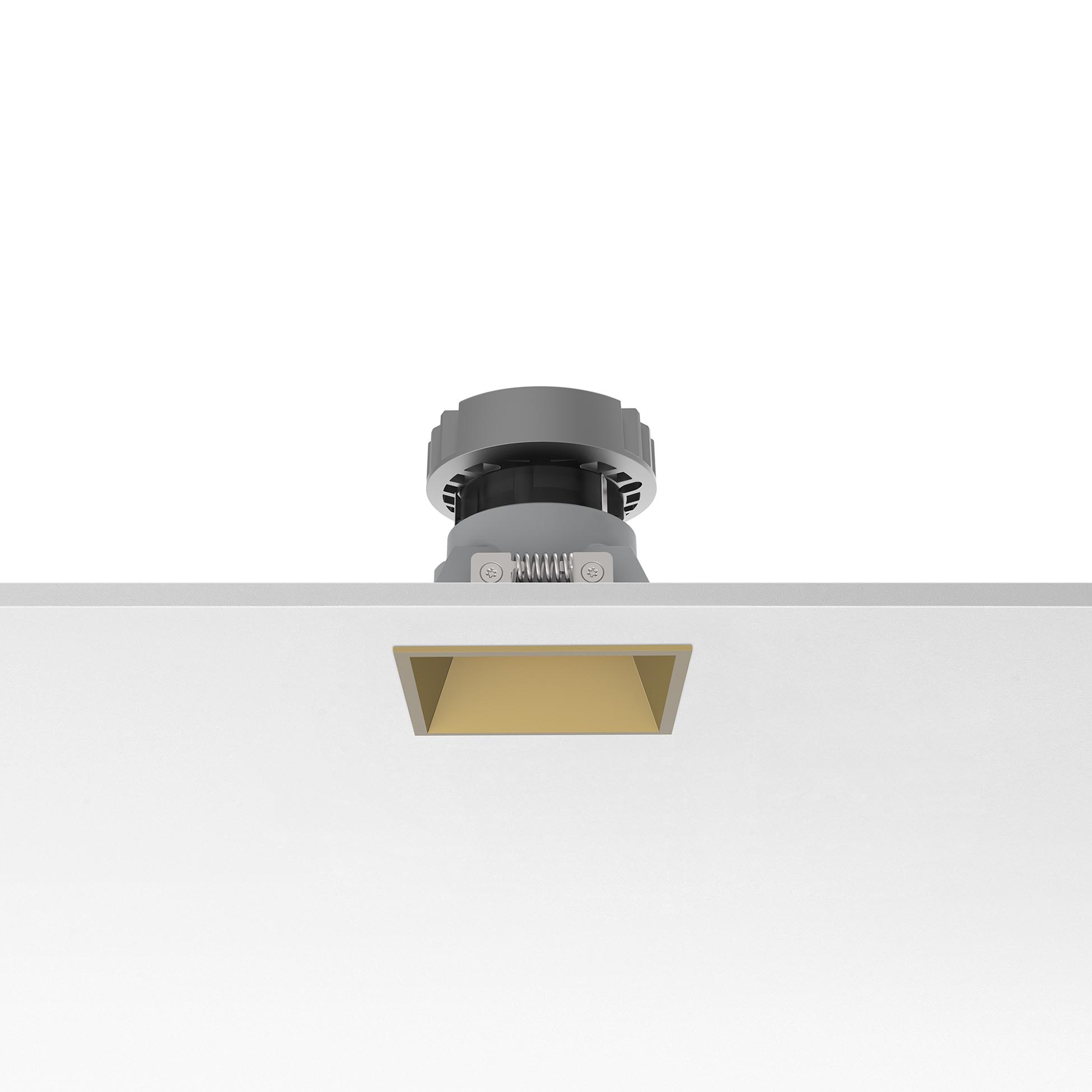

03.4209.GL	Easy Kap 80 Square Fixed	-	-	-	-	-	-	Ceiling recessed
03.4209.B1	Easy Kap 80 Square Fixed	-	-	-	-	-	-	Ceiling recessed
03.4209.74	Easy Kap 80 Square Fixed	-	-	-	-	-	-	Ceiling recessed
03.4208.GL	Easy Kap 80 Square Fixed	-	-	-	-	-	-	Ceiling recessed
03.4208.B1	Easy Kap 80 Square Fixed	-	-	-	-	-	-	Ceiling recessed
03.4208.74	Easy Kap 80 Square Fixed	-	-	-	-	-	-	Ceiling recessed
03.4201.GL	Easy Kap 80 Square Adjustable Optic Medium	9.2	609	2700	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4201.B1	Easy Kap 80 Square Adjustable Optic Medium	9.2	630	2700	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4201.74	Easy Kap 80 Square Adjustable Optic Medium	9.2	571	2700	90	27	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4200.GL.LE	Easy Kap 80 Square Adjustable Optic Medium - Dim-To-Warm	9.9	735	2850-1800	95	27	Dimmable 1-10V	Ceiling recessed
03.4200.GL	Easy Kap 80 Square Adjustable Optic Medium	9.2	634	3000	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4200.B1.LE	Easy Kap 80 Square Adjustable Optic Medium - Dim-To-Warm	9.9	752	2850-1800	95	26	Dimmable 1-10V	Ceiling recessed
03.4200.B1	Easy Kap 80 Square Adjustable Optic Medium	9.2	656	3000	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4200.74.LE	Easy Kap 80 Square Adjustable Optic Medium - Dim-To-Warm	9.9	685	2850-1800	95	27	Dimmable 1-10V	Ceiling recessed
03.4200.74	Easy Kap 80 Square Adjustable Optic Medium	9.2	594	3000	90	27	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4199.GL	Easy Kap 80 Square Wall-Washer	9.2	711	2700	90	28	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4199.B1	Easy Kap 80 Square Wall-Washer	9.2	625	2700	90	27	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4199.74	Easy Kap 80 Square Wall-Washer	9.2	571	2700	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4198.GL.LE	Easy Kap 80 Square Wall-Washer - Dim-To-Warm	9.9	721	2850-1800	95	28	Dimmable 1-10V	Ceiling recessed
03.4198.GL	Easy Kap 80 Square Wall-Washer	9.2	739	3000	90	28	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4198.B1.LE	Easy Kap 80 Square Wall-Washer - Dim-To-Warm	9.9	723	2850-1800	95	28	Dimmable 1-10V	Ceiling recessed
03.4198.B1	Easy Kap 80 Square Wall-Washer	9.2	650	3000	90	27	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4198.74.LE	Easy Kap 80 Square Wall-Washer - Dim-To-Warm	9.9	695	2850-1800	95	27	Dimmable 1-10V	Ceiling recessed
03.4198.74	Easy Kap 80 Square Wall-Washer	9.2	594	3000	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4197.GL	Easy Kap Ø 80 Wall-Washer	9.2	567	2700	90	30	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4197.B1	Easy Kap Ø 80 Wall-Washer	9.2	598	2700	90	28	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4197.74	Easy Kap Ø 80 Wall-Washer	9.2	545	2700	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4196.GL.LE	Easy Kap Ø 80 Wall-Washer - Dim-To-Warm	9.9	718	2850-1800	95	27	Dimmable 1-10V	Ceiling recessed
03.4196.GL	Easy Kap Ø 80 Wall-Washer	9.2	590	3000	90	30	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4196.B1.LE	Easy Kap Ø 80 Wall-Washer - Dim-To-Warm	9.9	770	2850-1800	95	28	Dimmable 1-10V	Ceiling recessed
03.4196.B1	Easy Kap Ø 80 Wall-Washer	9.2	622	3000	90	28	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4196.74.LE	Easy Kap Ø 80 Wall-Washer - Dim-To-Warm	9.9	682	2850-1800	95	28	Dimmable 1-10V	Ceiling recessed
03.4196.74	Easy Kap Ø 80 Wall-Washer	9.2	567	3000	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4195.GL	Easy Kap 80 Square Fixed Optic Medium	9.2	600	2700	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4195.B1	Easy Kap 80 Square Fixed Optic Medium	9.2	615	2700	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4195.74	Easy Kap 80 Square Fixed Optic Medium	9.2	559	2700	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4194.GL.LE	Easy Kap 80 Square Fixed Optic Medium - Dim-To-Warm	9.9	720	2850-1800	95	27	Dimmable 1-10V	Ceiling recessed
03.4194.GL	Easy Kap 80 Square Fixed Optic Medium	9.2	624	3000	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4194.B1.LE	Easy Kap 80 Square Fixed Optic Medium - Dim-To-Warm	9.9	750	2850-1800	95	27	Dimmable 1-10V	Ceiling recessed
03.4194.B1	Easy Kap 80 Square Fixed Optic Medium	9.2	640	3000	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4194.74.LE	Easy Kap 80 Square Fixed Optic Medium - Dim-To-Warm	9.9	669	2850-1800	95	27	Dimmable 1-10V	Ceiling recessed
03.4194.74	Easy Kap 80 Square Fixed Optic Medium	9.2	582	3000	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4193.GL	Easy Kap Ø 80 Fixed Optic Medium	9.2	594	2700	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4193.B1	Easy Kap Ø 80 Fixed Optic Medium	9.2	606	2700	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4193.74	Easy Kap Ø 80 Fixed Optic Medium	9.2	541	2700	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4192.GL.LE	Easy Kap Ø 80 Fixed Optic Medium - Dim-To-Warm	9.9	705	2850-1800	95	27	Dimmable 1-10V	Ceiling recessed
03.4192.GL	Easy Kap Ø 80 Fixed Optic Medium	9.2	618	3000	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4192.B1.LE	Easy Kap Ø 80 Fixed Optic Medium - Dim-To-Warm	9.9	735	2850-1800	95	27	Dimmable 1-10V	Ceiling recessed
03.4192.B1	Easy Kap Ø 80 Fixed Optic Medium	9.2	630	3000	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4192.74.LE	Easy Kap Ø 80 Fixed Optic Medium - Dim-To-Warm	9.9	637	2850-1800	95	28	Dimmable 1-10V	Ceiling recessed
03.4192.74	Easy Kap Ø 80 Fixed Optic Medium	9.2	563	3000	90	25	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4179.GL	Easy Kap 80 Square Fixed Optic Flood	9.2	704	2700	90	53	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4179.B1	Easy Kap 80 Square Fixed Optic Flood	9.2	723	2700	90	55	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4179.74	Easy Kap 80 Square Fixed Optic Flood	9.2	640	2700	90	55	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4178.GL.LE	Easy Kap 80 Square Fixed Optic Flood - Dim-To-Warm	9.9	715	2850-1800	95	53	Dimmable 1-10V	Ceiling recessed
03.4178.GL	Easy Kap 80 Square Fixed Optic Flood	9.2	732	3000	90	53	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4178.B1.LE	Easy Kap 80 Square Fixed Optic Flood - Dim-To-Warm	9.9	736	2850-1800	95	54	Dimmable 1-10V	Ceiling recessed
03.4178.B1	Easy Kap 80 Square Fixed Optic Flood	9.2	752	3000	90	55	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4178.74.LE	Easy Kap 80 Square Fixed Optic Flood - Dim-To-Warm	9.9	659	2850-1800	95	54	Dimmable 1-10V	Ceiling recessed
03.4178.74	Easy Kap 80 Square Fixed Optic Flood	9.2	666	3000	90	55	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4177.GL	Easy Kap 80 Square Fixed Optic Spot	9.2	732	2700	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4177.B1	Easy Kap 80 Square Fixed Optic Spot	9.2	741	2700	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4177.74	Easy Kap 80 Square Fixed Optic Spot	9.2	669	2700	90	17	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4176.GL.LE	Easy Kap 80 Square Fixed Optic Spot - Dim-To-Warm	9.9	719	2850-1800	95	18	Dimmable 1-10V	Ceiling recessed
03.4176.GL	Easy Kap 80 Square Fixed Optic Spot	9.2	762	3000	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4176.B1.LE	Easy Kap 80 Square Fixed Optic Spot - Dim-To-Warm	9.9	753	2850-1800	95	18	Dimmable 1-10V	Ceiling recessed
03.4176.B1	Easy Kap 80 Square Fixed Optic Spot	9.2	771	3000	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4176.74.LE	Easy Kap 80 Square Fixed Optic Spot - Dim-To-Warm	9.9	667	2850-1800	95	18	Dimmable 1-10V	Ceiling recessed
03.4176.74	Easy Kap 80 Square Fixed Optic Spot	9.2	696	3000	90	17	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4172.GL.LE	Easy Kap Ø 80 Adjustable Optic Flood - Dim-To-Warm	9.9	677	2850-1800	95	46	Dimmable 1-10V	Ceiling recessed
03.4172.GL	Easy Kap Ø 80 Adjustable Optic Flood	9.2	694	3000	90	45	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4172.B1.LE	Easy Kap Ø 80 Adjustable Optic Flood - Dim-To-Warm	9.9	707	2850-1800	95	51	Dimmable 1-10V	Ceiling recessed
03.4172.B1	Easy Kap Ø 80 Adjustable Optic Flood	9.2	716	3000	90	47	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4172.74.LE	Easy Kap Ø 80 Adjustable Optic Flood - Dim-To-Warm	9.9	608	2850-1800	95	54	Dimmable 1-10V	Ceiling recessed
03.4172.74	Easy Kap Ø 80 Adjustable Optic Flood	9.2	622	3000	90	53	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4171.GL.LE	Easy Kap Ø 80 Adjustable Optic Medium - Dim-To-Warm	9.9	695	2850-1800	95	26	Dimmable 1-10V	Ceiling recessed
03.4171.GL	Easy Kap Ø 80 Adjustable Optic Medium	9.2	648	3000	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4171.B1.LE	Easy Kap Ø 80 Adjustable Optic Medium - Dim-To-Warm	9.9	722	2850-1800	95	27	Dimmable 1-10V	Ceiling recessed
03.4171.B1	Easy Kap Ø 80 Adjustable Optic Medium	9.2	691	3000	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4171.74.LE	Easy Kap Ø 80 Adjustable Optic Medium - Dim-To-Warm	9.9	631	2850-1800	95	28	Dimmable 1-10V	Ceiling recessed
03.4171.74	Easy Kap Ø 80 Adjustable Optic Medium	9.2	585	3000	90	27	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4170.GL.LE	Easy Kap Ø 80 Adjustable Optic Spot - Dim-To-Warm	9.9	684	2850-1800	95	17	Dimmable 1-10V	Ceiling recessed
03.4170.GL	Easy Kap Ø 80 Adjustable Optic Spot	9.2	722	3000	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4170.B1.LE	Easy Kap Ø 80 Adjustable Optic Spot - Dim-To-Warm	9.9	716	2850-1800	95	18	Dimmable 1-10V	Ceiling recessed
03.4170.B1	Easy Kap Ø 80 Adjustable Optic Spot	9.2	732	3000	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4170.74.LE	Easy Kap Ø 80 Adjustable Optic Spot - Dim-To-Warm	9.9	629	2850-1800	95	17	Dimmable 1-10V	Ceiling recessed
03.4170.74	Easy Kap Ø 80 Adjustable Optic Spot	9.2	656	3000	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4162.GL	Easy Kap Ø 80 Adjustable	-	-	-	-	-	-	Ceiling recessed
03.4162.B1	Easy Kap Ø 80 Adjustable	-	-	-	-	-	-	Ceiling recessed
03.4162.74	Easy Kap Ø 80 Adjustable	-	-	-	-	-	-	Ceiling recessed
03.4160.GL	Easy Kap Ø 80 Adjustable	-	-	-	-	-	-	Ceiling recessed
03.4160.B1	Easy Kap Ø 80 Adjustable	-	-	-	-	-	-	Ceiling recessed
03.4160.74	Easy Kap Ø 80 Adjustable	-	-	-	-	-	-	Ceiling recessed
03.4157.GL	Easy Kap Ø 80 Adjustable Optic Flood	9.2	668	2700	90	45	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4157.B1	Easy Kap Ø 80 Adjustable Optic Flood	9.2	688	2700	90	47	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4157.74	Easy Kap Ø 80 Adjustable Optic Flood	9.2	598	2700	90	53	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4155.GL	Easy Kap Ø 80 Adjustable Optic Medium	9.2	623	2700	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4155.B1	Easy Kap Ø 80 Adjustable Optic Medium	9.2	664	2700	90	26	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4155.74	Easy Kap Ø 80 Adjustable Optic Medium	9.2	562	2700	90	27	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4153.GL	Easy Kap Ø 80 Adjustable Optic Spot	9.2	694	2700	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4153.B1	Easy Kap Ø 80 Adjustable Optic Spot	9.2	704	2700	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.4153.74	Easy Kap Ø 80 Adjustable Optic Spot	9.2	630	2700	90	18	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
